Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your OPONL 42-inch Black Ceiling Fan with Light and Remote Control. This modern ceiling fan is designed to provide comfort and illumination in various indoor settings such as bedrooms, living rooms, offices, kitchens, and study rooms. It features a quiet DC motor, reversible airflow, dimmable LED light with adjustable color temperature, and convenient remote control operation.

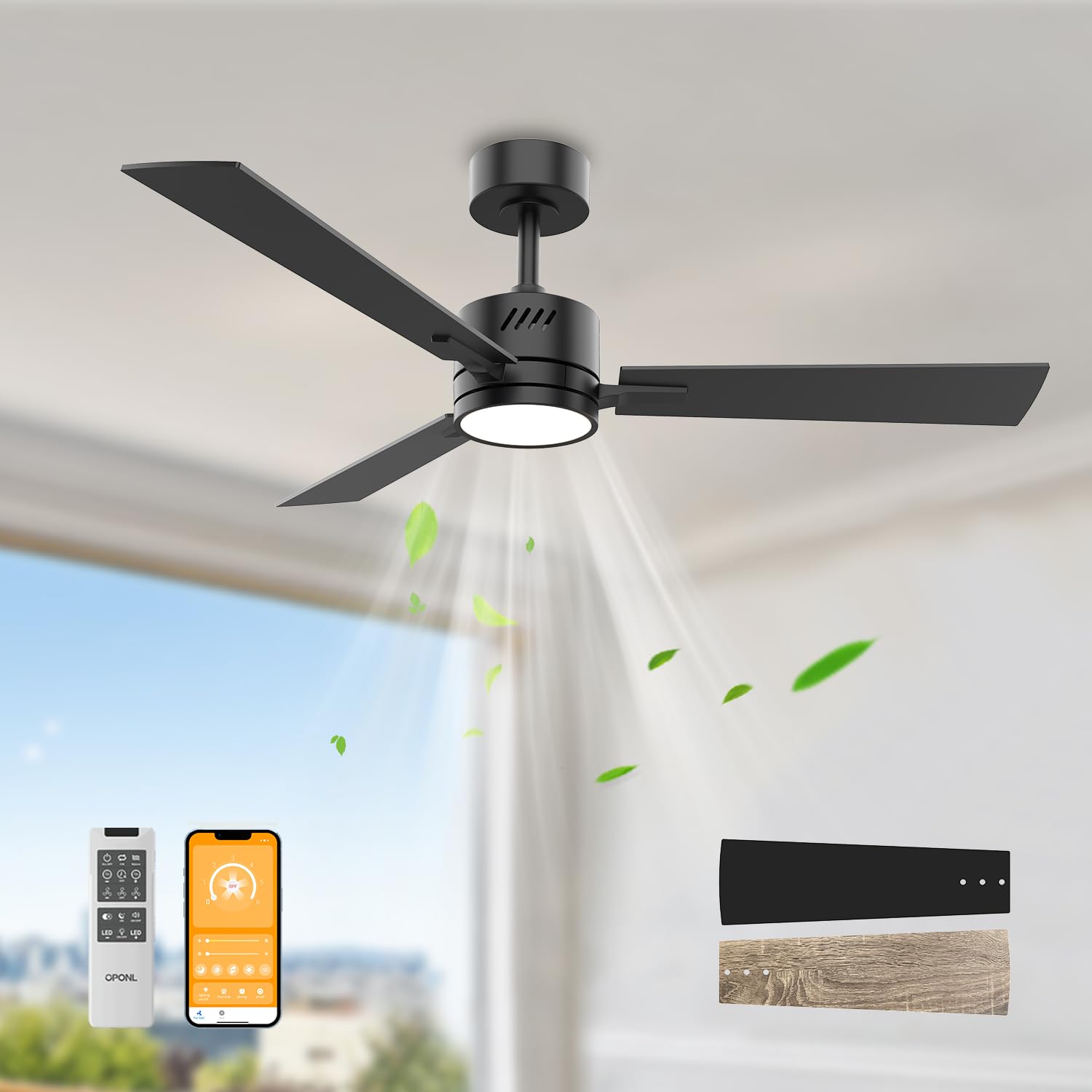

Image: OPONL 42 Inch Black Ceiling Fan with Light and Remote Control, showcasing its sleek design and integrated light.
Package Contents
Before beginning installation, ensure all components are present and undamaged. Refer to the unboxing video for a visual guide.
Video: OPONL 42 Inch Ceiling Fan Unboxing. This video demonstrates the contents of the product packaging and initial component identification.
Image: Remote control and key features including customizable light, night light mode, 6-speed adjustment, natural wind mode, 1-6 hour timing, reversible DC motor, and mute setting.
Installation Instructions
Follow these steps for safe and proper installation. A detailed installation video is also available.
- Attach Blades: Securely attach the fan blades to the motor housing using the provided screws. The blades are double-sided, allowing you to choose between black and walnut finishes.
- Assemble Downrod: Connect the downrod assembly to the fan motor. Ensure all wires are properly routed through the downrod.
- Mounting Bracket: Install the mounting bracket to your ceiling junction box. This fan supports both flush mount and angle mount (for slopes less than 5°).
- Wiring: Connect the fan's electrical wires to your household wiring according to local electrical codes. Ensure the power is off at the circuit breaker before wiring. This fan is suitable for conventional wall switches but not dimmer switches or gear switches.
- Hang Fan: Carefully lift the fan assembly and hang it onto the mounting bracket.
- Secure Canopy: Slide the canopy up to cover the wiring and mounting bracket, then secure it with screws.
Image: Illustration of the double-sided fan blades, offering black and wood grain options.
Image: Diagram showing flush mount and angle mount options, along with fan dimensions.
Image: Illustration showing compatible (conventional) and incompatible (dimmer/gear) wall switches.
Video: OPONL 42 inch Downrod Installation. This video provides a step-by-step guide for installing the downrod and mounting the fan.
For further assistance, scan the QR code below or visit the OPONL Store for installation videos.
Image: Easy installation guide with a QR code linking to an installation video.
Operating Instructions
Your OPONL ceiling fan is controlled by the included remote. Familiarize yourself with its functions for optimal use.
Remote Control Functions:
- Power On/Off: Turn the fan and light on or off.
- Fan Speed: Select from 6-level wind speeds.
- Light Color Temperature (CCT): Adjust the light from 3000K (warm white) to 6000K (cool white) with 6 color temperature options.
- Dimming: Smoothly dim the light from 15% to 100% brightness.
- Timing: Set a sleep shutdown timer for 1 to 6 hours.
- Reversible DC Motor: Switch between downdraft (summer) and updraft (winter) airflow.
- Natural Wind Mode: The fan speed cycles from level 1 to 6 in 30-second intervals, then from level 6 to 1 in 30-second intervals, simulating natural breezes.
- Night Light Mode: Provides a soft, low-level light suitable for nighttime.
- Memory Function: If the light is turned off by the remote for at least 10 seconds, its last color temperature and brightness settings are saved for the next use.
Images: Examples of the 6 adjustable color temperatures from 3000K to 6000K.
Image: Illustration of downdraft airflow for summer cooling and updraft airflow for winter heat distribution.
Image: Explanation of the natural wind mode, detailing the fan speed cycle.
Image: Visual explanation of the memory function, showing how light settings are saved.
The remote control can be mounted on the wall for convenience, acting as a wall switch.
Image: The remote control shown in its wall-mounted holder, functioning as a wall switch.
Maintenance
To ensure optimal performance and longevity of your ceiling fan, follow these general maintenance guidelines:
- Cleaning: Regularly wipe down the fan blades and motor housing with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Tighten Screws: Periodically check and tighten all screws on the fan blades and mounting hardware to prevent wobbling or noise.
- Dusting: Dust the light cover and fan blades to maintain light output and airflow efficiency.
- Avoid Dampness: This fan is designed for indoor use and should not be exposed directly to rain or excessive dampness.
Image: Various indoor settings where the fan can be used, with a warning to avoid dampness.
Troubleshooting
If you encounter any issues with your fan, refer to the following common problems and solutions:
- Fan Not Operating: Check power connections, ensure the remote control has fresh batteries, and verify the wall switch is on.
- Light Not Working: Confirm power supply, check remote battery, and ensure the light function is activated on the remote.
- Excessive Noise: Ensure all screws are tightened, blades are balanced, and the fan is securely mounted. The DC motor is designed for quiet operation (below 30dB).
- Remote Control Issues: Ensure line of sight to the fan's receiver, replace remote batteries, and re-pair the remote if necessary (refer to specific pairing instructions in the full manual).
Image: Graphic illustrating the ultra-quiet operation of the fan, comparing its noise level to common sounds.
For persistent issues, contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | OPONL |
| Model Number | FJ1003A-3B-42BK6in |
| Product Dimensions | 42"D x 42"W x 13.31"H |
| Item Weight | 7.7 Pounds |
| Color | Black |
| Material | Engineering Wood, Metal (Blades: MDF) |
| Power Source | AC Input DC Motor (noiseless) |
| Voltage | 120 Volts (AC) |
| Wattage | 30 watts |
| Number of Blades | 3 |
| Number of Speeds | 6 |
| Light Type | LED |
| Controller Type | Remote Control |
| Mounting Type | Downrod Mount |
| Indoor/Outdoor Usage | Indoor |
| Certification | FCC |
Image: Detailed dimensions and weight of the 42-inch ceiling fan.
Image: Comparison highlighting the energy efficiency and quiet operation of the DC motor.
Warranty and Support
This OPONL ceiling fan comes with a 2-year warranty from the date of purchase, covering any quality problems. If you have any questions or encounter issues, please contact OPONL customer service. We aim to reply within 12 hours.
Contact Email: Service@Oponl.com
