Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your KuWFi AP1200F Dual Band Outdoor WiFi Extender. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance.
The KuWFi AP1200F is a dual-frequency 802.11ac outdoor wireless access point router designed to provide internet access for indoor and outdoor WiFi coverage, suitable for various applications including monitoring camera projects. It supports both 2.4GHz and 5.8GHz bands, offering high-speed wireless services.
Product Features

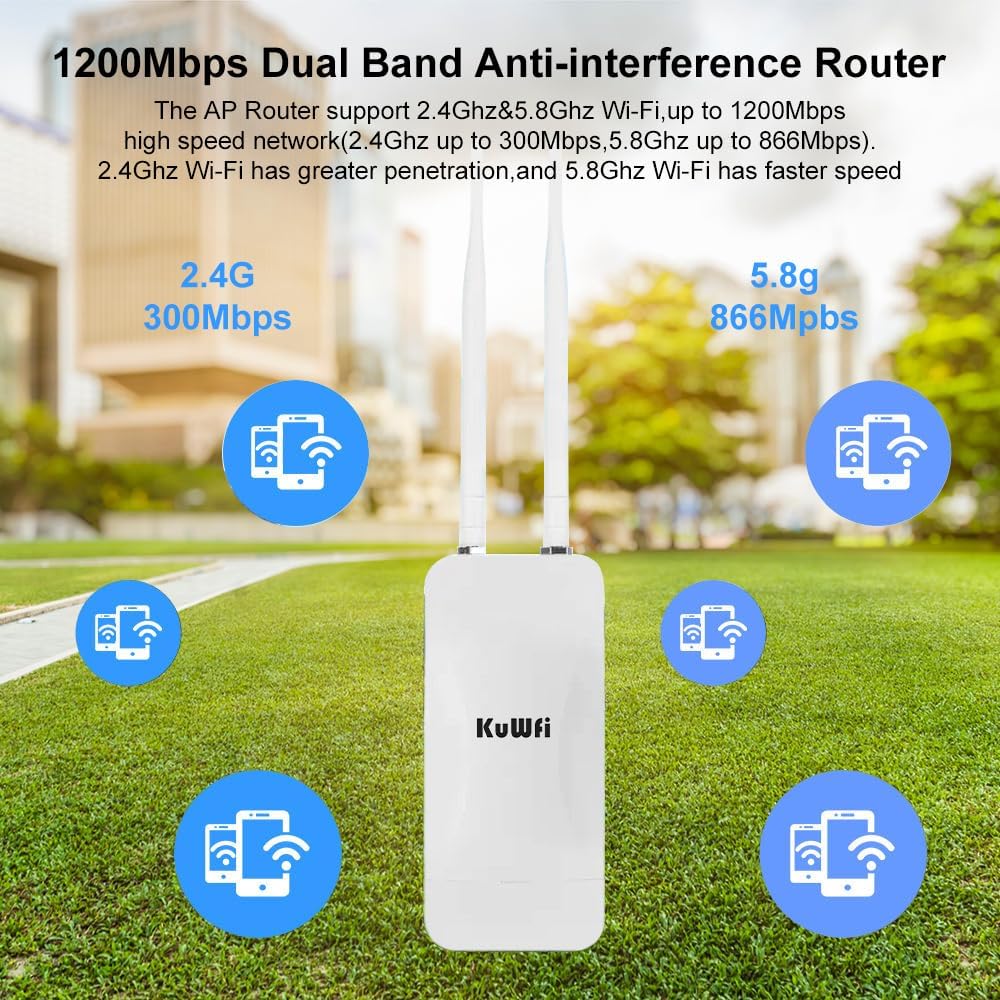

- Dual-Band High Speed: Provides 2.4GHz (up to 300Mbps) and 5.8GHz (up to 866Mbps) wireless services, with a maximum concurrent rate of up to 1200Mbps.
- Flexible Power Supply: Supports Power over Ethernet (PoE) for remote network cable power and 12V DC local connection.
- IP65 Weatherproof Design: IP65 rated for waterproof and dustproof protection, suitable for outdoor environments like yards, gardens, farms, parks, and squares.
- Multiple Operating Modes: Supports Gateway mode (WAN connection via static IP, DHCP, or PPPOE) and AP mode (extending wireless network signals).
- Detachable Antennas: Equipped with 5dBi high-gain detachable omnidirectional antennas for 360-degree signal diffusion and full WiFi coverage.
Package Contents
Please verify that all items are present and in good condition:
- KuWFi AP1200F Outdoor AP Unit
- 5dBi Detachable Antennas (x2)
- PoE Module (x1)
- Screws (x2)
- User Manual (this document)
Setup and Installation
1. Physical Installation

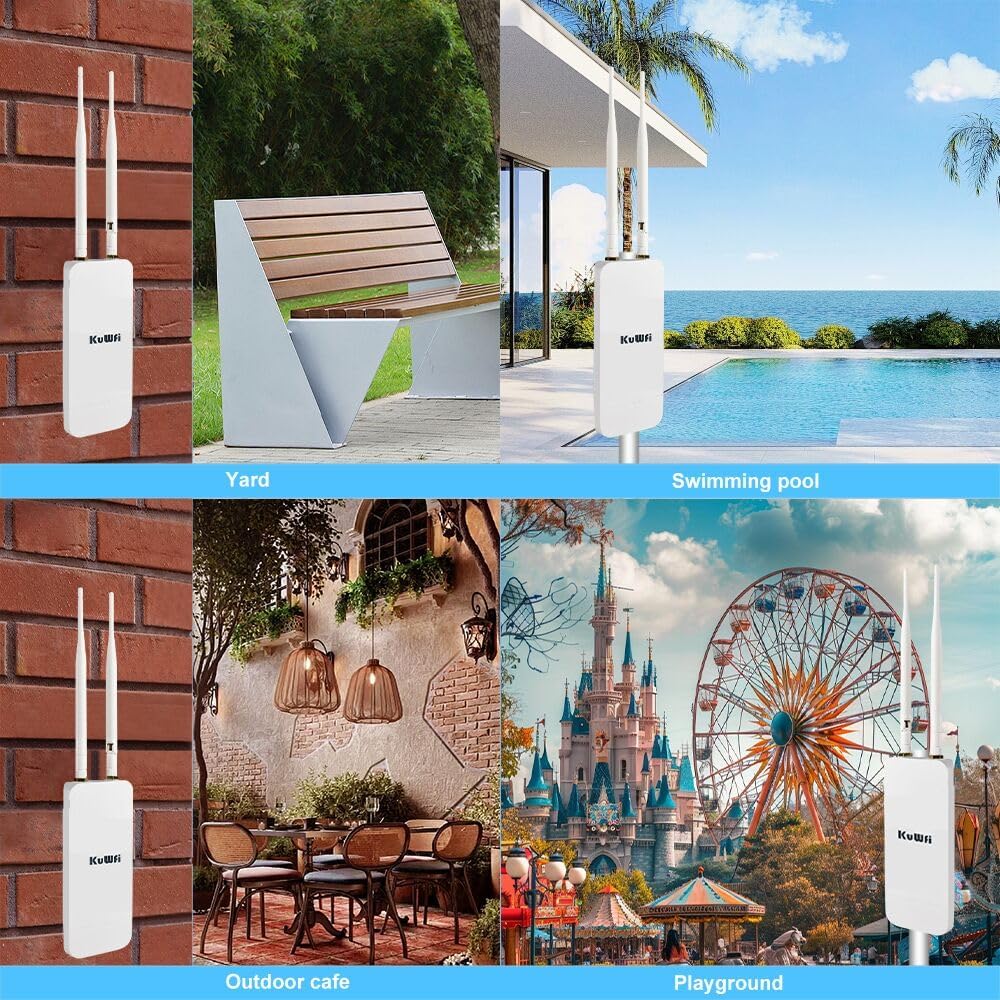

The AP1200F supports both wall-mounted and pole-mounted installations. Choose a location that provides optimal signal coverage and is protected from direct impact.
2. Power Connection
The device supports two power supply methods:
- PoE (Power over Ethernet): Connect an Ethernet cable from the PoE module to the WAN/PoE port on the AP1200F. The PoE module will supply both power and data.
- 12V DC Adapter: Connect a 12V DC power adapter (not included, but supported) to the DC power input port on the AP1200F.
3. Antenna Installation
Carefully screw the two 5dBi detachable antennas onto the antenna connectors on the top of the AP1200F unit. Ensure they are securely fastened but do not overtighten.
Operating Modes and Configuration
The KuWFi AP1200F supports multiple operating modes to suit different network requirements.
1. AP/Router Mode
In this mode, the AP1200F acts as a primary router or an access point connected directly to your modem or existing router, providing a new wireless network.
- Connect the WAN port of the AP1200F to your modem or router using an Ethernet cable.
- Access the device's web interface (refer to the default IP address in the specifications section) to configure WAN settings (Static IP, DHCP, or PPPOE) and wireless network details (SSID, password).
2. Repeater Mode

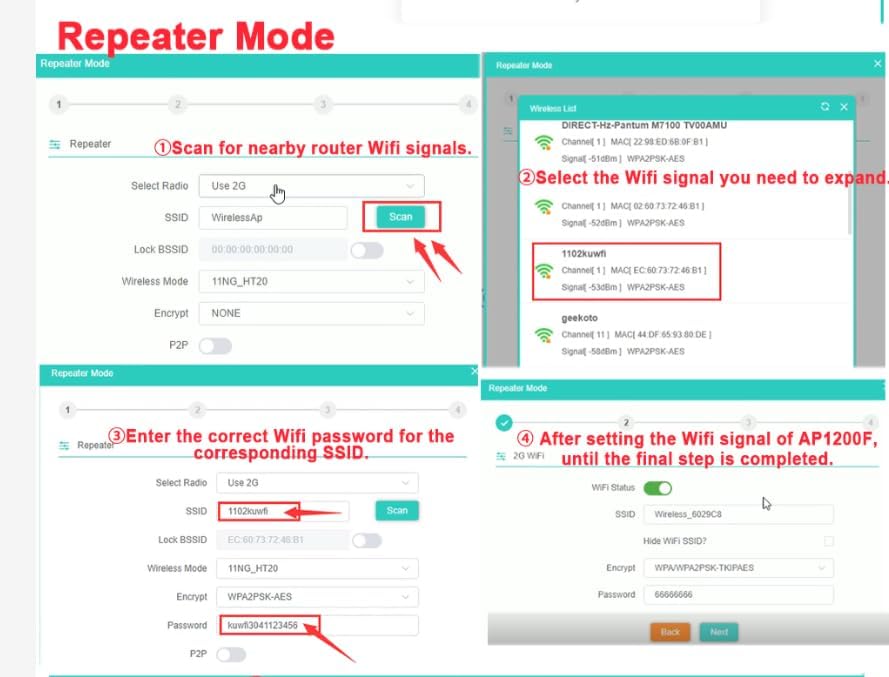

Repeater mode extends the range of an existing WiFi network. The AP1200F connects wirelessly to your current router and re-broadcasts the signal.
- Power on the AP1200F.
- Connect a computer or mobile device to the AP1200F's default WiFi network (SSID and password can be found on the device label or in specifications).
- Open a web browser and navigate to the device's web interface.
- Select "Repeater Mode" from the operating mode options.
- Scan for nearby WiFi signals and select the network you wish to extend.
- Enter the correct WiFi password for the selected network.
- Follow the on-screen prompts to complete the setup. The AP1200F will then extend the chosen WiFi network.
3. AP+Repeater Mode
This mode combines the functionality of an Access Point and a Repeater, allowing for extended coverage and additional wired connections.
- Similar to Repeater mode, but the device may also offer additional LAN ports for wired connections or create a separate SSID.
- Refer to the device's web interface for specific configuration options for this combined mode.
Maintenance and Care
- Cleaning: Use a soft, dry cloth to clean the device. Do not use liquid cleaners or aerosols.
- Environmental Protection: Although IP65 rated, avoid exposing the device to extreme conditions beyond its specified operating temperature range (-30°C to 55°C).
- Firmware Updates: Periodically check the KuWFi official website for firmware updates to ensure optimal performance and security.
- Antenna Care: Ensure antennas are securely attached. If signal degradation occurs, check antenna connections.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power/Device Not Turning On | Incorrect power connection; Faulty power adapter/PoE injector. | Ensure power cable is securely connected. Verify power source is active. Test with another power adapter/PoE injector if available. |
| No Internet Connection | Incorrect operating mode configuration; WAN cable disconnected; ISP issue. | Check operating mode settings in the web interface. Ensure WAN cable is properly connected. Contact your Internet Service Provider (ISP) if other devices also have no internet. |
| Weak WiFi Signal/Poor Coverage | Improper device placement; Obstructions; Antenna issues. | Relocate the AP1200F to a more central location with fewer obstructions. Ensure antennas are securely attached and oriented correctly. |
| Cannot Access Web Interface | Incorrect IP address; Network configuration issue on client device. | Verify the default IP address (check device label or manual). Ensure your computer/device is connected to the AP1200F's network. Try resetting network settings on your device. |
Specifications
| Feature | Detail |
|---|---|
| Model | AP1200F |
| Wireless Standard | 802.11ac |
| Data Transfer Rate | Up to 1200 Mbps (2.4GHz: 300Mbps, 5.8GHz: 866Mbps) |
| Frequency Bands | 2.4 GHz, 5 GHz (Dual-Band) |
| Antennas | 2x 5dBi Detachable Omnidirectional Antennas |
| Waterproof/Dustproof Rating | IP65 |
| Power Supply | PoE (Power over Ethernet), 12V DC |
| Operating Temperature | -30°C to 55°C |
| Compatible Devices | Smartphone, Laptop, Tablet, Personal Computer, Smart TV, Game Console |
| Coverage Range | Up to 150 meters radius (approx. 492 feet) |
| Max Connected Devices | Up to 64 devices |
Warranty and Support
KuWFi offers a comprehensive warranty and customer support for the AP1200F:
- 30-Day Refund Policy: For 30 days after the date of purchase, you may return your undamaged KuWFi outdoor AP product for a full refund for any reason.
- 12-Month Warranty: A 12-month warranty is provided for quality-related issues. For 12 months after the date of purchase, KuWFi will address all quality-related issues with a replacement or full refund.
- Technical Support: For technical assistance or inquiries, please visit the official KuWFi website or contact their customer service.
For more information, visit the KuWFi Store on Amazon.
