Introduction
The Lewitt Audio Connect 2 is a user-friendly USB audio interface designed to deliver pristine sound quality for voice and instrument recordings. It features intuitive touch-based controls, integrated sound processing, and versatile connectivity, making it an ideal solution for musicians, podcasters, live streamers, and voice actors.
Setup Guide
1. Unboxing and Package Contents
Upon opening your Lewitt Audio Connect 2 package, you will find the following items:
- 1 x CONNECT 2 audio interface
- 1 x USB-C to USB-C cable
- 1 x USB-C to USB-A cable
- License for Steinberg Cubase LE & Cubasis LE
Image: The Lewitt Connect 2 audio interface shown alongside its retail packaging.
2. Physical Connections
All primary connections for the Connect 2 are conveniently located on the rear panel to maintain a tidy workspace. Refer to the image below for detailed port identification.
Image: Rear view of the Lewitt Connect 2, highlighting its various input and output ports for audio and power.
- USB-C Connection: Connect the interface to your computer using the provided USB-C cable. The device is bus-powered, meaning it draws power directly from the USB connection.
- Microphone Preamp with 3-pin XLR Input: Plug in your microphone to this input.
- 48V Phantom Power: A dedicated button is available to supply 48V phantom power for condenser microphones.
- Hi-Z Input for Instruments (6.35 mm): Plug in your guitar or bass here.
- Balanced Output Jacks for Loudspeakers (6.35 mm L/R): Connect your studio monitors to these outputs.
- Two Headphone Outputs (3.5 mm / 6.35 mm): Connect your headphones for monitoring.
3. Software Installation
To unlock the full potential of your Connect 2, install the Lewitt Control Center software. This software provides comprehensive control over the interface's features and settings.
- Download the latest Lewitt Control Center software from the official Lewitt website.
- Follow the on-screen instructions to complete the installation.
- The Connect 2 also includes licenses for Steinberg Cubase LE and Cubasis LE, which can be downloaded and installed separately.
4. Auto Setup Feature
The Auto Setup feature simplifies the initial configuration of your microphone and instrument levels. This is particularly useful for beginners, ensuring optimal audio levels without manual adjustment.

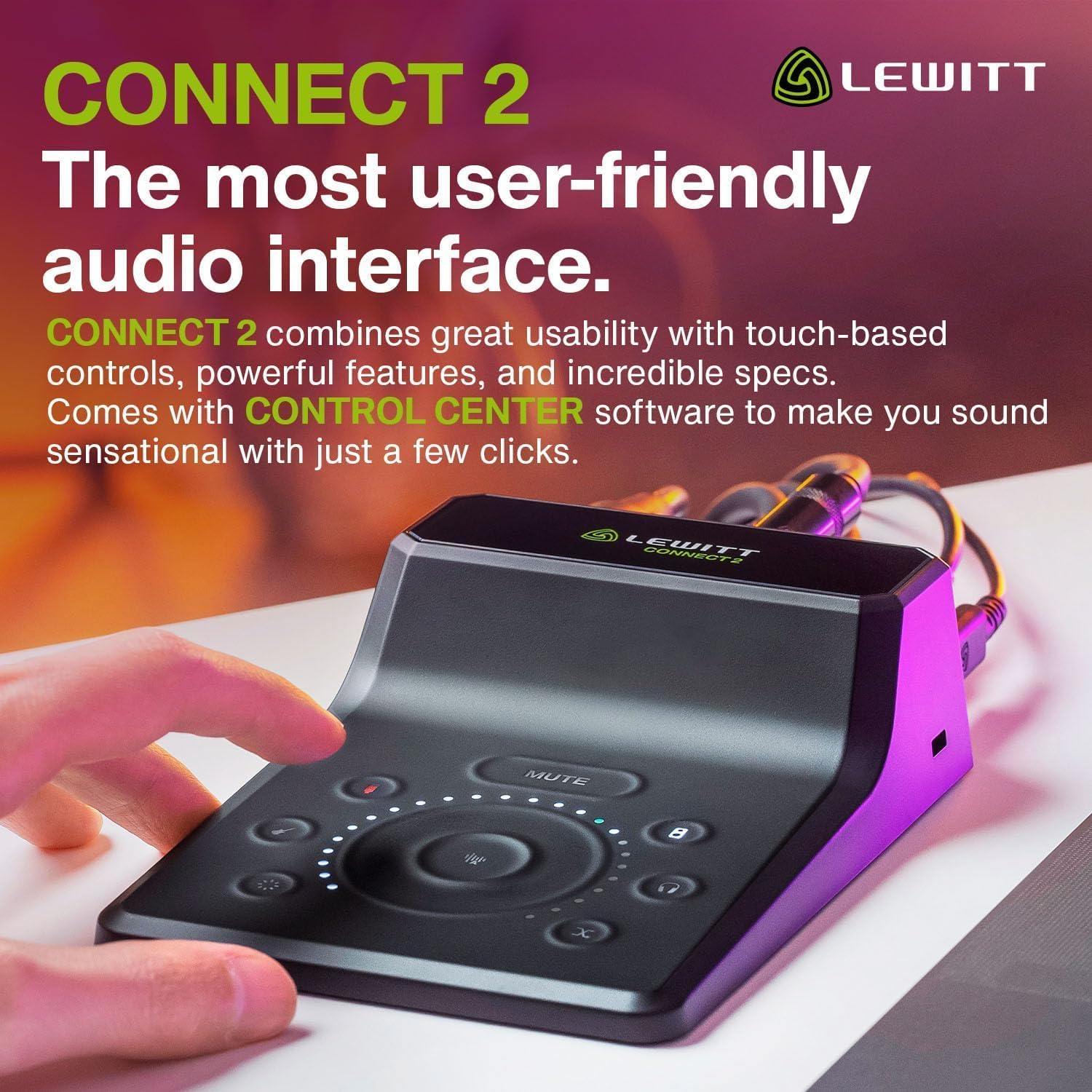

Image: A hand interacting with the touch-based controls of the Lewitt Connect 2, demonstrating its user-friendly design.
To use Auto Setup:
- Plug in your microphone or instrument.
- On the interface's front panel, press the central button (microphone icon) to activate Auto Setup.
- Follow the prompts in the Lewitt Control Center software. The interface will automatically set the optimal gain levels, ensuring your audio is neither too loud nor too quiet.
Operating the Connect 2
1. Front Panel Controls
The Connect 2 features a touch-based user interface with clear visual feedback for intuitive control.
Image: A close-up of the Lewitt Connect 2's front panel, showing the illuminated touch controls and central scroll wheel.
- Mute Button: Mutes all inputs and outputs.
- Input Selectors: Dedicated buttons for microphone and instrument inputs.
- Monitor Selector: Selects the monitor output.
- Headphone Selector: Selects the headphone output.
- Direct Monitoring: Allows you to balance the signal coming from your inputs and your computer's internal audio.
- Scroll Wheel: Controls both volume and gain levels for selected channels.
- Custom Button: Assignable for workflow shortcuts via the Control Center software.
2. Lewitt Control Center Software
The Control Center software provides detailed control and customization options for your Connect 2.
Image: A screenshot of the Lewitt Control Center software interface, showing options for customizing LED colors on the device.
- Inputs Section: Adjust settings for your microphone and instrument inputs. This includes a high-pass filter to reduce low-end rumble, 48V phantom power toggle, Clipguard to prevent clipping, a gain knob (up to 72 dB), and three iconic preamp sounds (Clean, Warm, Vivid). You can also activate the Denoiser and Compressor.
- Outputs Section: Manage your audio outputs, including audio loopback for streaming, monitor outputs, and headphone outputs.
- Monitoring Section: Control direct monitoring to blend input signals with computer audio.
- Settings: Customize LED colors and brightness, assign functions to the custom button, and check for firmware updates.
Maintenance
Cleaning
To maintain the appearance and functionality of your Connect 2, wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or internal components.
Software and Firmware Updates
Regularly check for software and firmware updates via the Lewitt Control Center. Updates often include performance improvements, bug fixes, and new features.
Storage
Store the Connect 2 in a cool, dry place away from direct sunlight and extreme temperatures. When transporting, use a protective case to prevent damage.
Troubleshooting
If you encounter issues with your Lewitt Audio Connect 2, try the following troubleshooting steps:
- No Sound/Distorted Audio:
- Ensure all cables are securely connected.
- Check the gain levels for your inputs and outputs in the Control Center.
- Utilize the Auto Setup feature to automatically optimize your levels.
- Verify that the correct audio input/output device is selected in your computer's sound settings and your Digital Audio Workstation (DAW).
- If using a condenser microphone, ensure 48V phantom power is enabled.
- Connection Issues:
- Try a different USB port on your computer.
- Ensure the USB cable is not damaged.
- Restart your computer and the Connect 2.
- Background Noise:
- Activate the Denoiser feature in the Lewitt Control Center.
- Ensure the Clipguard feature is active to prevent signal clipping.
For further assistance, refer to the online support resources provided by Lewitt.
Specifications
| Feature | Detail |
|---|---|
| Item Weight | 12 ounces |
| Product Dimensions | 4.33 x 5.91 x 1.57 inches |
| Item Model Number | CONNECT 2 |
| Compatible Devices | Android, Mac OS 10.15 and higher, Windows 10 (64 bit), iPad, iPhone |
| Supported Software | Steinberg Cubasis LE |
| Operating System | Android, Mac, iOS |
What's in the Box
- 1 CONNECT 6 audio interface
- CONTROL CENTER software
- 1 USB-C to USB-C cable
- 1 USB-C to USB-A cable
- License for Steinberg Cubase LE & Cubasis LE
Warranty and Support
Lewitt products are designed for durability and performance. For detailed information regarding your product's warranty, please visit the official Lewitt website or refer to the warranty card included in your product packaging.
For technical support, FAQs, and additional resources, please visit the Lewitt Store on Amazon or the official Lewitt support page.
