EMTOP 20V Cordless Drill-Driver and Impact Wrench Combo Kit User Manual

1. Introduction

Thank you for choosing the EMTOP 20V Cordless Drill-Driver and Impact Wrench Combo Kit. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new tools. Please read this manual thoroughly before using the tools to ensure proper function and to prevent injury. Keep this manual for future reference.

2. Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

General Power Tool Safety

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Personal Safety: Always wear eye protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection when appropriate. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Do not use the power tool if the switch does not turn it on and off. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Battery Pack Safety

• Recharge only with the charger specified by the manufacturer.
• Do not use battery packs with any other power tools.
• When the battery pack is not in use, keep it away from other metal objects.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

3. Package Contents

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact EMTOP customer service.

• 1 x EMTOP 20V Cordless Drill-Driver
• 1 x EMTOP 20V Cordless Impact Wrench
• 2 x EMTOP 2.0Ah Lithium-Ion Batteries
• 1 x EMTOP Fast Charger
• 3 x Sockets (17mm, 19mm, 21mm)
• 1 x Canvas Storage Bag

4. Product Overview

Familiarize yourself with the components of your EMTOP combo kit.

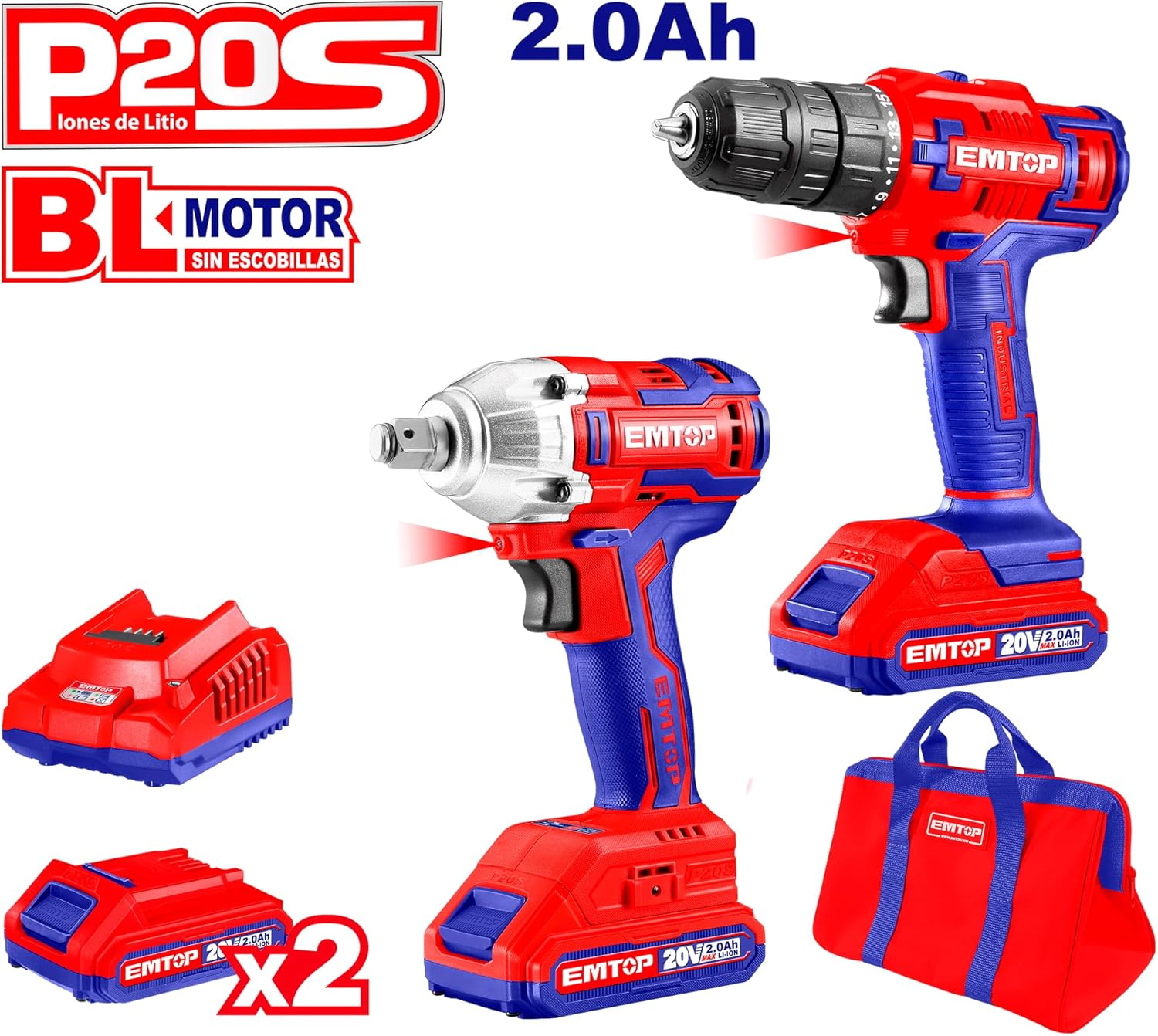

Figure 4.1: Overview of the EMTOP 20V Cordless Drill-Driver and Impact Wrench Combo Kit, showing the drill, impact wrench, two batteries, charger, and canvas bag.

4.1 Cordless Drill-Driver Components

• Keyless Chuck: For quick and easy bit changes.
• Torque Adjustment Ring: Selects the desired torque setting for driving screws.
• Speed Selector Switch: Allows selection between two speed ranges (High/Low).
• Forward/Reverse Switch: Changes the rotation direction.
• Trigger Switch: Activates the tool and controls speed.
• LED Work Light: Illuminates the work area.
• Battery Release Button: For detaching the battery pack.
• Battery Pack: Provides power to the tool.

4.2 Cordless Impact Wrench Components

• Square Drive Anvil: For attaching sockets.
• Forward/Reverse Switch: Changes the rotation direction.
• Trigger Switch: Activates the tool and controls speed.
• LED Work Light: Illuminates the work area.
• Battery Release Button: For detaching the battery pack.
• Battery Pack: Provides power to the tool.
• Brushless Motor: Provides increased efficiency and longer tool life.

5. Setup

5.1 Battery Charging

1. Ensure the charger is unplugged from the power outlet.
2. Insert the battery pack into the charger, aligning the grooves.
3. Plug the charger into a standard electrical outlet. The charger indicator light will show the charging status (e.g., red for charging, green for fully charged).
4. Once fully charged, unplug the charger and remove the battery pack.
5. Do not overcharge batteries.

Figure 5.1: The EMTOP 20V 2.0Ah Lithium-Ion battery and fast charger, illustrating the components involved in the charging process.

5.2 Battery Installation and Removal

• Installation: Align the battery pack with the base of the tool handle and slide it in until it clicks securely into place.
• Removal: Press the battery release button and slide the battery pack out of the tool.

5.3 Accessory Installation

Drill-Driver Bit Installation

1. Ensure the tool is off and the battery is removed.
2. Twist the keyless chuck counter-clockwise to open the jaws.
3. Insert the desired drill bit or screwdriver bit into the chuck.
4. Twist the chuck clockwise to tighten the jaws securely around the bit.
5. Pull on the bit to ensure it is firmly seated.

Impact Wrench Socket Installation

1. Ensure the tool is off and the battery is removed.
2. Push the desired socket onto the square drive anvil until it locks into place.
3. To remove, pull the socket firmly off the anvil.

6. Operating Instructions

6.1 General Operation

• Trigger Switch: Squeeze the trigger to start the tool. The speed is variable based on how far the trigger is pressed.
• Forward/Reverse Switch: Push the switch to the left for forward rotation (tightening/drilling) and to the right for reverse rotation (loosening/removing screws). Position the switch in the center to lock the trigger and prevent accidental starting.
• LED Work Light: The integrated LED light activates when the trigger is pressed, illuminating the work area.

6.2 Cordless Drill-Driver Operation

• Speed Selection: Use the speed selector switch on top of the tool to choose between:
  • Low Speed (1): For high torque applications like driving large screws or drilling large holes.
  • High Speed (2): For faster drilling of smaller holes or light driving tasks.
• Torque Adjustment: Rotate the torque adjustment ring to select the desired torque setting. Lower settings are for driving small screws or into soft materials, preventing overtightening. Higher settings are for driving larger screws or into harder materials. The drill mode bypasses the clutch for maximum torque.
• Drilling: Select the drill mode on the torque ring. Apply steady, even pressure.
• Driving Screws: Select an appropriate torque setting. Start slowly and increase speed as needed.

6.3 Cordless Impact Wrench Operation

• Application: Ideal for fastening and loosening nuts, bolts, and lag screws.
• Using Sockets: Ensure the correct size socket (e.g., 17mm, 19mm, 21mm) is securely attached to the square drive anvil.
• Operation: Position the socket over the fastener. Squeeze the trigger to begin operation. The impact mechanism will engage as resistance is met, providing high torque.
• Brushless Motor: The brushless motor provides enhanced power, efficiency, and durability compared to brushed motors, resulting in longer runtimes and reduced maintenance.

7. Maintenance

7.1 Cleaning

• Keep the ventilation openings of the tool clean to prevent overheating.
• Use a soft, damp cloth to clean the tool casing. Do not use solvents or abrasive cleaners.
• Regularly remove dust and debris from the chuck and impact wrench anvil.

7.2 Battery Care and Storage

• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Do not store batteries in a discharged state for extended periods. Charge them periodically if not in use.
• Protect battery terminals from shorting.

7.3 General Storage

• Store the tools and accessories in the provided canvas bag or a secure, dry location.
• Keep out of reach of children.

8. Troubleshooting

If you encounter issues with your EMTOP tools, refer to the following common problems and solutions.

9. Specifications

10. Warranty and Support

EMTOP products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or visit the official EMTOP website. Please retain your proof of purchase for warranty claims.
