1. Introduction
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your Hoteche 260W Electric Pipe Cleaning Spiral. Please read this manual thoroughly before using the device to ensure proper function and to prevent injury or damage.
2. Safety Information
WARNING: Always wear appropriate personal protective equipment, including safety glasses and gloves, when operating this tool. Ensure the work area is well-lit and free from obstructions.
- Electrical Safety: Ensure the power outlet is properly grounded. Do not operate the device in wet conditions or near flammable liquids or gases. Disconnect power before performing any maintenance or when the tool is not in use.
- Personal Safety: Keep hands, hair, and loose clothing away from the rotating spiral. Do not overreach. Maintain proper footing and balance at all times.
- Tool Use and Care: Use the correct tool for the application. Do not force the tool. If the spiral encounters significant resistance, stop and reverse the direction to clear the obstruction.
- Children and Bystanders: Keep children and bystanders away while operating the tool.
3. Product Overview
Familiarize yourself with the components of your electric pipe cleaning spiral.
- Flexible Shaft: The main cleaning component that navigates through pipes.
- Waterproof Plug: Protects internal components from water ingress.
- Locking Ring: Secures the flexible shaft in position.
- Operating Handle: Provides grip and control during use.
- Drum: Houses the coiled flexible shaft.
- Switch: Powers the device on and off.
- Forward and Reverse Rotation Button: Controls the direction of the spiral's rotation.
- Protective Sleeve Position: Area for attaching a protective sleeve (if included or purchased separately).
4. Setup
- Unpack: Carefully remove the pipe cleaner from its packaging. Inspect for any damage.
- Prepare Work Area: Ensure the area around the drain is clear and well-ventilated. Place old towels or a bucket to catch any water or debris.
- Wear PPE: Put on safety glasses and heavy-duty gloves.
- Power Connection: Connect the VDE plug to a suitable, grounded power outlet.
5. Operating Instructions
This device is designed for clearing blockages in pipes with diameters from 3/4" to 1-1/2" and can reach up to 7 meters (23 feet).
- Insert Spiral: Manually feed the flexible shaft into the drain opening until it meets resistance.
- Engage Power: Turn on the device using the main switch.
- Advance Spiral: Press the forward rotation button (labeled 'F' in Figure 3) to make the spiral advance into the pipe. Gently push the operating handle to guide the spiral.
- Clear Blockage: When the spiral encounters a blockage, allow it to work through the obstruction. The variable speed motor (0-560 RPM) allows for precise control.
- Stall and Grind: If the spiral stalls, indicated by 'O' in Figure 3, maintain pressure and allow the spiral to grind through the blockage.
- Retract Spiral: Once the blockage is cleared, or if you need to withdraw the spiral, press the reverse rotation button (labeled 'R' in Figure 3) and gently pull the operating handle to retract the shaft.
- Test Drain: After clearing, run water down the drain to ensure the blockage is fully removed.
- Repeat if Necessary: For stubborn blockages, you may need to repeat the process.

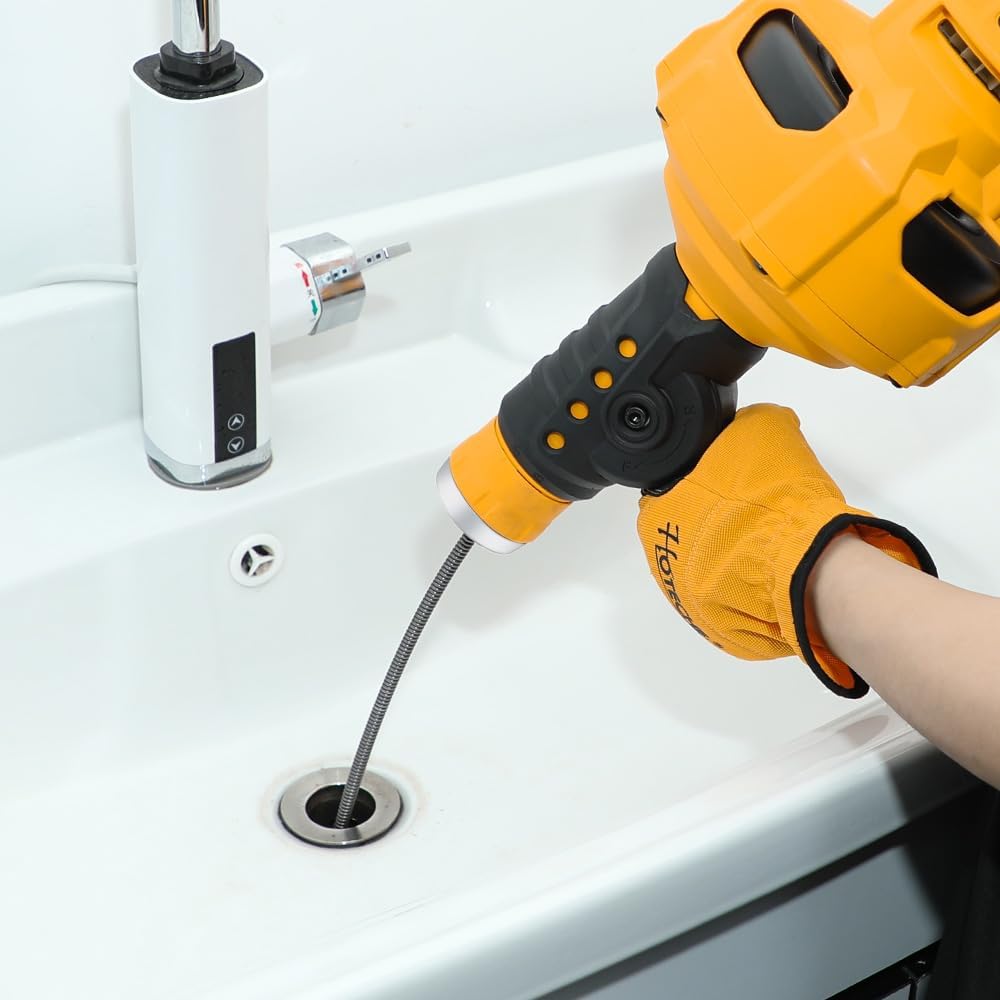

The Hoteche Electric Pipe Cleaning Spiral is suitable for various scenarios including sinks, kitchen sinks, floor drains, and bathtub showers.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your device.
- Cleaning: After each use, clean the flexible shaft and the drum thoroughly. Remove any debris, hair, or grease. Wipe down the exterior of the device with a damp cloth. Do not use harsh chemicals.
- Drying: Ensure the flexible shaft and drum are completely dry before coiling the shaft back into the drum and storing the device. This prevents rust and corrosion.
- Storage: Store the pipe cleaner in a dry, cool place, away from direct sunlight and out of reach of children.
- Carbon Brushes: The device includes an additional carbon brush. Refer to the manufacturer's guidelines for replacement if the motor performance degrades.
- Shaft Replacement: The flexible shaft is designed for disassembly and replacement if needed. Use a stainless steel screw for securing the replacement shaft.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on | No power supply; Faulty switch; Worn carbon brushes | Check power connection; Test outlet; Replace carbon brushes if necessary. |
| Spiral does not rotate | Spiral jammed; Motor issue | Ensure spiral is not tightly jammed; Check for obstructions in the drum. |
| Spiral gets stuck in pipe | Severe blockage; Spiral caught on pipe fitting | Reverse rotation to free the spiral; Gently work it back and forth; Do not force. |
| Ineffective cleaning | Incorrect spiral size; Blockage too large/hard | Ensure pipe diameter is within specified range (3/4"-1-1/2"); Consider professional help for severe blockages. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | P802203 |
| Power | 260 W |
| Motor Type | Copper wire motor |
| Spiral Diameter | 7 mm |
| Spiral Length | 7 m (23 ft) |
| Pipe Diameter Range | 3/4" - 1-1/2" |
| Rotation Speed | 0 - 560 RPM (variable) |
| Product Dimensions (L x W x H) | 45 x 16 x 25 cm |
| Weight | 5 kg |
| Color | Yellow |
| Included Components | Electric Pipe Cleaning Spiral, additional carbon brush |
9. Warranty and Support
For any questions or issues regarding your Hoteche Electric Pipe Cleaning Spiral, please contact Hoteche customer service. We are committed to providing the best possible service and ensuring your satisfaction.
Please refer to your purchase documentation for specific warranty details and contact information.
