1. Introduction
This manual provides essential instructions for the proper use, setup, and maintenance of your deli 14-inch Tool Box (Model EDL-TC270). Designed for durability and organization, this toolbox features a robust PP plastic construction, a removable two-layer tray, and a multi-function parts compartment. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Figure 1: deli 14-inch Tool Box (Model EDL-TC270)
2. Key Features
- Durable PP Plastic Construction: Made of thickened, high-strength PP material, resistant to falling and smashing, ensuring long-lasting durability.
- Two-Layer Tray Design: Features a practical tray-style double-layer structure for enhanced organization and load-bearing capacity.
- Reinforced Metal Hinges: Equipped with sturdy metal hinges for a more robust connection between the box and lid, increasing durability.
- Secure Dual Locking System: Combines a lock buckle and keyhole design for improved safety and theft prevention.
- Comfortable & Functional Design: Includes a non-slip rubber-coated handle for easy transport and a multi-purpose top compartment for small parts storage.
3. Components Overview
The deli 14-inch Tool Box consists of several key components designed for efficient tool storage and organization:
- Main Storage Compartment: The primary base of the toolbox for larger items.
- Removable Tray: A two-layer tray that sits inside the main compartment, offering additional organization for smaller tools and accessories.
- Lid with Integrated Parts Box: The top cover features a built-in compartment for very small items like screws, nuts, or bits.
- Ergonomic Handle: A comfortable, non-slip handle for easy carrying.
- Metal Clip Latches: Securely fasten the lid to the base.
- Metal Connecting Shaft (Hinges): Provides durable connection for the lid.
Figure 2: Open Tool Box with Removable Tray

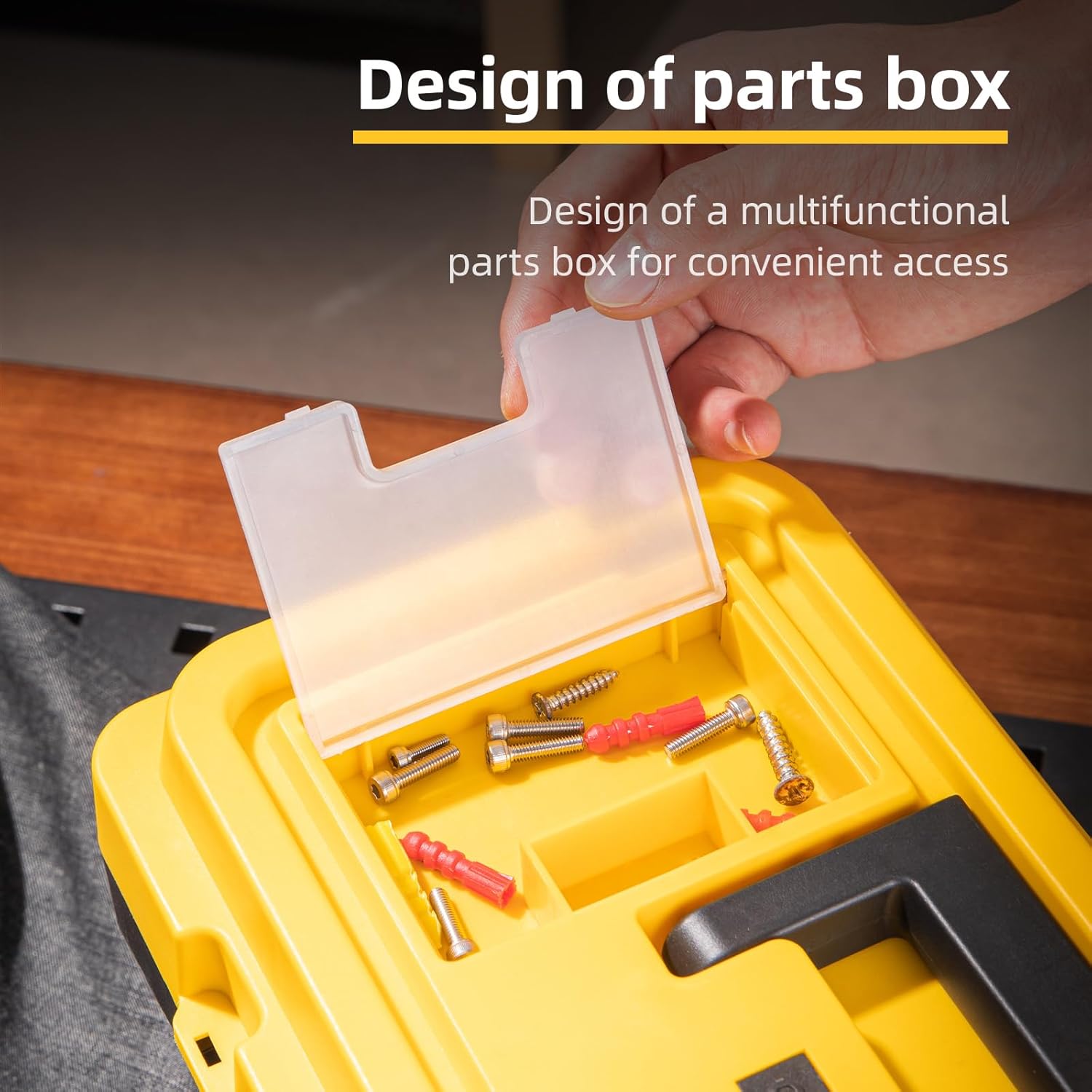

Figure 3: Integrated Small Parts Box on Lid
4. Setup
Your deli 14-inch Tool Box comes pre-assembled and ready for use. Follow these simple steps to prepare it for your tools:
- Unpack: Carefully remove the toolbox from its packaging.
- Inspect: Check for any signs of damage during transit. If damaged, contact customer support.
- Open the Lid: Release the two metal clip latches on the front of the toolbox by pushing them outwards. Lift the lid.
- Access the Tray: The removable tray is located inside the main compartment. You can lift it out to place larger tools in the bottom section or keep it in place for organized storage.
- Utilize Parts Box: The transparent compartment on the lid can be opened by lifting its small cover, providing quick access to small components.
Figure 4: Placing the Removable Tray
5. Operating Instructions
Using your deli tool box effectively will help keep your tools organized and protected.
5.1 Storing Tools
- Main Compartment: Place larger tools such as hammers, drills, or larger wrenches in the bottom section of the toolbox.
- Removable Tray: Use the tray for smaller hand tools like screwdrivers, pliers, measuring tapes, or utility knives. The tray's compartments help prevent items from shifting.
- Lid Parts Box: Store small fasteners, drill bits, electrical connectors, or other tiny components in the integrated parts box on the lid for easy access.
5.2 Securing the Toolbox
- Closing the Lid: Ensure the removable tray is properly seated. Lower the lid and press down firmly until the metal clip latches engage with an audible click.
- Locking (Optional): For added security, a padlock (not included) can be inserted through the keyhole on the latches.
5.3 Portability
Use the sturdy, rubber-coated handle to carry the toolbox. Ensure the lid is securely latched before lifting.
Figure 5: Versatile Applications of the Tool Box
6. Maintenance
Regular maintenance will help prolong the life of your deli tool box.
- Cleaning: Wipe the exterior and interior surfaces with a damp cloth. For stubborn dirt, use mild soap and water. Avoid harsh chemicals or abrasive cleaners, as they may damage the plastic.
- Drying: Ensure the toolbox is completely dry before closing or storing tools to prevent rust on metal tools.
- Hinge Care: The metal hinges are designed for durability. If they become stiff, a small amount of silicone spray lubricant can be applied.
- Storage: Store the toolbox in a dry environment, away from direct sunlight or extreme temperatures, to prevent material degradation.
Figure 6: Durable Metal Connecting Shaft
7. Troubleshooting
If you encounter any issues with your deli tool box, refer to the following common solutions:
- Lid Does Not Close Securely:
- Check if any tools or items are obstructing the lid's path or preventing the tray from seating correctly.
- Ensure the metal clip latches are aligned with their respective slots on the base.
- Removable Tray Sticks or Is Difficult to Remove:
- Verify that the tray is not overloaded or unevenly weighted.
- Ensure no items are caught between the tray and the main compartment walls.
- Latches Are Stiff:
- Apply a small amount of silicone-based lubricant to the moving parts of the latches.
If the problem persists, please contact customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | deli |
| Model Number | EDL-TC270 |
| Material | Thickened PP Plastic, Metal (hinges, latches) |
| Color | Yellow / Dark Grey (metal clip) |
| Product Dimensions (L x W x H) | 8.27"L x 7.48"W x 15.75"H |
| Item Weight | 2.77 pounds |
| Water Resistance Level | Waterproof |
| Number of Compartments | 3 (Main, Removable Tray, Lid Parts Box) |

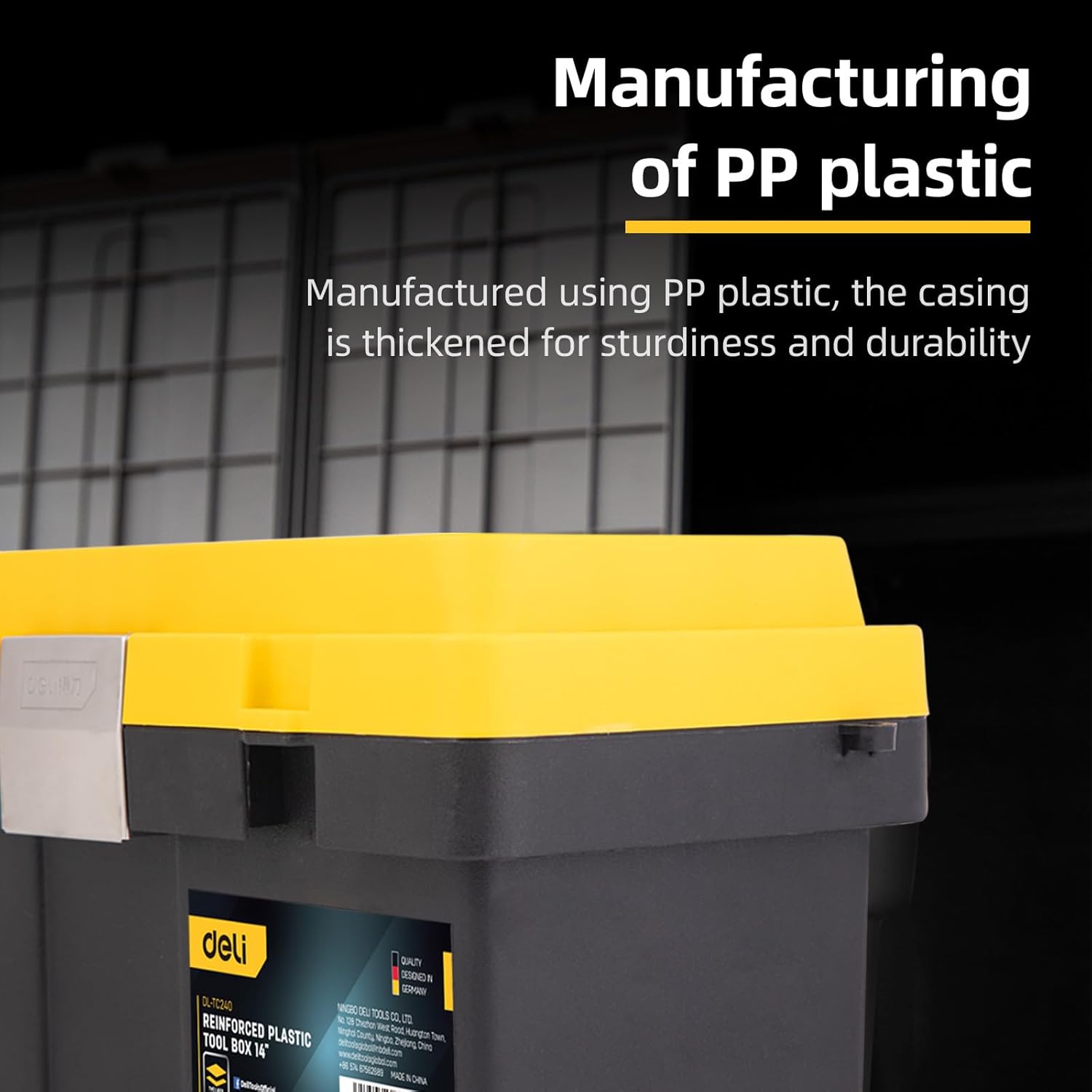

Figure 7: Durable PP Plastic Construction
9. Warranty Information
deli products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, most deli products come with a limited warranty covering manufacturing defects. Please retain your proof of purchase. For detailed warranty terms and conditions, or to make a warranty claim, please refer to the official deli website or contact customer support.
10. Customer Support
For any questions, concerns, or assistance with your deli 14-inch Tool Box, please contact our customer support team:
- Online: Visit the official deli store on Amazon for FAQs and support resources.
- Email: Refer to your product packaging or the deli website for customer service email addresses.
- Phone: Contact numbers may be available on the deli website or product documentation.
When contacting support, please have your product model number (EDL-TC270) and purchase information ready.
11. Product Videos
No official product videos from the seller were found for this model in the provided data. Please check the product page or manufacturer's website for any available video demonstrations or guides.
