lightmaXX PAR 64 Barndoor Polish Long
Instruction Manual - Model: LIG0006364-000
Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your lightmaXX PAR 64 Barndoor Polish Long. This accessory is designed for use with spotlights to control light spill and shape the beam. Please read this manual thoroughly before using the product.

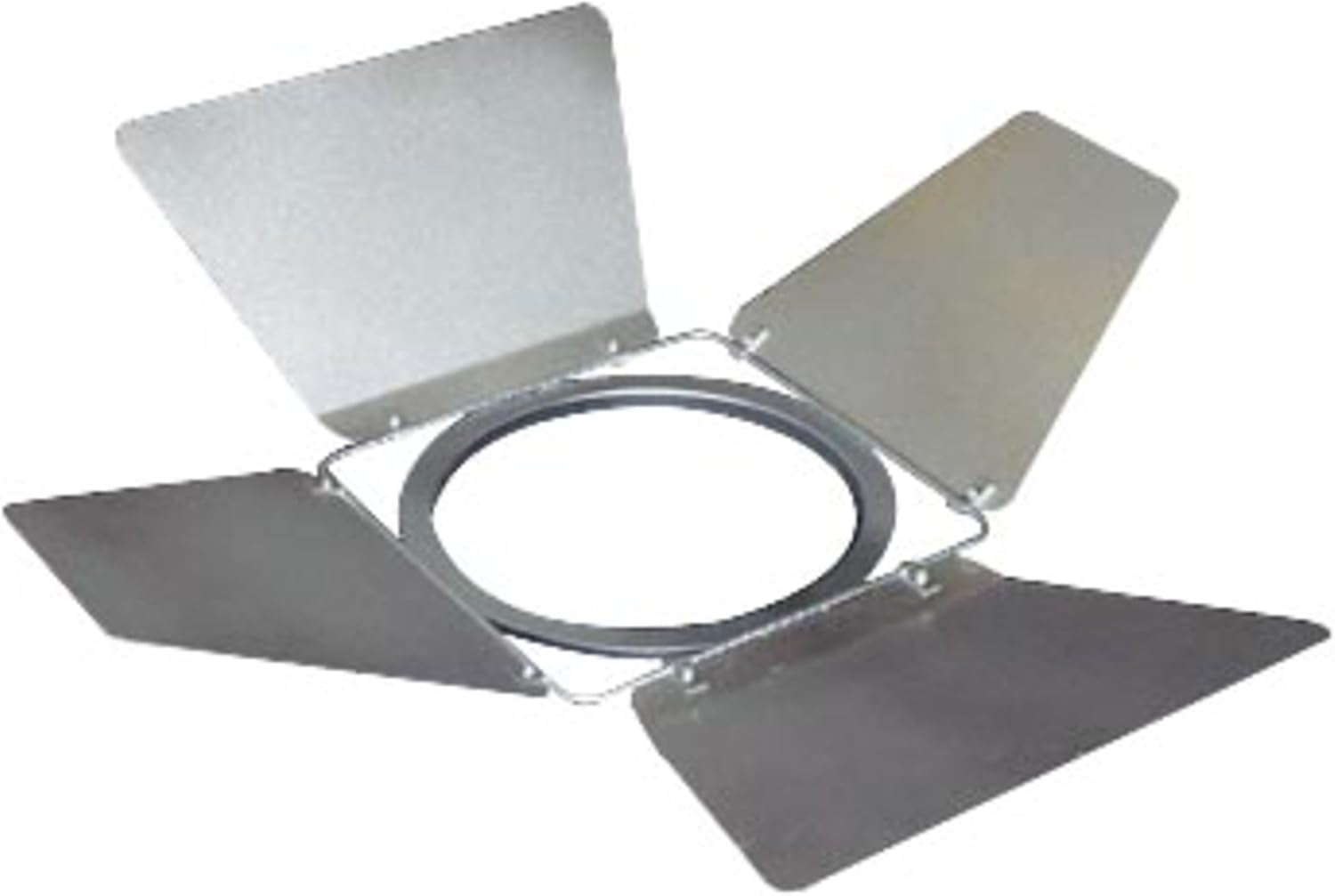

Image: The lightmaXX PAR 64 Barndoor Polish Long, showing its four adjustable flaps and central mounting ring.
Setup
The lightmaXX PAR 64 Barndoor is designed for easy attachment to compatible PAR 64 spotlights. Follow these steps for proper installation:
- Ensure Compatibility: Verify that your spotlight is a PAR 64 model, as this barndoor is specifically designed for this size.
- Power Off: Always ensure the spotlight is turned off and disconnected from power before attempting installation or removal of accessories. Allow the spotlight to cool down if it has been in operation.
- Align Barndoor: Position the barndoor's central ring over the front bezel of the PAR 64 spotlight. The barndoor should fit snugly around the lamp housing.
- Secure Attachment: Depending on your spotlight model, the barndoor may secure with clips, screws, or a friction fit. Ensure it is firmly attached and cannot accidentally detach during operation.
- Adjust Flaps: Once secured, the four individual flaps can be manually adjusted to control the light beam.
Note: Always handle the barndoor carefully to avoid bending the flaps or damaging the mounting mechanism.
Operating
The primary function of the barndoor is to shape and control the light output from your PAR 64 spotlight. This allows for precise lighting effects and prevents unwanted light spill.
- Beam Shaping: Each of the four flaps can be independently moved to block or direct light. By adjusting the flaps, you can create rectangular, square, or other custom beam shapes.
- Light Spill Control: Use the flaps to prevent light from hitting unwanted areas, such as walls, ceilings, or audience members, ensuring the light is focused only where desired.
- Glare Reduction: By positioning the flaps, you can reduce glare for performers or audience members, improving visual comfort.
- Heat Considerations: While operating, the barndoor will be exposed to heat from the spotlight. Always use heat-resistant gloves if adjustments are needed during operation, or allow the fixture to cool down.
Tip: Experiment with different flap positions to achieve various lighting effects. For best results, adjust the barndoor while the spotlight is on, observing the light beam on a surface.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your lightmaXX PAR 64 Barndoor.
- Cleaning: Periodically wipe the barndoor with a soft, dry cloth to remove dust and fingerprints. For stubborn grime, a slightly damp cloth can be used, but ensure the barndoor is completely dry before reattaching to a spotlight. Avoid abrasive cleaners or solvents.
- Inspection: Regularly inspect the hinges and mounting points for any signs of wear, bending, or damage. Ensure the flaps move freely but hold their position once set.
- Storage: When not in use, store the barndoor in a clean, dry environment, away from extreme temperatures and direct sunlight.
Caution: Do not attempt to bend or force the flaps beyond their intended range of motion, as this may damage the hinges.
Troubleshooting
This section addresses common issues you might encounter with your barndoor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Barndoor does not fit PAR 64 spotlight. | Incorrect spotlight size or model. | Ensure your spotlight is a standard PAR 64 fixture. This barndoor is specifically designed for PAR 64. |
| Flaps are stiff or difficult to move. | Accumulation of dust/grime on hinges; minor bending. | Clean hinges with a soft cloth. If slightly bent, gently attempt to straighten, but avoid excessive force. |
| Flaps do not hold position. | Worn hinges or loose rivets. | If hinges are worn, the barndoor may need replacement. Check for loose rivets and tighten if possible. |
If you encounter issues not listed here or require further assistance, please contact lightmaXX customer support.
Specifications
- Model: LIG0006364-000
- Brand: lightmaXX
- Product Dimensions: 34.1 x 28 x 4 cm (13.4 x 11 x 1.6 inches)
- Item Weight: 850 g (1.87 lbs)
- Compatibility: Designed for PAR 64 spotlights
- Material: Metal
- Country of Origin: Germany
- First Available Date: December 29, 2016
Warranty and Support
Specific warranty information for the lightmaXX PAR 64 Barndoor Polish Long is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging, the lightmaXX official website, or contact your point of purchase.
For technical support, spare parts, or any other inquiries, please contact lightmaXX customer service through their official channels. Contact information can typically be found on the manufacturer's website or product documentation.
Manufacturer: lightmaXX
