Dancover Monterey Bioclimatic Pergola User Manual

Introduction

This manual provides comprehensive instructions for the Dancover Monterey Bioclimatic Pergola (3 x 6 m, Black). It covers setup, operation, maintenance, and technical specifications to ensure safe and effective use of your outdoor structure. The Monterey pergola features a movable louvered roof, integrated side curtains, and mosquito nets, designed to provide versatile shade and shelter in various weather conditions.

Setup Instructions

The Dancover Monterey Bioclimatic Pergola is designed for straightforward installation. According to product specifications, assembly is not required for this product, suggesting it may arrive pre-assembled or in large, easy-to-connect sections. However, proper placement and securing of the structure are crucial for stability and safety.

• Site Preparation: Ensure the chosen installation site is level and firm. Clear any debris or obstacles.
• Anchoring: Securely anchor the pergola's posts to the ground using appropriate hardware (not specified if included, but essential for stability). This prevents movement due to wind or other external forces.
• Structural Integrity: Verify all connections are tight and secure before use.

Figure 1: Technical diagram showing the dimensions of the Dancover Monterey Bioclimatic Pergola. The diagram illustrates the overall length of 6 meters, width of 3 meters, and height of 2.44 meters, along with internal measurements and post spacing.

Operating the Pergola

Louvered Roof Operation

The pergola features a movable louvered roof that can be adjusted to control sunlight and provide shelter from rain. The louvers are operated using a crank mechanism located on one of the posts.

• To Open Louvers: Turn the crank handle in the designated direction (e.g., clockwise) to open the roof louvers, allowing sunlight and airflow.
• To Close Louvers: Turn the crank handle in the opposite direction (e.g., counter-clockwise) to close the roof louvers, providing shade and protection from rain. Ensure louvers are fully closed during heavy rain to maintain waterproof integrity.

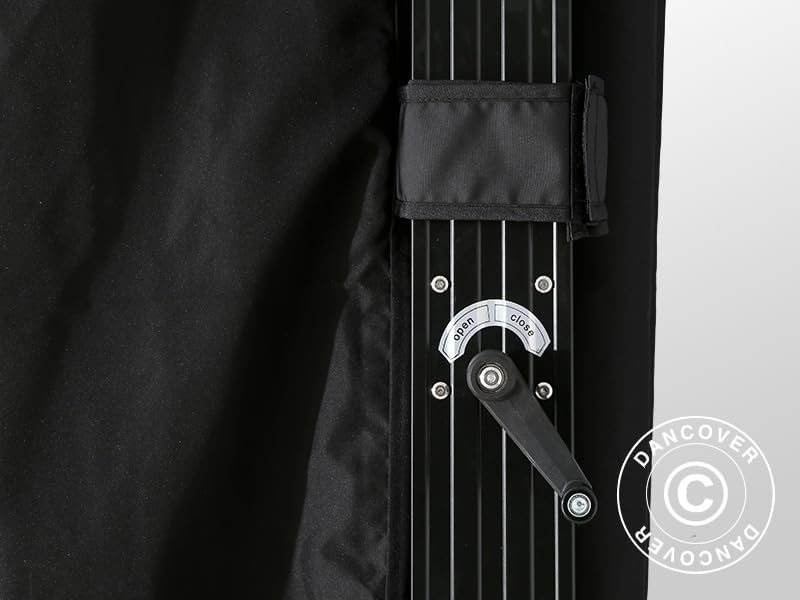

Figure 2: Detail of the crank mechanism used to open and close the louvered roof panels. The mechanism is clearly labeled with "open" and "close" indicators.

Figure 3: An underside view of the louvered roof, illustrating the individual panels and their adjustable nature, allowing for control over light and weather protection.

Side Curtains and Mosquito Nets

The pergola includes both side curtains (180 g/m² polyester) and mosquito nets (35 g/m² fabric) for enhanced comfort and protection. A double rail system allows for simultaneous use of both.

• Deployment: Slide the curtains or mosquito nets along their respective rails to enclose the pergola.
• Securing: Use the integrated ties or fasteners to secure the curtains/nets to the posts when not in use, or to hold them in place when deployed.
• Double Rail System: The double rail allows you to have both the side curtains and mosquito nets installed simultaneously, offering flexibility to switch between privacy/shade and insect protection.

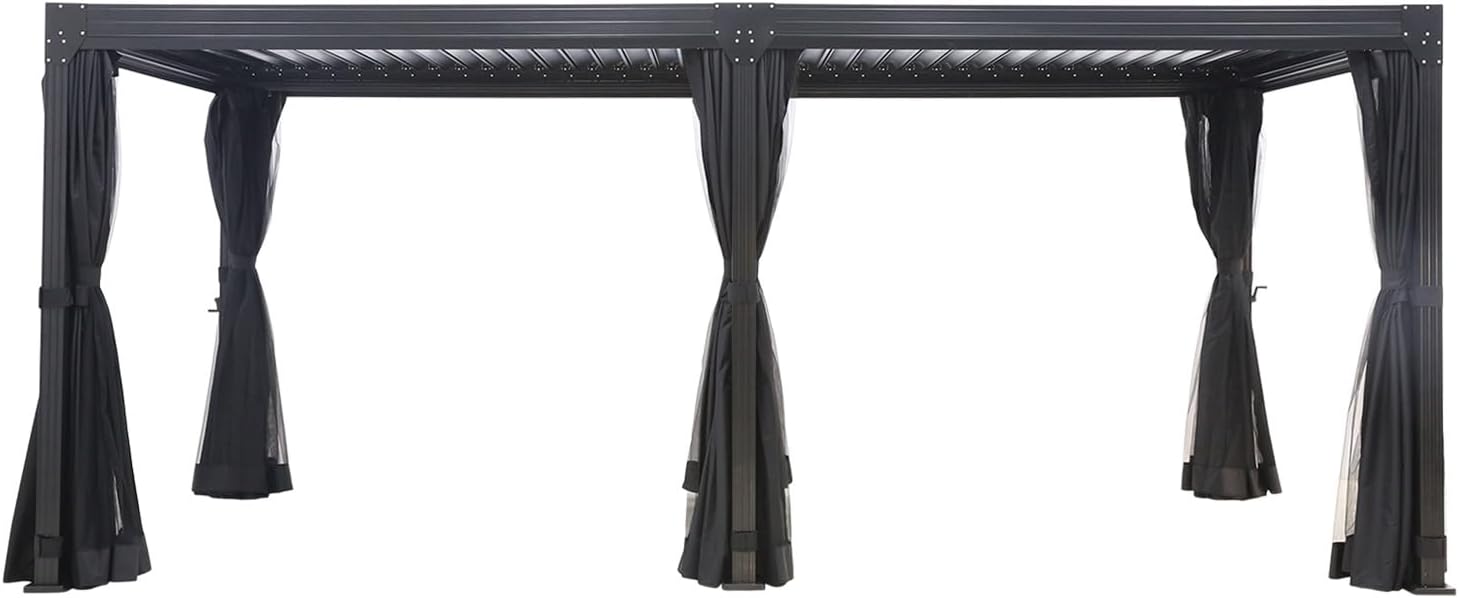

Figure 4: The Dancover Monterey Bioclimatic Pergola shown with its black side curtains and mosquito nets. The image highlights the elegant design and the functionality of the integrated curtains for privacy and insect protection.

Figure 5: The pergola with all side curtains fully closed, demonstrating its ability to provide complete enclosure and privacy, as well as protection from elements.

Care and Maintenance

Regular maintenance will extend the life and appearance of your Dancover Monterey Bioclimatic Pergola. The structure is made from solid, low-maintenance materials.

• Frame Cleaning: Clean the powder-coated steel frame with a soft cloth and mild soapy water. Rinse thoroughly with clean water and dry to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• Louver Cleaning: Periodically clean the louvered roof panels to remove dirt, leaves, or other debris that may accumulate. Ensure the drainage channels are clear.
• Curtains and Mosquito Nets: The polyester side curtains and fabric mosquito nets can be gently cleaned with mild soap and water. Allow them to air dry completely before folding or storing to prevent mildew.
• Joints and Moving Parts: Inspect all joints, screws, and the crank mechanism periodically for tightness and smooth operation. Lubricate moving parts if necessary with a silicone-based spray.
• Winter Storage/Protection: While designed for outdoor use, consider removing and storing curtains and mosquito nets during harsh winter conditions to prolong their lifespan. Ensure the louvered roof is closed to protect the interior from snow accumulation.

Troubleshooting Guide

This section addresses common issues you might encounter with your pergola.

• Louvered Roof Not Operating Smoothly:
  • Check for obstructions (leaves, debris) in the louver mechanism or drainage channels.
  • Inspect the crank mechanism for damage or misalignment.
  • Apply a silicone lubricant to the moving parts of the louvers and crank.
• Water Accumulation on Roof:
  • Ensure the louvers are fully closed during rain.
  • Verify that the drainage system (if applicable) is clear of blockages.
• Side Curtains/Mosquito Nets Sticking:
  • Clean the rails to remove dirt or grime.
  • Check for any physical damage or bends in the rails.
  • Ensure the fabric is not caught or bunched up.
• Pergola Instability:
  • Re-check all anchoring points to ensure they are secure and tight.
  • Verify that the ground surface is level and stable.
  • Inspect all frame connections for looseness and tighten as needed.

Technical Specifications

Warranty Information

Specific warranty details for the Dancover Monterey Bioclimatic Pergola are not provided in the available product information. Please refer to your purchase documentation or contact the retailer/manufacturer directly for comprehensive warranty terms and conditions.

Customer Support

For further assistance, technical support, or inquiries regarding your Dancover Monterey Bioclimatic Pergola, please contact Dancover customer service or the retailer from whom you purchased the product. Have your product model (Monterey) and ASIN (B0D33MT87H) ready when contacting support.

You may find additional resources or contact information on the official Dancover website or through your original point of purchase.
