Sonik BC0031
Sonik Sports Hero X Carp Fishing Spod Reel
Model: BC0031
Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your Sonik Sports Hero X Carp Fishing Spod Reel. Designed for carp fishing, this reel features a durable construction and is pre-spooled with 30lb Hypa-Viz braid, making it ready for immediate use in spodding applications.
Key features include a wormshaft gear system for smooth operation, a 4.6:1 gear ratio for efficient retrieval, and 5 + 1 ball bearings for enhanced performance. The reel is equipped with a matt black anodised aluminium handle and a dark wood barrel for comfortable grip and durability.
Product Overview
Figure 1: Front view of the Sonik Hero X Carp Fishing Spod Reel, showcasing the bright green Hypa-Viz braid on the spool and the overall black finish.

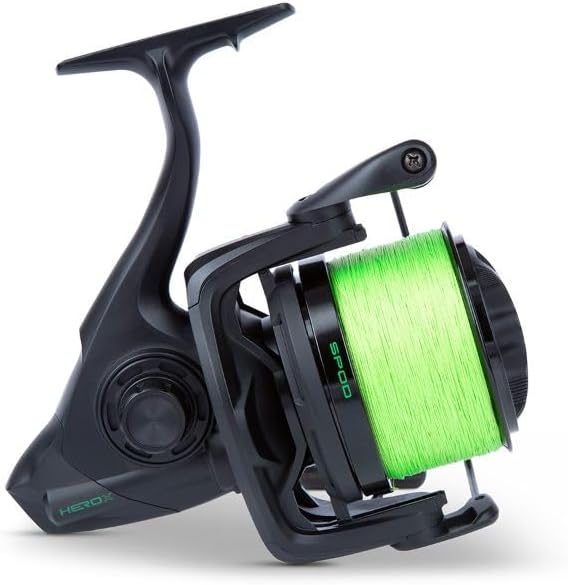

Figure 2: Side profile of the reel, highlighting the "SPOD" designation on the spool, indicating its specialized use for spodding.

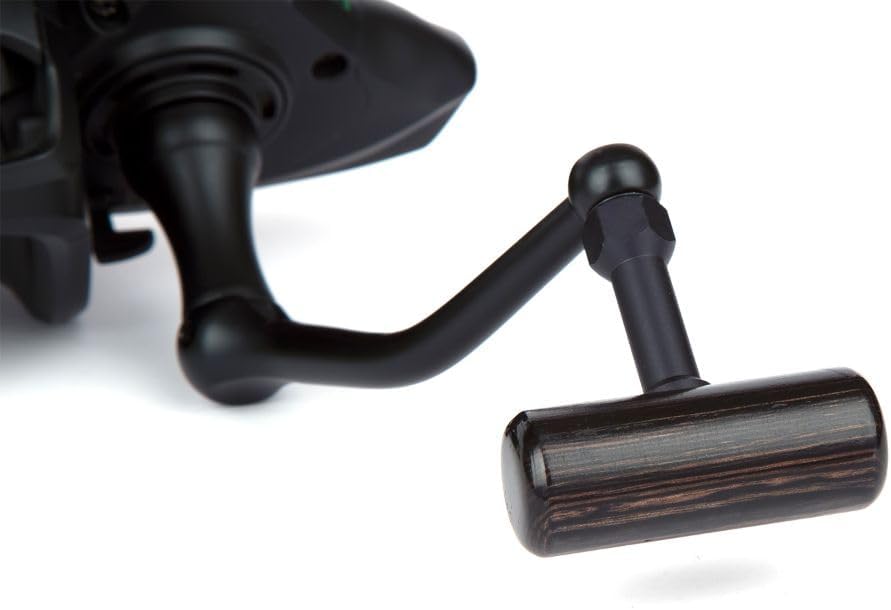

Figure 3: Detailed view of the matt black anodised aluminium handle with its dark wood barrel, designed for ergonomic grip.
Figure 4: Close-up of the reel's spool, clearly showing the "HEROX" branding and the vibrant green Hypa-Viz braid.
Setup
The Sonik Sports Hero X Spod Reel comes pre-spooled with 30lb Hypa-Viz braid, minimizing initial setup. Follow these steps to prepare your reel for use:
- Attach to Rod: Securely attach the reel to the reel seat on your carp fishing rod. Ensure the reel foot is firmly seated and the locking mechanism is tightened.
- Handle Assembly: The handle is ambidextrous. Insert the handle shaft into the appropriate side of the reel body and tighten the screw or cap to secure it.
- Bail Arm Check: Ensure the bail arm opens and closes smoothly. Manually open the bail arm, pass the line through the rod guides, and then close the bail arm.
- Drag Adjustment: Familiarize yourself with the front drag system. Rotate the drag knob on the front of the spool clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag to a suitable tension for casting and retrieving spod mixes.
Operating Instructions
Casting
- Open Bail: Flip the bail arm open.
- Hold Line: Use your index finger to hold the fishing line against the rod handle.
- Cast: Execute your cast. As the spod leaves the rod tip, release your index finger from the line.
- Close Bail: Once the spod has landed, manually close the bail arm. Avoid closing it by turning the handle, as this can cause premature wear.
Retrieving
- Turn the handle clockwise (or counter-clockwise if left-handed) to retrieve the line and the spod. The wormshaft gear system ensures smooth and consistent line lay.
- Maintain a steady retrieve speed.
Drag System
The drag system allows line to be pulled from the spool under tension, preventing line breakage. Adjust the drag based on the weight of your spod and the casting force. A properly set drag should allow line to peel off smoothly when pulled firmly by hand, but not too easily.
Maintenance
Regular maintenance will prolong the life and performance of your Sonik Hero X Spod Reel.
- Cleaning: After each use, wipe down the reel with a damp cloth to remove dirt, salt, or debris. For deeper cleaning, use a soft brush to remove grit from crevices.
- Lubrication: Periodically apply a small amount of reel oil to moving parts such as the handle shaft, bail arm pivot points, and line roller. Use reel grease on the main gears if disassembling for deeper maintenance (recommended only for experienced users).
- Line Inspection: Regularly inspect the 30lb Hypa-Viz braid for fraying, nicks, or wear. Replace the line if any damage is observed to prevent break-offs.
- Storage: Store the reel in a dry, cool place away from direct sunlight and extreme temperatures. Consider using a reel case for added protection during transport and storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bail arm not closing smoothly | Debris in mechanism, bent bail arm, or worn spring. | Clean bail arm pivot points. Check for physical damage. If bent, seek professional repair. |
| Line knotting/tangling (wind knots) | Overfilling spool, improper casting technique, or line twist. | Ensure spool is not overfilled. Improve casting technique. Periodically allow line to trail behind a boat to remove twist. |
| Rough retrieve/grinding noise | Lack of lubrication, dirt in gears, or damaged bearings. | Lubricate moving parts. Clean internal components (if comfortable). If problem persists, professional service may be required. |
| Drag slipping or inconsistent | Drag washers are dry, dirty, or worn. | Disassemble drag knob and clean/lubricate drag washers with specialized drag grease. Replace worn washers if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | Sonik Sports Hero X Carp Fishing Spod Reel |
| Brand | Sonik |
| Gear Ratio | 4.6:1 |
| Ball Bearings | 5 + 1 |
| Line Included | 30lb Hypa-Viz Braid (pre-spooled) |
| Handle Material | Matt black anodised aluminium with dark wood barrel |
| Gear System | Wormshaft |
| Hand Orientation | Ambidextrous |
| Color | Black |
| Product Dimensions | 210 x 5 x 5 cm (approximate) |
| Weight | 780 g (approximate) |
Warranty and Support
For information regarding warranty coverage and customer support for your Sonik Sports Hero X Carp Fishing Spod Reel, please refer to the official Sonik Sports website or contact your authorized retailer. Specific warranty terms and conditions may vary by region.
