DWC Hydroponics Growing System User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your DWC Hydroponics Growing System. Designed for both indoor and outdoor use, this system facilitates healthy plant growth by combining deep water culture (DWC) with top-feed circulation drip irrigation. It is equipped with four 5-gallon hydroponic buckets, allowing for the simultaneous cultivation of multiple plants.

Package Contents

Please verify that all components listed below are present in your package:

• 4 x Hydroponic Buckets (5 Gallon / 20L each)
• 4 x Planting Baskets
• 4 x Drip Irrigation Kits
• 1 x Air Pump (Double Outlet)
• 4 x Air Tubes
• 4 x Air Stones
• 4 Bags x Clay Pebbles
• 4 x Visual Hoses (Water Level Tubes)
• 4 x Floating Red Balls (Water Level Indicators)
• 4 x Valve Connections (Check Valves)
• 1 x English Manual
• Other necessary accessories for assembly

Product Features

The DWC Hydroponics Growing System offers several key features designed to optimize plant growth and user convenience:

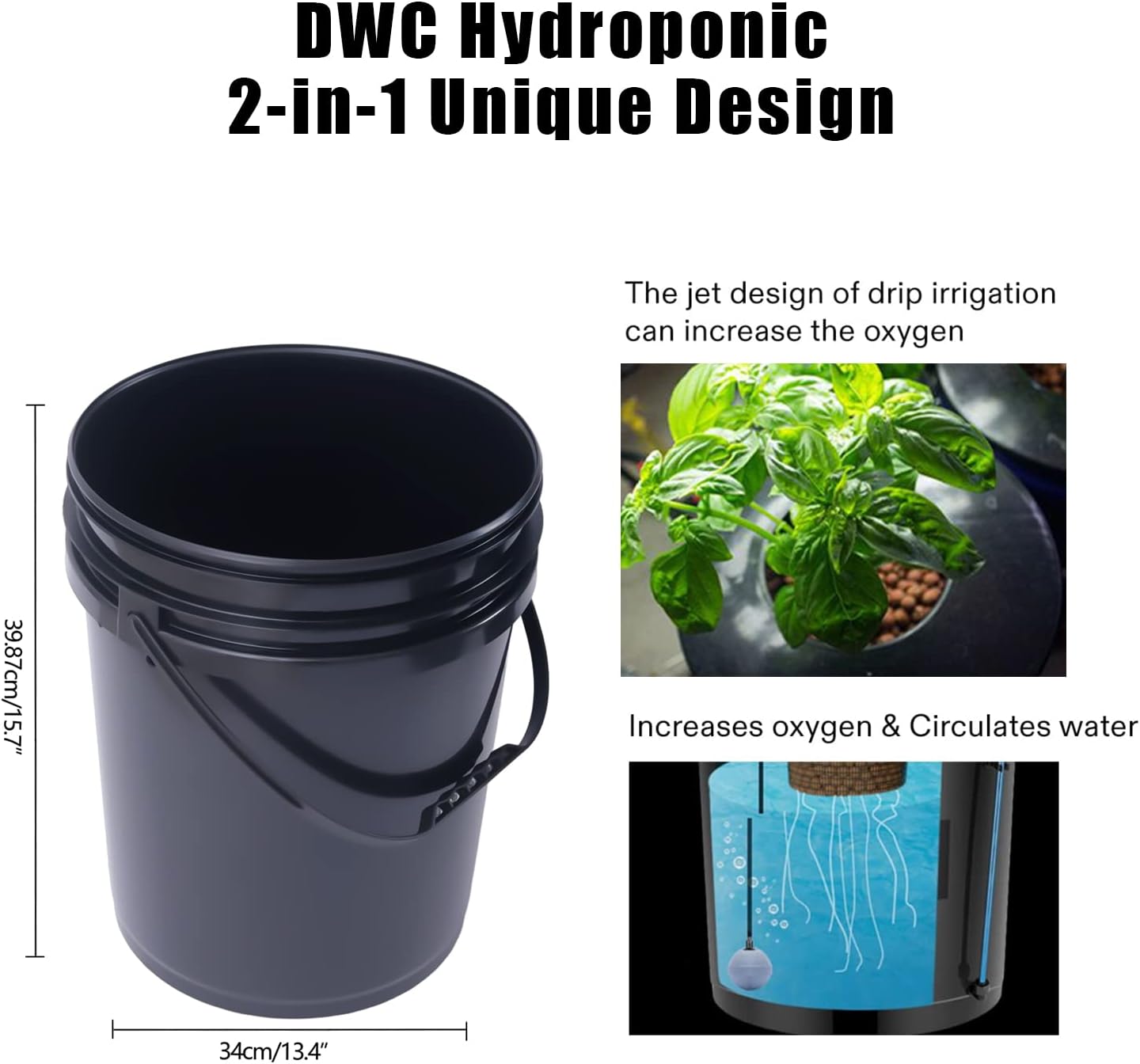

• 2-in-1 Unique Design: This system integrates both deep water culture (DWC) and top-feed circulation drip irrigation, providing a robust and efficient method for plant cultivation.
• Continuous Oxygenation: A powerful double-outlet air pump and air stones ensure constant aeration of the nutrient solution, promoting vigorous root growth and preventing stagnation.
• Circular Drip Irrigation: The drip irrigation mechanism ensures that the clay pebbles are consistently washed, preventing over-watering and facilitating proper oxygenation of the roots.
• Soilless Planting: Plants grow directly in water, eliminating the need for soil and contributing to a cleaner growing environment.
• Large Capacity: With four 5-gallon buckets, the system supports the growth of multiple plants simultaneously, catering to diverse gardening needs.
• Water Level Indicators: Each bucket is equipped with a visual hose and a floating red ball, allowing for easy monitoring of the water level.
• Check Valve: An integrated check valve prevents water from flowing back, ensuring system integrity.
• Clay Pebbles: Included clay pebbles provide essential support for the plants and help keep the upper roots dry.

Setup Instructions

Follow these steps to assemble your hydroponics growing system:

1. Unpack Components: Carefully remove all items from the packaging and verify against the 'Package Contents' list.
2. Assemble Buckets: Place the planting baskets into the top opening of each hydroponic bucket.
3. Connect Air System: Connect the air tubes to the double-outlet air pump. Attach one air stone to the end of each air tube. Place one air stone at the bottom of each hydroponic bucket.
4. Install Drip Irrigation: Connect the drip irrigation kits to the designated ports on the buckets and ensure they are properly positioned to deliver water to the planting baskets.
5. Attach Water Level Indicators: Insert the visual hoses into the side of each bucket. Ensure the floating red ball is correctly installed within the visual hose to indicate water levels.
6. Add Clay Pebbles: Distribute the provided clay pebbles into each planting basket. These will provide support for your plants.
7. Prepare Nutrient Solution: Fill each bucket with your desired hydroponic nutrient solution. Ensure the water level is appropriate for your plants, typically just below the bottom of the planting basket.
8. Place Plants: Carefully place your plants or seedlings into the clay pebbles within the planting baskets.
9. Power On: Plug the air pump into a 110V power outlet. The air pump should begin operating, providing oxygen to the nutrient solution.

Operating Instructions

To ensure optimal performance and plant health, follow these operating guidelines:

1. Monitor Water Level: Regularly check the water level using the visual hose and floating red ball. When the red ball drops, it indicates a need to replenish the nutrient solution.
2. Replenish Nutrient Solution: Add fresh nutrient solution as needed to maintain the appropriate level. The frequency will depend on plant size, growth stage, and environmental conditions.
3. Ensure Continuous Oxygenation: Confirm that the air pump is running continuously. The air stones should be producing bubbles to oxygenate the solution effectively.
4. Observe Plant Health: Regularly inspect your plants for signs of nutrient deficiencies, pests, or diseases. Adjust nutrient solution concentration or environmental factors as necessary.
5. Maintain pH Levels: Periodically test and adjust the pH of your nutrient solution to the optimal range for the specific plants you are growing.

Maintenance

Regular maintenance is crucial for the longevity and efficiency of your hydroponics system:

• Clean Air Stones and Tubes: Periodically remove and clean the air stones and air tubes to prevent mineral buildup and ensure consistent airflow.
• Clean Buckets: Every few weeks, or between growing cycles, drain the buckets and clean them thoroughly to prevent algae growth and pathogen buildup. Use a mild, plant-safe cleaning solution.
• Replace Nutrient Solution: It is recommended to completely replace the nutrient solution every 1-2 weeks, rather than just topping it off, to ensure plants receive a balanced supply of nutrients.
• Inspect Connections: Regularly check all hose connections, valves, and fittings for any signs of leaks or damage. Tighten or replace components as needed.
• Inspect Air Pump: Ensure the air pump is free from dust and debris. Do not submerge the air pump in water.

Troubleshooting

Refer to the table below for common issues and their solutions:

Specifications

Detailed specifications for the DWC Hydroponics Growing System:

Warranty and Support

Specific warranty details for this product are not provided in this manual. For warranty information, technical support, or assistance with replacement parts, please contact the manufacturer, LIYYUQ, or your point of purchase. Retain your proof of purchase for any warranty claims.
