1. Introduction
Thank you for choosing the GAIOUS 75.2" Tall Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage unit. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
This versatile cabinet, measuring 15.7"D x 31.5"W x 75.2"H, is designed to offer extensive storage solutions for various spaces within your home or office.
Image 1.1: The GAIOUS 75.2" Tall Storage Cabinet in black, shown with its doors open, displaying various items stored on its shelves in a kitchen setting.
Image 1.2: A visual representation of the cabinet's dimensions: 75.2 inches tall, 31.5 inches wide, and 15.7 inches deep. A person is shown for scale.
2. Safety Information
To ensure safe use and prevent injury or damage, please adhere to the following safety guidelines:
- Weight Limit: Do not exceed the maximum weight capacity of 180 pounds per shelf. Distribute weight evenly.
- Assembly: Assembly requires two adults. Ensure all parts are correctly aligned and securely fastened.
- Anti-Tipping Device: It is crucial to install the included anti-tipping device to secure the cabinet to the wall. This prevents accidental tipping, especially in households with children or pets.
- Stable Placement: Place the cabinet on a flat, stable surface. Use the adjustable leveling feet to ensure stability on uneven floors.
- Avoid Climbing: Do not allow children to climb on the cabinet.

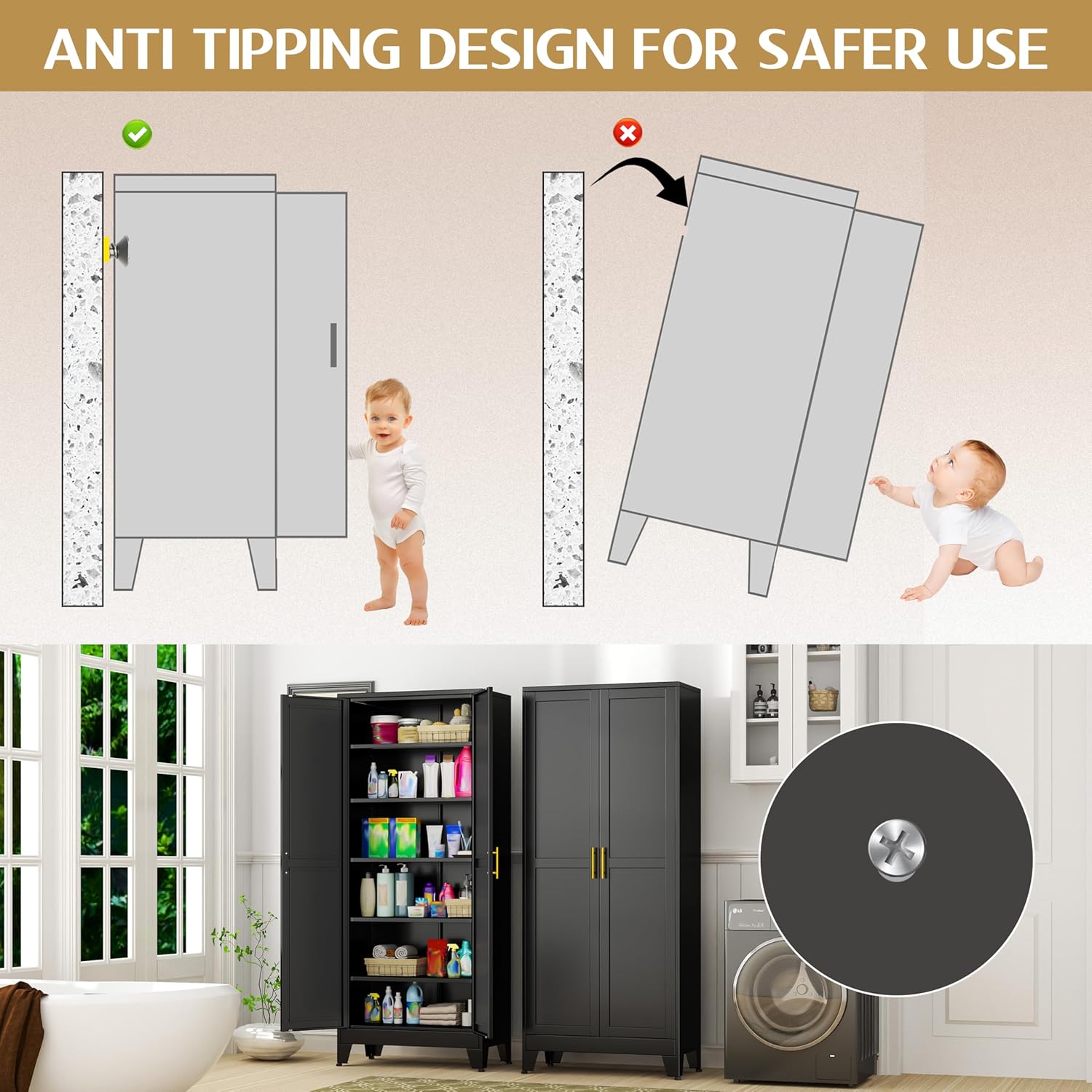

Image 2.1: Illustration of the anti-tipping mechanism. The left side shows a cabinet safely secured to the wall, while the right side depicts a cabinet tipping over without the anti-tipping device, highlighting the importance of installation.
3. Package Contents
Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Cabinet Doors (2)
- Adjustable Shelves (5)
- Cabinet Panels (Top, Bottom, Sides, Back)
- Adjustable Leveling Feet (4)
- Magnetic Suction Door Plugs
- Anti-Tipping Hardware
- Assembly Hardware (screws, bolts, washers, shelf supports)
- User Manual
4. Assembly Instructions
Assembly of this cabinet is designed to be straightforward, but requires attention to detail. We recommend two adults for assembly.
Tools Required:
- Phillips head screwdriver (essential)
- Electric or battery-powered drill (optional, for faster screw insertion)
- 5/16 socket wrench (helpful for back panel nut/bolt attachments)
- Headlamp (optional, for better visibility in tight spots)
General Steps:
- Review Instructions: Read the entire instruction manual completely before starting.
- Unpack and Identify Parts: Lay out all components and verify against the package contents list. All pieces are clearly labeled.
- Assemble Frame: Follow the diagrams to connect the side, top, and bottom panels.
- Install Back Panels: Secure the back panels using the provided hardware. A 5/16 socket wrench can assist with tightening nuts and bolts.
- Attach Doors: Mount the two wing doors. The doors are designed to open at a 180-degree angle.
- Install Shelves: Insert the shelf buckle and shelf fixing buckle for the 5 adjustable shelves.
- Attach Leveling Feet: Install the 4 detachable adjustable height leveling feet. The feet come flat and require bending into a 90-degree angle at the punchouts.
- Install Anti-Tipping Device: Secure the cabinet to the wall using the anti-tipping hardware.
Assembly Tips:
- Screw Insertion: When inserting screws, if you encounter resistance, continue turning. The screw will eventually pass through the smaller hole. If it's stuck, remove and re-attempt with the screw straighter.
- Door Alignment: If doors are uneven after assembly, adjust the leveling feet. Start with all feet at their shortest. Adjust feet to remove wobbles. Then, fine-tune the feet by slightly lifting cabinet corners until doors visually align.
- Placement: Position the cabinet in its final location before loading it with items, as the feet are designed for standing, not frequent movement.
Image 4.1: The interior of the cabinet highlighting the five adjustable shelves. Arrows illustrate the flexibility to adjust, add, or remove shelves to customize storage space.
5. Operation
Your GAIOUS storage cabinet is designed for flexible and secure storage.
Adjustable Shelves:
The cabinet features 5 adjustable shelves. These can be easily repositioned or removed to accommodate items of various sizes, from small pantry goods to larger appliances. Simply adjust the shelf buckles to your desired height.
Secure Closure:
Strong magnetic suction door plugs ensure that the cabinet doors remain tightly closed, keeping contents secure and dust-free.
Stability:
The 4 detachable adjustable height leveling feet allow you to maintain the cabinet's stability even on uneven floor surfaces. Rotate the feet to raise or lower each corner as needed.
Multifunctional Use:
This cabinet is suitable for a wide range of applications, including use as a pantry cabinet, kitchen cupboard, utility cabinet, laundry room cabinet, bathroom cabinet, bedroom wardrobe, bookcase, tool cabinet, or file cabinet.
Image 5.1: The cabinet's interior showcasing its ample storage space, capable of holding various items. Each shelf can support up to 180 pounds.
Image 5.2: Detailed view of the magnetic suction door plug for secure closure and the adjustable height leveling feet for stability on uneven surfaces.
6. Maintenance
To maintain the appearance and longevity of your GAIOUS storage cabinet, follow these simple maintenance guidelines:
- Cleaning: The cabinet's cold-rolled steel with electrostatic powder spraying technology makes it waterproof and easy to clean. Wipe surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals.
- Durability: The high-quality cold-rolled steel plates are sturdy, durable, and resistant to deformation. The powder-coated finish provides additional protection.
- Regular Checks: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.
Image 6.1: An infographic detailing the material composition and benefits: high-quality cold-rolled steel with electrostatic powder spraying technology, ensuring it is waterproof, odorless, easy to clean, and sturdy.
7. Troubleshooting
If you encounter any issues during or after assembly, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet wobbles or is unstable | Uneven floor surface; leveling feet not adjusted correctly. | Adjust the individual leveling feet by rotating them until the cabinet is stable. Ensure all feet are making firm contact with the floor. |
| Doors are not aligned or close unevenly | Cabinet is not level; hinges are loose. | First, ensure the cabinet is level using the adjustable feet. If still uneven, check hinge screws for tightness. |
| Screws are difficult to insert or tighten | Screw is at an incorrect angle; pre-drilled hole is tight. | Ensure the screw is inserted straight. Apply steady pressure and continue turning. If using a manual screwdriver, a powered drill with appropriate bit can assist. |
| Missing parts or damaged components | Packaging error or transit damage. | Do not proceed with assembly. Contact GAIOUS customer service immediately for assistance. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | GAIOUS |
| Model Name | 190 2DBlack |
| Product Dimensions | 15.7"D x 31.5"W x 75.2"H |
| Color | Black |
| Material | Metal (Cold-rolled steel) |
| Finish Type | Powder Coated |
| Number of Shelves | 5 (Adjustable) |
| Weight Limit (per shelf) | 180 Pounds |
| Mounting Type | Floor Mount (Freestanding) |
| Special Features | Adjustable Feet, Adjustable Shelf, Anti-Tipping, Removable Shelf, Scratch Resistant |
| Assembly Required | Yes |
| Item Weight | 88.6 pounds |
9. Warranty and Support
GAIOUS is committed to providing high-quality products and excellent customer service. We implement strict quality control and meticulous packaging for every product.
If you encounter any problems with your GAIOUS 75.2" Tall Storage Cabinet, please do not hesitate to contact our professional after-sales team via email. We promise to address your concerns within 24 hours and provide a satisfactory resolution.
For support, please refer to the contact information provided with your purchase or visit the official GAIOUS store page on Amazon.
