AULA F2088 Mechanical Keyboard and S12PRO Gaming Mouse Combo User Manual

1. Product Overview

The AULA F2088 Mechanical Keyboard and S12PRO Gaming Mouse Combo provides a comprehensive input solution for various computing needs. The F2088 keyboard features a wired connection, typewriter-style round keycaps, and mechanical blue switches for tactile feedback. It includes multimedia and backlight control functionalities. The S12PRO mouse is also wired, offering adjustable DPI settings and programmable buttons for enhanced gaming performance.

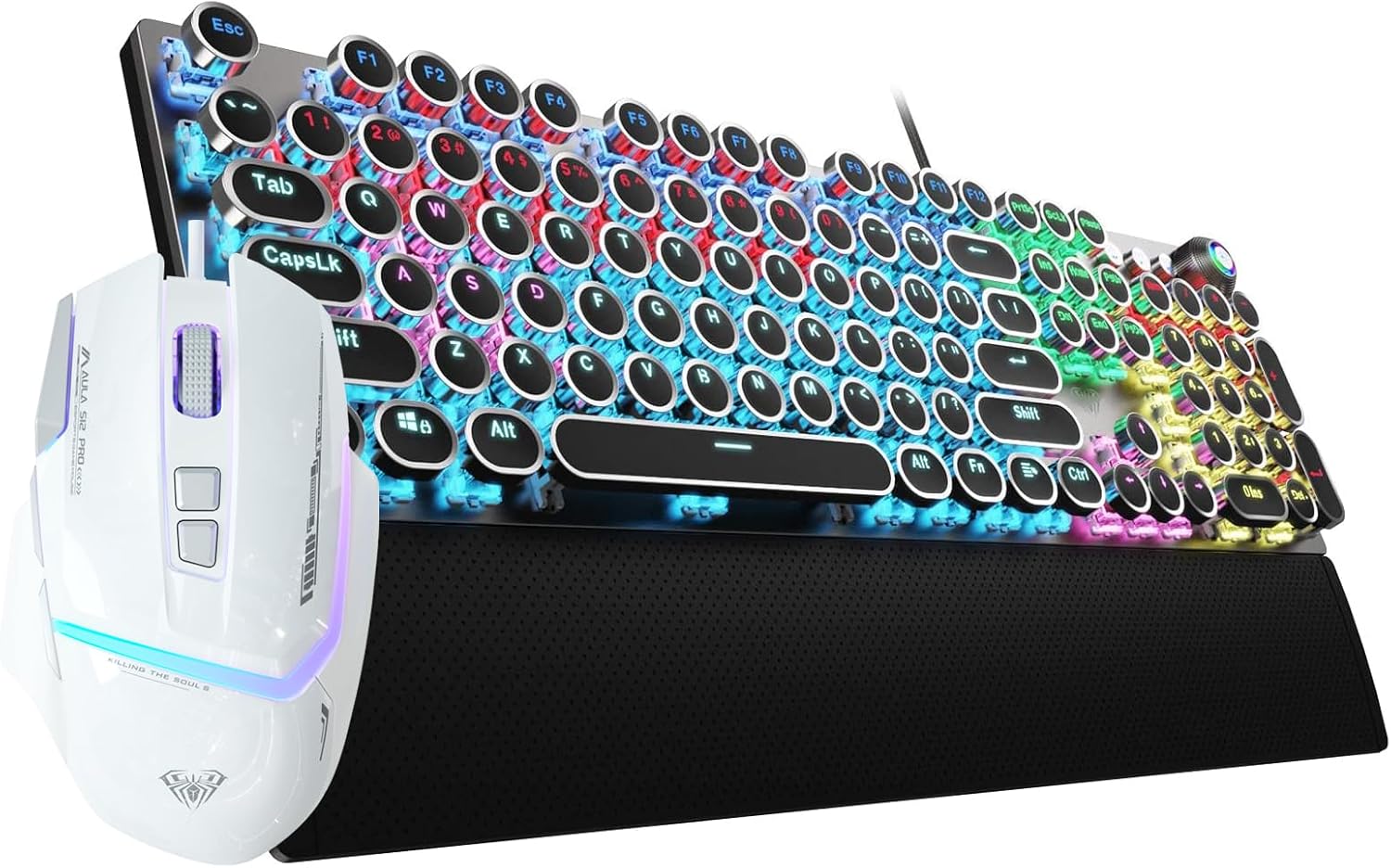

Image 1.1: The AULA F2088 Mechanical Keyboard and S12PRO Gaming Mouse Combo, showcasing the black typewriter-style keyboard with RGB backlighting and the white gaming mouse.

Key Features:

• F2088 Keyboard: Retro typewriter-style round keycaps, mechanical blue switches, multimedia and backlight control knob, metal panel, detachable magnetic wrist rest.
• S12PRO Mouse: 6 adjustable DPI levels (1200-12800), 13 RGB light effects, 8 programmable buttons, software macro programming support.

2. Setup Instructions

This combo utilizes a wired USB connection for both the keyboard and mouse, ensuring a stable and reliable connection. No additional drivers or software are required for basic functionality (plug and play).

2.1 Connecting the Keyboard

1. Locate an available USB port on your computer.
2. Plug the USB connector of the F2088 keyboard into the USB port.
3. The keyboard will be automatically recognized by your operating system.

2.2 Connecting the Mouse

1. Locate another available USB port on your computer.
2. Plug the USB connector of the S12PRO mouse into the USB port.
3. The mouse will be automatically recognized by your operating system.

2.3 System Compatibility

The AULA F2088 keyboard and S12PRO mouse are compatible with the following operating systems:

• Windows 7/8/10/XP/Vista
• Linux
• Mac OS

3. Operating Instructions

3.1 F2088 Mechanical Keyboard Operation

The F2088 keyboard features mechanical blue switches for a responsive typing experience and unique typewriter-style round keycaps. The stepped floating keycap design is intended to reduce hand fatigue.

Image 3.1: Overview of AULA F2088 keyboard features, including Core Knob Control, LED/Media Dual Mode, Retro Punk Style, Floated Layout, Tactile Blue Switch, Decent Rainbow Backlit, Customizable Driver, and Magnetic Wrist Support.

Multimedia and Backlight Control Knob:

The dedicated control knob on the keyboard manages both multimedia functions and backlight effects.

• Short Press: Cycles through 19 different lighting effects.
• Rotate: Adjusts the backlit brightness or speed, depending on the active mode.
• Long Press (3 seconds): Switches between multimedia control mode and lighting control mode.

Image 3.2: Illustration of the multimedia and backlight control knob on the AULA F2088 keyboard, showing how a long press switches between lighting control and multimedia modes.

Backlight Customization:

The keyboard supports 22 backlighting modes and 5 adjustable brightness levels. You can also create 3 customized backlight profiles.

Image 3.3: The AULA F2088 keyboard displaying bright multicolor backlighting, highlighting the 22 backlighting modes, 5 adjustable brightness levels, and one-knob control.

Magnetic Wrist Rest:

The keyboard includes an ergonomic, detachable magnetic wrist rest made of ABS material, designed to provide support and alleviate wrist pressure during extended use.

Image 3.4: The AULA F2088 keyboard with its detachable magnetic wrist rest, emphasizing its ergonomic design for typing comfort.

3.2 S12PRO Gaming Mouse Operation

The S12PRO gaming mouse offers customizable features for an optimized gaming experience.

Image 3.5: A close-up view of the AULA S12PRO Wired White Gaming Mouse.

DPI Adjustment:

The S12PRO mouse features 6 adjustable DPI levels, allowing you to change cursor sensitivity on the fly. The default DPI is 1200.

• Available DPI levels: 1200 / 1600 / 2400 / 4800 / 7200 / 12800.
• Press the dedicated DPI switch button to cycle through the DPI settings.

Image 3.6: The AULA S12PRO mouse demonstrating its 1200-12800 DPI range and the location of the DPI switch button.

Programmable Buttons:

The mouse is equipped with 8 programmable buttons. Software is available for macro programming and custom keybinds, including a rapid-fire button. The built-in large storage space ensures settings are retained when changing devices.

Image 3.7: Diagram illustrating the customizable button functions of the AULA S12PRO mouse, including Left Click, Middle Roller, Right Click, Firepower Key, Forward Key, Back Button, DPI+, and DPI-.

RGB Lighting:

The S12PRO mouse features 13 distinct RGB light effects.

4. Maintenance

Proper maintenance helps ensure the longevity and optimal performance of your AULA keyboard and mouse combo.

4.1 Cleaning the Keyboard

• Use the included keycap puller to carefully remove keycaps for thorough cleaning.
• Wipe the metal panel with a soft, dry cloth to remove dust and smudges. Avoid abrasive cleaners.
• For deeper cleaning, use compressed air to clear debris from beneath the keycaps.

4.2 Cleaning the Mouse

• Wipe the mouse surface with a soft, slightly damp cloth. Ensure no liquid enters the internal components.
• Clean the optical sensor area on the bottom of the mouse with a cotton swab to maintain tracking accuracy.

5. Troubleshooting

If you encounter issues with your AULA keyboard and mouse combo, consider the following basic troubleshooting steps:

5.1 General Issues

• Device not responding: Ensure both the keyboard and mouse USB cables are securely plugged into your computer's USB ports. Try different USB ports.
• Intermittent connection: Check for any damage to the USB cables. Ensure no other devices are causing USB port conflicts.
• Incorrect key input/mouse movement: Restart your computer. Ensure your operating system is up to date.

5.2 Keyboard Specific Issues

• Backlight not working: Check if the backlight is turned off or set to minimum brightness using the control knob. Cycle through lighting modes.
• Multimedia keys not functioning: Ensure the control knob is in multimedia mode (long press for 3 seconds to switch).

5.3 Mouse Specific Issues

• DPI not changing: Press the DPI switch button to cycle through available DPI settings.
• Tracking issues: Clean the optical sensor on the bottom of the mouse. Ensure you are using the mouse on a suitable surface.

If problems persist, please refer to the manufacturer's support resources.

6. Specifications

6.1 F2088 Mechanical Keyboard

6.2 S12PRO Gaming Mouse

7. Warranty and Support

For detailed warranty information, product registration, or technical support, please refer to the product packaging or visit the official AULA website. Contact information for customer service is typically provided with your purchase documentation.
