Introduction
Thank you for choosing the FABATO Full Bed Frame with LED Headboard. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.
This bed frame features a sturdy metal platform, an integrated LED headboard with customizable lighting, and convenient charging ports (2 USB, 2 AC outlets) for your electronic devices. It is designed for easy assembly and provides ample under-bed storage space.
Image: The FABATO Full Bed Frame with LED Headboard, fully assembled in a bedroom. The headboard lights are illuminated, and the under-bed space is visible.
Safety Information
WARNING: Failure to follow these safety instructions could result in injury or damage to the product.
- Do not exceed the maximum load capacity of 800 lbs (approximately 362 kg). Overloading can cause structural failure and injury.
- Exercise caution with sharp edges during assembly to prevent cuts.
- Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten as necessary.
- Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Only use the bed frame on a flat, level surface.
- Do not attempt to modify the bed frame or its electrical components. Use only original parts and accessories.
- Unplug the bed frame from the power outlet before cleaning or performing any maintenance on the electrical components.
Package Contents & Parts List
Before beginning assembly, ensure all parts and hardware are present. Refer to the detailed instructions and numbered parts included in your package. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
The package includes:
- Headboard components with integrated LED lighting and charging ports
- Side rails and support beams
- Metal slats for mattress support
- Support legs
- Assembly hardware (screws, bolts, washers, Allen wrench)
- Installation Manual
Setup & Assembly Instructions
Assembly of the FABATO Full Bed Frame is designed to be straightforward and can typically be completed within one hour with two people. Follow the step-by-step instructions provided in the included installation manual. All parts are numbered for easy identification.
- Unpack and Identify Parts: Lay out all components on a clean, soft surface (like a rug or blanket) to prevent scratches. Match each part to the corresponding number in the manual.
- Assemble the Headboard: Follow the manual to connect the headboard sections, ensuring the LED strips and charging unit are correctly positioned.
- Attach Side Rails: Connect the side rails to the headboard and footboard (if applicable), securing them with the provided hardware.
- Install Support Beams and Legs: Place the central support beam and attach the support legs as indicated in the manual. Ensure all legs are firmly attached and level.
- Place Metal Slats: Position the metal slats onto the side rails. The non-slip design ensures the mattress stays in place. Secure the slats according to the instructions.
- Final Tightening: Once all components are in place, go back and ensure all screws and bolts are fully tightened. Do not overtighten.
- Connect Power: Plug the bed frame's power cord into a wall outlet.
Image: An exploded view diagram of the FABATO Full Bed Frame, illustrating its dimensions (Length: 80.5", Width: 54", Height: 40.7") and the arrangement of its metal frame, slats, and headboard. The diagram also highlights the 800 lbs (453 kg) load capacity.

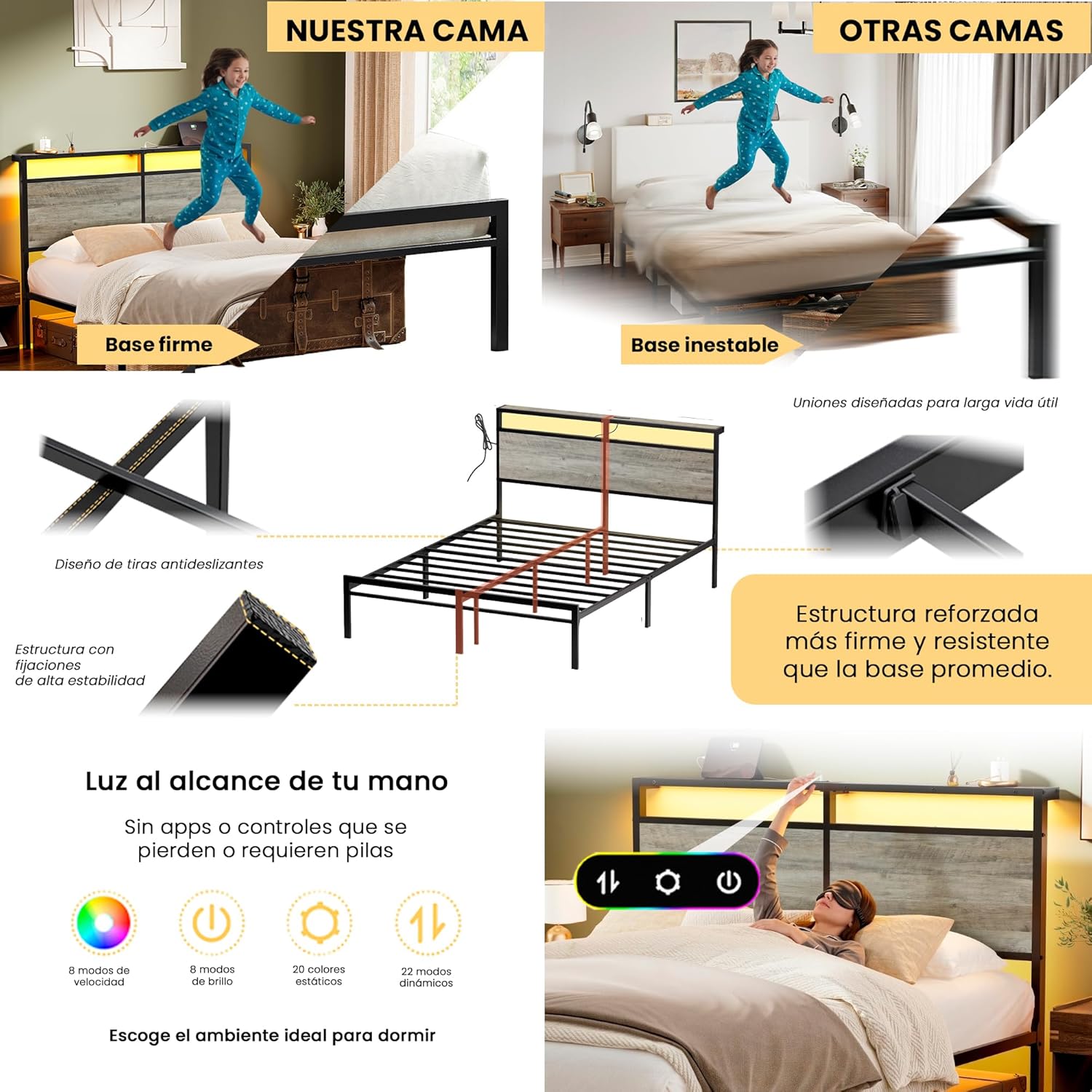

Image: A visual comparison showing the FABATO bed frame (labeled 'Our Bed') as stable with a reinforced structure and anti-slip strips, contrasted with a generic 'Other Beds' frame depicted as unstable. This illustrates the robust design and high stability of the FABATO frame.
Operating Instructions
LED Headboard Lighting
The integrated LED lighting in the headboard can be controlled via the included remote control. Ensure the bed frame is plugged into a power outlet.
- Power On/Off: Press the power button on the remote to turn the lights on or off.
- Color Change: Use the color selection buttons to choose from 20 static colors.
- Dynamic Modes: Select from 22 dynamic modes for various lighting effects.
- Brightness Adjustment: Adjust the brightness level to your preference.
- Speed Adjustment: For dynamic modes, adjust the speed of the lighting effects.
Image: A graphic illustrating the controls for the LED headboard. Icons represent 'Change Color', 'Adjust Rhythm', 'ON/OFF', '20 Static Colors', '22 Dynamic Modes', 'Adjustable Speed', and 'Brightness'.
Charging Ports (USB & AC Outlets)
The headboard includes 2 USB ports (5V/2A) and 2 AC outlets for convenient charging of your electronic devices. These ports are active when the bed frame is plugged into a wall outlet.
- USB Ports: Connect your USB charging cables to charge smartphones, tablets, and other compatible devices.
- AC Outlets: Plug in standard electrical devices, such as lamps or laptops.
CAUTION: Do not overload the charging ports. Ensure devices are compatible with the provided voltage and current. Avoid spilling liquids near the outlets.

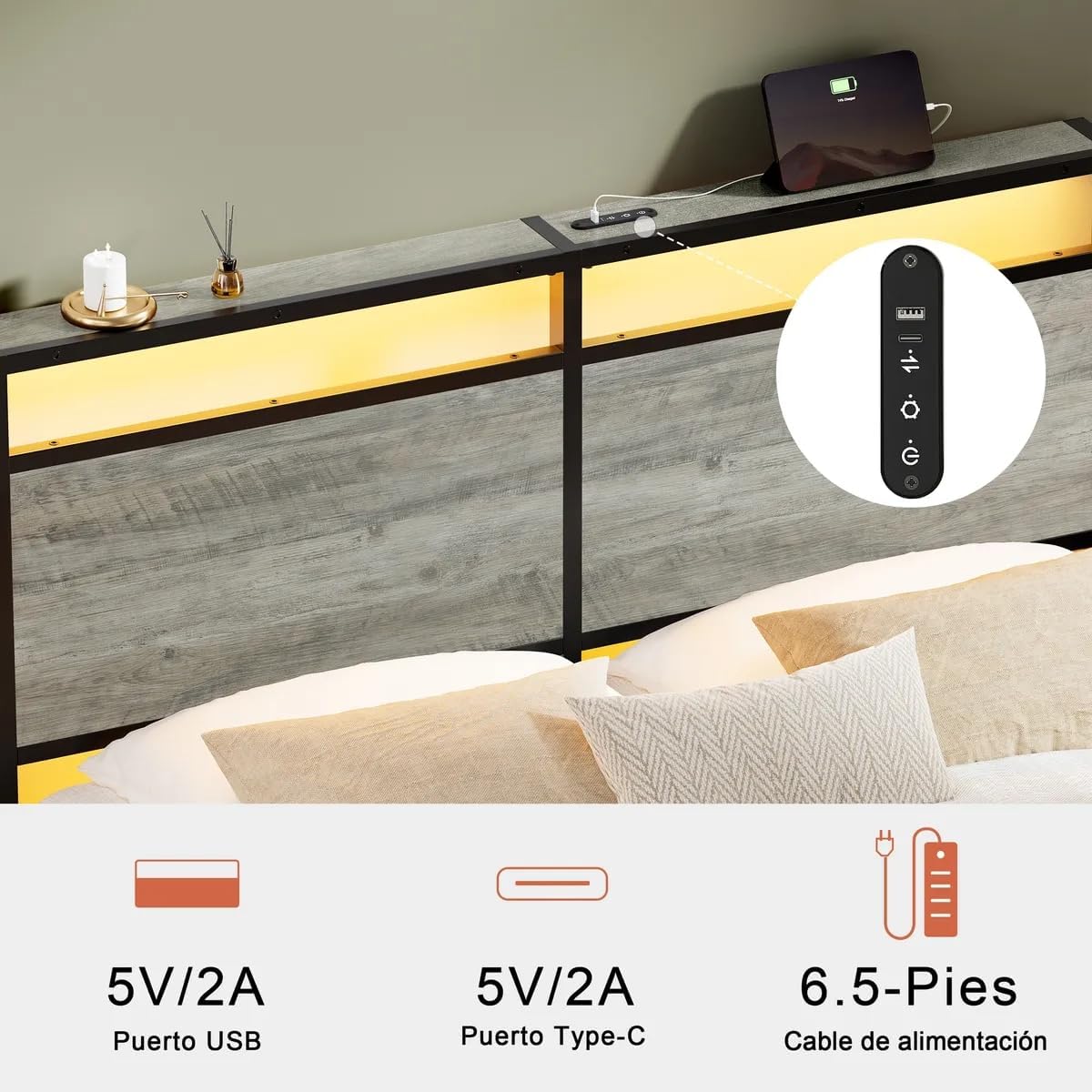

Image: A close-up view of the FABATO bed frame's headboard, highlighting the integrated charging station. It shows a 5V/2A USB port, a 5V/2A Type-C port, and the 6.5-foot power cable for the unit.
Maintenance
Proper maintenance will ensure the longevity and appearance of your FABATO bed frame.
- Cleaning the Frame: Wipe metal and wood surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. The headboard features a natural textured panel that is waterproof and easy to clean.
- Checking Connections: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
- Electrical Components: Keep the charging ports and LED strips free from dust and debris. Do not attempt to clean the electrical components with liquids.
- Floor Protection: The bed frame is equipped with plastic pads to protect your floor from scratches. Ensure these pads remain intact.
Image: A close-up of the headboard's natural textured panel, with icons indicating it is 'Waterproof' and 'Easy to Clean'.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or squeaks | Loose connections; uneven floor; missing plastic pads. | Check and tighten all screws and bolts. Ensure the bed is on a level surface. Verify all plastic pads are in place. |
| LED lights not working | Power cord unplugged; remote control battery dead; LED strip connection loose. | Ensure the bed frame is plugged into a working outlet. Replace remote control batteries. Check the connection of the LED strip to the power unit. |
| Charging ports not working | Power cord unplugged; device not compatible; port overloaded. | Verify the bed frame is plugged in. Test with a different device and cable. Ensure the total power draw does not exceed the port's capacity. |
| Mattress slides on the frame | Non-slip strips not properly installed or damaged. | Ensure the non-slip strips on the slats are correctly positioned and intact. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | HB0 |
| Size | Full (Matrimonial) |
| Product Dimensions (L x W x H) | 78.74" x 55.12" x 39.37" (200cm x 140cm x 100cm) |
| Under-bed Storage Height | 10.4" (approximately 26.4 cm) |
| Material | Wood, Metal |
| Color | Grey |
| Maximum Weight Capacity | 800 lbs (approximately 362 kg) |
| Charging Ports | 2 x USB (5V/2A), 2 x AC Outlets |
| LED Lighting | 20 Static Colors, 22 Dynamic Modes, Adjustable Brightness & Speed |
| Assembly Required | Yes |
Image: A view of the under-bed area, illustrating the ample storage space with a height of 13 inches (33 cm), suitable for suitcases and storage boxes.
Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.
If you encounter any issues or have questions regarding your FABATO Full Bed Frame, please contact the seller or manufacturer's customer support for assistance. Have your model number (HB0) and purchase details ready when contacting support.
