Introduction
This manual provides essential information for the assembly, operation, and maintenance of your Desky 72 Inch L-Shaped Electric Standing Desk. Please read these instructions carefully before use to ensure safe and efficient operation. This desk is designed to offer an adjustable height workspace, promoting ergonomic sit-stand transitions.
Image: Desky 72 Inch L-Shaped Electric Standing Desk with White Oak top and Matte Black frame.
Safety Information
- Ensure all connections are secure before operating the desk.
- Keep hands and objects clear of moving parts during height adjustments.
- Do not exceed the maximum weight capacity of 440.9 lbs (200 kg).
- Only use the provided power supply and components.
- Supervise children and pets around the desk, especially during movement.
- Avoid placing liquids directly on the control panel or near electrical components.
Package Contents
Verify that all components are present before beginning assembly:
- Desk Top (L-shaped hardwood)
- Desk Frame (Motorised Electric Desk Legs)
- Desk Hand Controller
- Power Box
- Connecting Cords
- GPO Wall Plug
- Hardware (Screws, etc.)
- Sticky Cable Ties
Setup and Assembly
The Desky L-Shaped Electric Standing Desk is designed for straightforward assembly. Refer to the included assembly guide for detailed, step-by-step instructions and diagrams. General steps include:
- Unpack all components and verify against the package contents list.
- Assemble the desk frame according to the provided instructions.
- Attach the L-shaped hardwood desktop to the assembled frame.
- Connect the power box, motors, and hand controller using the connecting cords.
- Secure cables using the sticky cable ties for organized cable management.
- Plug the GPO wall plug into a suitable power outlet.

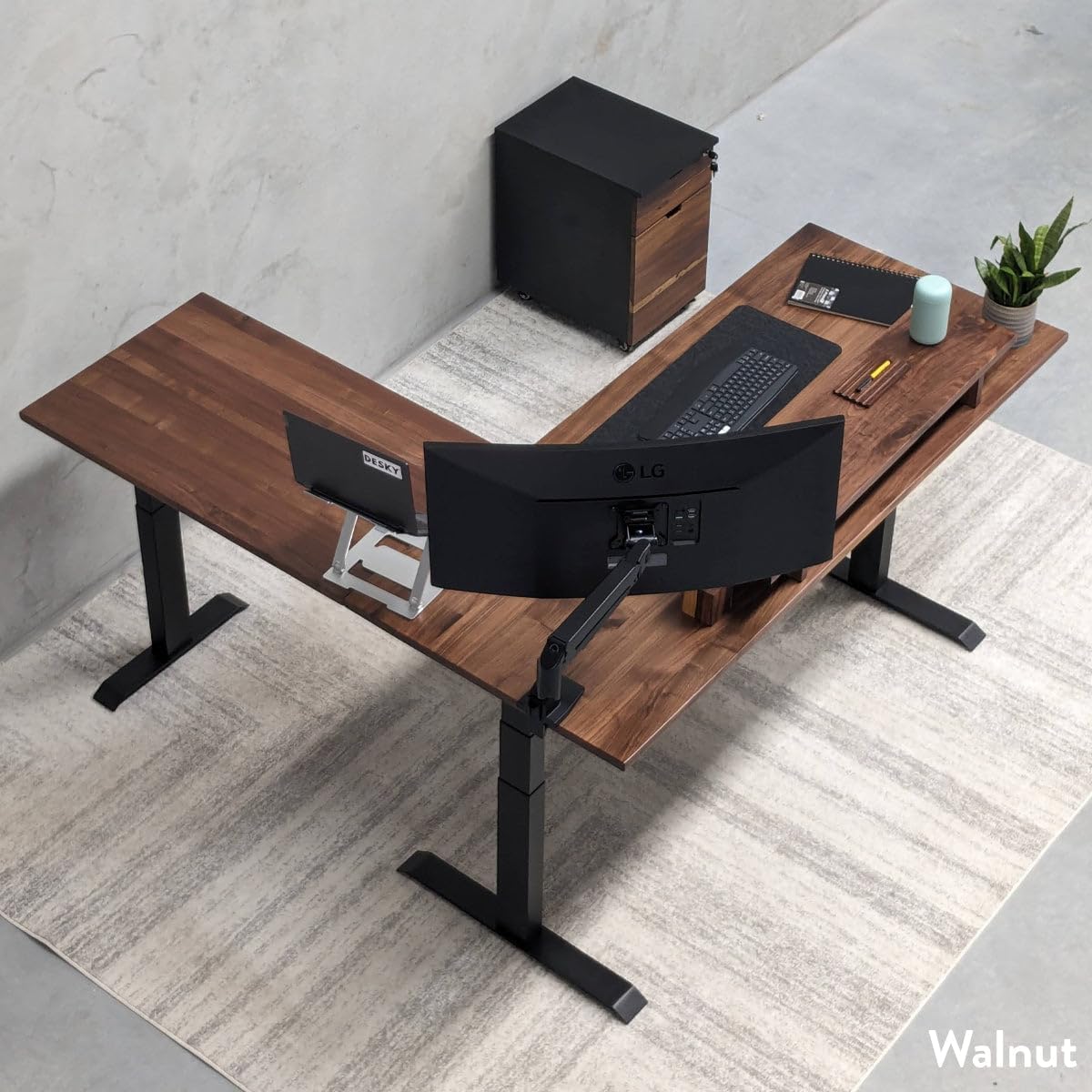

Image: An L-shaped electric standing desk configured with dual monitors and office accessories, demonstrating the expansive workspace.
Operating Instructions
Height Adjustment
The desk features a triple electric motor lifting system for smooth and quiet height adjustments. The height range is from 23.6 inches (seated position) to 49.2 inches (standing position), accommodating a wide range of user heights. The travel speed is approximately 1.4 inches per second.
Control Panel
The digital keypad allows for precise control and includes the following features:
- 4 Memory Presets: Program and save your preferred sitting and standing heights for quick transitions.
- Anti-Collision System: Detects obstacles during movement and stops to prevent damage.
- Child Lock: Engages to prevent accidental height adjustments.
- Upper & Lower Limits: User-programmable limits for height range customization.
Maintenance
To ensure the longevity and optimal performance of your Desky L-Shaped Electric Standing Desk, follow these maintenance guidelines:
- Cleaning: Wipe the hardwood desktop with a soft, damp cloth. For the metal frame, use a mild cleaner if necessary. Avoid abrasive cleaners or solvents.
- Inspections: Periodically check all screws and connections to ensure they are tight.
- Cable Management: Ensure cables are neatly organized and not pinched or strained.
- Weight Distribution: Distribute weight evenly across the desktop to prevent undue stress on the lifting mechanism.
Troubleshooting
If you encounter issues with your desk, consider the following common solutions:
- Desk Not Moving: Check if the power cord is securely plugged into both the desk and the wall outlet. Ensure the child lock is not activated.
- Uneven Movement: Verify that the desk is not overloaded beyond its weight capacity. Ensure all frame components are correctly assembled and tightened.
- Error Codes: Refer to the specific error code displayed on the hand controller and consult the detailed troubleshooting section in the full product manual (if provided separately) or contact customer support.
- Noise During Operation: A low noise level (40 dB) is normal. If unusual or excessive noise occurs, ensure no objects are obstructing the lifting columns.
Specifications
| Feature | Detail |
|---|---|
| Brand | Desky |
| Model Number | 8893131096386 |
| Model Name | Desky Hardwood L-Shape Sit Stand Desk |
| Product Dimensions | 30"D x 55"W x 37"H (Overall, specific L-shape dimensions: 72 x 30 x 70 x 24 in) |
| Height Range (without desktop) | 23.6" - 49.2" |
| Weight Capacity | 440.9 lbs (200 kg) |
| Lifting System | Triple Motor |
| Travel Speed | 1.4" per second |
| Noise Level | 40 dB in motion |
| Desktop Material | Hardwood (White Oak, Pheasantwood, Red Oak, White Ash, Walnut, Teak, Saman, Natural Walnut options) |
| Desktop Thickness | 1 inch |
| Desktop Finish | Clear Polyurethane Hard Wearing Finish |
| Base Material | Alloy Steel |
| Base Color | Matte Black (other options available) |
| Control Panel | 4 Memory Presets, Anti-Collision System, Child Lock, Programmable Upper & Lower Limits |
| Power Specifications | Input Power: 240v, Transformer Power: 200W (0.1W on standby) |
| Certifications | BIFMA Compliant |
Desktop Finish Examples:
Warranty Information
The Desky L-Shaped Electric Standing Desk comes with a 10-year supplier warranty. This warranty covers manufacturing defects and ensures the product meets its specified performance standards. For detailed terms and conditions, please refer to the warranty documentation included with your purchase or contact Desky customer support.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Desky customer support. You can typically find contact information on the Desky official website or through the retailer where the product was purchased.
You may also visit the Desky Store on Amazon for additional resources and support.
