1. Product Overview
The Yato YT-2299 Wire Stripper is a versatile hand tool designed for electrical work, offering multiple functions including wire stripping, cable cutting, screw cutting, and insulation welt. This manual provides essential information for the safe and effective operation and maintenance of your tool.

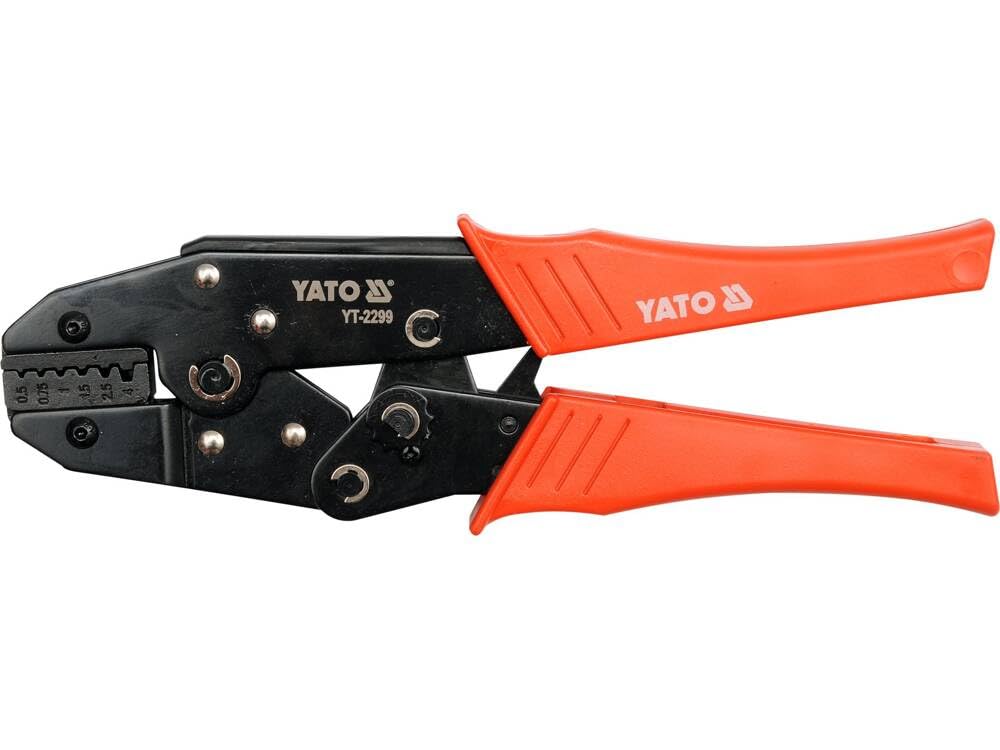

Figure 1: Yato YT-2299 Wire Stripper. This image displays the tool's ergonomic handles, the adjustable wire stripping mechanism, the integrated cable cutting blades, and the various screw cutting holes.
2. Safety Information
- Always wear appropriate personal protective equipment, such as safety glasses, when using the tool.
- Ensure the tool is clean and in good working condition before each use.
- Do not use the tool on live electrical circuits. Always disconnect power before working on wires.
- Keep hands and fingers clear of cutting and stripping blades during operation.
- Store the tool in a dry, secure place, out of reach of children.
- Do not modify the tool or use it for purposes other than its intended design.
3. Setup
3.1 Unpacking
Carefully remove the Yato YT-2299 Wire Stripper from its packaging. Verify that all components are present and undamaged. The package should contain one (1) Yato YT-2299 Wire Stripper.
3.2 Initial Inspection
Before first use, inspect the tool for any signs of damage, loose parts, or manufacturing defects. Ensure the jaws open and close smoothly, and the cutting edges are sharp and free from nicks. If any damage is found, do not use the tool and contact customer support.
4. Operating Instructions
4.1 Wire Stripping (0.5-4 MM)
- Identify the wire gauge you intend to strip. The tool is designed for wires between 0.5 MM and 4 MM.
- Locate the corresponding stripping hole on the tool's jaws.
- Insert the wire into the correct stripping hole, ensuring only the insulation is within the jaws and the conductor is clear.
- Squeeze the handles firmly to cut through the insulation.
- While maintaining pressure, pull the tool away from the wire to remove the stripped insulation.
4.2 Cable Cutting
- Position the cable between the dedicated cutting blades located near the pivot point of the tool.
- Ensure the cable is fully seated within the cutting blades.
- Apply firm, steady pressure to the handles to cut through the cable.
4.3 Screw Cutting
- Identify the screw size you wish to cut. The tool features various threaded holes for different screw diameters.
- Insert the screw into the appropriate threaded hole from the outside of the tool, ensuring the desired cutting point is aligned with the cutting edge inside the hole.
- Squeeze the handles together firmly to cut the screw. The cut portion will fall out.
4.4 Insulation Welt
This feature allows for crimping or forming insulation. Position the insulation within the designated welt area of the jaws and apply gentle pressure to shape or secure it.
4.5 Tightening Spark Lines
Use the designated area on the tool for tightening spark lines. Insert the spark line into the appropriate slot and apply pressure to secure it. Refer to specific spark line manufacturer instructions for proper tightening specifications.
5. Maintenance
5.1 Cleaning
- After each use, wipe the tool clean with a dry cloth to remove any dust, dirt, or debris.
- For stubborn grime, a mild detergent solution can be used, followed by thorough drying.
- Periodically apply a light coat of machine oil to the pivot points to ensure smooth operation and prevent rust.
5.2 Storage
Store the Yato YT-2299 Wire Stripper in a clean, dry environment, away from direct sunlight and extreme temperatures. Keep the jaws closed to protect the cutting and stripping edges.
6. Troubleshooting
6.1 Common Issues
- Difficulty Stripping Wire: Ensure you are using the correct stripping hole for the wire gauge. The blades may be dull if the tool has been used extensively; consider replacement if performance degrades significantly.
- Incomplete Cuts: Verify that the cable or screw is properly seated in the cutting area and apply sufficient pressure.
- Stiff Operation: Apply a small amount of lubricant to the pivot points. Clean any accumulated debris that might be hindering movement.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | YT-2299 |
| Brand | Yato |
| Wire Stripping Range | 0.5 - 4 MM |
| Tool Length | 220 MM |
| Item Weight | 300 Grams |
| Product Dimensions | Approximately 5L x 5W Centimeters (referring to tool head/jaws, not full length) |
| Grip Type | Ergonomic |
| Country of Origin | China |
| Included Components | 1 x YT-2299 Wire Stripper |
8. Warranty and Support
For information regarding warranty coverage, product support, or to report any issues, please refer to the warranty card included with your purchase or contact Yato customer service through their official website or authorized distributors. Please have your model number (YT-2299) and purchase details available when contacting support.
