Important Safety Instructions
Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not immerse the appliance, plug, or cord in water or other liquids.
- Unplug from the outlet when not in use, before filling/emptying water, and before cleaning.
- Keep the appliance out of reach of children and pets.
- Do not operate with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Place the appliance on a stable, level surface to prevent tipping.
- Do not block air inlets or outlets. Maintain at least 20 cm clearance from walls and furniture.
- Only use clean water in the water tank. Do not add any chemicals or additives.
- Do not touch the fan blades when the unit is operating.
- This appliance is for indoor, residential use only.
Product Overview

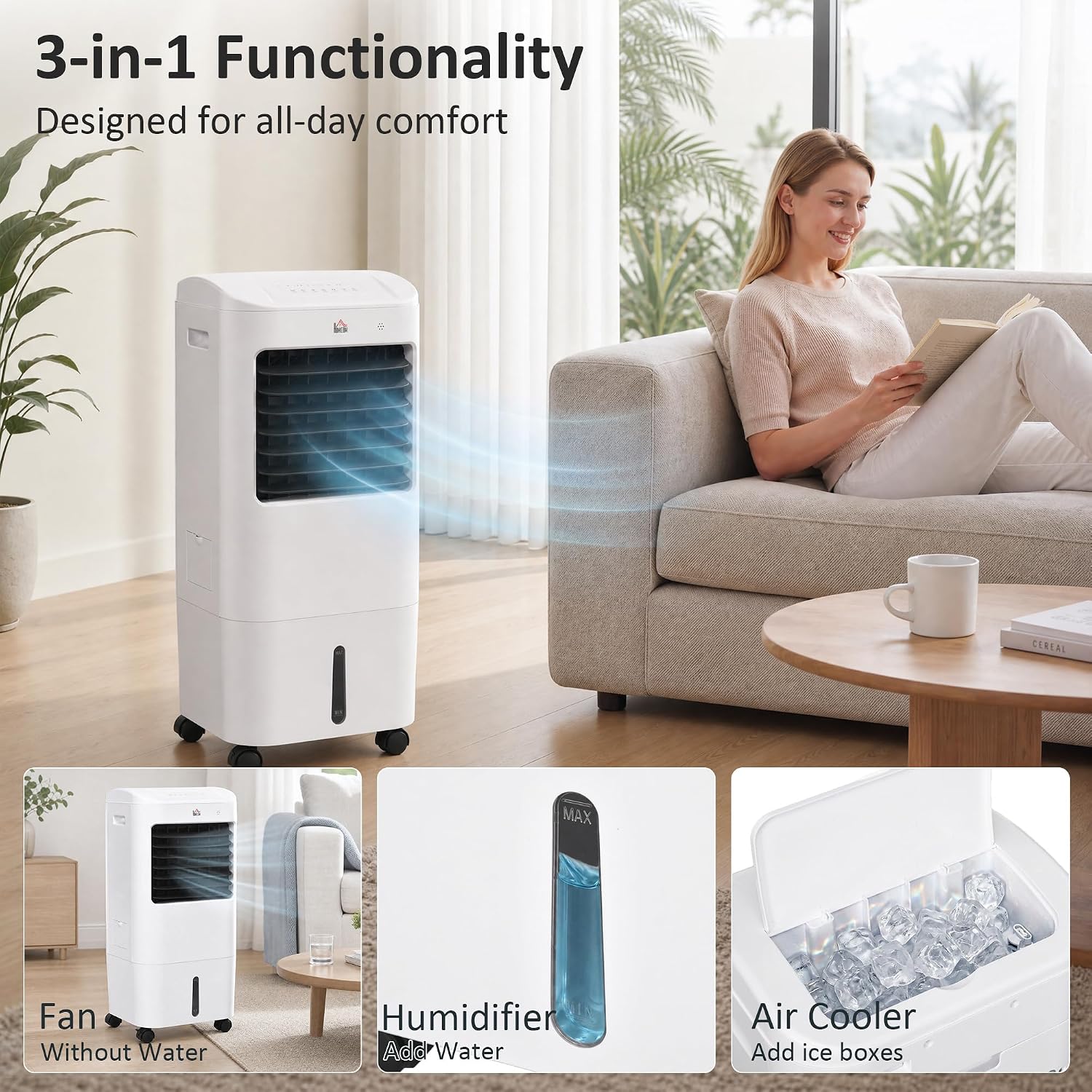

The HOMCOM Portable Evaporative Air Cooler is a versatile 3-in-1 appliance designed to provide cooling, humidification, and fan functions. It features a large 15L water tank, remote control, and 60-degree oscillation for wide coverage.
Key Components:
- Control Panel: Top-mounted buttons for manual operation.
- Air Outlet: Front grille where cooled air is discharged.
- Water Tank: 15-liter capacity for water and ice packs.
- Water Level Indicator: Transparent window on the front to monitor water level.
- Casters: Four universal wheels for easy mobility, two with brakes.
- Remote Control: For convenient operation from a distance.
- Ice Packs: Two reusable ice packs included to enhance cooling.
Setup
1. Unpacking and Placement
- Carefully remove the air cooler from its packaging.
- Place the unit on a firm, level surface. Ensure there is at least 20 cm of space around the unit for proper airflow.
- Lock the two casters with brakes to secure the unit in place.
2. Filling the Water Tank
- Pull out the water tank from the bottom rear of the unit.
- Fill the tank with clean, cool water. Do not exceed the 'MAX' fill line indicated on the tank.
- For enhanced cooling, place the two included ice packs (after freezing) into the water tank.
- Carefully push the water tank back into the unit until it is securely in place.
3. Power Connection
- Plug the power cord into a standard 110V AC electrical outlet.
Operating Instructions
The air cooler can be operated using the control panel on top of the unit or the included remote control.
Control Panel & Remote Functions:
- ON/OFF Button: Powers the unit on or off.
- Speed Button: Cycles through 3 fan speeds: Low, Medium, High.
- Mode Button: Selects operating modes: Normal, Natural, or Sleep.
- Cool Button: Activates or deactivates the evaporative cooling/humidifying function.
- Swing Button: Activates or deactivates the 60-degree horizontal oscillation. Vertical louvers can be adjusted manually.
- Timer Button: Sets the auto-off timer for up to 7.5 hours in 0.5-hour increments.
Maintenance
Regular maintenance ensures optimal performance and longevity of your air cooler.
1. Cleaning the Water Tank
- Unplug the unit from the power outlet.
- Pull out the water tank and empty any remaining water.
- Clean the tank with a soft cloth and mild detergent. Rinse thoroughly with clean water.
- Allow the tank to air dry completely before reinserting it into the unit.
- Clean the water tank at least once a week, or more frequently if used continuously.
2. Cleaning the Air Filter
- Unplug the unit.
- Remove the rear filter panel (refer to diagram in manual if available).
- Gently wash the filter with water and a soft brush. Do not use harsh chemicals.
- Allow the filter to dry completely before reattaching it.
- Clean the air filter every two weeks or as needed, depending on usage and air quality.
3. Exterior Cleaning
- Wipe the exterior of the unit with a soft, damp cloth.
- Do not use abrasive cleaners or solvents.
4. Storage
- Before storing, ensure the water tank is empty and clean, and the filter is dry.
- Store the unit in a cool, dry place, away from direct sunlight.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. |
| No cool air. | Water tank is empty or low. | Fill the water tank to the 'MAX' level. Ensure the 'Cool' function is activated. |
| Ice packs not frozen or used. | Freeze ice packs before placing them in the water tank. | |
| Water leakage. | Water tank overfilled. | Do not fill water above the 'MAX' line. |
| Water tank not properly seated. | Ensure the water tank is pushed in completely and securely. | |
| Unusual noise. | Unit not on a level surface. | Place the unit on a stable, level surface. |
| Obstruction in air inlet/outlet. | Check for and remove any obstructions. |
Specifications
| Feature | Detail |
|---|---|
| Brand | HOMCOM |
| Model Number | 824-079V81WT |
| Type | Portable Evaporative Air Cooler (3-in-1) |
| Functions | Cooling, Humidifying, Fan |
| Water Tank Capacity | 15 Liters |
| Air Flow Capacity | 353 CFM (Cubic Feet per Minute) / 600 cubic feet per minute |
| Fan Speeds | 3 (Low, Medium, High) |
| Modes | Normal, Natural, Sleep |
| Oscillation | 60° Horizontal (Automatic), Vertical (Manual) |
| Timer | Up to 7.5 Hours |
| Control Type | Touch Panel, Remote Control |
| Power | 75 Watts |
| Voltage | 110 Volts |
| Noise Level | 60 dB (at highest setting) |
| Dimensions (D x W x H) | 32D x 37W x 78H cm (12.6" x 14.6" x 30.7") |
| Item Weight | 6.8 kg |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Included Components | Ice Pack, Remote Controller |
Warranty and Support
Warranty Information:
This HOMCOM Evaporative Air Cooler comes with a 90-day warranty against manufacturer defects. Please retain your proof of purchase for warranty claims.
Customer Support:
For any questions, technical assistance, or warranty claims, please contact Aosom Canada, the manufacturer, directly:
- Manufacturer: Aosom Canada
- Contact Information: Markham, Ontario, CA
- Telephone: 1-416-792-6088
Please have your model number (824-079V81WT) and purchase date available when contacting support.
