Introduction
This manual provides instructions for the Lordear 33x22 Inch Drop-In Waterfall Workstation Kitchen Sink. It features a dual-track design for integrated accessories, a pull-out faucet with three spray modes, and a built-in glass rinser for enhanced kitchen functionality. Please read these instructions carefully before installation and use to ensure proper function and longevity of your sink.
Package Contents
The following items are included in your package:
- 33 inch topmount waterfall kitchen sink
- Pull-out kitchen faucet
- Cutting board
- Colander
- Roll-up rack
- Bottom rinse grid
- Drain strainer assembly
- Glass rinser
- Note: The small faucet is not included.
Image: Overview of the Lordear 33x22 Inch Drop-In Waterfall Workstation Kitchen Sink with its various included accessories like the cutting board, roll-up rack, and glass rinser.
Specifications
| Feature | Detail |
|---|---|
| Brand | Lordear |
| Model Number | TLS33R1FY |
| Exterior Dimensions | 33" (W) x 22" (D) x 10" (H) |
| Interior Dimensions | 31" (W) x 17.8" (D) x 9.75" (H) |
| Minimum Cabinet Size | 36" |
| Material | 16-Gauge T-304 Stainless Steel |
| Finish Type | Brushed Nickel |
| Installation Type | Drop-in / Topmount |
| Drain Opening | Standard 3.5" |
| Noise Reduction | 3mm anti-acoustic coating and thick rubber mats |
| Anti-Condensation | Coating on the back to prevent moisture |

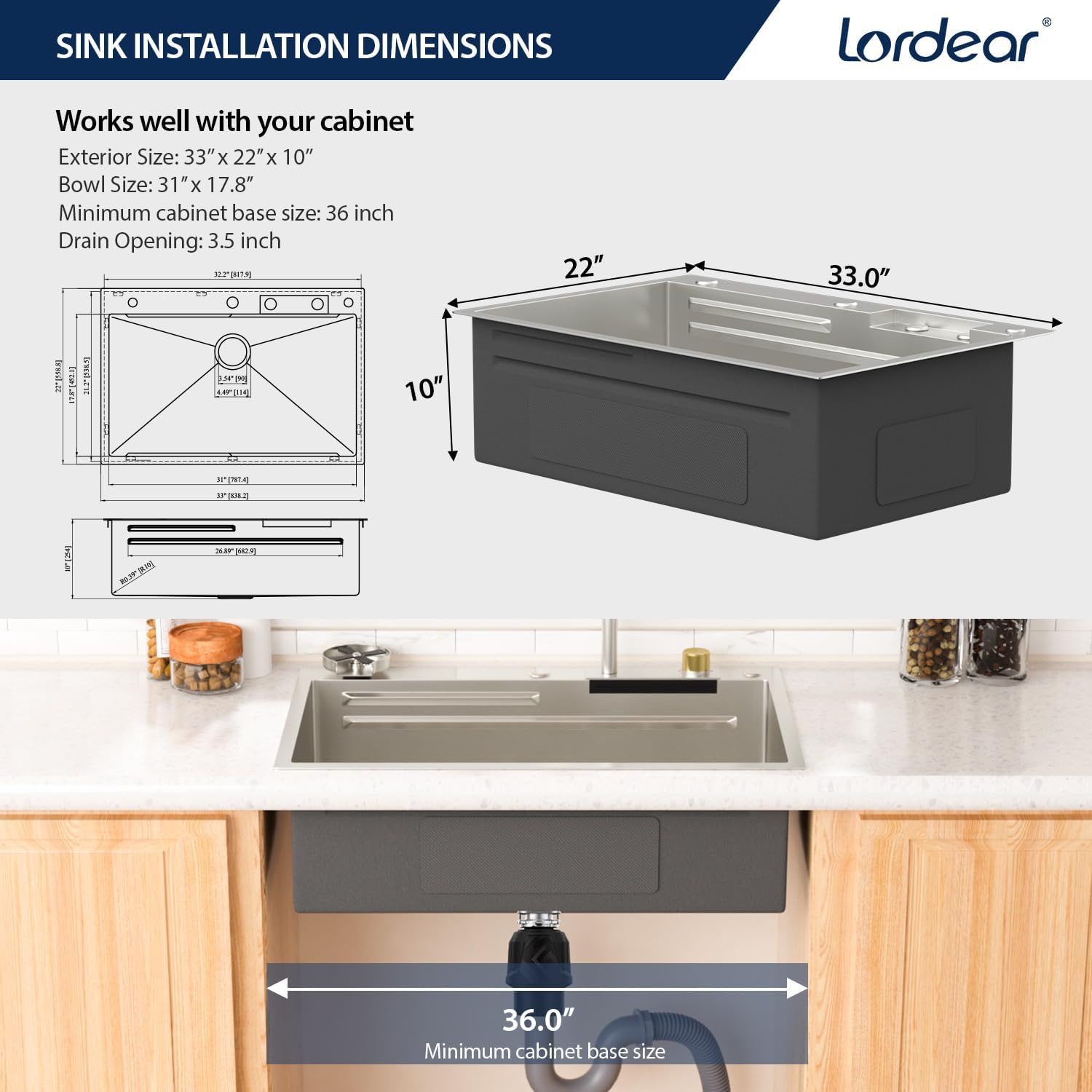

Image: Detailed dimensions for the sink, including exterior, interior, and minimum cabinet base size for installation.
Setup and Installation
Proper installation is crucial for the optimal performance of your Lordear kitchen sink. It is recommended to consult a professional plumber for installation.
- Prepare the Countertop: Ensure your countertop opening matches the sink's exterior dimensions (33" x 22"). The minimum cabinet base size required is 36".
- Install Faucet and Accessories: Before dropping the sink into the countertop, install the pull-out kitchen faucet, glass rinser, and any other top-mounted accessories into their designated holes on the sink deck.
- Apply Sealant: Apply a bead of silicone sealant around the perimeter of the sink opening on the countertop.
- Position the Sink: Carefully lower the sink into the countertop opening. Ensure it is centered and level.
- Secure the Sink: Use the provided mounting clips and hardware to secure the sink firmly to the underside of the countertop. Tighten evenly to create a watertight seal.
- Connect Plumbing: Connect the hot and cold water supply lines to the faucet. Install the drain strainer assembly and connect it to your garbage disposal unit (if applicable) or standard drain plumbing.
- Test for Leaks: Turn on the water supply and check all connections for leaks. Operate the faucet and glass rinser to ensure proper function.
Video: This video demonstrates the features and installation process of the Lordear 33x22 Inch Drop-In Waterfall Workstation Kitchen Sink, including the dual tracks, waterfall function, and glass rinser.
Operating Instructions
Your Lordear workstation sink offers multiple functionalities for efficient kitchen tasks.
Dual-Track Workstation
The sink features two integrated tracks allowing you to slide and position accessories such as the cutting board, colander, and roll-up rack. This creates a versatile workspace directly over the sink, optimizing counter space.
Image: The dual-track design of the sink, demonstrating how the cutting board and roll-up rack can be positioned for various tasks.
Pull-Out Faucet with Multiple Modes
The pull-out kitchen faucet offers 360-degree swivel functionality and three distinct spray settings:
- Powerful Mode: For heavy-duty rinsing and stubborn food residue.
- Spray Mode: A wider spray pattern for general rinsing of dishes and produce.
- Stream Mode: A steady, aerated flow for filling pots and general use.
Switch between modes using the button on the faucet head. The faucet can be pulled out for extended reach within and around the sink.
Image: The pull-out faucet head showing the three different water flow patterns: powerful, spray, and stream.
Waterfall Function
Activate the waterfall feature by turning the control knob. This provides a broad sheet of water, ideal for rinsing fruits, vegetables, or pre-washing larger items.
Image: A hand rinsing an orange under the waterfall feature of the sink.
Glass Rinser
The integrated glass rinser provides a powerful jet of water to quickly and thoroughly rinse residue from cups and glasses. Simply invert the cup over the rinser and press down.
Image: A glass being rinsed by the integrated glass rinser, showing the powerful water jets.
Maintenance
To maintain the appearance and functionality of your Lordear sink, follow these care instructions:
- Cleaning: Use a soft towel and mild soap for daily cleaning. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the brushed finish.
- Prevent Scratches: Avoid scratching the sink with abrasive tools or sharp objects. Utilize the included bottom rinse grid to protect the sink base.
- Water Spots: Wipe the sink dry after each use to prevent water spots, especially in hard water areas.
- During Remodeling: Keep the sink away from decoration materials during remodeling projects to prevent damage.
- Drainage: The X-shaped grooved guide line at the bottom of the sink is designed for faster drainage. Ensure the drain strainer is clear of debris for optimal water flow.
- Anti-Condensation: The anti-condensation coating on the back of the sink prevents water condensation and protects your cabinet from moisture.
Image: Visual representation of the anti-condensation undercoating and noise reduction features, highlighting the benefits of a quiet and dry cabinet.
Troubleshooting
This section addresses common issues you might encounter with your sink.
- Slow Drainage: Check the drain strainer for food debris or blockages. Ensure the X-shaped grooves are clear.
- Water Spots/Stains: These are often caused by mineral deposits from hard water. Regularly wipe the sink dry after use. For existing spots, use a mild vinegar solution followed by rinsing and drying.
- Faucet Leaks: If the faucet leaks, check all connections for tightness. If the issue persists, contact customer support.
- Glass Rinser Malfunction: Ensure adequate water pressure. Check for any blockages in the rinser nozzles.
- Accessories Not Sliding Smoothly: Ensure the tracks are clean and free of debris. A small amount of food-grade lubricant can be applied if necessary.
Warranty and Support
Lordear is committed to providing top-quality products and excellent customer service. For any inquiries or assistance regarding your kitchen sink, our dedicated after-sale department is available to provide prompt and satisfactory solutions.
Please retain your proof of purchase for warranty claims. Contact information for support can typically be found on the product packaging or the official Lordear website.
