Morphy Richards 20R OTG Oven Instruction Manual

Important Safety Instructions

Before operating this appliance, please read all instructions carefully to ensure safe and efficient use. Retain this manual for future reference.

• Always place the oven on a stable, heat-resistant, and level surface. Ensure adequate ventilation around the appliance.
• Do not touch hot surfaces. Use oven mitts or gloves when handling hot items or surfaces.
• To protect against electrical shock, do not immerse the cord, plug, or any part of the oven in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use attachments not recommended by the appliance manufacturer, as this may cause hazards or injury.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not cover the crumb tray or any part of the oven with metal foil. This will cause the oven to overheat.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar materials.
• Do not insert oversized foods or metal utensils into the oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.

Product Overview

The Morphy Richards 20R OTG Oven is designed for versatile cooking, including baking, grilling, roasting, and tandoor-style dishes. It features a rotisserie function, precise temperature control, and multiple heating modes for optimal results.

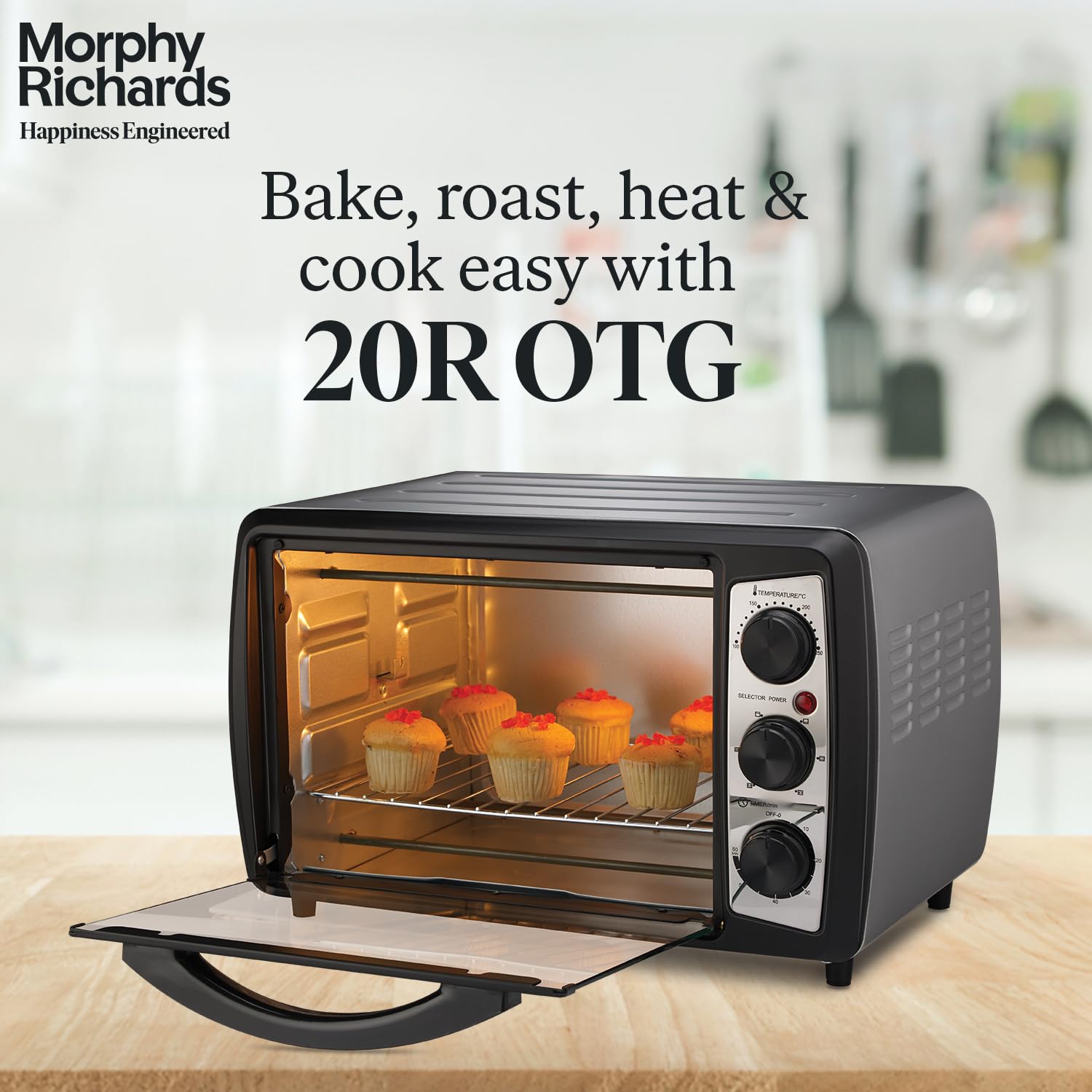

Image: The Morphy Richards 20R OTG Oven in operation, showing cupcakes baking inside. The oven features a clear glass door and control knobs on the side.

Setup

Unpacking and Initial Inspection

1. Carefully remove the oven and all accessories from the packaging.
2. Inspect the appliance for any signs of damage. Do not operate if damaged.
3. Remove all packing materials, including any protective films or stickers.

Placement

• Place the oven on a flat, stable, and heat-resistant surface.
• Ensure there is at least 10-15 cm of clear space on all sides (top, back, and sides) for proper ventilation.
• Do not place the oven near flammable materials such as curtains or paper.
• Ensure the power cord is not pinched or in contact with hot surfaces.

First Use (Burn-Off)

Before cooking food, it is recommended to perform an initial burn-off to eliminate any manufacturing odors.

1. Plug the oven into a grounded electrical outlet.
2. Set the temperature control to maximum (250°C).
3. Set the function selector to the 'Bake' mode (top and bottom heating elements).
4. Set the timer to 15-20 minutes.
5. A slight odor or smoke may be present during this initial operation; this is normal. Ensure the area is well-ventilated.
6. Once the timer completes, turn off the oven and allow it to cool completely.

Included Accessories

Your Morphy Richards 20R OTG Oven comes with the following accessories:

• Wire Grill: For grilling and roasting.
• Baking Tray: For baking items like cakes, cookies, and casseroles.
• Tong for baking tray/wire grill: For safely handling hot trays and grills.
• Rotisserie rod with fork: For rotisserie cooking.
• Tong for rotisserie rod: For safely handling the hot rotisserie rod.
• Instruction Manual: This document.
• Warranty Card: For product warranty information.

Image: A display of the various accessories included with the Morphy Richards 20R OTG Oven, such as the wire rack, baking tray, tray handle, rotisserie rod, and rotisserie handle.

Operating Instructions

Control Panel Overview

The oven features three easy-to-use knob controls:

• Temperature Control Knob: Adjusts the cooking temperature from 100°C to 250°C.
• Function Selector Knob: Selects the desired heating mode (e.g., top heat, bottom heat, top and bottom heat, rotisserie).
• Timer Knob: Sets the cooking time up to 60 minutes. The oven will automatically turn off when the timer expires.

Image: A detailed view of the oven's control panel, highlighting the temperature, function, and timer knobs for easy adjustment.

General Operation

1. Prepare Food: Place your food on the appropriate accessory (baking tray, wire grill) and insert it into the oven.
2. Set Temperature: Turn the Temperature Control Knob to the desired cooking temperature.
3. Select Function: Turn the Function Selector Knob to choose the heating mode suitable for your recipe (e.g., Bake, Grill, Toast). The oven has six heating modes.
4. Set Timer: Turn the Timer Knob to the desired cooking duration (up to 60 minutes). The oven will start heating.
5. Monitor Cooking: Use the built-in chamber light to monitor your food without opening the door. The exterior indicator light will show when the oven is ready to use.
6. Completion: The oven will chime and turn off automatically when the timer reaches zero. Carefully remove food using oven mitts and the provided tongs.

Using the Rotisserie Function

The rotisserie function is ideal for evenly roasting meats like chicken or paneer.

1. Assemble Rotisserie: Securely attach the food (e.g., whole chicken) onto the rotisserie rod using the forks. Ensure the food is centered and balanced.
2. Insert Rotisserie: Place the assembled rotisserie rod into the designated slots inside the oven.
3. Set Controls: Set the Temperature Control Knob to the desired roasting temperature. Turn the Function Selector Knob to the rotisserie setting.
4. Set Timer: Set the Timer Knob for the required cooking time.
5. Remove: Once cooking is complete, use the rotisserie tong to carefully remove the hot rotisserie rod and food from the oven.

Image: The Morphy Richards 20R OTG Oven demonstrating the rotisserie function with food rotating inside for uniform roasting.

Chamber Light and Indicator

The oven is equipped with a built-in chamber light to illuminate the interior, allowing you to easily monitor your dishes as they cook without opening the door. An external indicator light on the control panel signals when the oven is powered on and ready for use.

Image: The interior of the Morphy Richards 20R OTG Oven with the chamber light activated, providing clear visibility of the food inside.

Maintenance

Cleaning

Regular cleaning ensures optimal performance and extends the life of your oven.

1. Unplug and Cool: Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
2. Remove Accessories: Remove the wire grill, baking tray, and rotisserie set. Wash them in warm, soapy water, rinse, and dry thoroughly.
3. Interior Cleaning: Wipe the interior surfaces with a damp cloth and mild detergent. For stubborn stains, a non-abrasive cleaner designed for ovens can be used. Avoid using harsh chemicals or abrasive pads.
4. Exterior Cleaning: Wipe the exterior with a damp cloth. Do not use abrasive cleaners or scourers that could scratch the finish.
5. Crumb Tray: Periodically remove and clean the crumb tray to prevent grease buildup and potential fire hazards.
6. Door: Clean the glass door with a glass cleaner or a damp cloth.
7. Drying: Ensure all parts are completely dry before plugging the oven back in or storing it.

Storage

When not in use for extended periods, ensure the oven is clean and dry. Store it in a cool, dry place, away from direct sunlight and moisture. Keep all accessories with the oven for easy access.

Troubleshooting

If you encounter any issues with your Morphy Richards 20R OTG Oven, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty and Support

Warranty Information

The Morphy Richards 20R OTG Oven typically comes with a 2-year product warranty. Please refer to the included Warranty Card for specific terms, conditions, and registration details. Keep your purchase receipt as proof of purchase for warranty claims.

Image: A graphic indicating a 2-year warranty on the product, emphasizing product durability and manufacturer confidence.

Customer Support

For any queries, service requests, or technical assistance, please contact Morphy Richards customer support. The product is imported and marketed by M/S. BAJAJ ELECTRICALS LIMITED.

Manufacturer/Importer: M/S. BAJAJ ELECTRICALS LIMITED
# 45/47 VEER NARIMAN ROAD, MUMBAI-400 001, MAHARASHTRA, INDIA

Please have your model number (20R OTG) and serial number (if applicable) ready when contacting support.
