COMHOMA Adjustable Bed Frame User Manual

1. Introduction

This user manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your COMHOMA Adjustable Bed Frame. Please read this manual thoroughly before assembly and use to ensure safe and optimal performance of your new adjustable bed base. This adjustable bed frame is designed to enhance your sleep experience by allowing independent head and foot incline adjustments, providing customizable comfort and support.

Image: The COMHOMA Adjustable Bed Frame with a mattress, demonstrating the head and foot sections in a slightly elevated position, ready for use.

2. Safety Information

For your safety and to prevent damage to the product, please adhere to the following guidelines:

• Proper assembly is required. Ensure all components are correctly installed and secured before use.
• Do not exceed the weight capacity of 440 lbs. The item weight of the bed frame is 77.2 pounds.
• Keep away from children and pets to prevent entrapment or injury during operation. Ensure no body parts or objects are in the path of moving components.
• Do not operate the bed frame if any parts are damaged or missing. Contact customer support immediately.
• Ensure the power cord is not pinched or damaged. Avoid placing heavy objects on the cord.
• Unplug the bed frame from the power outlet before performing any maintenance or cleaning.

3. Product Features

The COMHOMA Adjustable Bed Frame offers several features designed for enhanced comfort and convenience:

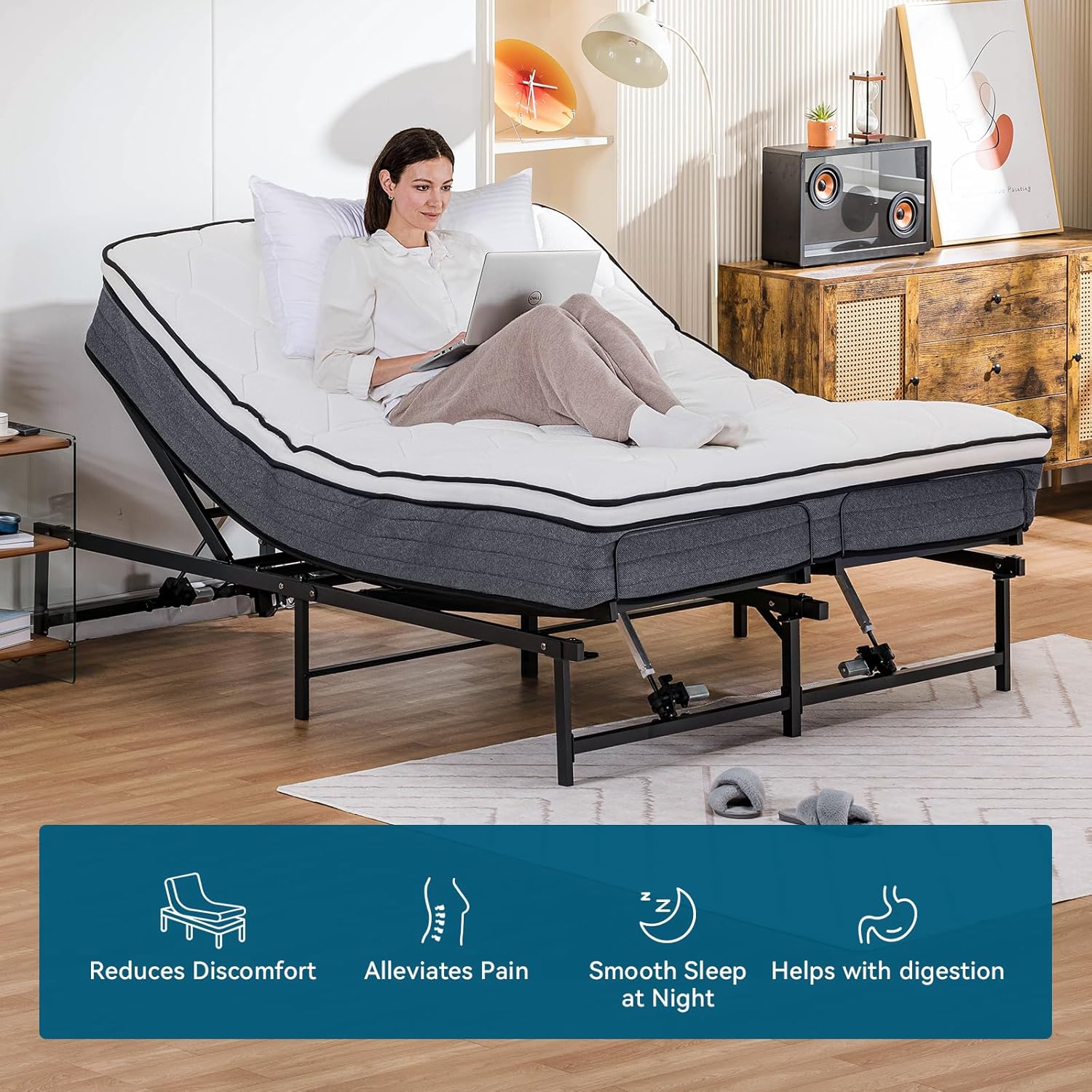

• Elevated Comfort: Independent head and foot incline adjustments allow for personalized comfort, potentially reducing snoring, acid reflux, and back problems.
• Wide Mattress Compatibility: Designed to be compatible with most standard-sized foam mattresses, including memory foam, latex, gel, and hybrid types.
• Quiet Operation: The bed base motor is engineered for minimal noise, ensuring an undisturbed sleep environment.
• Durable Construction: Made from robust metal materials capable of withstanding heavy weights, ensuring long-lasting stability.
• Remote Control: Easy-to-use remote for simultaneous or independent adjustment of head and foot sections.
• Smart Design: Features a thin bed cover as a first base for mattresses and a design that prevents mattress or body part entrapment during movement.
• Spacious Storage: Provides extra space underneath the frame for storage.

Image: Visual representation of key features including spacious storage underneath, a sturdy mattress retainer bar, protective pads on the legs to prevent floor scratches, and the overall durable structure of the bed frame.

4. Package Contents

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Adjustable Bed Frame Sections (Head and Foot)
• Legs (Quantity as per model size)
• Linear Actuator Motors (2 units)
• Control Box
• Wireless Remote Control
• Power Supply Unit
• Mattress Retainer Bar
• Assembly Hardware (Bolts, washers, nuts, tools)
• User Manual

Image: Components of the adjustable bed frame laid out, illustrating the main frame sections, motors, and other parts before assembly.

5. Setup and Assembly

Assembly typically requires two adults. Follow the step-by-step instructions provided in the included assembly guide. Ensure you have adequate space for assembly.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts listed in Section 4 are present.
2. Assemble Frame Sections: Connect the head and foot frame sections according to the diagrams in your assembly guide. Secure with the provided hardware.
3. Attach Legs: Screw or bolt the legs securely to the designated points on the frame. Ensure they are tightened to provide stable support.
4. Install Motors: Attach the linear actuator motors to the frame as indicated in the instructions. Ensure all connections are firm.
5. Connect Electronics: Connect the motor cables to the control box, and then connect the control box to the power supply unit.
6. Install Retainer Bar: Secure the mattress retainer bar at the foot of the bed frame. This prevents the mattress from sliding off when the bed is inclined.
7. Power On: Plug the power supply into a grounded electrical outlet.
8. Test Functionality: Use the remote control to test the head and foot incline functions before placing your mattress on the frame.

Image: A close-up view of the bed frame's motor mechanism and the wireless remote control, essential for operating the adjustable features.

6. Operating Instructions

Your COMHOMA Adjustable Bed Frame is operated using the provided wireless remote control. Ensure the bed frame is plugged into a power source.

Remote Control Functions:

• Head Up/Down: Press and hold the "Head Up" button to raise the head section. Press and hold the "Head Down" button to lower it.
• Foot Up/Down: Press and hold the "Foot Up" button to raise the foot section. Press and hold the "Foot Down" button to lower it.
• Flat Position: Press the "Flat" button to return both the head and foot sections to a completely flat position.
• Pre-set Positions: Your remote may include pre-programmed positions (e.g., Zero Gravity, Anti-Snore, TV/Reading). Refer to your remote's specific buttons for these functions.

Adjust the bed to your desired comfort level. The independent head and foot incline allows for various positions, from slight elevation for better airflow (15°) to more significant inclines for reading, watching TV (60°), or even assisting with pregnancy comfort (45°).

Image: A visual guide demonstrating different comfort zones achievable with the adjustable bed frame, including slightly inclined, tilted higher, and flat positions.

7. Maintenance

Regular maintenance helps prolong the life of your adjustable bed frame.

• Cleaning: Unplug the bed frame before cleaning. Wipe down the metal frame with a damp cloth and mild detergent. Avoid harsh chemicals. The bed cover can be dry cleaned only.
• Check Connections: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary.
• Motor Inspection: Inspect the motor and electrical connections for any signs of wear or damage. If any issues are found, discontinue use and contact customer support.
• Clear Obstructions: Ensure no objects are under the bed frame that could obstruct the movement of the motors or frame components.

8. Troubleshooting

If you encounter issues with your adjustable bed frame, refer to the following common problems and solutions:

9. Specifications

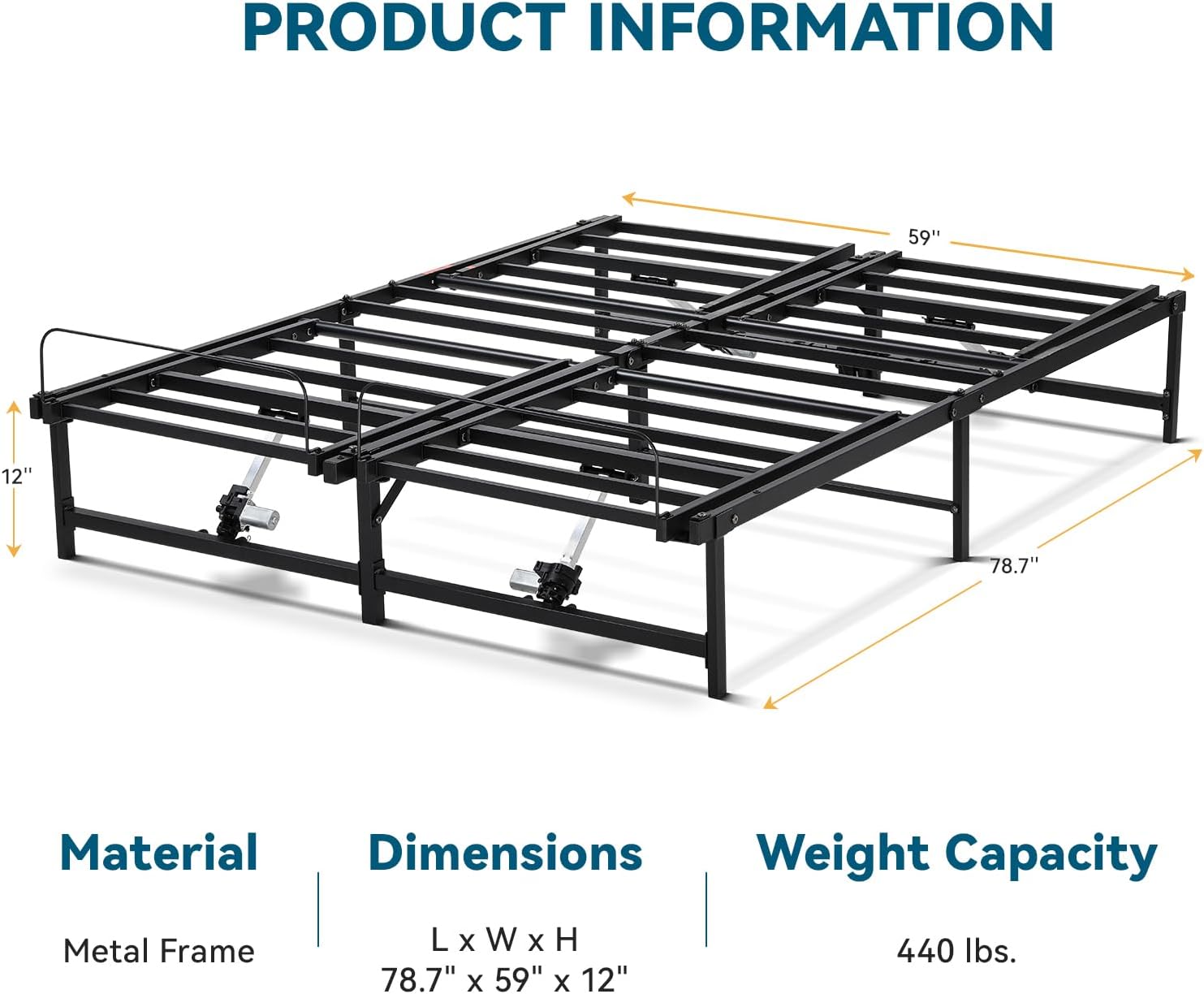

Image: A detailed diagram illustrating the dimensions (length, width, height) and the maximum weight capacity of the COMHOMA Adjustable Bed Frame.

10. Warranty Information

This COMHOMA Adjustable Bed Frame comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

11. Customer Support

For any questions, assistance with assembly, troubleshooting, or warranty claims, please contact COMHOMA customer support. Refer to the contact information provided on the product packaging or the official COMHOMA website.
