EQBVZZRD Wind Sensors Wind Cup for WS69 Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the EQBVZZRD Wind Sensors Wind Cup, designed for use with the WS69 weather station system. This accessory enhances your weather monitoring capabilities by providing accurate wind speed data.

Setup and Installation

The EQBVZZRD Wind Cup is designed for straightforward assembly and integration with your existing WS69 weather station. Follow these steps for proper installation:

1. Unpack Components: Carefully remove all components from the packaging. Ensure all parts are present and undamaged.
2. Attach Wind Cup: Securely attach the wind cup assembly to the designated mounting point on your WS69 weather station. Refer to your WS69 manual for specific mounting instructions if needed.
3. Positioning: Mount the wind sensor in an open area, free from obstructions like buildings or trees, to ensure accurate wind speed readings. The sensor should be positioned at a height that represents the desired measurement level.
4. Power Connection: Ensure the wind cup is properly connected to the WS69 unit. This accessory is battery-powered (batteries not included) and relies on the WS69 for data transmission.

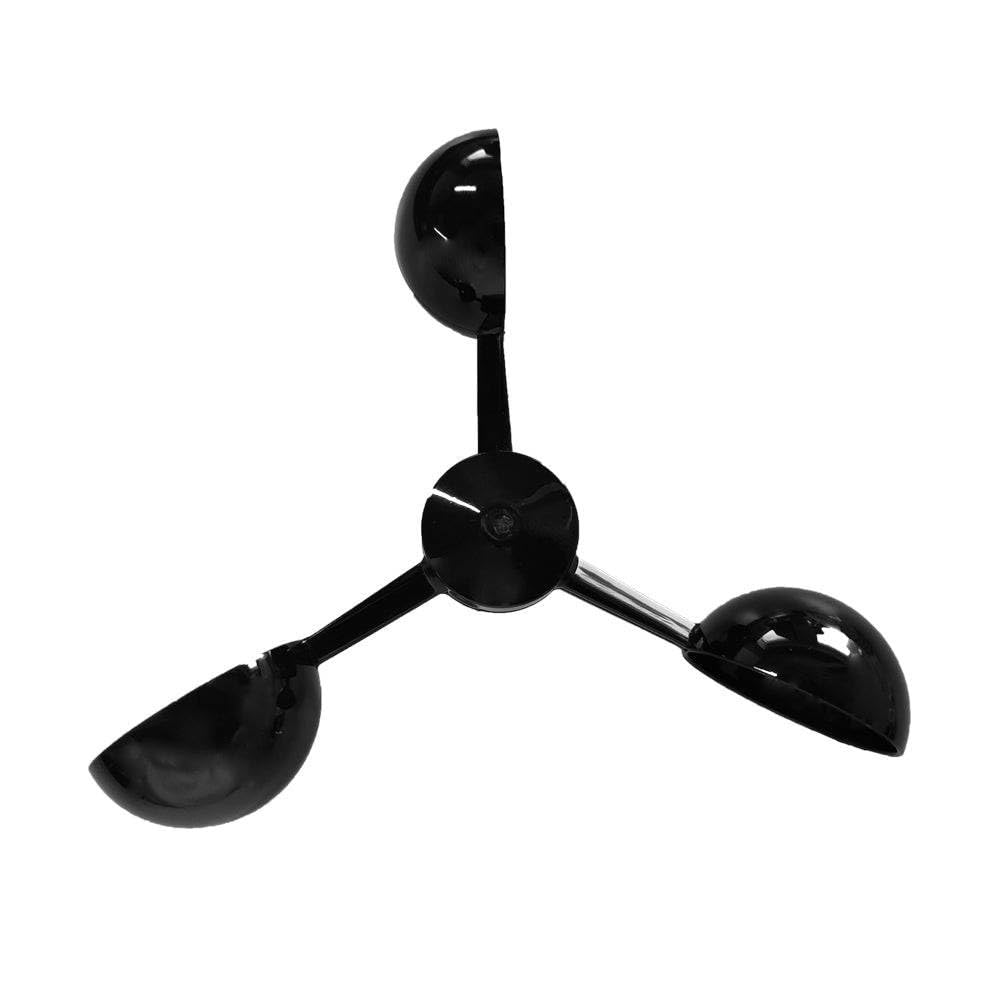

Figure 1: The EQBVZZRD Wind Sensors Wind Cup. This image shows the main component of the wind sensor, which measures wind speed.

The wind sensor is designed to operate within an outdoor temperature range of -40°F to 140°F (-40°C to 60°C) and has a transmission range of up to 330ft (100m) to the main weather station unit.

Operating Instructions

Once installed and connected to your WS69 weather station, the wind cup will automatically begin transmitting data. The WS69 unit will display the following wind-related information:

• Current Wind Speed: Real-time measurement of the wind speed.
• Average Wind Speed: The calculated average wind speed over a specific period.
• Peak Wind Speed: The highest wind speed recorded within a specific period.

These readings are tracked and updated approximately every 18 seconds, providing near real-time wind data. The improved reception range of the device enhances the accuracy and stability of data transmission to your weather station.

Maintenance

To ensure the longevity and accurate performance of your EQBVZZRD Wind Sensors Wind Cup, consider the following maintenance guidelines:

• Regular Cleaning: Periodically inspect the wind cups for any debris, such as leaves, dust, or spiderwebs, that might obstruct their rotation. Gently clean with a soft, damp cloth. Avoid using harsh chemicals.
• Battery Replacement: As the unit is battery-powered, monitor the battery indicator on your WS69 weather station. Replace batteries as needed to ensure continuous operation. Use the recommended battery type.
• Physical Inspection: Annually inspect the mounting and physical condition of the wind cup. Ensure it remains securely attached and that there are no cracks or damage to the plastic components.
• Winter Care: In areas with heavy snowfall or ice, ensure the wind cups are not frozen or obstructed. If necessary, gently clear any ice buildup, taking care not to damage the delicate components.

Troubleshooting

If you encounter issues with your wind sensor, refer to the following common troubleshooting steps:

• No Wind Speed Readings:
  • Check if the wind cups are rotating freely. Clear any obstructions.
  • Verify that the wind cup is securely connected to the WS69 unit.
  • Ensure batteries are correctly installed and have sufficient charge. Replace if necessary.
  • Confirm the wind cup is within the transmission range (330ft/100m) of the WS69 weather station.
• Inaccurate Readings:
  • Check for obstructions around the sensor that might be affecting airflow.
  • Ensure the sensor is mounted level and securely.
  • Compare readings with a known reliable source if possible.
• Intermittent Data Transmission:
  • Reduce the distance between the wind sensor and the WS69 weather station.
  • Minimize sources of interference (e.g., large metal objects, other wireless devices).
  • Check battery levels in both the wind sensor and the main WS69 unit.

For further assistance, consult the WS69 weather station's main instruction manual or contact customer support.

Specifications

Warranty and Support

Specific warranty information for the EQBVZZRD Wind Sensors Wind Cup is not provided in the product details. Please refer to the documentation included with your complete WS69 weather station system or contact the retailer/manufacturer directly for warranty details and customer support inquiries.

For technical support, it is recommended to first consult the comprehensive manual for your WS69 weather station, as this wind cup is an accessory component.
