Aiuyesuo L-Shaped Double Twin House Bed Model 73Q Instruction Manual

1. Introduction

Thank you for purchasing the Aiuyesuo L-Shaped Double Twin House Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figure 1: Aiuyesuo L-Shaped Double Twin House Bed (White)

2. Important Safety Information

• Adult Assembly Required: This product requires assembly by at least two adults.
• Avoid Power Tools: Do not use power tools for assembly as this may overtighten fasteners and damage the wood. Use hand tools only.
• Weight Capacity: Each twin bed has a maximum weight capacity of 250 lbs (113 kg). Do not exceed this limit.
• Mattress Thickness: The recommended mattress thickness for this bed is 8 inches (20 cm).
• Regular Checks: Periodically check all fasteners to ensure they are tight and secure.
• Placement: Ensure the bed is placed on a flat, stable surface.
• Choking Hazard: Keep small parts and hardware away from children during assembly.

3. Package Contents

Your Aiuyesuo L-Shaped Double Twin House Bed is shipped in 2 separate packages. Please ensure all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.

Included Components:

• Double Twin Beds (L-shaped frame)
• Roof Frame components
• Window panel
• Fence panels
• Slatted Frame for both beds
• All necessary hardware (screws, bolts, etc.)
• Screwdriver and other basic tools

4. Assembly Instructions

Estimated Assembly Time: 1 hour
Suggested Number of People: 2
Tools Required: All tools are included, including a screwdriver. Do NOT use power tools.

Step-by-Step Guide:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Identify each part using the provided parts list in your package.
2. Assemble the Bed Frames: Begin by assembling the main frame sections for both twin beds. Follow the diagrams in your physical manual to connect the side rails and end panels using the provided hardware.
3. Attach the Window Panel: Secure the window panel to the designated section of the bed frame as shown in the diagrams.
4. Install the Fence Panels: Attach the fence panels to the smaller twin bed frame, ensuring they are securely fastened.
5. Connect the L-Shape: Join the two bed frames to form the L-shape configuration, ensuring all connecting points are tightly secured.
6. Construct the Roof Frame: Assemble the roof frame components and attach them to the top of the L-shaped bed structure.
7. Install Slatted Frames: Place the wooden slats onto the support rails of both bed frames. Secure them in place using the provided screws. Ensure all slats are evenly spaced and firmly attached to provide adequate mattress support.

For a visual guide, please refer to the installation video below:

Key Assembly Details:

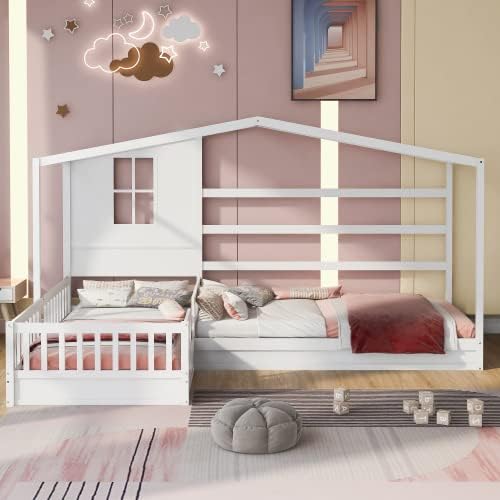

Figure 2: Side view of the assembled bed frame.

Figure 3: Detail of the integrated window panel.

Figure 4: Detail of the protective fence railing.

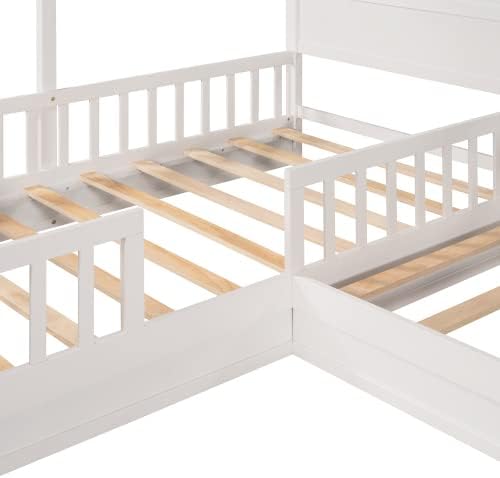

Figure 5: Detail of the wooden slat foundation.

5. Usage and Operation

Once assembled, the L-Shaped Double Twin House Bed provides two distinct sleeping areas. The bed with the full fence is suitable for younger children, offering added security. The other bed can serve as a primary sleeping area or a guest bed. The decorative panel at the back can be used to hang lightweight accessories for personalization.

Mattress Placement:

Place your twin-sized mattresses directly onto the wooden slat foundations. Ensure the mattress fits snugly within the frame without excessive gaps.

6. Maintenance and Care

• Cleaning: Wipe the bed frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
• Avoid Excessive Moisture: Keep the bed away from areas with high humidity or direct exposure to water to prevent wood damage.

7. Troubleshooting

• Bed feels wobbly: Check all assembly hardware. Ensure all bolts and screws are fully tightened. If the issue persists, disassemble and reassemble, paying close attention to each connection.
• Missing parts: If you find any parts missing upon opening the package, please contact customer support immediately with your product model number and a description of the missing part.
• Damaged parts: If any parts are damaged during shipping or assembly, do not proceed with assembly. Contact customer support for replacement parts.

8. Product Specifications

Figure 6: Product Dimensions

9. Warranty and Customer Support

For any quality problems or inquiries regarding your Aiuyesuo L-Shaped Double Twin House Bed, please contact our customer service team. We are committed to providing friendly customer service and will respond to your inquiries within 12 hours. Please have your model number (73Q) and purchase information ready when contacting support.
