1. Introduction
Thank you for choosing the Gillaway Q21 Car Jump Starter with Air Compressor. This device is designed to provide emergency jump-starting for vehicles, inflate tires, and serve as a portable power bank and LED flashlight. Please read this manual carefully before use to ensure proper operation and safety.
Safety Warning: Always follow safety precautions when operating this device. Misuse can result in property damage, injury, or death. Keep out of reach of children.

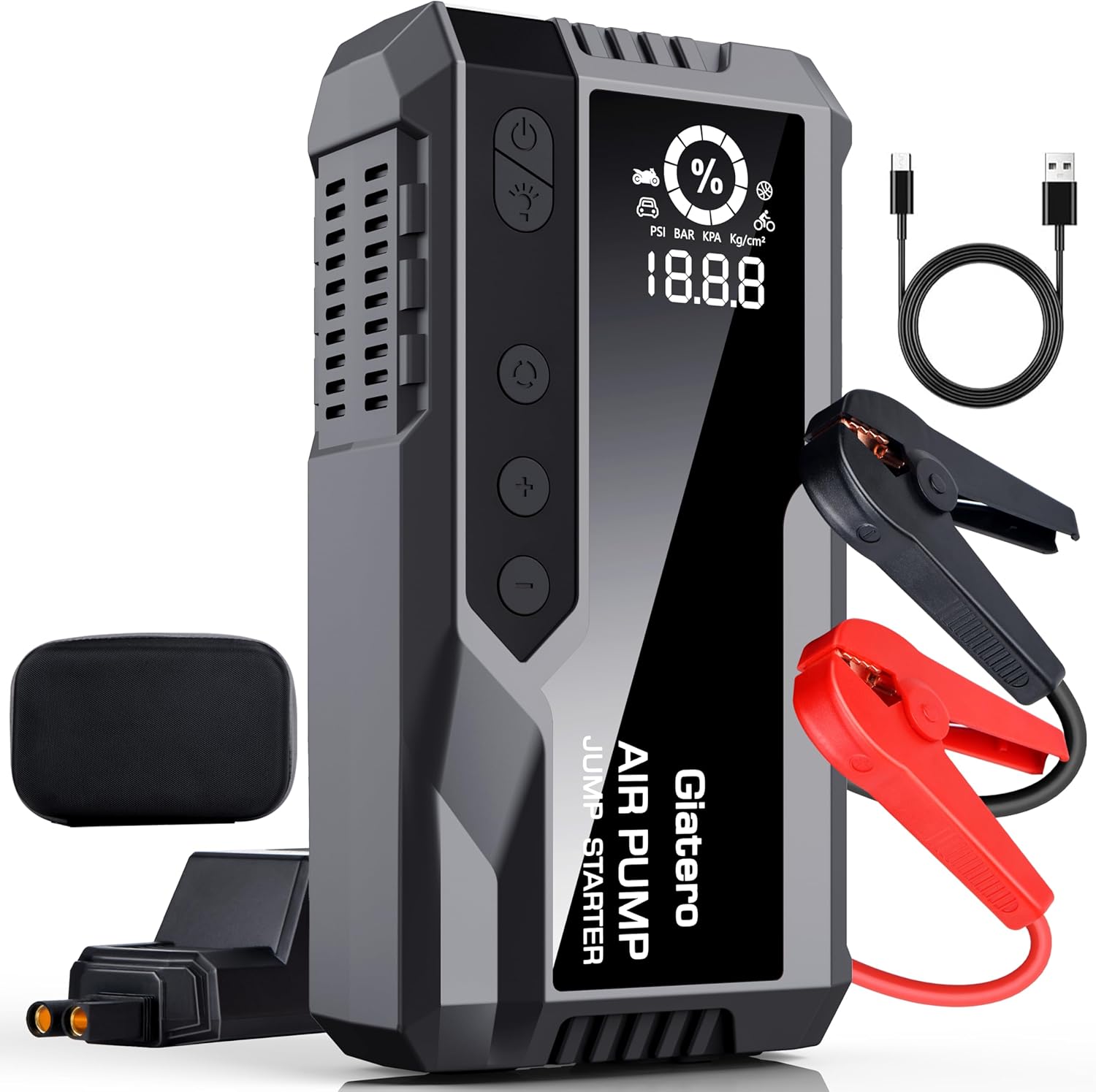

Image 1.1: The Gillaway Q21 Car Jump Starter and Air Compressor unit, showing its compact design and included accessories like jumper cables and USB cable.
2. Package Contents
Verify that all items are present in your package:
- Gillaway Q21 Jump Starter Unit
- Smart Jumper Cables (with battery clamps)
- USB-C Charging Cable
- EVA Carrying Case
- Air Tube (Inflation Hose)
- Various Nozzle Adapters for inflation
- User Manual

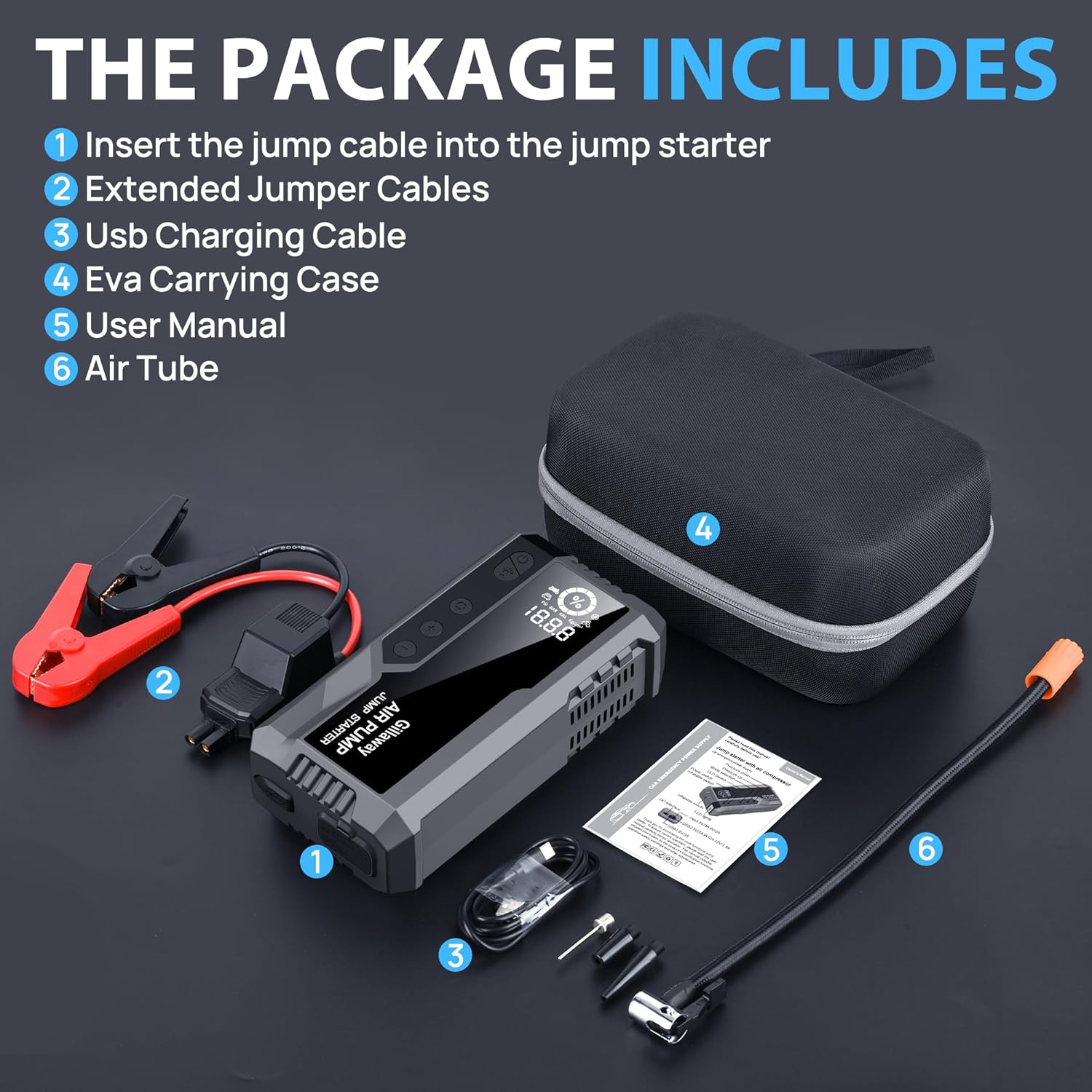

Image 2.1: All components included in the Gillaway Q21 package, laid out for identification. These include the main unit, jumper cables, USB cable, carrying case, air tube, and nozzle adapters.
3. Product Overview
Familiarize yourself with the various parts and controls of your Gillaway Q21 unit:
Image 3.1: Detailed view of the Gillaway Q21 unit, highlighting its various buttons, ports, and features. These include the inflatable mouth, LED lights, power switch, LED switch, mode selection, pressure adjustment buttons, DO interface, USB output ports, and Type-C input port.
- Power Button: Turns the device on/off.
- Mode Selection Button: Cycles through inflation modes (e.g., car, motorcycle, bicycle, ball).
- Pressure Up/Down Buttons: Adjusts target pressure for inflation.
- LED Switch: Controls the flashlight modes (On, Strobe, SOS).
- Inflatable Mouth: Connection point for the air tube.
- DO Interface: Port for connecting the smart jumper cables.
- USB1 Output: 5V/3A for charging external devices.
- USB2 Output: 5V/3A, 9V/2A, 12V/1.5A for fast charging external devices.
- Type-C Input: 5V/3A, 9V/2A for charging the jump starter unit.
4. Charging the Device
Before first use, fully charge your Gillaway Q21 unit. It is recommended to recharge the unit every 3-6 months to maintain battery health, even if not in use.
- Connect the provided USB-C charging cable to the Type-C input port on the Gillaway Q21 unit.
- Connect the other end of the USB-C cable to a USB wall adapter (not included) or a powered USB port.
- The display will indicate charging status. The unit is fully charged when the battery indicator shows 100%.
5. Operating Instructions: Jump Starting a Vehicle
The Gillaway Q21 provides 4500A peak current, suitable for jump-starting vehicles with up to 10L gas or 8.0L diesel engines.
Image 5.1: Visual instructions for jump-starting a vehicle. This image illustrates inserting the jump cable, connecting clamps to the car battery, starting the engine, and removing the clamps.
- Ensure the Gillaway Q21 unit is sufficiently charged (at least 50% recommended).
- Turn off your vehicle's ignition and all accessories (lights, radio, etc.).
- Insert the blue end of the smart jumper cables into the DO interface on the jump starter unit. Ensure a secure connection.
- Connect the red clamp (+) to the positive terminal (+) of your vehicle's battery.
- Connect the black clamp (-) to the negative terminal (-) of your vehicle's battery.
- Once the clamps are correctly connected, the smart cable indicator light will turn green (or provide an audible signal). If it shows red or flashes, check connections and battery voltage.
- Start your vehicle's engine.
- Once the engine starts, immediately remove the smart jumper cables from the vehicle battery, then disconnect them from the jump starter unit.
Important Note: Do not leave the smart jumper cables connected to the vehicle battery after the engine has started. This can damage the jump starter or vehicle electrical system.
Image 5.2: Illustration of various vehicle types and their typical engine displacement compatibility with a powerful jump starter. The Gillaway Q21 provides 4500A peak current, capable of starting engines up to 10L gas or 8.0L diesel.
Image 5.3: Depiction of a vehicle being jump-started in cold weather conditions, demonstrating the device's capability in challenging environments such as extreme weather, after long idle periods, or with a dead battery.
6. Operating Instructions: Using the Air Compressor
The integrated air compressor can inflate tires up to 150 PSI and includes various nozzle adapters for different inflatables.
Image 6.1: The Gillaway Q21 unit actively inflating a car tire, showcasing its 150 PSI fast inflator function. It is suitable for bikes, balls, and cars.
- Connect the air tube to the inflatable mouth on the Gillaway Q21 unit.
- Attach the appropriate nozzle adapter to the air tube and then to the item you wish to inflate (e.g., tire valve).
- Turn on the Gillaway Q21 unit. The display will show the current pressure.
- Press the Mode Selection button to choose the desired inflation mode (car, motorcycle, bicycle, ball) or unit (PSI, BAR, KPA, Kg/cm²).
- Use the Pressure Up/Down buttons to set the target pressure.
- Press the Power switch (often integrated with the inflatable switch) to start inflation. The compressor will automatically stop when the target pressure is reached.
- Disconnect the air tube from the item and the Gillaway Q21 unit.
Image 6.2: A visual guide demonstrating the four simple steps to inflate a tire using the Gillaway Q21. This includes connecting the hose, attaching to the tire valve, setting the desired pressure on the unit, and initiating inflation.
7. Operating Instructions: Using as a Power Bank
The Gillaway Q21 can charge various electronic devices via its USB output ports.
Image 7.1: The Gillaway Q21 unit functioning as a portable power bank, simultaneously charging a smartphone, smartwatch, and wireless earbuds. The unit has a 16000mAh capacity.
- Connect your device's USB charging cable to either the USB1 (5V/3A) or USB2 (5V/3A, 9V/2A, 12V/1.5A) output port on the Gillaway Q21.
- Connect the other end of the cable to your electronic device.
- The Gillaway Q21 will automatically begin charging your device.
Image 7.2: An illustration detailing the power output specifications of the Gillaway Q21's portable power bank function. It highlights USB1 output (5V/3A), USB2 output (5V/3A, 9V/2A, 12V/1.5A), and Type-C input (5V/3A, 9V/2A), with a total capacity of 59.2WH.
8. Operating Instructions: LED Flashlight
The Gillaway Q21 includes a multi-mode LED flashlight for illumination in various situations.
Image 8.1: The Gillaway Q21 featuring its 3-in-1 LED flashlight function, illustrating its use as a standard flashlight, strobe light, and SOS light for emergencies.
- Press and hold the LED Switch button to turn on the flashlight.
- Press the LED Switch button repeatedly to cycle through the modes: Constant On > Strobe > SOS > Off.
9. Safety Features and Protections
The Gillaway Q21 is equipped with an advanced intelligent protection chip to ensure safe operation and extend service life.
Image 9.1: An internal view highlighting the advanced intelligent protection chip within the Gillaway Q21, designed to protect the power supply and improve device longevity. It also indicates the operating temperature range of -4°F to 140°F.
The device incorporates multiple safety protections:
Image 9.2: An overview of the ten safety protections integrated into the Gillaway Q21. These include Over Charge, Short Circuit, Low Temp, Over Voltage, Reverse Charge, Over Current, Reverse Polarity, High Temp, Over Load, and Spark Proof protections.
- Over Charge Protection: Prevents battery damage from excessive charging.
- Short Circuit Protection: Automatically cuts power in case of a short circuit.
- Low Temperature Protection: Ensures safe operation within optimal temperature ranges.
- Over Voltage Protection: Guards against voltage surges.
- Reverse Charge Protection: Prevents current flow back into the jump starter from the vehicle.
- Over Current Protection: Protects against excessive current draw.
- Reverse Polarity Protection: Prevents damage if clamps are connected incorrectly.
- High Temperature Protection: Shuts down the device if it overheats.
- Over Load Protection: Protects against excessive power demands.
- Spark Proof Protection: Minimizes the risk of sparks during connection.
10. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Gillaway Q21 unit.
- Cleaning: Wipe the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in its EVA carrying case when not in use.
- Battery Care: Recharge the unit every 3-6 months, even if not used, to prevent deep discharge and extend battery life.
- Cable Inspection: Regularly inspect the jumper cables and air tube for any signs of damage, wear, or corrosion. Replace if necessary.
11. Troubleshooting
If you encounter issues with your Gillaway Q21, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | Battery is depleted; Unit is damaged | Charge the unit fully; Contact support if charging does not resolve the issue. |
| Vehicle does not jump start | Low unit charge; Incorrect clamp connection; Vehicle battery severely damaged; Engine size exceeds capacity | Ensure unit is fully charged; Check clamp polarity and connection; Consult a mechanic for battery issues; Verify engine size compatibility. |
| Air compressor does not inflate | Air tube not securely connected; Target pressure not set; Unit battery low | Ensure all connections are tight; Set a target pressure; Charge the unit. |
| Device not charging external electronics | Unit battery low; Incorrect USB port used; Cable issue | Charge the unit; Ensure correct USB output port is used; Try a different USB cable. |
If the problem persists after attempting these solutions, please contact customer support.
12. Specifications
| Feature | Specification |
|---|---|
| Brand | Gillaway |
| Model | Q21 |
| Peak Output Current | 4500 Amps |
| Air Compressor Pressure | Up to 150 PSI |
| Engine Compatibility | Up to 10L Gas / 8.0L Diesel |
| Battery Type | Lithium Polymer |
| USB1 Output | 5V/3A |
| USB2 Output | 5V/3A, 9V/2A, 12V/1.5A |
| Type-C Input | 5V/3A, 9V/2A |
| Item Weight | 3.58 pounds |
| Package Dimensions | 9.61 x 6.18 x 5 inches |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
13. Warranty and Support
Gillaway products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Gillaway website. Please retain your proof of purchase for warranty claims.
