1. Introduction
Thank you for choosing the GOOJODOQ Portable Handheld Turbo Fan. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.
2. Safety Instructions
- Do not immerse the fan in water or other liquids.
- Keep the fan away from open flames, heat sources, and direct sunlight to prevent battery damage or overheating.
- Do not insert fingers or foreign objects into the fan grille.
- This device is not a toy. Keep out of reach of children.
- Use only the provided charging cable or a certified USB-C cable for charging.
- Do not attempt to disassemble, repair, or modify the fan. Contact customer support if service is required.
- Dispose of the fan and its battery according to local regulations.
3. Package Contents
Please check the package for the following items:
- GOOJODOQ Portable Handheld Turbo Fan
- USB-C Charging Cable
- User Manual
- Hand Strap (may be pre-attached or included separately)
4. Product Overview
4.1 Fan Components
The GOOJODOQ Portable Handheld Turbo Fan features a compact design with a powerful motor and intuitive controls.
Figure 1: Front view of the GOOJODOQ Portable Handheld Turbo Fan, showing the digital display and airflow.

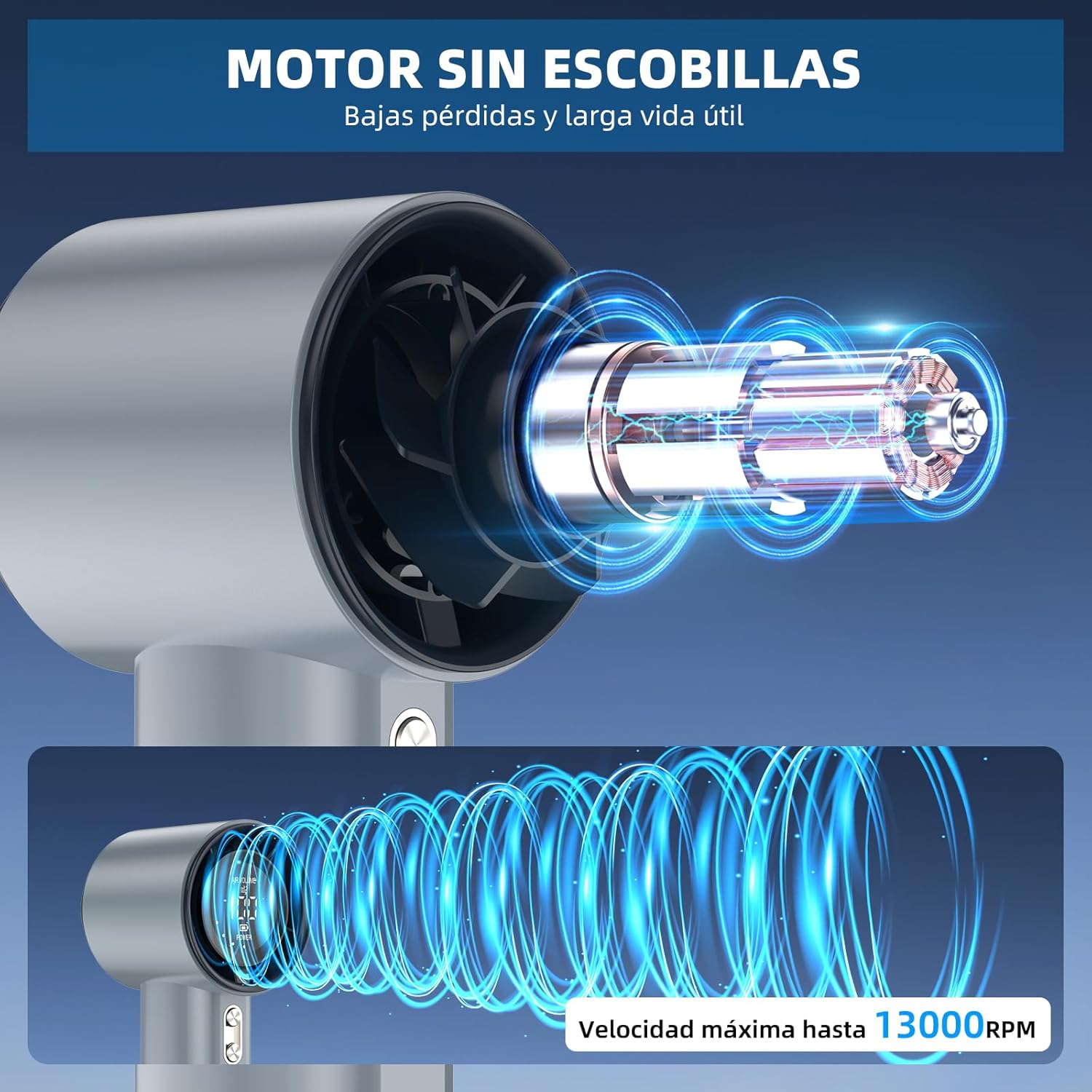

Figure 2: Internal structure illustrating the brushless motor and optimized airflow design, capable of up to 13000 RPM.
4.2 Control Buttons
The fan is equipped with two control buttons for easy operation.

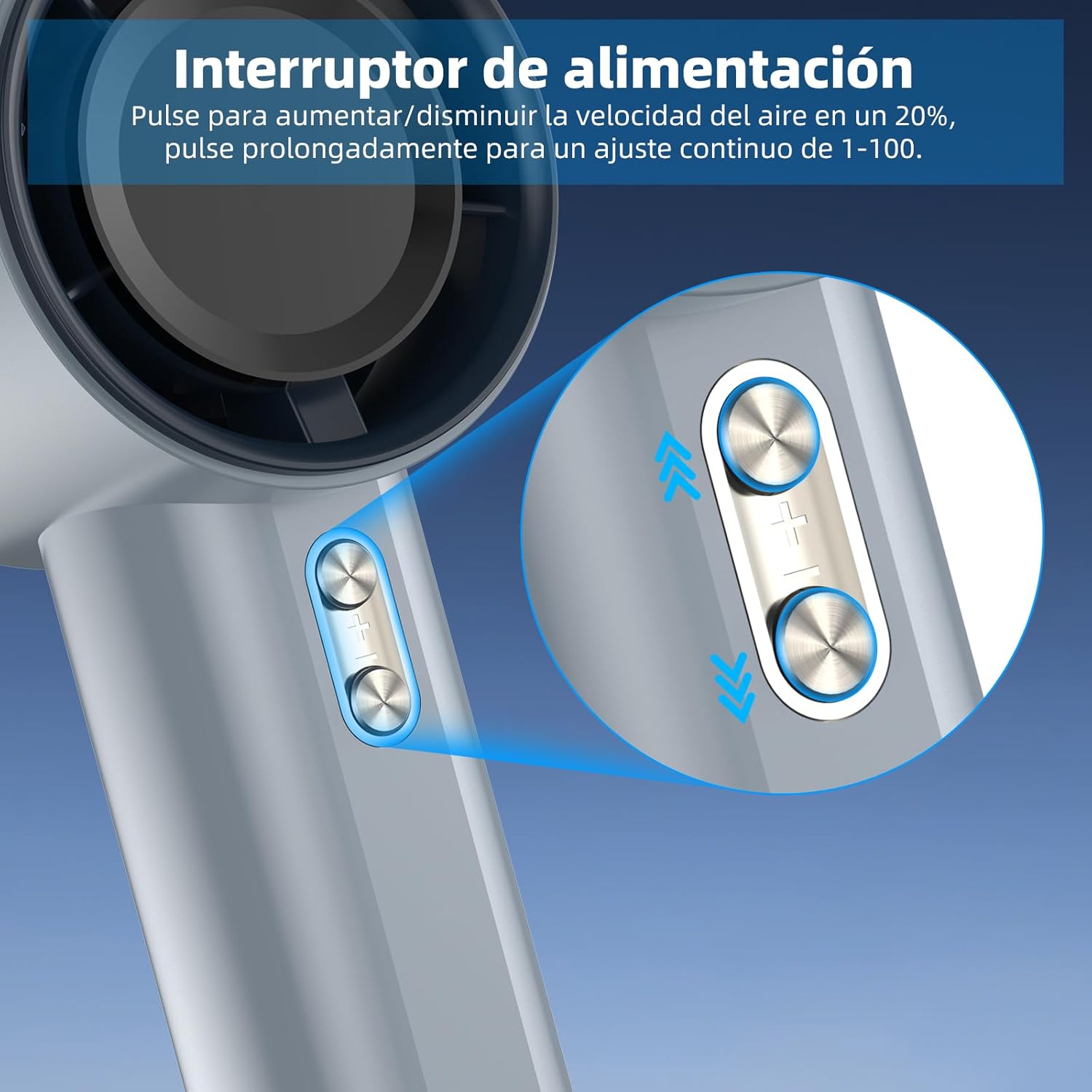

Figure 3: Detail of the power/speed adjustment buttons. Short press to adjust speed by 20%, long press for continuous 1-100 speed adjustment.
4.3 Digital Display
The integrated digital display provides real-time information about the fan's status.
Figure 4: The digital display indicates the current air volume (speed level from 1-100) and battery power level.
The display shows:
- AIR VOLUME: Indicates the current fan speed level (1-100).
- POWER: Shows the remaining battery charge.
5. Setup
5.1 Initial Charging
Before first use, fully charge the fan. The fan is equipped with a 4000mAh battery.
- Connect the provided USB-C charging cable to the charging port on the fan.
- Connect the other end of the USB-C cable to a compatible USB power adapter (e.g., phone charger, computer USB port) or power bank.
- The digital display will show the charging status. A full charge typically takes approximately 2.5 hours.
- Once fully charged, disconnect the charging cable.
Figure 5: The fan's USB-C charging port and internal 4000mAh battery, indicating a 2.5-hour charging time for up to 12 hours of operation.
A full charge can provide up to 12 hours of working time, depending on the speed setting.
5.2 Attaching the Hand Strap
For added security and portability, attach the hand strap to the designated loop on the fan handle.

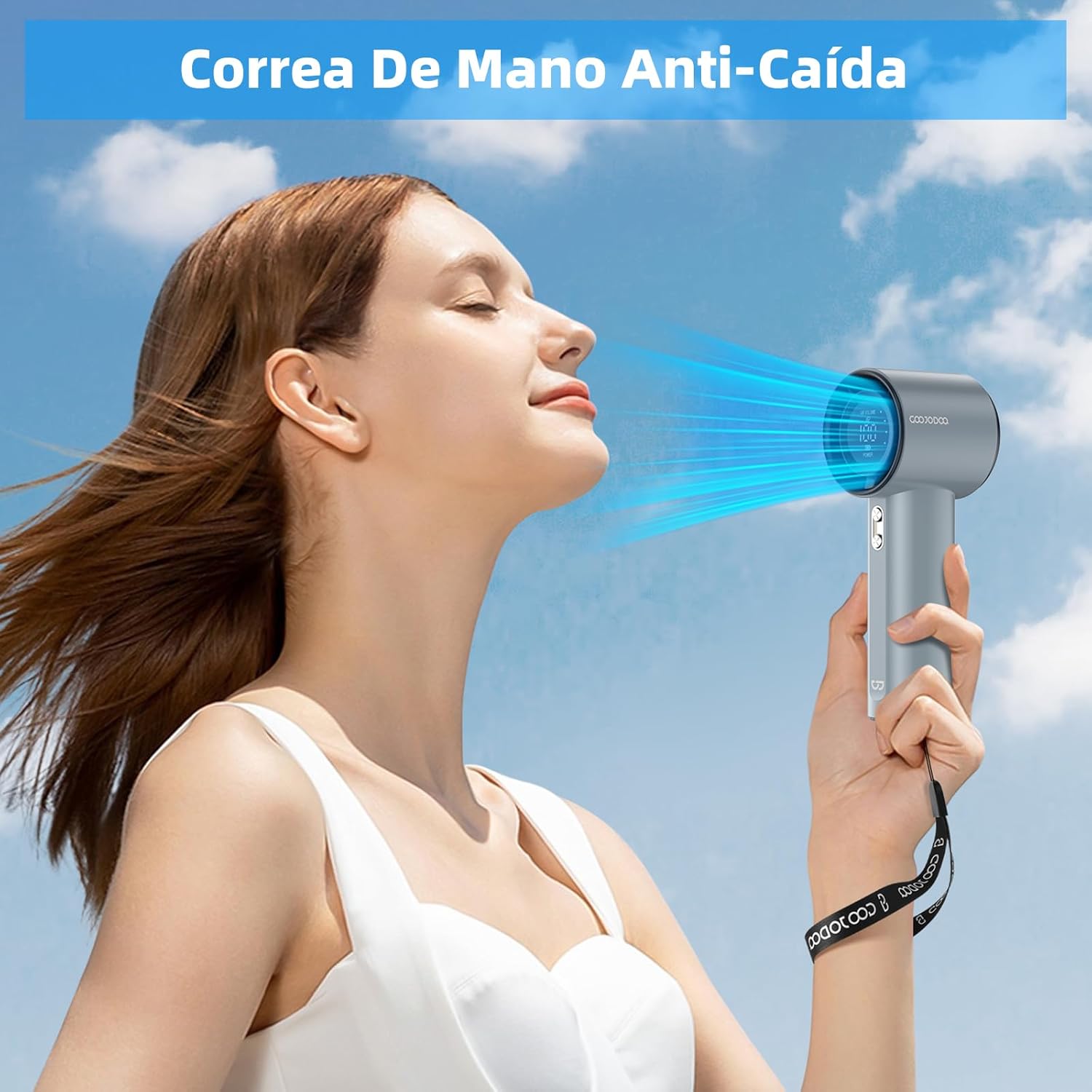

Figure 6: The fan with an attached hand strap, demonstrating its use for secure carrying.
6. Operating Instructions
6.1 Power On/Off
- To turn on the fan: Press and hold either the '+' or '-' button for a few seconds until the display illuminates and the fan starts.
- To turn off the fan: Press and hold either the '+' or '-' button for a few seconds until the display turns off.
6.2 Adjusting Fan Speed
The fan offers 100 adjustable speed levels.
- Incremental Adjustment: Short press the '+' button to increase the fan speed by 20 levels. Short press the '-' button to decrease the fan speed by 20 levels.
- Continuous Adjustment: Press and hold the '+' button to continuously increase the fan speed. Press and hold the '-' button to continuously decrease the fan speed. Release the button when the desired speed is reached.
The current speed level (AIR VOLUME) will be displayed on the digital screen.
7. Maintenance
7.1 Cleaning
- Ensure the fan is turned off and disconnected from any power source before cleaning.
- Wipe the exterior of the fan with a soft, dry cloth.
- Use a soft brush or cotton swab to gently remove dust from the air inlet and outlet grilles. Do not use water or harsh cleaning agents.
7.2 Storage
- Store the fan in a cool, dry place away from direct sunlight and extreme temperatures.
- If storing for an extended period, charge the battery to approximately 50% every three months to prolong battery life.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | Battery is depleted. | Charge the fan fully using the USB-C cable. |
| Fan does not turn on. | Power button not pressed correctly. | Press and hold either the '+' or '-' button for a few seconds to power on. |
| Fan speed cannot be adjusted. | Buttons are unresponsive. | Ensure the fan is on. If issue persists, try charging the fan. |
| Reduced airflow. | Air inlets/outlets are blocked by dust. | Clean the air grilles as described in the Maintenance section. |
| Fan stops unexpectedly. | Low battery. | Recharge the fan. |
If you encounter issues not listed here or if problems persist, please contact GOOJODOQ customer support.
9. Specifications
| Brand | GOOJODOQ |
| Model | Portable Handheld Turbo Fan |
| Power/Wattage | 5 Watts |
| Material | Plastic |
| Number of Speeds | 100 (Adjustable) |
| Battery Capacity | 4000mAh (approx.) |
| Charging Time | Approx. 2.5 hours |
| Operating Time | Up to 12 hours (depending on speed) |
| Item Weight | 400 g |
| Product Dimensions | 6.1D x 5.9W x 16H Centimetres |
| Power Source | USB-C |
| Control Type | Touch Panel Control (Buttons) |
Figure 7: The compact and portable design of the fan, shown being placed into a small bag. While the image indicates 225g, the product specifications state an item weight of 400g.
Note: Specifications are subject to change without prior notice.
10. Warranty and Support
For warranty information, technical support, or customer service inquiries, please refer to the contact details provided on the product packaging or visit the official GOOJODOQ website. Please have your product model and purchase date available when contacting support.
