Introduction
This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your GGM Gastro GS330M Dishwasher. Please read this manual thoroughly before using the appliance to ensure proper function and longevity. Keep this manual for future reference.

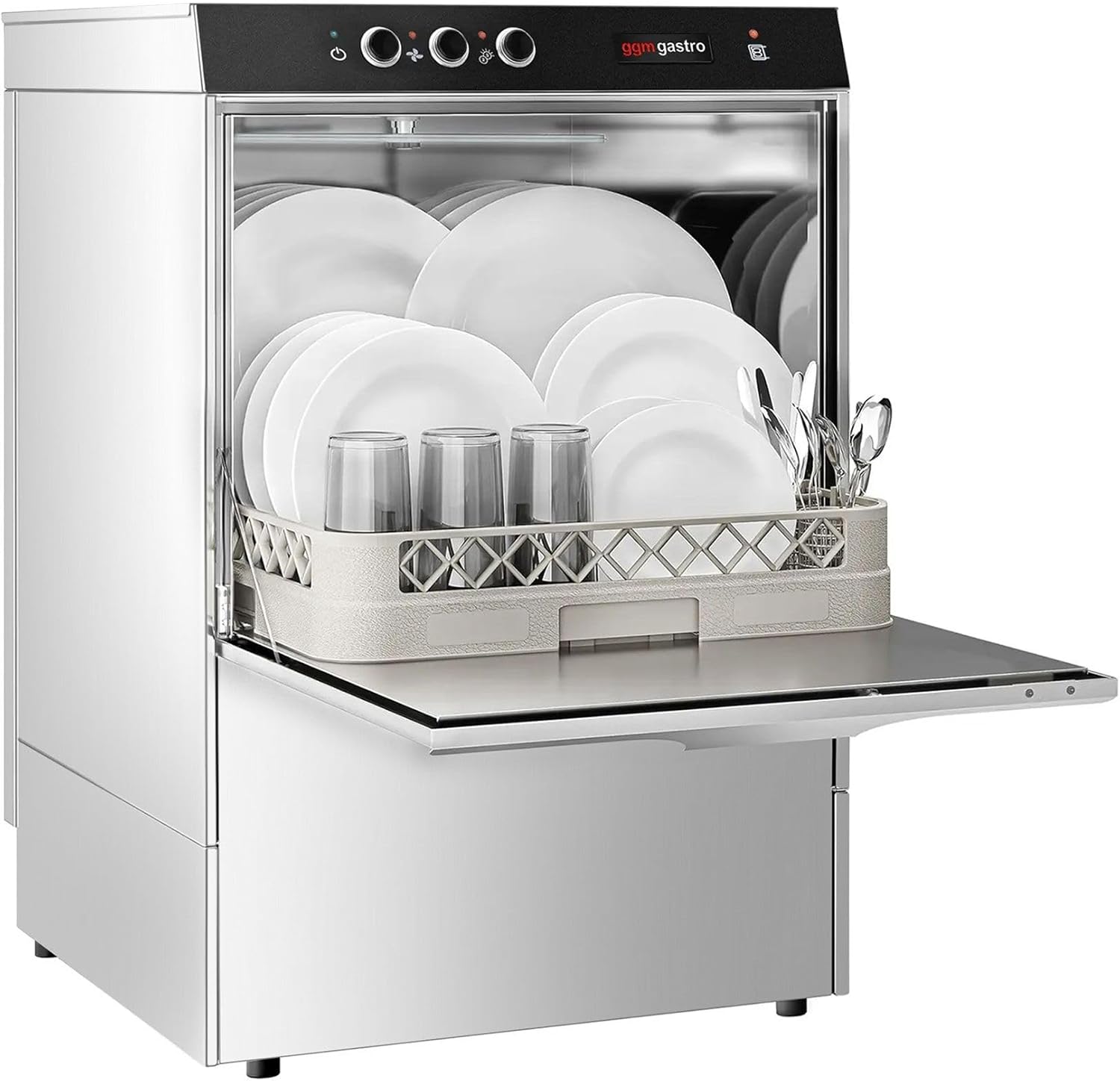

Figure 1: The GGM Gastro GS330M Dishwasher, showcasing its compact design and capacity for various dish sizes, including plates, glasses, and cutlery.
Safety Instructions
- Always disconnect the appliance from the power supply before cleaning or performing maintenance.
- Do not operate the dishwasher if the power cord is damaged.
- Ensure proper ventilation around the appliance.
- Keep children away from the dishwasher during operation.
- Use only detergents and rinse aids specifically designed for commercial dishwashers.
Setup and Installation
Proper installation is crucial for the optimal performance and safety of your dishwasher. It is recommended that installation be performed by a qualified technician.
1. Placement
Place the dishwasher on a stable, level surface. Ensure there is adequate space for ventilation and access for maintenance. The appliance dimensions are 61 cm (L) x 56.5 cm (W) x 82.5 cm (H).
Figure 2: The GGM Gastro GS330M Dishwasher integrated into a commercial kitchen setup, demonstrating typical installation environment.
2. Water and Drain Connections
Connect the dishwasher to a suitable water supply and drain system. Pay close attention to the drain pump requirements:
- If the drain is 1 cm or higher from the floor, a drain pump is required.
- If the drain is at 0 cm height (floor level), a drain pump is not needed.
Figure 3: Diagram showing the conditions under which a drain pump is necessary. A drain pump is required if the drain outlet is elevated (e.g., 1 cm or more above the floor), while it is not needed for floor-level drains.
3. Detergent and Rinse Aid Connections
This model features integrated pumps for automatic detergent and rinse aid dispensing. Connect the respective supply lines to the designated inlets at the rear of the machine.
Figure 4: Detailed view of the electrical pumps for detergent and rinse aid, indicating their connection points for automatic dispensing.
4. Electrical Connection
Connect the dishwasher to a grounded electrical outlet with the correct voltage and amperage as specified in the technical data. The appliance operates at 4.9 kW.
Operating Instructions
1. Loading the Dishwasher
- Scrape off large food particles from dishes before loading.
- Place dishes securely in the racks, ensuring water can reach all surfaces.
- Avoid overcrowding the dishwasher.
- Ensure spray arms can rotate freely.
2. Adding Detergent and Rinse Aid
The GS330M model automatically dispenses detergent and rinse aid from connected external containers. Ensure these containers are sufficiently filled.
3. Selecting a Wash Cycle
The control panel features intuitive buttons for cycle selection. Refer to the icons on the panel for specific wash programs (e.g., quick wash, intensive wash).
Figure 5: A composite image highlighting key operational components: the user-friendly control panel, the robust dish rack, and the efficient spray arms within the dishwasher's interior.
4. Starting the Dishwasher
Press the power button, then select your desired program, and press the start button. The machine will begin its cycle.
Maintenance
Regular maintenance ensures the longevity and efficiency of your GGM Gastro GS330M Dishwasher.
1. Daily Cleaning
- Wipe down the exterior with a damp cloth.
- Clean the door seal to prevent residue buildup.
2. Filter Cleaning
Regularly check and clean the filters located at the bottom of the wash tub. Remove any food debris to prevent blockages and ensure proper drainage.
3. Spray Arm Maintenance
Periodically remove and clean the spray arms to ensure the nozzles are not clogged. This maintains optimal water distribution during cycles.
4. Descaling
Depending on water hardness, periodic descaling may be necessary. Consult a qualified technician for recommended descaling procedures and products.
Troubleshooting
This section addresses common issues you might encounter with your dishwasher. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | No power; Door not closed properly; Cycle not selected | Check power supply; Ensure door is latched; Select a wash cycle |
| Dishes not clean | Overloaded; Clogged spray arms; Insufficient detergent; Incorrect program | Do not overload; Clean spray arms; Check detergent levels; Select appropriate program |
| Water not draining | Clogged filter; Kinked drain hose; Drain pump issue | Clean filter; Straighten hose; Contact service if pump issue |
| Excessive noise | Dishes obstructing spray arms; Foreign object in pump | Rearrange dishes; Inspect pump area (after disconnecting power) |
Specifications
| Feature | Detail |
|---|---|
| Brand | GGM Gastro |
| Model Number | GS330M |
| Product Dimensions (L x W x H) | 61 cm x 56.5 cm x 82.5 cm |
| Power Consumption | 4.9 kW |
| ASIN | B0D2HK76LW |
| Manufacturer | GGM Gastro |
| Date First Available | October 7, 2022 |
Warranty and Support
GGM Gastro is committed to providing high-quality products and excellent customer service. For any issues or inquiries regarding your GS330M Dishwasher, please contact GGM Gastro customer support.
- Repair & Spare Parts Service: GGM Gastro offers dedicated repair and spare parts services to ensure the continued operation of your appliance.
- Europe-wide Technician Network: A broad network of qualified technicians is available for professional assistance and repairs.
Figure 6: An infographic detailing GGM Gastro's commitment to customer satisfaction through services such as repair and spare parts, a Europe-wide technician network, and expert advice.
For further assistance, visit the official GGM Gastro website or refer to your purchase documentation for contact details.
