Bmax B3 Mini PC User Manual

1. Introduction

The Bmax B3 Mini PC is a compact and powerful computing solution designed for various applications, from office productivity to multimedia entertainment. Featuring an 11th Gen Intel N5095 Processor, 8GB DDR4 RAM, and a 256GB SSD, it offers efficient performance in a small form factor. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Bmax B3 Mini PC.

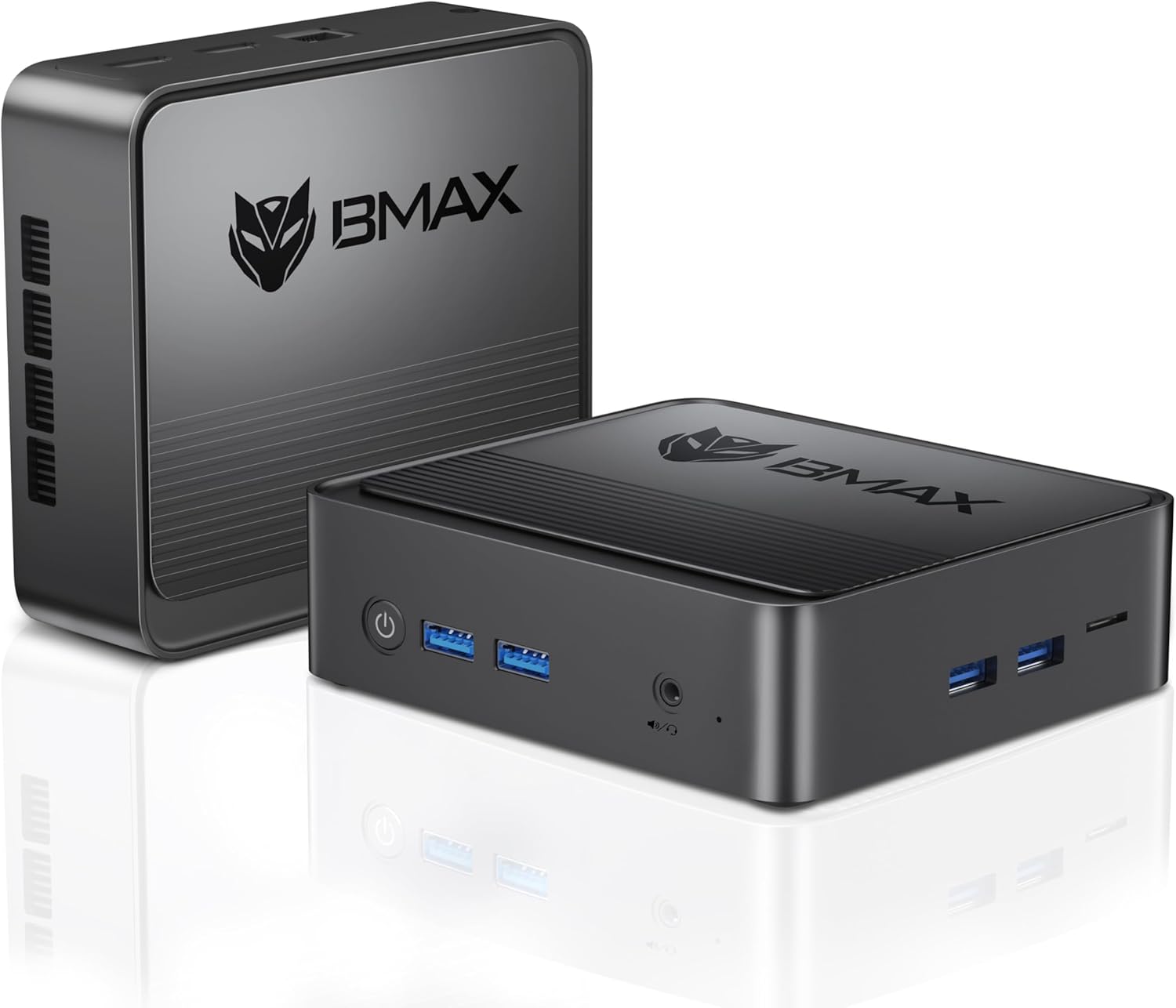

Image: The Bmax B3 Mini PC, showcasing its compact design and side ventilation.

2. What's in the Box

Upon unboxing your Bmax B3 Mini PC, please verify that all the following components are included:

• 1 x HDMI cable
• 1 x BMAX B3 8+256GB Mini PC
• 1 x US Power Adapter
• 1 x VESA Mount with Screws
• 1 x User Manual

3. Product Overview

3.1. Physical Dimensions and Weight

The Bmax B3 Mini PC is designed to be highly portable and space-saving. Its compact dimensions allow for flexible placement on a desk or mounted behind a monitor.

Image: The Bmax B3 Mini PC displaying its dimensions (4.92in L x 4.4in W x 1.73in H) and weight (290g).

3.2. Ports and Connectors

The Bmax B3 Mini PC offers a comprehensive set of ports for versatile connectivity:

• USB 3.0: 4 ports for high-speed data transfer and peripheral connections.
• HDMI: 2 ports supporting up to 4K 60Hz for dual-screen display.
• 3.5mm Audio Interface: For headphones or external speakers.
• Micro SD Card Reader: For expanding storage or transferring data from memory cards.
• RJ45 (Ethernet): For wired network connectivity.
• Power In: DC power input.
• Power Button: To turn the device on/off.
• Clear CMOS: Button for resetting BIOS settings.

Image: A diagram illustrating the various ports and their labels on the Bmax B3 Mini PC.

4. Setup Guide

4.1. Initial Connection

1. Connect your monitor(s) to the HDMI ports on the Mini PC using the provided HDMI cable.
2. Connect your keyboard and mouse to the available USB 3.0 ports.
3. (Optional) Connect an Ethernet cable to the RJ45 port for wired internet access.
4. Connect the US Power Adapter to the Power In port on the Mini PC, then plug the adapter into a power outlet.
5. Press the Power Button on the front of the Mini PC to turn it on.

4.2. Auto Power On Setting

The Bmax B3 Mini PC supports an "Auto Power On" feature, allowing the system to automatically power on after a power failure. This setting can be configured in the BIOS.

5. Operating Your Mini PC

5.1. Processor and Performance

The Bmax B3 Mini PC is equipped with an 11th Gen Intel Jasper Lake N5095 Processor (4 Cores/4 Threads, 4M Cache, up to 2.9GHz). This processor, combined with 8GB DDR4 RAM and a 256GB SSD, provides sufficient power for daily computing tasks, office applications, web browsing, and multimedia playback.

Image: Close-up of the Intel Jasper Lake N5095 processor, highlighting its 10nm process, 2.90 GHz maximum frequency, 4 cores/4 threads, 4MB cache, and 15W power consumption.

5.2. Dual Screen Display

Leverage the dual HDMI ports to connect two monitors simultaneously, supporting up to 4K resolution at 60Hz. This feature enhances productivity by allowing for an extended workspace.

Image: The Bmax B3 Mini PC connected to two monitors, demonstrating its dual-screen display capability.

5.3. Operating System

The Bmax B3 Mini PC comes with Windows 11 Pro pre-installed. It also supports other operating systems such as Linux (Ubuntu), offering flexibility for different user preferences.

Image: Visual representation of the Bmax B3 Mini PC supporting both Windows and Ubuntu operating systems.

6. Maintenance and Upgrades

6.1. Storage Expansion

The Bmax B3 Mini PC features a unique opening cover design, simplifying the process of installing or upgrading a 2.5-inch HDD/SSD. The device supports DIY upgrades up to 2TB SSD / 16GB DDR4. A SATA cable is included in the package for connecting an additional SSD.

Image: The Bmax B3 Mini PC with its top cover removed, revealing the internal slots for RAM and SSD upgrades.

6.2. How to Add an SSD

Follow these steps or refer to the video below for guidance on adding an SSD to your Mini PC:

1. Ensure the Mini PC is powered off and disconnected from the power source.
2. Carefully slide back the top cover of the Mini PC.
3. Locate the M.2 SATA 2280 slot or the bay for a 2.5-inch SSD.
4. Insert the SSD into the appropriate slot and secure it if necessary (e.g., with a screw for M.2 SSDs).
5. Connect the SATA cable (if using a 2.5-inch SSD) to the SSD and the motherboard.
6. Replace the top cover.

7. Troubleshooting

If you encounter issues with your Bmax B3 Mini PC, consider the following common troubleshooting steps:

• No Power: Ensure the power adapter is securely connected to both the Mini PC and a working power outlet. Verify the power outlet is active.
• No Display: Check that the HDMI cable(s) are firmly connected to both the Mini PC and the monitor(s). Ensure the monitor is powered on and set to the correct input source.
• System Unresponsive: If the system becomes unresponsive, press and hold the power button for 5-10 seconds to force a shutdown, then restart the device.
• One-key Smart Recovery: The Mini PC supports a "One-key Smart Recovery" feature to restore the system to its factory configuration. Refer to the operating system's documentation for specific instructions on performing a system reset or reinstallation.
• Peripheral Issues: If a keyboard, mouse, or other USB device is not working, try connecting it to a different USB port or restarting the Mini PC.

For persistent issues, please refer to the Warranty and Support section for contact information.

8. Technical Specifications

9. Warranty and Support

BMAX Mini-PCs come with a 12-month warranty. Additionally, Bmax offers 7x24-hour customer support and a 30-day no-reason return policy.

If you experience any problems or require assistance, please contact Bmax customer support via email. Refer to the product packaging or the official Bmax website for the most current contact information.
