TECNOLITE LED PAR38 13 Watt Cool White 6500K Bulb User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your TECNOLITE LED PAR38 13 Watt Cool White 6500K Bulb, Model Aquila (24474995). Please read these instructions carefully before installation and operation, and retain them for future reference.

The TECNOLITE Aquila LED bulb is designed for various lighting applications, including architectural elements, displays, and showcases. It features an E27 base for easy installation in compatible lamp holders and provides a cool white light at 6500K.

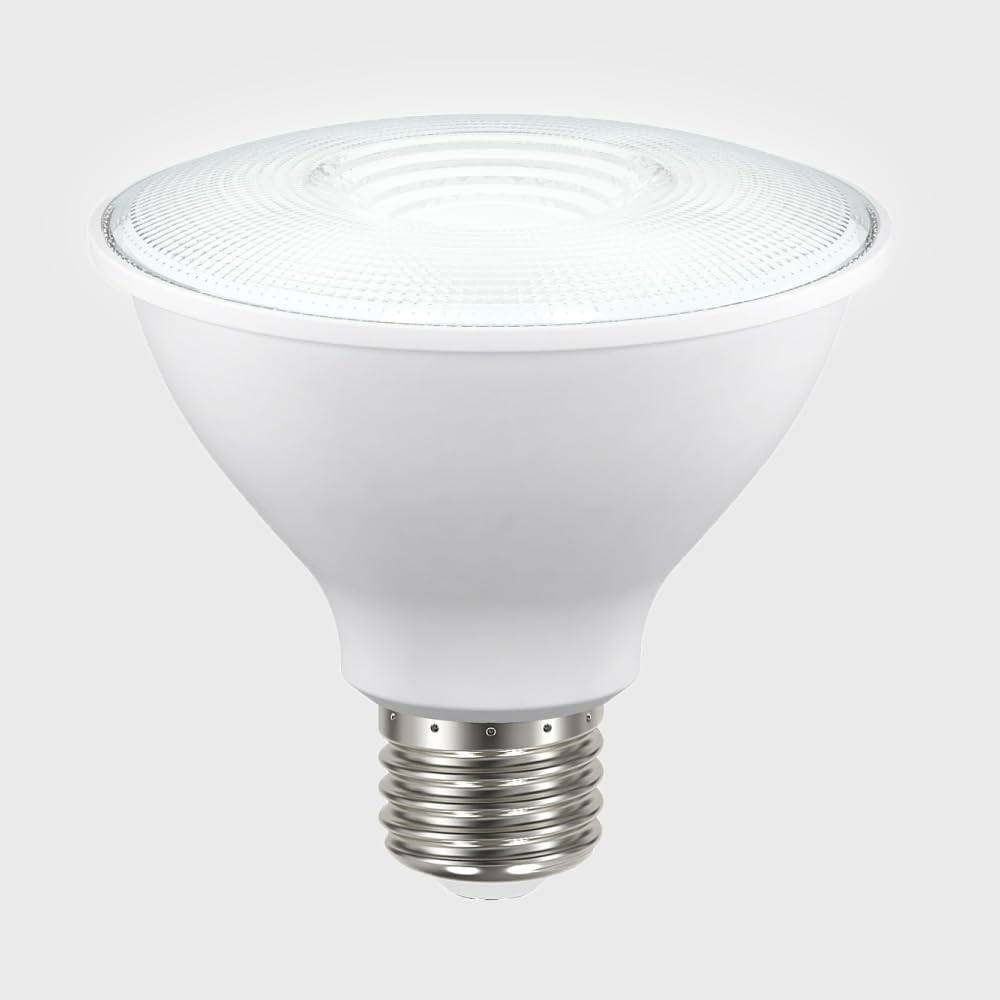

Image 1.1: TECNOLITE LED PAR38 13 Watt Cool White 6500K Bulb. This image shows the overall design of the LED bulb with its E27 screw base.

2. Safety Instructions

• Electrical Safety: Always disconnect power to the fixture before installing, replacing, or cleaning the bulb to prevent electric shock.
• Proper Installation: Ensure the bulb is securely screwed into a compatible E27 lamp holder. Do not overtighten.
• Voltage Compatibility: This bulb operates within 100-240V~. Verify your fixture's voltage matches this range.
• Indoor Use: This product is intended for indoor use unless otherwise specified by the fixture.
• Non-Dimmable: This LED bulb is not dimmable. Do not use with dimmer switches, as this may damage the bulb or the dimmer.
• Heat: Although LED bulbs generate less heat than incandescent bulbs, they can still become warm. Avoid touching the bulb immediately after prolonged use.
• Disposal: Dispose of the bulb according to local regulations for electronic waste.

3. Setup and Installation

1. Power Off: Before beginning installation, ensure the power supply to the light fixture is turned off at the circuit breaker or wall switch.
2. Remove Old Bulb (if applicable): If replacing an existing bulb, allow it to cool completely before carefully unscrewing it from the lamp holder.
3. Insert New Bulb: Gently screw the TECNOLITE LED PAR38 bulb into the E27 lamp holder. Turn clockwise until it is finger-tight. Do not apply excessive force.
4. Restore Power: Once the bulb is securely installed, restore power to the fixture.
5. Test: Turn on the light switch to verify proper operation.

Image 3.1: Dimensions of the TECNOLITE LED PAR38 Bulb. The image illustrates the bulb's length (134 mm) and width (121 mm), shown in a hand for scale.

4. Operating Instructions

The TECNOLITE LED PAR38 bulb operates as a standard light source. Once installed and power is supplied, it will illuminate when the connected light switch is turned on.

• Light Color: This bulb emits a Cool White light with a color temperature of 6500 Kelvin.
• Beam Angle: The light is distributed with a 25-degree beam angle, providing directional illumination suitable for accent lighting.
• Non-Dimmable: This bulb is designed for on/off operation only and is not compatible with dimmer switches.

Image 4.1: Example application of TECNOLITE LED PAR38 bulbs. This image shows multiple bulbs installed in a ceiling, providing bright, directional lighting in a room.

5. Maintenance

The TECNOLITE LED PAR38 bulb requires minimal maintenance due to its long lifespan and durable construction.

• Cleaning: To clean the bulb, ensure the power is off and the bulb is cool. Wipe gently with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents.
• Replacement: When the bulb reaches the end of its operational life (approximately 25,000 hours), replace it following the installation steps outlined in Section 3.

6. Troubleshooting

If you encounter issues with your TECNOLITE LED PAR38 bulb, please refer to the following common troubleshooting steps:

• Bulb Does Not Light Up:
  • Ensure the power supply to the fixture is on.
  • Check if the bulb is securely screwed into the E27 lamp holder.
  • Verify that the light switch is in the "on" position.
  • Test the fixture with another known working bulb to rule out a fixture issue.
• Flickering:
  • Confirm that the bulb is not connected to a dimmer switch, as this bulb is non-dimmable.
  • Check for loose connections in the fixture or wiring.

If these steps do not resolve the issue, please contact TECNOLITE customer support.

7. Specifications

8. Warranty and Support

Your TECNOLITE LED PAR38 bulb is covered by a 5-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.

Image 8.1: Official 5-Year Warranty Badge. This badge signifies the product's 5-year warranty period.

For warranty claims, technical support, or any inquiries regarding your product, please contact TECNOLITE customer service. Refer to your purchase documentation or the official TECNOLITE website for contact details.

Manufacturer: TECNOLITE
