Thereye 8 Stage Reverse Osmosis System

Introduction

The Thereye 8 Stage Reverse Osmosis System is an advanced water filtration solution designed to provide clean, pure drinking water directly from your tap. This tankless system offers high-capacity filtration, effectively reducing contaminants like PFAS and TDS, and features a smart LED faucet for real-time water quality monitoring. This manual will guide you through the installation, operation, maintenance, and troubleshooting of your new water filtration system, ensuring optimal performance and longevity.

Setup and Installation

Before beginning installation, ensure all components are present and undamaged. The tankless design allows for space-saving under-sink installation. It is recommended to have basic plumbing knowledge or consult a professional for installation.

Figure 1: The main Thereye 8 Stage Reverse Osmosis System unit and its smart LED faucet. The compact design is ideal for under-sink placement, saving valuable kitchen space.

Unboxing: Carefully remove all items from the packaging. You will find the main filtration unit, the smart LED faucet, various tubing (red, blue, white), and installation accessories. The system is securely packaged to prevent damage during transit.

Connecting the System:

1. Identify the Feed Water, Filtered Water, and Waste Water ports on the top of the main unit. These are typically color-coded (e.g., blue for feed, white for filtered, red for waste).
2. Connect the appropriate tubing to each port. Ensure secure connections to prevent leaks.
3. Install the smart LED faucet onto your sink. Connect the filtered water line from the main unit to the faucet.
4. Connect the feed water line to your cold water supply using the provided adapter.
5. Route the waste water line to your drain.
6. Plug the unit into a standard electrical outlet.

After installation, slowly turn on the cold water supply and check for any leaks. Allow the system to flush for approximately 15-30 minutes before first use to remove any air and carbon fines.

Key Features

• Upgraded 8-Stage Filtration: This system utilizes a comprehensive 8-stage filtration process, including PPC filter elements and a 0.0001 micron RO membrane, to effectively eliminate 99% of contaminants such as TDS, PFAS, PFOS, PFOA, fluoride, and heavy metals, while enhancing water taste.


  Figure 2: Detailed breakdown of the 8-stage filtration process, illustrating how various impurities are removed.

• 1000 GPD Large & Swift Water Supply: Experience instant access to purified water with a daily capacity of 1000 gallons. An 8 oz glass can be filled in just 5 seconds, making it ideal for large families and businesses.


  Figure 3: Visual representation of the rapid water dispensing capability, highlighting the 1000 GPD capacity.
• Functional Smart LED Faucet: The included stainless steel faucet features a built-in TDS monitor, providing real-time water quality updates. It also reminds you when filter replacements are due and offers a 360° swivel for convenience.


  Figure 4: Close-up of the smart faucet, showcasing its integrated TDS display and filter replacement reminders.

• Tankless Structure Benefits: This design conserves under-sink space, eliminates secondary pollution from stored water, and boasts an efficient 2:1 pure to wastewater ratio, saving up to 8 times more water than traditional tank-based systems.


  Figure 5: Illustrates the space-saving advantage of the tankless design compared to conventional RO systems with storage tanks.



  Figure 6: Demonstrates the efficient 2:1 pure to drain ratio, highlighting water conservation.
• Safe and Reliable: Certified by FCC and ETL, the system includes an in-built leak-proof feature, ensuring product safety and reliable water quality improvement.

Operation

Operating your Thereye RO system is straightforward:

• Dispensing Water: Simply turn the handle on the smart LED faucet to dispense purified water.
• TDS Monitoring: The LED display on the faucet provides a real-time Total Dissolved Solids (TDS) reading of your filtered water, allowing you to monitor its purity.
• Filter Status: The faucet display also indicates the status of your filters, reminding you when it's time for replacement.

Maintenance

Regular maintenance ensures the longevity and efficiency of your filtration system. The smart faucet will alert you when filters need replacement.

• Filter Replacement:
• PPC Filter: Replace approximately every 12 months.
• RO Filter: Replace approximately every 30 months.

Note: Filter lifespan may vary based on local water quality and usage.

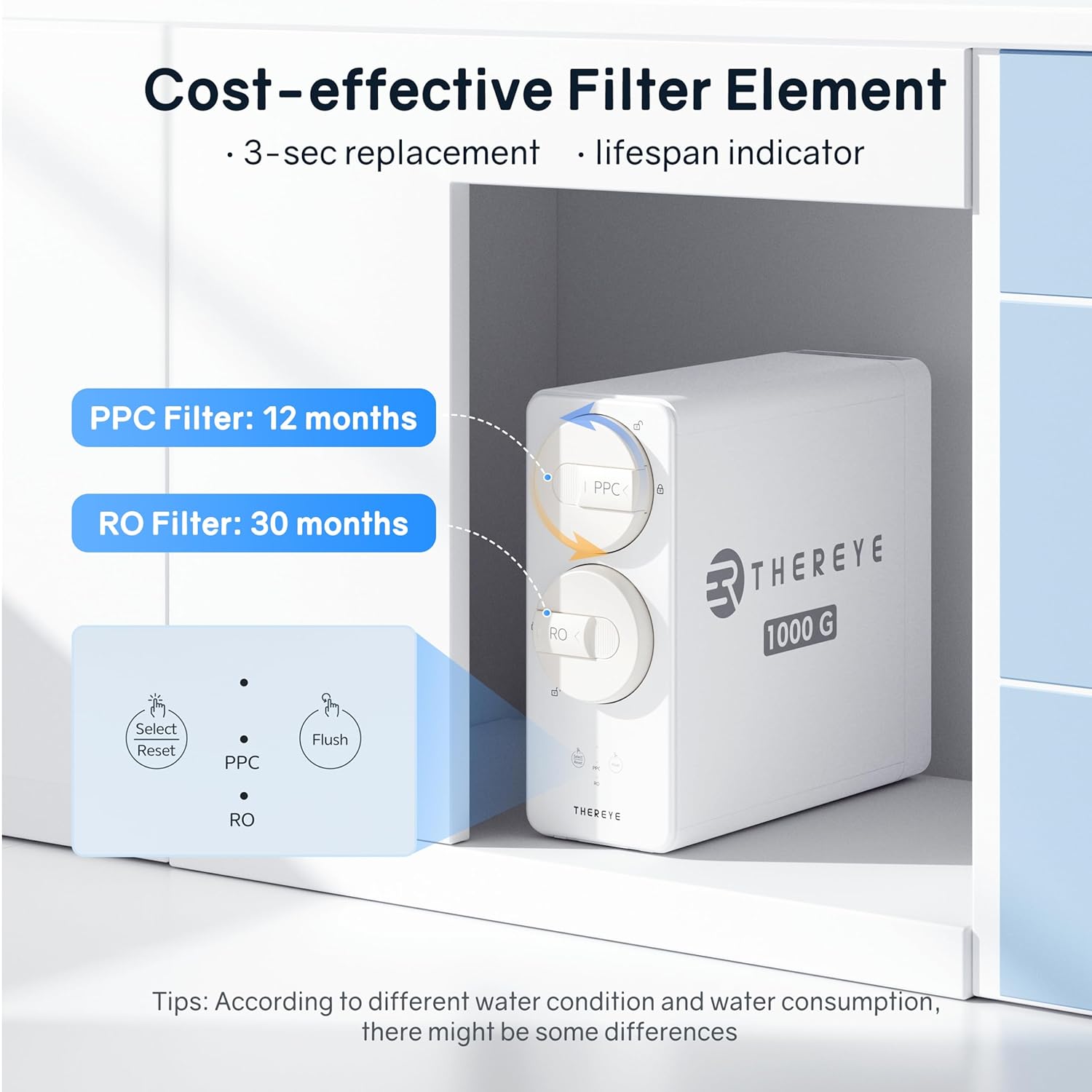

Figure 7: Information on filter replacement, including recommended intervals and the simple 3-second replacement process.

• Cleaning: Periodically wipe down the exterior of the unit and faucet with a soft, damp cloth. Do not use abrasive cleaners.
• Leak Check: Regularly inspect all connections for any signs of leaks. Address any leaks immediately to prevent water damage.

Troubleshooting

If you encounter issues with your Thereye RO system, refer to the following common troubleshooting tips:

• No Water Flow or Slow Flow:
• Check if the cold water supply valve is fully open.
• Ensure the unit is properly plugged in and powered on.
• Verify that filters are correctly installed and not clogged. Replace filters if the faucet indicator suggests it.
• Check for kinks or blockages in the water lines.
• Unusual Taste or Odor:
• This often indicates that filters need replacement. Refer to the maintenance section.
• Ensure the system has been adequately flushed after installation or filter replacement.
• High TDS Reading:
• The RO membrane might need replacement. The smart faucet's TDS monitor will help identify this.
• Ensure proper water pressure to the unit.
• Leaking:
• Immediately turn off the water supply to the unit.
• Check all connections and fittings for tightness.
• Inspect O-rings and seals for damage.

For persistent issues not resolved by these steps, please contact customer support.

Specifications

Safety and Certifications

The Thereye 8 Stage Reverse Osmosis System is designed with safety in mind and has undergone rigorous testing to meet industry standards.

• Certifications: This system is certified by FCC and ETL, ensuring compliance with safety and performance regulations.
• Leak-Proof Feature: An integrated leak-proof design minimizes the risk of water damage.

Warranty and Support

For warranty information, technical support, or to purchase replacement filters, please refer to the contact details provided with your product packaging or visit the official Thereye website. Our customer service team is available to assist you with any questions or concerns regarding your water filtration system.
