ELECTROPRIME MS2965H

User Manual for ELECTROPRIME HOPESTAR P7 Mini Portable Bluetooth Speaker

Model: MS2965H

Introduction

Thank you for purchasing the ELECTROPRIME HOPESTAR P7 Mini Portable Wireless Bluetooth Speaker. This speaker is designed to provide high-quality audio with strong bass, offering versatile connectivity options including Bluetooth, AUX input, TF card playback, and FM radio. It also features a built-in microphone for hands-free calls and is designed with IPX6 waterproof technology for enhanced durability. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan.

Safety Information

  • Do not expose the speaker to extreme temperatures or direct sunlight for prolonged periods.
  • Avoid dropping or subjecting the speaker to strong impacts.
  • Do not disassemble, repair, or modify the speaker yourself. This will void the warranty and may cause damage.
  • Keep the speaker away from water and liquids, despite its waterproof rating, to prevent damage to internal components.
  • Use only the specified charging cable and adapter to charge the speaker.
  • Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.

Package Contents

Please check the package for the following items:

  • ELECTROPRIME HOPESTAR P7 Mini Portable Bluetooth Speaker
  • USB Charging Cable
  • AUX Audio Cable
  • User Manual

Product Overview

Familiarize yourself with the speaker's components and controls.

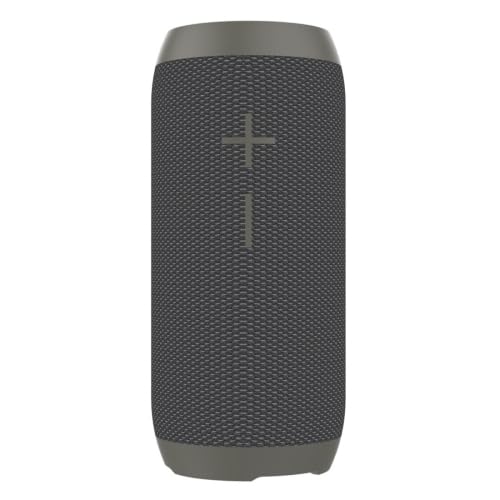

Front view of the ELECTROPRIME HOPESTAR P7 Mini Portable Bluetooth Speaker, showing its cylindrical shape and fabric mesh grille with a plus and minus sign indicating volume controls.

Figure 1: Front view of the speaker, highlighting the main grille and control indicators.

Side view of the ELECTROPRIME HOPESTAR P7 Mini Portable Bluetooth Speaker, showing the power button and other control buttons on the side panel.

Figure 2: Side view of the speaker, illustrating the control panel with various buttons.

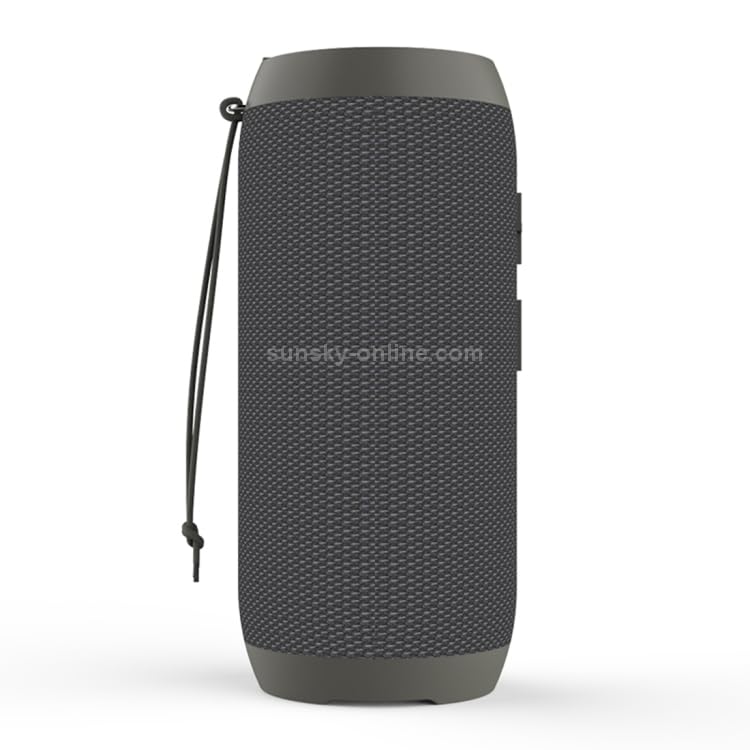

Another side view of the ELECTROPRIME HOPESTAR P7 Mini Portable Bluetooth Speaker, showing the integrated carrying strap and port covers.

Figure 3: Rear/Side view of the speaker, showing the carrying strap and protected port area.

Control Buttons and Ports:

  • Power Button: Press and hold to turn on/off.
  • Play/Pause Button: Press to play or pause music. Press to answer/end calls.
  • Volume Up (+): Press to increase volume. Press and hold for next track.
  • Volume Down (-): Press to decrease volume. Press and hold for previous track.
  • Mode Button (M): Press to switch between Bluetooth, AUX, TF Card, and FM radio modes.
  • USB Charging Port: For charging the speaker.
  • AUX Input Port: For connecting external audio devices via 3.5mm audio cable.
  • TF Card Slot: For playing music directly from a TF (MicroSD) card.

Setup

1. Charging the Speaker:

  1. Connect the small end of the USB charging cable to the USB charging port on the speaker.
  2. Connect the large end of the USB charging cable to a USB power adapter (not included) or a computer's USB port.
  3. The charging indicator light will illuminate during charging and turn off when fully charged.
  4. For optimal battery life, fully charge the speaker before first use.

2. Powering On/Off:

  • To turn on, press and hold the Power button until you hear an audible prompt.
  • To turn off, press and hold the Power button again until you hear an audible prompt.

Operating Instructions

1. Bluetooth Pairing:

  1. Turn on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED light.
  2. Enable Bluetooth on your smartphone, tablet, or other Bluetooth-enabled device.
  3. Search for "HOPESTAR P7" (or similar name) in the list of available Bluetooth devices.
  4. Select "HOPESTAR P7" to connect. Once successfully paired, you will hear a confirmation sound, and the LED light will stop flashing.
  5. The speaker will automatically reconnect to the last paired device when turned on, if the device is within range and Bluetooth is enabled.

2. AUX Mode:

  1. Connect one end of the 3.5mm AUX audio cable to the AUX input port on the speaker.
  2. Connect the other end of the cable to the audio output jack of your external device (e.g., MP3 player, computer).
  3. The speaker will automatically switch to AUX mode, or you may need to press the Mode (M) button to select AUX mode.
  4. Control playback and volume from your connected device or the speaker's controls.

3. TF Card Playback:

  1. Insert a TF (MicroSD) card with MP3/WMA format music files into the TF card slot on the speaker.
  2. The speaker will automatically switch to TF card mode and begin playing music, or you may need to press the Mode (M) button to select TF card mode.
  3. Use the Play/Pause, Volume Up (+), and Volume Down (-) buttons to control playback.

4. FM Radio:

  1. Press the Mode (M) button repeatedly until you enter FM radio mode.
  2. To auto-scan and save available FM stations, press and hold the Play/Pause button. The speaker will scan and store stations automatically.
  3. Use the Volume Up (+) and Volume Down (-) buttons (short press) to switch between saved stations.

5. Hands-Free Calling:

  • When connected via Bluetooth to your phone, incoming calls will be routed through the speaker.
  • Press the Play/Pause button to answer an incoming call.
  • Press the Play/Pause button again to end a call.
  • Press and hold the Play/Pause button to reject an incoming call.

6. TWS (True Wireless Stereo) Pairing (Series 1+17):

This feature allows you to pair two HOPESTAR P7 speakers together for a true stereo sound experience.

  1. Ensure both speakers are turned off.
  2. Turn on both speakers. They should both be in Bluetooth pairing mode.
  3. On one of the speakers (this will be the primary speaker), double-press the Mode (M) button. You will hear a prompt indicating it's searching for another speaker.
  4. The two speakers will automatically connect to each other. Once connected, you will hear a confirmation sound.
  5. Now, connect your device to the primary speaker via Bluetooth as described in the "Bluetooth Pairing" section. Audio will play through both speakers in stereo.

Maintenance

  • Cleaning: Use a soft, dry, lint-free cloth to clean the speaker. Do not use harsh chemicals, cleaning solvents, or strong detergents.
  • Storage: When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Battery Care: To preserve battery life, charge the speaker at least once every three months if not used regularly.

Troubleshooting

ProblemPossible CauseSolution
Speaker does not turn on.Battery is low or depleted.Charge the speaker fully using the provided USB cable.
Cannot pair with Bluetooth device.Speaker is not in pairing mode; Device Bluetooth is off; Speaker is too far from device.Ensure speaker is in pairing mode (flashing LED). Turn on Bluetooth on your device. Move speaker closer to device (within 10 meters). Forget previous pairings on your device and try again.
No sound from speaker.Volume is too low; Incorrect mode selected; Device not playing audio.Increase volume on both speaker and connected device. Press the Mode (M) button to select the correct input mode (Bluetooth, AUX, TF, FM). Ensure audio is playing on your source device.
Poor FM radio reception.Weak signal; Environmental interference.Relocate the speaker to an area with better reception. Re-scan for stations.
TWS pairing fails.Speakers not in TWS pairing mode; Too far apart.Ensure both speakers are turned on and not connected to any other Bluetooth device. Double-press the Mode (M) button on one speaker to initiate TWS pairing. Keep speakers close during pairing.

Specifications

  • Model: P7 (MS2965H)
  • Bluetooth Version: V4.2
  • Wireless Range: Up to 10 meters (33 feet)
  • Audio Formats Supported: MP3, WMA
  • Connectivity: Bluetooth, AUX, TF Card, FM Radio
  • Special Features: Built-in Mic (Hands-Free Call), TWS (True Wireless Stereo) support, IPX6 Waterproof, Mobile Power Supply (Power Bank function - implied by "With mobile power supply" in description, though not explicitly stated as output).
  • Compatible Devices: Tablet, Smartphone
  • Manufacturer: ELECTROGADGETSSTORE
  • First Available: 18 April 2024

Warranty and Support

This product comes with a standard manufacturer's warranty. For detailed information regarding warranty terms and conditions, please refer to the warranty card included in your package or contact ELECTROPRIME customer support.

For technical support, troubleshooting assistance, or any inquiries regarding your ELECTROPRIME product, please visit the official ELECTROPRIME website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
