Introduction
This manual provides essential information for the installation, operation, and maintenance of your Carbhub Carburetor, designed as a direct replacement for Legend Force 46cc Gas Tillers. This carburetor is engineered to restore optimal engine performance and ensure reliable operation of your equipment.
Product Overview
The Carbhub Carburetor (Model A063001) is a precision-engineered component crucial for mixing air and fuel in the correct ratio for your Legend Force 46cc Gas Tiller engine. It comes complete with a necessary gasket for a proper seal during installation.

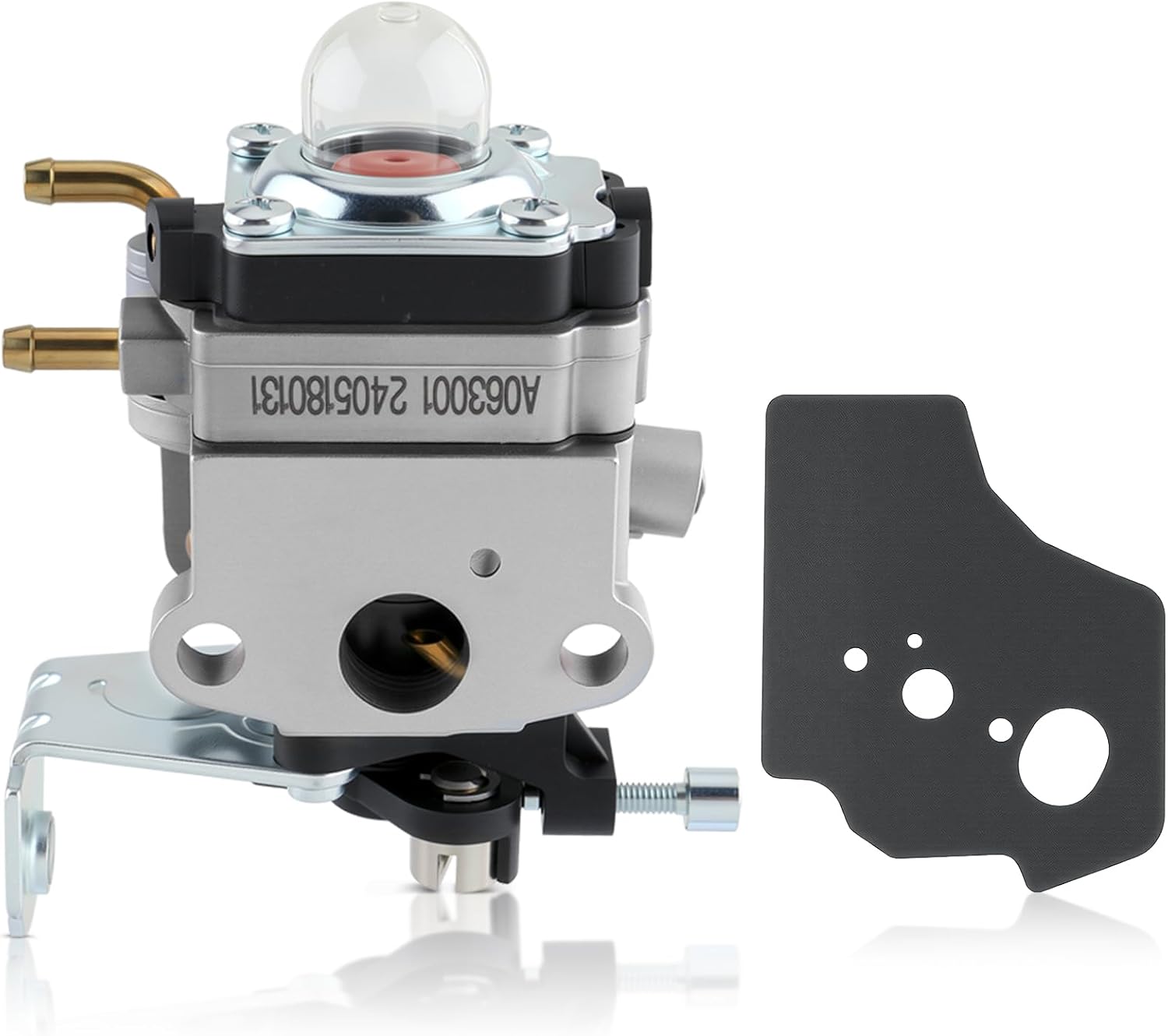

Image: The Carbhub Carburetor and its accompanying gasket, ready for installation.
Video: A detailed view of the Carbhub Carburetor, showcasing its various angles and components.
Package Contents
- 1 x Carbhub Carburetor (Part Number A063001)
- 1 x Gasket
Image: The carburetor and gasket as they appear when unboxed.
Compatibility
This Carbhub Carburetor is specifically designed to fit and replace the original carburetor in Legend Force 46cc Gas Tiller models. It replaces part number A063001.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Carbhub |
| Manufacturer Part Number | A063001 |
| Item Weight | 5.6 ounces |
| Package Dimensions | 4.37 x 3.15 x 2.52 inches |
| Fuel Type | Gasoline |

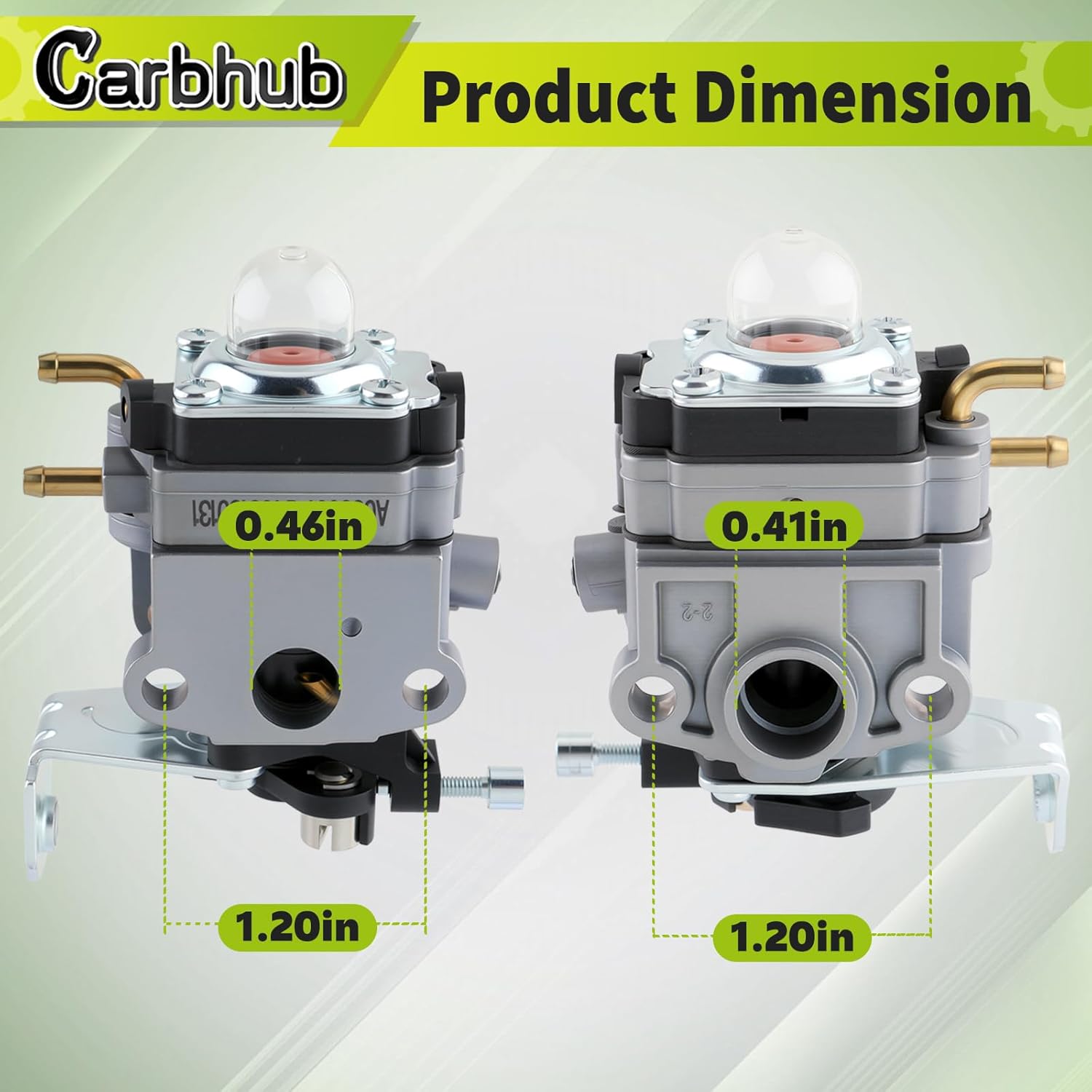

Image: Visual representation of the carburetor's key dimensions.
Installation Guide
Safety First: Before beginning any installation or maintenance, ensure the engine is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting.
- Prepare the Area: Work in a well-ventilated area. Gather necessary tools, such as screwdrivers, wrenches, and a clean cloth.
- Remove Air Filter Assembly: Carefully detach the air filter housing and any associated components to gain access to the existing carburetor.
- Disconnect Fuel Lines and Linkages: Identify and disconnect the fuel lines (inlet and return) and any throttle or choke linkages connected to the old carburetor. Be mindful of fuel spills and have a container ready.
- Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Note the orientation and any spacers or gaskets.
- Install New Gasket: Place the new gasket provided with your Carbhub Carburetor onto the engine manifold, ensuring proper alignment with the mounting holes and intake port.
- Mount New Carburetor: Carefully position the new Carbhub Carburetor onto the gasket and manifold. Secure it with the original bolts, tightening them evenly to ensure a good seal.
- Reconnect Fuel Lines and Linkages: Reattach the fuel lines to their respective ports on the new carburetor. Ensure all connections are secure and free of leaks. Reconnect the throttle and choke linkages, verifying smooth operation.
- Reassemble Air Filter: Reinstall the air filter assembly and any other components that were removed.
- Final Check: Double-check all connections, ensuring everything is tight and properly routed. Reconnect the spark plug wire.

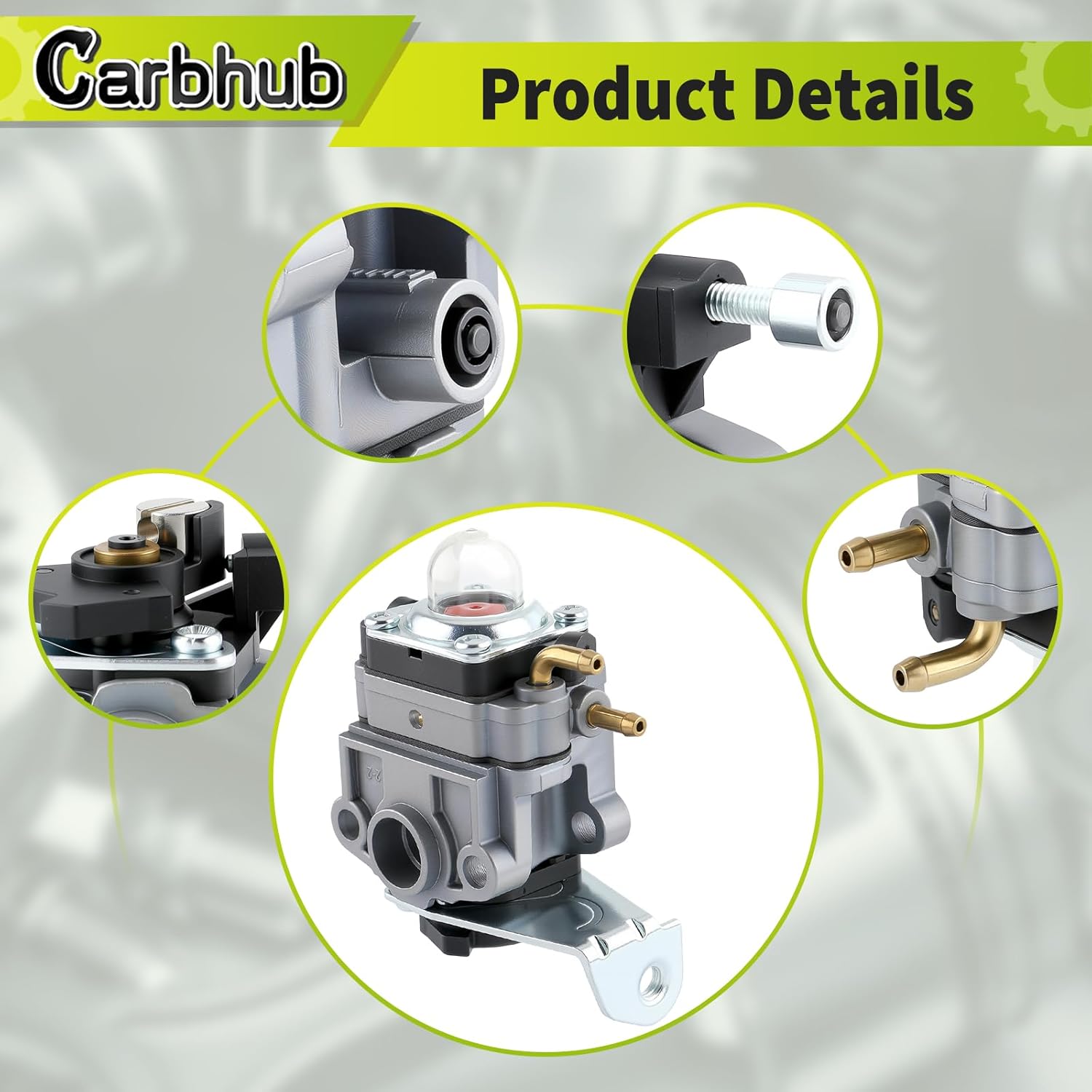

Image: Detailed view of carburetor components, useful for identifying parts during installation.
Operating Instructions
After successful installation, the Carbhub Carburetor is designed for direct replacement and typically requires no adjustment. Follow your Legend Force 46cc Gas Tiller's original operating manual for starting and running procedures.
- Fuel: Ensure you are using the correct fuel type and mixture (if applicable for 2-stroke engines) as specified by your tiller's manufacturer.
- Choke: Use the choke mechanism as instructed by your tiller's manual for cold starts.
- Throttle: Operate the throttle lever to control engine speed.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your carburetor and tiller.
- Fuel System Cleanliness: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if storing the tiller for extended periods.
- Fuel Filter: Regularly inspect and replace the fuel filter (if equipped on your tiller) to prevent debris from reaching the carburetor.
- Air Filter: Keep the air filter clean. A clogged air filter can cause the engine to run rich and affect carburetor performance.
- Storage: Before long-term storage, drain the fuel system or run the engine until it runs out of fuel to prevent gum and varnish buildup in the carburetor.
Troubleshooting
If you encounter issues after installing the new carburetor, consider the following common troubleshooting steps:
- Engine Won't Start:
- Check fuel level and ensure fresh fuel.
- Verify spark plug is clean and firing.
- Ensure choke is properly engaged for cold starts.
- Check for proper fuel flow to the carburetor.
- Engine Runs Poorly (Rough Idling, Stalling):
- Inspect all fuel lines for kinks or leaks.
- Ensure the air filter is clean and not obstructed.
- Check for air leaks around the carburetor mounting gasket.
- Fuel Leaks:
- Tighten all fuel line connections.
- Ensure the carburetor mounting bolts are tightened evenly.
- Verify the gasket is properly seated and not damaged.
If problems persist after following these steps, it is recommended to consult a qualified service technician or contact Carbhub customer support.
Warranty and Support
For information regarding warranty coverage, returns, or technical support for your Carbhub Carburetor, please contact the seller directly through your purchase platform. Provide your order details and the product model number (A063001) for faster assistance.
