Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Kozyard 6' x 8' BBQ Hardtop Grill Gazebo. Designed to enhance your outdoor grilling experience, this gazebo offers robust protection and convenient features. Please read this manual thoroughly before assembly and use to ensure safe and proper installation and longevity of your product.

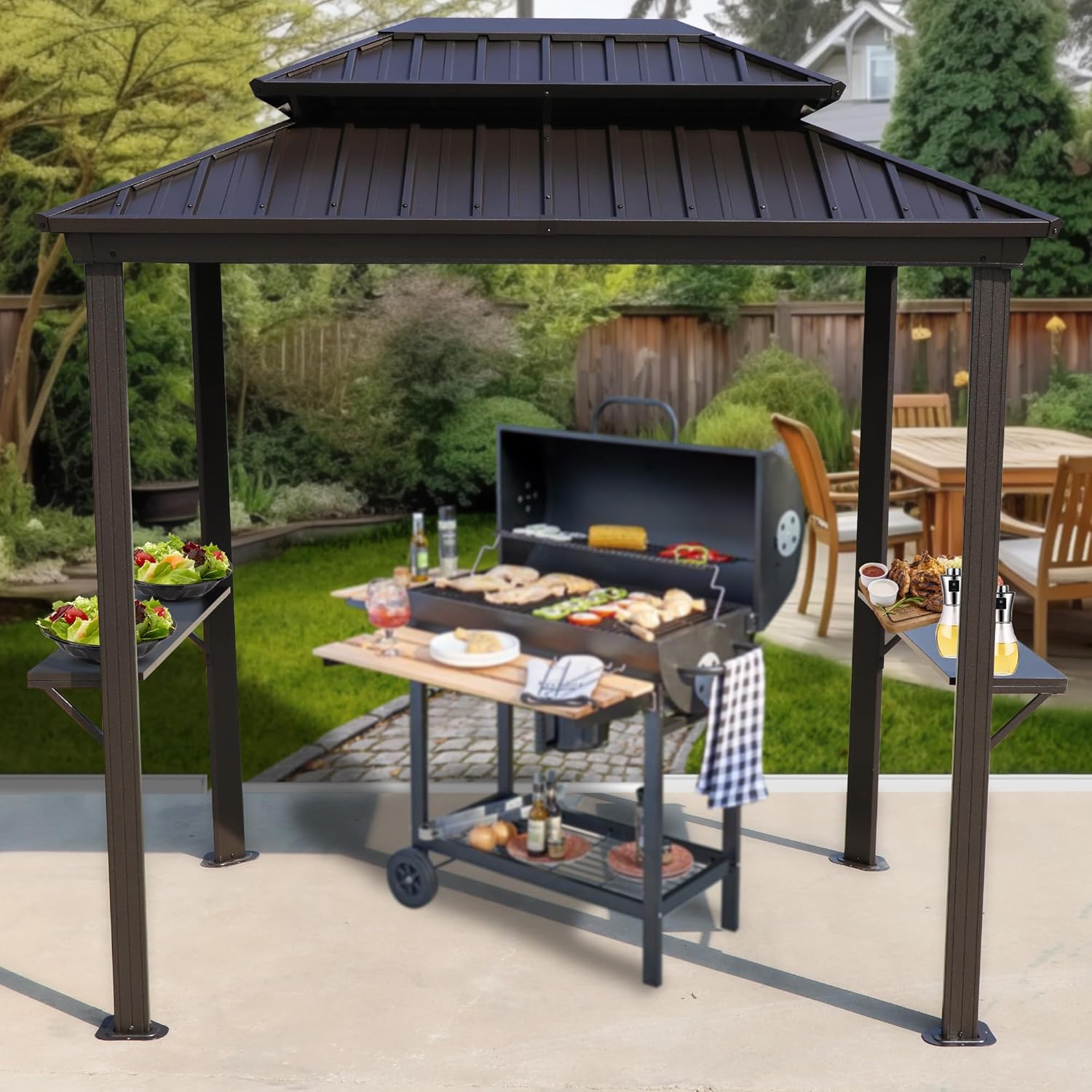

Image: The Kozyard BBQ Hardtop Grill Gazebo providing shelter for an outdoor grilling station.
Safety Information
- Always follow local building codes and regulations when installing outdoor structures.
- Ensure the gazebo is assembled on a level and stable surface.
- Securely anchor the gazebo to the ground using appropriate hardware to prevent tipping in windy conditions.
- Do not hang heavy objects from the gazebo frame or roof.
- Keep open flames and heat sources at a safe distance from the canopy material.
- Regularly inspect all bolts and connections to ensure they remain tight.
- In case of extreme weather conditions (heavy snow, strong winds), it is recommended to disassemble or secure the gazebo to prevent damage.
Package Contents
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact Kozyard customer support.
- Powder-coated aluminum frame components (legs, beams)
- Double galvanized metal roof panels
- Two side shelves
- Assembly hardware (bolts, nuts, washers)
- Instruction manual
Setup and Assembly
Assembly typically requires two adults. Refer to the included hardware pack for specific fasteners for each step. Do not fully tighten bolts until all components are loosely assembled.
Step 1: Assemble the Frame
Begin by connecting the main aluminum frame components. Ensure all pieces are oriented correctly as per the diagrams. The frame features 3.54-inch wide aluminum pillars for strong support.
Image: Detail of the powder-coated aluminum frame with triangular supports for stability.
Image: The 3.54-inch wide aluminum pillars with pre-drilled holes for ground anchoring.
Step 2: Install the Double Galvanized Metal Roof
Carefully attach the double galvanized metal roof panels to the assembled frame. The double-layer design ensures ventilation and provides protection from sun and rain.
Image: Interior of the ventilated double-layer roof, highlighting the U-shaped hooks for lights or fans.
Step 3: Attach Side Shelves
Mount the two side shelves to the designated locations on the gazebo pillars. These shelves provide a spacious desk surface for food preparation or holding grilling accessories.
Image: A side shelf with an 11.81-inch wide surface, ideal for placing items.
Step 4: Final Tightening and Anchoring
Once all components are in place, fully tighten all bolts. Use the pre-drilled holes in the base of the pillars to securely anchor the gazebo to the ground. This step is crucial for stability and safety.
Image: The fully assembled Kozyard BBQ Hardtop Grill Gazebo in use, showcasing its functionality.
Operating Instructions
Using the Side Shelves
The two integrated side shelves provide convenient surfaces for food preparation, holding utensils, or serving drinks. Each shelf offers ample space for your grilling needs.
Utilizing Roof Hooks
The roof interior features U-shaped hooks. These hooks are designed to support lightweight accessories such as LED lights or small fans, enhancing your grilling comfort during evening hours or warmer days.
Video: An overview of the Kozyard BBQ Grill Canopy, demonstrating its features and use in an outdoor setting.
Maintenance
- Cleaning: Clean the metal frame and roof panels with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Inspection: Periodically check all nuts, bolts, and connections for tightness. Tighten any loose fasteners to maintain structural integrity.
- Seasonal Care: While the gazebo is designed for year-round use, consider removing the roof panels or adding additional support in areas prone to heavy snow accumulation.
- Rust Prevention: The powder-coated aluminum frame is rust-resistant. However, promptly address any scratches or chips in the coating to prevent potential corrosion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose connections; uneven ground; insufficient anchoring. | Ensure all bolts are tightened. Relocate to a level surface. Securely anchor the gazebo to the ground. |
| Water pooling on the roof. | Improper roof panel installation; debris blocking drainage. | Verify roof panels are correctly installed and aligned. Clear any leaves or debris from the roof. |
| Difficulty assembling parts. | Incorrect orientation of parts; bolts overtightened prematurely. | Refer to the assembly diagrams. Loosely assemble all parts before fully tightening any bolts. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Kozyard |
| Model Number | KZBBQ |
| Product Dimensions (L x W x H) | 103" x 66.2" x 105" |
| Floor Area | 48 Square Feet |
| Material | Aluminum (frame), Alloy Steel (frame), Double Galvanized Metal (roof) |
| Frame Material | Alloy Steel |
| Item Weight | 178 Pounds |
| Water Resistance Level | Water Resistant |
| Assembly Required | Yes |
Image: Detailed dimensions and parameters of the 6'x8' gazebo.
Warranty and Support
For warranty information, product support, or to order replacement parts, please contact Kozyard LLC directly. Keep your purchase receipt as proof of purchase.
Manufacturer: Kozyard LLC
Refer to the official Kozyard website or your purchase documentation for the most current contact information and warranty details.
