1. Introduction and Product Overview
This manual provides instructions for the RHINO-RACK Pioneer 6 Platform (1500mm x 1240mm) with Raised Rail Legs, model JC-01601. This roof rack system is designed for Toyota Land Cruiser Prado 150 (2009/9~) and Toyota Land Cruiser 250 (2024/5~) vehicles equipped with roof rails.
The Pioneer 6 Platform represents an evolution in roof rack design, offering enhanced performance characteristics. Key features include:
- Reduced Air Resistance: The design incorporates a thinner front edge, contributing to a 60% reduction in air resistance compared to previous models.
- Lightweight Construction: Manufactured from high-strength forged aluminum, the platform achieves a 25% weight reduction while improving strength by approximately 81% compared to iron.
- Enhanced Durability: A harder surface coating provides improved resistance against scratches and wear.
- Increased Versatility: The platform offers 25% more usable channel space, allowing for flexible accessory attachment at any position.
The Pioneer 6 Platform is compatible with a wide range of RHINO-RACK accessories, such as awnings, ladders, and various cargo fixation options. Please note that the Pioneer 6 Platform body does not feature traditional channel openings. Therefore, only ZWIFLOC-compatible accessories can be used. For certain ZWIFLOC accessories, specific M6x20 nuts and M6x16mm x 1.6mm washers may be required. Please verify compatibility of your accessories with the ZWIFLOC system.
Figure 1: RHINO-RACK Pioneer 6 Platform and Raised Rail Leg Kit components. The image displays the RHINO-RACK Pioneer 6 Platform and the accompanying Raised Rail Leg Kit, which are the main components of this roof rack system.
Figure 2: RHINO-RACK Pioneer 6 Platform installed on a Toyota Land Cruiser. An image showing the RHINO-RACK Pioneer 6 Platform and RX100 legs installed on a Toyota Land Cruiser, demonstrating the product's appearance when mounted on a vehicle.
2. Setup and Installation
2.1 Important Installation Notes
- The product includes a basic English instruction manual.
- Professional Installation Recommended: If you lack experience with roof rack installations, it is strongly recommended to have the product installed by a qualified professional.
- Self-Installation Warning: If you choose to install the product yourself, proceed with extreme caution and at your own risk. The manufacturer is not responsible for any accidents, malfunctions, or defects resulting from improper installation.
- Bolt Torque and Periodic Inspection: Ensure all installation bolts are tightened to the specified torque. Perform periodic inspections, including retightening bolts with torque management, to ensure continued safety and stability.
- Product Content Verification: Before beginning installation, carefully check all product contents against the packing list. Report any discrepancies immediately.
- Platform Drilling: Installation on both Toyota Land Cruiser Prado 150 and Land Cruiser 250 requires drilling into the platform.
2.2 Compatible Vehicles
- Toyota Land Cruiser Prado 150 (2009/9~) with roof rails (excluding sunroof size).
- Toyota Land Cruiser 250 (2024/5~) with roof rails.
2.3 Package Contents (Model JC-01601)
- Pioneer 6 Platform (1500mm x 1240mm), Part No. 62100: 1 pc
- Raised Rail Leg Kit (x4), Part No. RX100: 1 pc
Figure 3: Easy Installation Set Components. This image illustrates the two main components of the easy installation set: the Pioneer 6 Platform (1500x1240mm) and the RX100 Leg, highlighting what is included in the package.
2.4 Shipping Information for Large Items
This product is classified as a large item. Due to its size, direct delivery to individual residential addresses is not possible. Shipping is restricted to:
- Corporate addresses.
- Pickup at a designated Seino Transportation branch.
If you require pickup at a Seino Transportation branch, please contact the seller after purchase to specify your preferred branch location. Orders placed with individual residential addresses as the delivery destination will be cancelled. Additional shipping fees may apply for Okinawa and other remote island regions; please inquire for details.
Figure 4: Shipping Restrictions Notice. This image displays a warning in Japanese regarding the shipping of large items, stating that delivery is only available to corporate addresses or for pickup at a Seino Transportation branch. Individual residential delivery is not possible.
3. Operating the Pioneer 6 Platform
The Pioneer 6 Platform is designed for versatile cargo transport and accessory integration. Its advanced design enhances usability:
- Flexible Accessory Mounting: The platform's design allows for accessories to be fixed at any position along the channels, providing 25% more usable space compared to previous models where notched areas had to be avoided.
- Easy Corner Cover Access: Corner covers are designed for tool-free attachment and removal, simplifying access to the outer channels for maintenance or accessory adjustments.
Always ensure that cargo is securely fastened to the platform using appropriate RHINO-RACK or ZWIFLOC-compatible tie-downs and accessories. Distribute weight evenly and adhere to the vehicle's and platform's maximum load capacities.
Figure 5: Increased Channel Usability. A comparison image showing that the Pioneer 5 Series required avoiding notched areas for accessory fixation, while the Pioneer 6 Series allows for accessory fixation at any position, increasing usable channel space by 25%.
Figure 6: Improved Corner Cover Design. This image highlights the improved design of the Pioneer 6 Platform's corner covers, which are tool-free and easily removable, providing easier access to the outer channels.
4. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your RHINO-RACK Pioneer 6 Platform.
- Periodic Bolt Inspection: Regularly check all mounting bolts and accessory fasteners. Retighten them to the specified torque settings as needed. Loose fasteners can lead to instability and potential damage.
- Cleaning: Clean the platform regularly with mild soap and water to remove dirt, dust, and road grime. Avoid abrasive cleaners or solvents that could damage the surface coating.
- Inspect for Damage: Periodically inspect the platform and legs for any signs of damage, cracks, or wear. Address any issues promptly to prevent further problems.
5. Troubleshooting
If you encounter any issues with your RHINO-RACK Pioneer 6 Platform, consider the following:
- Noise during driving: Check all mounting bolts and accessory fasteners to ensure they are securely tightened. Loose components can cause vibrations and noise.
- Difficulty attaching accessories: Ensure that the accessories you are attempting to attach are ZWIFLOC-compatible. The Pioneer 6 Platform only supports ZWIFLOC accessories. Verify that you are using the correct nuts and washers (e.g., M6x20 nut, M6x16mm x 1.6mm washer) if required for specific ZWIFLOC accessories.
- Platform instability: Re-check all installation points and ensure the legs are correctly seated and tightened according to the installation instructions. Verify that the platform is suitable for your vehicle model and roof rail type.
For persistent issues or concerns, please contact a professional installer or the seller for assistance.
6. Specifications
| Feature | Specification |
|---|---|
| Brand | RHINO-RACK |
| Model Name | JC-01601 |
| Platform Dimensions | 1500mm x 1240mm |
| Product Weight (Platform & Legs) | Approximately 300 kg (This value appears to be the maximum load capacity, not the product's actual weight. Please refer to your vehicle's manual for roof load limits.) |
| Material | High-strength forged aluminum |
| Color | Black |
| Mounting Type | Bolt-on (with Raised Rail Leg Kit RX100) |
| Compatibility | Toyota Land Cruiser Prado 150 (2009/9~), Toyota Land Cruiser 250 (2024/5~) |
| Accessory Compatibility | ZWIFLOC-compatible accessories only |
Figure 7: Aerodynamic Efficiency. A diagram comparing the aerodynamic profile of the Pioneer 5 Series (47mm thick) and the Pioneer 6 Series (45mm thick), indicating a 60% reduction in air resistance for the newer model due to a thinner front edge.
Figure 8: Material and Strength. This image explains the 25% weight reduction achieved by using high-strength forged aluminum, which is approximately 1/3 the weight of iron and steel, while also improving strength by about 81% compared to iron.

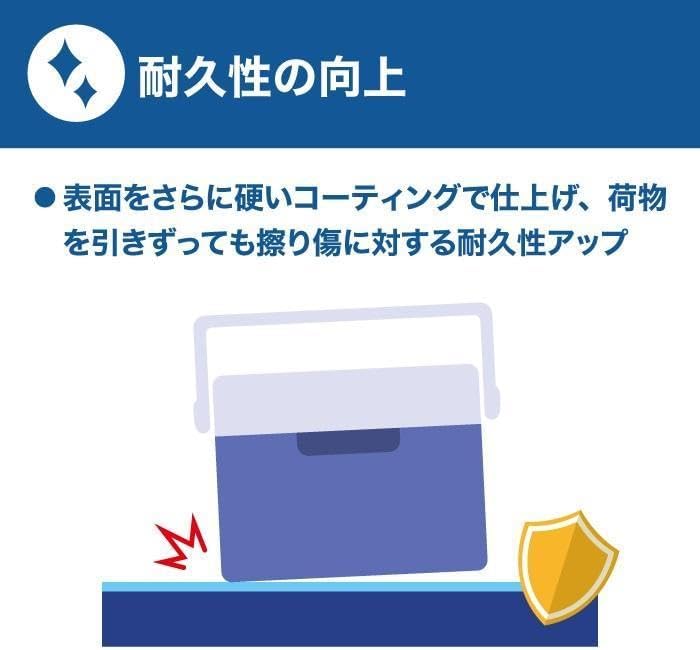

Figure 9: Enhanced Durability. An image showing a cooler being dragged across a surface, illustrating how the Pioneer 6 Platform's harder surface coating improves scratch resistance and overall durability.
7. Support
For technical assistance, installation guidance, or to report any issues with your RHINO-RACK Pioneer 6 Platform, please refer to the following:
- Professional Installation: If you require assistance with installation, it is recommended to contact a certified automotive accessory installer.
- Product Discrepancies: If you find any discrepancies with the product contents upon arrival, please contact the seller immediately before proceeding with installation.
- General Inquiries: For other inquiries, please refer to the RHINO-RACK official website or contact their customer support.
