Poafamx AL-500 Aquarium Chiller Instruction Manual

Introduction

Thank you for choosing the Poafamx AL-500 Aquarium Chiller. This device is designed to maintain a stable water temperature for various aquatic environments, including aquariums, fish farms, and ice baths. It features a powerful 1/2 HP compressor, digital temperature control, and a low-noise, energy-efficient design. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your chiller.

Important Safety Information

• This product is an overseas product. Please reconfirm product specifications, your phone number, and address before ordering.
• The maximum capacity of the aquarium chiller is 500L. For room temperatures between 25-28°C and water volumes of 400-450L, it can cool down to 23-24°C. For room temperatures above 30°C and water volumes of 400-450L, it can cool down to 25-26°C.
• When using in poorly ventilated areas, ensure a clearance of at least 20cm between the chiller unit and other objects to maintain proper heat dissipation and cooling efficiency. Reduced heat dissipation will lead to reduced cooling efficiency.
• Adjust the set temperature slightly based on the ambient temperature of the day.
• Always unplug the device before installation, maintenance, or when placing your hands into the water.
• Smaller water volumes generally result in better cooling effects. The actual cooling effect and the ability to reach the minimum temperature may vary depending on the water volume. The temperature adjustment range is related to the ambient environmental temperature.
• Before initial use, perform a leak check and verify that the unit operates normally.

Package Contents

The Poafamx AL-500 Aquarium Chiller comes as a complete set, including all necessary components for immediate use.

• Poafamx AL-500 Chiller Unit
• Circulation Water Pump
• Connection Pipes (Inner diameter: 16mm)
• Power Cable
• Hose Clamps and other connectors

Figure 1: Poafamx AL-500 Chiller and Included Accessories. This image displays the main chiller unit with its dimensions (36cm x 32cm x 32cm) and all components provided in the package, including the water pump, connection pipes, and power cords.

Specifications

Figure 2: Internal Compressor and Cooling System. This image illustrates the powerful 1/2 HP compressor and efficient cooling mechanism, emphasizing its rapid cooling, eco-friendly (freon-free) operation, and energy-saving features.

Setup Instructions

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage during transit.
2. Placement: Place the chiller unit on a stable, level surface. Ensure there is at least 20cm (8 inches) of clear space around all sides of the unit, especially the rear and sides where heat is dissipated, to allow for adequate ventilation. Avoid placing it in enclosed spaces or direct sunlight.
3. Pump Connection: Connect the provided circulation water pump to the water inlet of your aquarium or water system.
4. Pipe Connection: Connect the inlet and outlet pipes from the chiller to your water system. Ensure all connections are secure and leak-free. The inner diameter of the pipes should be 16mm.
5. Leak Check: Before plugging in the chiller, fill your aquarium or water system and run the circulation pump (without the chiller powered on) to check for any leaks in the plumbing. Address any leaks immediately.
6. Power Connection: Once all connections are secure and leak-free, plug the chiller into a grounded 110V 60Hz power outlet.

Figure 3: Heat Dissipation and Placement Guidelines. This image highlights the large cooling fan and pure titanium heat sink, crucial for efficient heat exchange. It also visually reinforces the requirement for at least 20cm clearance from walls for optimal performance.

Operating Instructions

1. Power On: After successful setup and leak check, plug in the chiller. The digital display will illuminate.
2. Set Temperature: Use the control buttons on the digital display to set your desired water temperature within the 18-26°C range. Refer to the specific instructions for your model's control panel for detailed button functions.
3. Automatic Operation: The chiller will automatically begin cooling the water until it reaches the set temperature. Once the target temperature is achieved, the chiller will stop cooling. If the water temperature rises above the set point, the chiller will automatically restart cooling to maintain the desired temperature.
4. Monitoring: Regularly monitor the water temperature displayed on the unit to ensure it is operating correctly.
5. Initial Cooling Time: Allow sufficient time for the chiller to reach the desired temperature, especially during initial setup or after significant temperature fluctuations. The cooling speed is efficient due to the 1/2 HP compressor.

Maintenance

• Regular Cleaning: Periodically clean the air intake vents and fan blades to prevent dust buildup, which can hinder heat dissipation and reduce efficiency. Use a soft brush or vacuum cleaner.
• Water Flow: Ensure consistent and adequate water flow through the chiller. Reduced flow can impact cooling performance. Check the pump and pipes for blockages.
• Pipe Inspection: Regularly inspect all pipes and connections for signs of wear, cracks, or leaks. Replace damaged components as needed.
• Unplug Before Maintenance: Always unplug the chiller from the power outlet before performing any cleaning or maintenance tasks.

Troubleshooting

Application Areas

The Poafamx AL-500 Aquarium Chiller is versatile and suitable for a wide range of applications requiring precise water temperature control:

• Aquariums: Ideal for maintaining optimal temperatures for various fish and aquatic life.
• Home Use: Suitable for small-scale aquatic setups.
• Fish Shops: Helps keep display tanks at stable temperatures.
• Fish Farms: Supports aquaculture operations by controlling water temperature for breeding and growth.
• Ice Baths: Can be used in conjunction with ice bath tubs for controlled cold therapy.
• Hydroponics: Maintains nutrient solution temperatures for optimal plant growth.

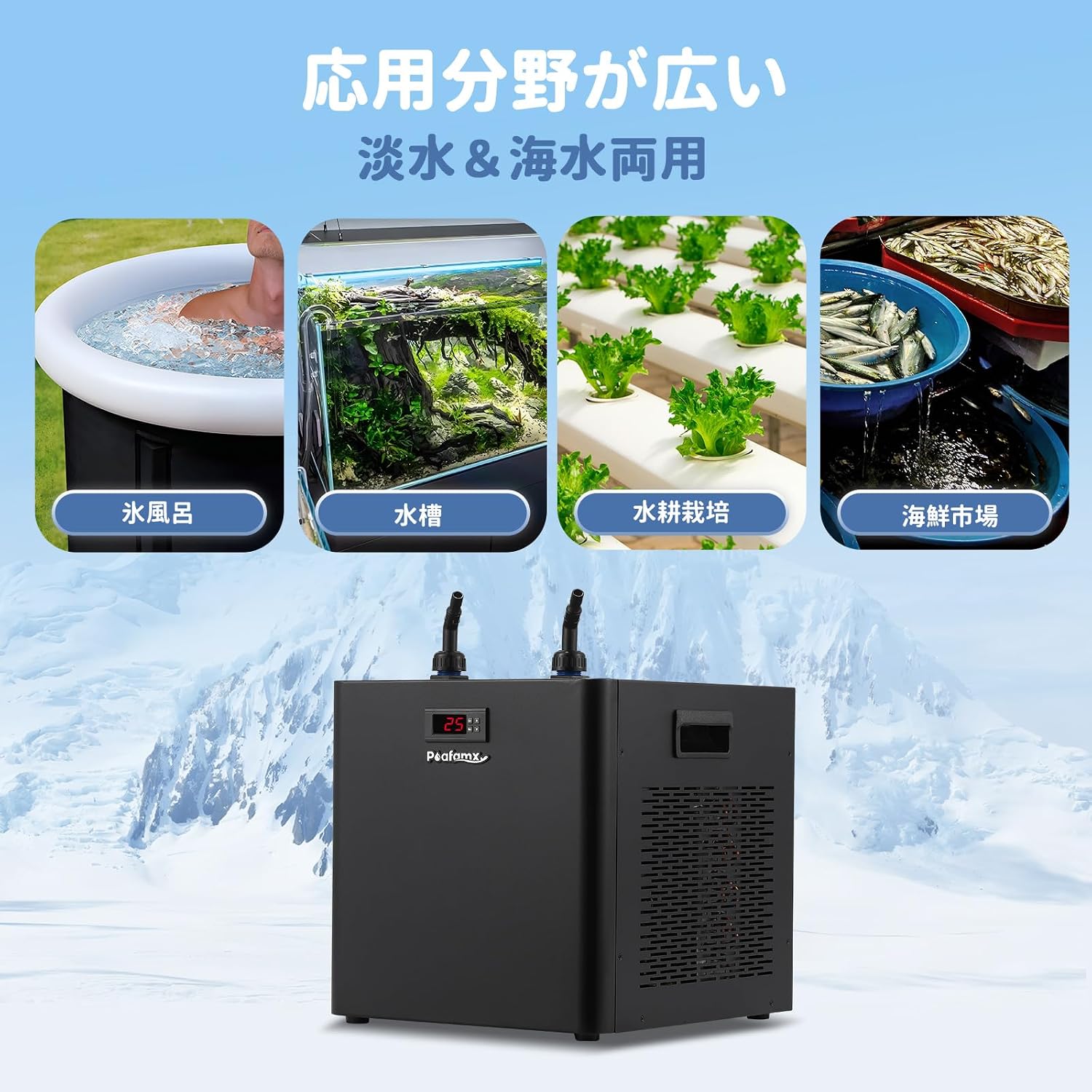

Figure 4: Diverse Applications of the Chiller. This image visually demonstrates the chiller's suitability for various environments, including ice baths, aquariums, hydroponic systems, and seafood markets, highlighting its versatility for both fresh and saltwater applications.

Figure 5: Chiller with Ice Bath Tub. This image illustrates the chiller's capability to handle large volumes (500L) and its effective use with ice bath tubs for prolonged cold therapy experiences.

Warranty and Support

This product comes with a one-year warranty from the date of purchase. If you encounter any quality issues with the device during this period, we offer a full refund.

Should you have any questions or experience any problems, please do not hesitate to contact us. We are committed to providing prompt assistance and ensuring your satisfaction. Our customer support operates Monday through Friday (excluding holidays).

For support, please refer to the contact information provided with your purchase or visit the official Poafamx store on Amazon.
