1. Introduction
Thank you for choosing the Sublue Hagul Underwater Scooter. This manual provides essential information for the safe and effective use of your device. The Hagul is designed for water sports and recreational swimming, offering an enjoyable experience for users, including children and beginners, in pools and calm waters. Please read this manual thoroughly before operating the scooter.
2. Safety Information
Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage to the device.
- Water Depth: The Hagul Underwater Scooter is waterproof up to a depth of 49 feet (15 meters). Do not exceed this depth.
- Supervision: Children and inexperienced users should always be supervised by an adult while operating the scooter.
- Protective Cover: The scooter features a protective cover over the rotors to prevent objects from getting caught. Ensure this cover is always securely in place before use.
- Loose Items: Be cautious of loose clothing, hair, or swimming accessories (e.g., goggle straps, swim trunk drawstrings) that could be drawn into the propeller. Secure all loose items before entering the water.
- Buoyancy: The Hagul has positive buoyancy, meaning it will naturally float to the surface if released. This feature enhances safety, especially for beginners.
- Environment: Use the scooter in clear, open water free from obstacles, marine life, or other hazards.
- Battery Handling: Only use the provided charger and battery. Do not attempt to open or modify the battery pack.
3. Product Overview
Familiarize yourself with the main components of your Hagul Underwater Scooter.
Image: Key components of the Hagul Underwater Scooter. This image highlights the buoyancy chamber, the indicator light panel, and the protective cover over the propeller.
- Handles: Ergonomically designed for comfortable grip and control.
- Start Buttons: Located on each handle, both must be pressed simultaneously to activate the propeller.
- Buoyancy Chamber: Integrated design that provides positive buoyancy.
- Indicator Light: Displays battery level and current speed setting.
- Protective Cover: Shields the propeller from external objects and users.
- Propeller: Generates thrust for movement through water.
4. Setup
Before your first use, ensure the scooter is properly prepared.
4.1 Charging the Battery
The Hagul scooter uses a Lithium Metal battery (92.88 Wh). It is recommended to fully charge the battery before initial use.
- Locate the charging port on the scooter.
- Connect the magnetic charging cable securely to the port. Ensure a firm connection to prevent corrosion and ensure proper charging.
- Plug the charger into a power outlet.
- The indicator light will show the charging status. Refer to the indicator light section for details.
- Once fully charged, disconnect the charger.
Image: An internal diagram illustrating the battery placement within the Hagul Underwater Scooter.
4.2 Pre-Use Check
- Verify that the protective cover over the propeller is intact and securely fastened.
- Ensure the battery is fully charged.
- Check for any visible damage to the scooter body or propeller.
5. Operating Instructions
Operating the Hagul Underwater Scooter is straightforward.
5.1 Starting and Stopping

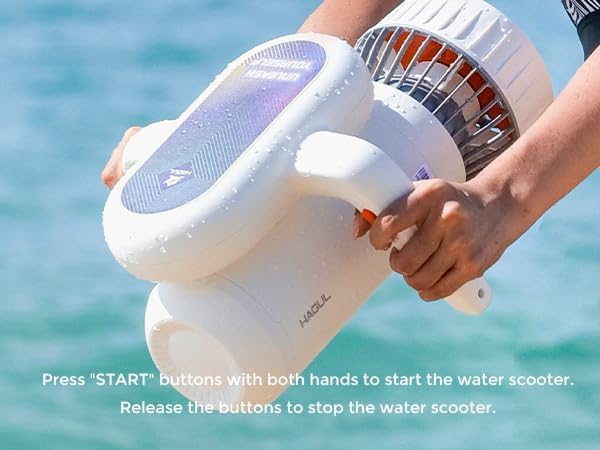

Image: Demonstrates holding the Hagul Underwater Scooter and pressing the start buttons on both handles.
- Grip both handles firmly.
- Press and hold the 'START' buttons located on both handles simultaneously to activate the scooter.
- Release either or both buttons to stop the scooter.
5.2 Speed Control
The Hagul features a 2-speed gear switch.
- Low Speed: Approximately 2.5 mph (4 km/h). Ideal for relaxed cruising and beginners.
- High Speed: Approximately 3.1 mph (5 km/h). Provides more thrust for faster movement.
- Refer to the indicator light for the current speed setting.
Image: A person using the Hagul Underwater Scooter in a pool, illustrating its use for propulsion.
5.3 LED Indicator Light
Image: A detailed view of the LED indicator panel, which displays battery level and speed settings.
The LED indicator provides real-time information on battery level and selected speed. Consult the specific color codes in the quick start guide for detailed interpretation.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Hagul Underwater Scooter.
6.1 After Each Use
- Rinse: Thoroughly rinse the scooter with fresh water, especially after use in salt water, to remove salt, sand, and chlorine.
- Dry: Wipe the scooter dry with a soft cloth. Allow it to air dry completely before storage.
- Inspect: Check the propeller area for any debris (e.g., hair, small leaves) and carefully remove it. Ensure the protective cover is undamaged.
6.2 Charging Port Care
The magnetic charging contacts can be susceptible to corrosion if not maintained.
- After each use, ensure the charging contacts on both the scooter and the charger cable are clean and dry.
- If corrosion is observed, gently clean the contacts with a soft cloth and a small amount of contact cleaner or a mild, non-abrasive solution. Ensure the contacts are completely dry before attempting to charge.
6.3 Storage
- Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures.
- For long-term storage, ensure the battery is charged to approximately 50-60% to preserve battery health.
7. Troubleshooting
If you encounter issues with your Hagul Underwater Scooter, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on or charge. | Loose charging connection; corroded charging contacts; depleted battery. | Ensure the magnetic charging cable is firmly connected. Clean charging contacts on both the scooter and cable if corrosion is present. Allow sufficient time for charging. |
| Battery life is shorter than expected. | Continuous high-speed use; cold water temperatures; battery degradation over time. | Battery life varies with usage. Continuous high-speed operation (approx. 18 min) consumes more power than intermittent or low-speed use (approx. 50 min intermittent, 25 min continuous low). Ensure battery is fully charged before use. |
| Objects caught in the propeller. | Loose clothing, hair, or debris in water. | Immediately stop the scooter. Carefully remove any entangled objects from the propeller area. Always ensure loose items are secured before use. |
| Reduced thrust or performance. | Propeller obstructed; low battery; internal issue. | Check and clear the propeller. Ensure the battery is fully charged. If the problem persists, contact customer support. |
8. Specifications
Detailed technical specifications for the Sublue Hagul Underwater Scooter.
- Model: Hagul
- Dimensions (L x W x H): 14.76 x 11.61 x 7.95 inches (37.5 x 29.5 x 20.2 cm)
- Weight: 7.72 pounds (3.5 kg)
- Max Operating Depth: 49 feet (15 meters)
- Speed Settings:
- Low: 2.5 mph (4 km/h)
- High: 3.1 mph (5 km/h)
- Battery Type: Lithium Metal
- Battery Energy Content: 92.88 Watt Hours
- Battery Weight: 890 Grams
- Usage Time:
- Up to 50 minutes (intermittent use)
- 18 minutes (continuous high speed)
- 25 minutes (continuous low speed)
- Control Method: Touch (Dual-button activation)
- Material: Carbon Fiber (as per specifications)
Image: Visual representation of the Hagul Underwater Scooter's dimensions and weight.
9. Warranty and Support
Sublue provides comprehensive customer service for your Hagul Underwater Scooter.
9.1 Warranty Information
- Warranty Type: Limited
- Duration: 12 Months Warranty
- Coverage: Return and Exchange on Defect, Free Shipping on Defect Returns & Exchanges.
9.2 Customer Support
For further assistance, please contact Sublue customer support:
- Email: amazon.store@sublue.com
- Phone: 626-242-4446
- Operating Hours: Monday - Friday, 9 AM - 6 PM (PST)
- Response Time: Replies typically within 24 hours.
