1. Introduction
Thank you for choosing the Ejoyous European Style Retro Interior Door Lock Handle. This product is designed to provide security and enhance the aesthetic of your interior doors. Crafted from durable manganese steel with an elegant vintage design, it features an anti-slip handle and an integrated rubber bearing for reliable, long-lasting performance. This manual provides essential information for the safe installation, operation, and maintenance of your new door lock.
Image 1.1: Front view of the Ejoyous European Style Retro Interior Door Lock Handle. This image displays the ornate, vintage design of the handle and the rectangular backplate with a keyhole.
2. Safety Information
- Always wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Use only the tools specified or recommended for installation to prevent damage to the product or injury.
- Ensure all screws are tightened securely but do not overtighten, which can strip threads or crack components.
- Keep small parts and packaging materials out of reach of children to prevent choking hazards.
- If you are unsure about any step of the installation process, consult a qualified professional.
3. Package Contents
Please verify that all components listed below are present in your package before beginning installation. If any parts are missing or damaged, please contact customer support.

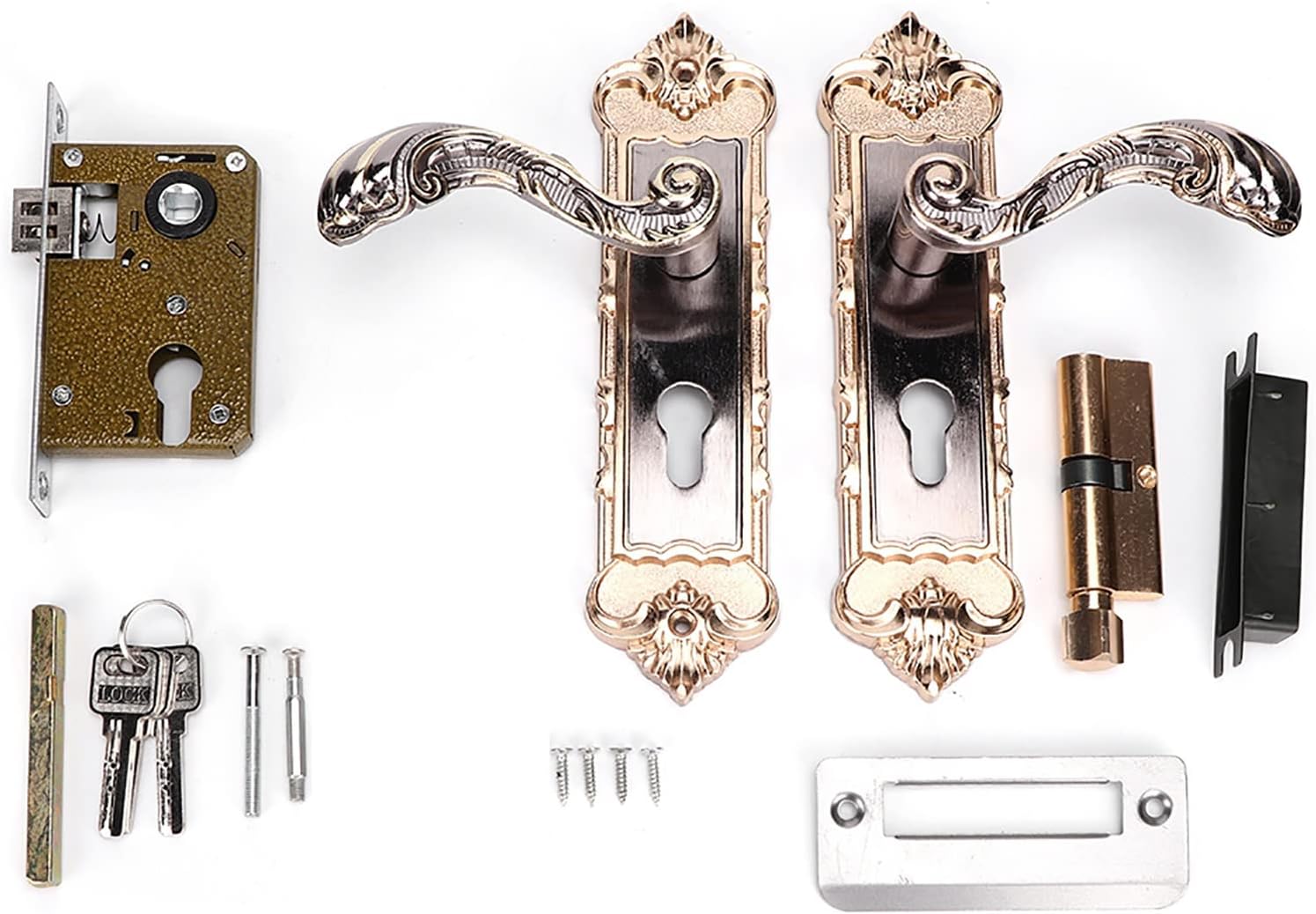

Image 3.1: All components of the Ejoyous door lock laid out on a surface. This image shows the two handle panels, the mortise lock body, the locking cylinder, keys, square bar, and various screws and plates.
- 1 x Lock Body (Mortise Lock)
- 2 x Door Panels (with handles)
- 1 x Locking Cylinder
- 1 x Square Bar (Spindle)
- 3 x Keys
- 1 x Strike Plate
- 1 x Locking Cylinder Screw
- 4 x Small Screws (for strike plate and lock body)
- 2 x Long Screws (for securing panels)
4. Setup and Installation
Follow these steps carefully to install your Ejoyous door lock. Ensure the door is prepared with the necessary mortise and boreholes before starting.
- Prepare the Door: Ensure your door has the correct mortise cutout for the lock body and boreholes for the spindle and cylinder. Refer to standard door lock installation templates if needed.
- Install the Lock Body: Insert the lock body (mortise lock) into the mortise cutout on the edge of the door. Secure it with the 4 small screws provided, ensuring it sits flush with the door edge.
- Insert the Spindle: Slide the square bar (spindle) through the square hole in the lock body. This bar connects the two door handles.
- Attach Door Panels: Place one door panel onto the door, aligning the handle with the spindle and the keyhole with the cylinder opening. Repeat for the other side. Ensure the rubber bearing is correctly positioned to reduce friction and prevent loosening.
- Secure the Panels: Insert the two long screws through the designated holes on one panel and thread them into the corresponding holes on the other panel. Tighten these screws evenly until the panels are snug against the door, but do not overtighten.
- Install the Locking Cylinder: Insert the locking cylinder into the designated opening through the lock body. Secure it by inserting the locking cylinder screw through the edge of the door into the side of the lock body, ensuring it passes through the cylinder's screw hole.
- Install the Strike Plate: On the door frame, align the strike plate with the latch and deadbolt of the lock body. Mark and chisel out the necessary recess, then secure the strike plate with the remaining small screws.
- Test Operation: Close the door and test the handle operation, latch, and key locking/unlocking functions from both sides to ensure smooth and correct operation.
Image 4.1: Close-up view of the integrated rubber bearing on the door lock panel. This component helps reduce friction and ensures the handle operates smoothly and remains secure over time.

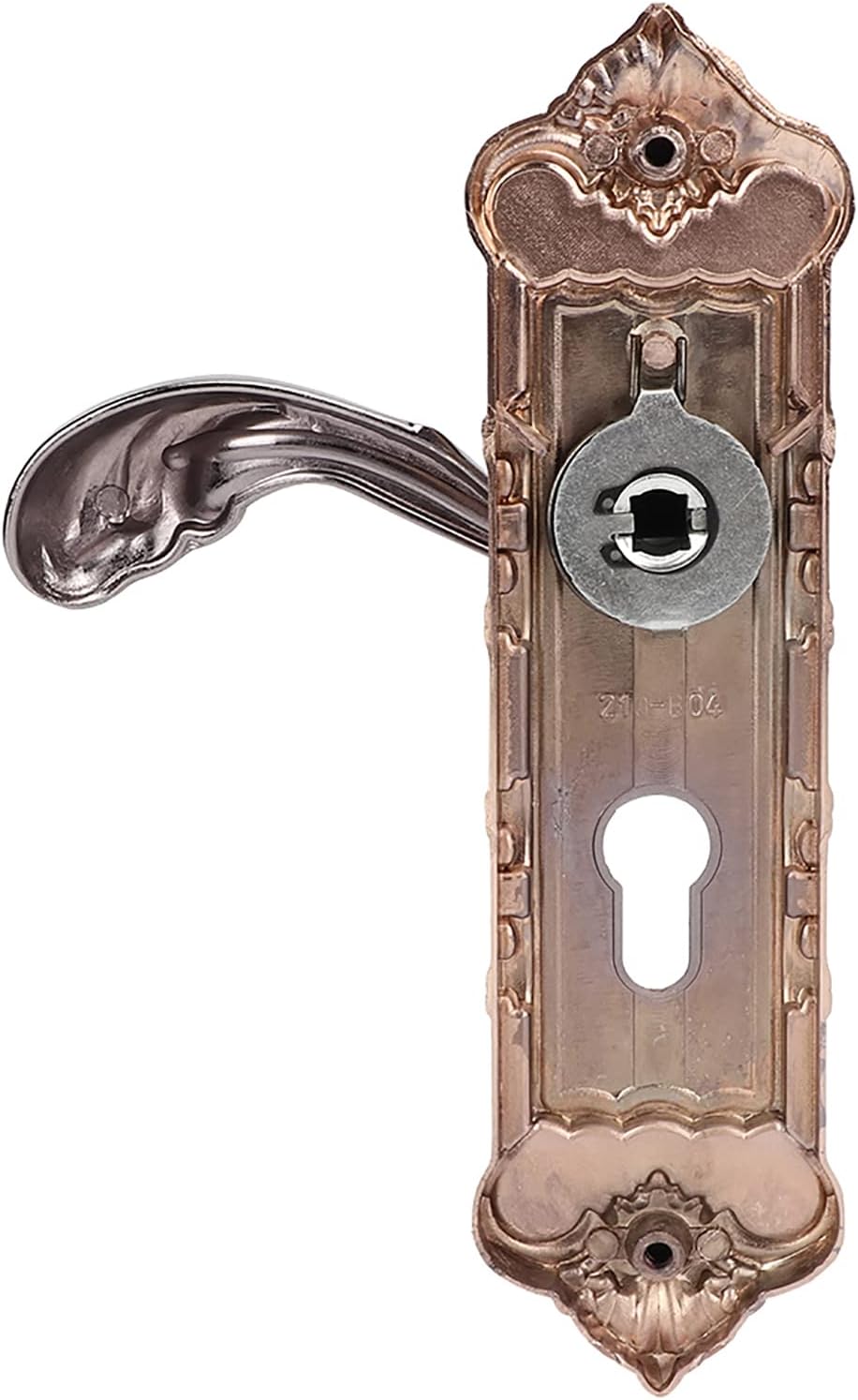

Image 4.2: Back view of the door lock panel, illustrating the mounting points for the long screws and the spindle mechanism. This view is crucial for understanding how the panels attach to the door and each other.
Image 4.3: The Ejoyous door lock fully installed on an interior door, showcasing its elegant appearance within a home setting. This image provides a visual reference for the completed installation.
5. Operating Instructions
- Opening the Door: Press down on the handle to retract the latch and open the door.
- Locking the Door: Insert the key into the keyhole and turn it to engage the deadbolt. Remove the key.
- Unlocking the Door: Insert the key into the keyhole and turn it to retract the deadbolt. Turn the handle to open the door.
Image 5.1: Close-up view of the keyhole and the intricate design on the handle of the Ejoyous door lock. This detail highlights the vintage aesthetic and the key entry point for locking and unlocking.
6. Maintenance
Proper maintenance will ensure the longevity and smooth operation of your door lock.
- Cleaning: Wipe the lock handle and panels regularly with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the finish. A mild soap solution can be used for stubborn dirt.
- Lubrication: If the key becomes difficult to turn or the cylinder feels stiff, apply a small amount of graphite powder (not oil-based lubricants) into the keyhole. Insert and remove the key several times to distribute the lubricant.
- Tightening Screws: Periodically check all visible screws (on the panels and strike plate) and tighten them if they have become loose. Do not overtighten.
7. Troubleshooting
Refer to this section for common issues and their solutions.
- Handle is Loose: Check the long screws connecting the two door panels. Tighten them evenly until the handle is firm. If the issue persists, the internal spindle or lock body may need inspection.
- Key is Difficult to Turn: The lock cylinder may require lubrication. Apply graphite powder into the keyhole as described in the Maintenance section. Ensure the key is fully inserted.
- Latch/Deadbolt Not Engaging: Check if the strike plate on the door frame is properly aligned with the lock's latch and deadbolt. Adjust the strike plate position if necessary. Ensure no obstructions are preventing the bolt from extending fully.
- Door Panels are Wobbly: Ensure the long screws are tightened correctly. The integrated rubber bearing should also be properly seated between the panel and the door to prevent movement.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | Ejoyousq50kr6ytcn |
| Type of Item | Retro Door Lock |
| Material | Manganese Steel (Lock box is plastic) |
| Panel Dimensions (L x W) | Approx. 21 x 5.5 cm (8.3 x 2.2 inches) |
| Handle Length | Approx. 11 cm (4.3 inches) |
| Weight | Approx. 643 g (1.42 lbs) |
| Closure Type | Keyed |
Image 8.1: Diagram illustrating the key dimensions of the Ejoyous door lock, including the panel length (21 cm / 8.3 inches), panel width (5.5 cm / 2.2 inches), and handle length (11 cm / 4.3 inches).
9. Warranty Information
Specific warranty details for the Ejoyous European Style Retro Interior Door Lock Handle are not explicitly provided in the product information. For inquiries regarding warranty coverage, returns, or replacements, please refer to your purchase documentation or contact the seller directly through your Amazon order history.
10. Support
If you encounter any issues or have questions not covered in this manual, please contact the seller for assistance. You can typically find seller contact information through your order details on Amazon.
- Seller Name: cnyolee
- Amazon Order History: Navigate to your Amazon account, find your order for this product, and use the 'Contact Seller' option.
