Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch Serie 6 WGG244120 front-load washing machine. Please read these instructions carefully before first use and keep them for future reference.
Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the appliance is properly earthed.
- Do not allow children to play with or operate the appliance.
- Never force the door open.
- Unplug the appliance before cleaning or maintenance.
- Do not install the appliance in areas exposed to freezing temperatures.
- Use only detergents suitable for automatic washing machines.
Setup and Installation
Proper installation is crucial for the performance and longevity of your washing machine. Refer to the detailed installation guide provided with your appliance for specific steps.
Unpacking
Remove all packaging materials and transport bolts. Keep the transport bolts for future transport of the appliance.
Positioning
Place the washing machine on a firm, level surface. Adjust the feet to ensure stability and minimize vibration. The appliance is designed for niches from 85 cm in height.
Water Connection
Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. The AquaStop system provides comprehensive protection against water damage.
Image: Rear view of the washing machine, illustrating the water inlet and drain hose connections. This view helps in understanding the plumbing setup during installation.
Electrical Connection
Plug the appliance into a grounded power outlet. Ensure the voltage matches the appliance's requirements (220 Volts).
Operating Instructions
This section guides you through the daily use of your washing machine.
Image: Close-up of the control panel, featuring the program selection dial, LED display, and touch control buttons for various functions. This panel is used to select wash programs and customize settings.
Loading Laundry
Open the door and load laundry into the drum. Do not overload the machine; the maximum capacity is 9 kg. Close the door firmly.
Adding Detergent
Add detergent and fabric softener to the appropriate compartments in the dispenser drawer. Refer to detergent packaging for recommended amounts.
Program Selection
Turn the program dial to select the desired wash program. The large LED display and touch control buttons provide a clear overview and easy operation.
- Common Programs: Cotton, Synthetics, Delicates, Wool, Mixed Load.
- Special Programs: Hygiene Plus, Sportswear, Drum Clean.
Key Features and Options
- SpeedPerfect: Reduces wash time by up to 65% while maintaining excellent cleaning results. Suitable for most programs, load sizes, and fabric types.
- Stain Removal System: Automatically targets up to 16 types of stubborn stains (e.g., grease, red wine, chocolate) by adjusting temperature, drum movement, and soaking time.
- Hygiene Plus: Ensures hygienic cleaning at 40°C with a constant temperature and an additional rinse cycle, reducing germs by up to 99.99% and effectively combating dust mites.
- Reload Function: Allows you to add forgotten laundry items even after the wash cycle has started. Press the reload button, and the machine will pause to allow you to open the door.
- ActiveWater Plus: Optimizes water consumption for perfect wash results with every load, saving up to 50% water by precisely adjusting usage for full or partial loads.
- VarioDrum: Designed for gentle yet effective washing, protecting your garments.

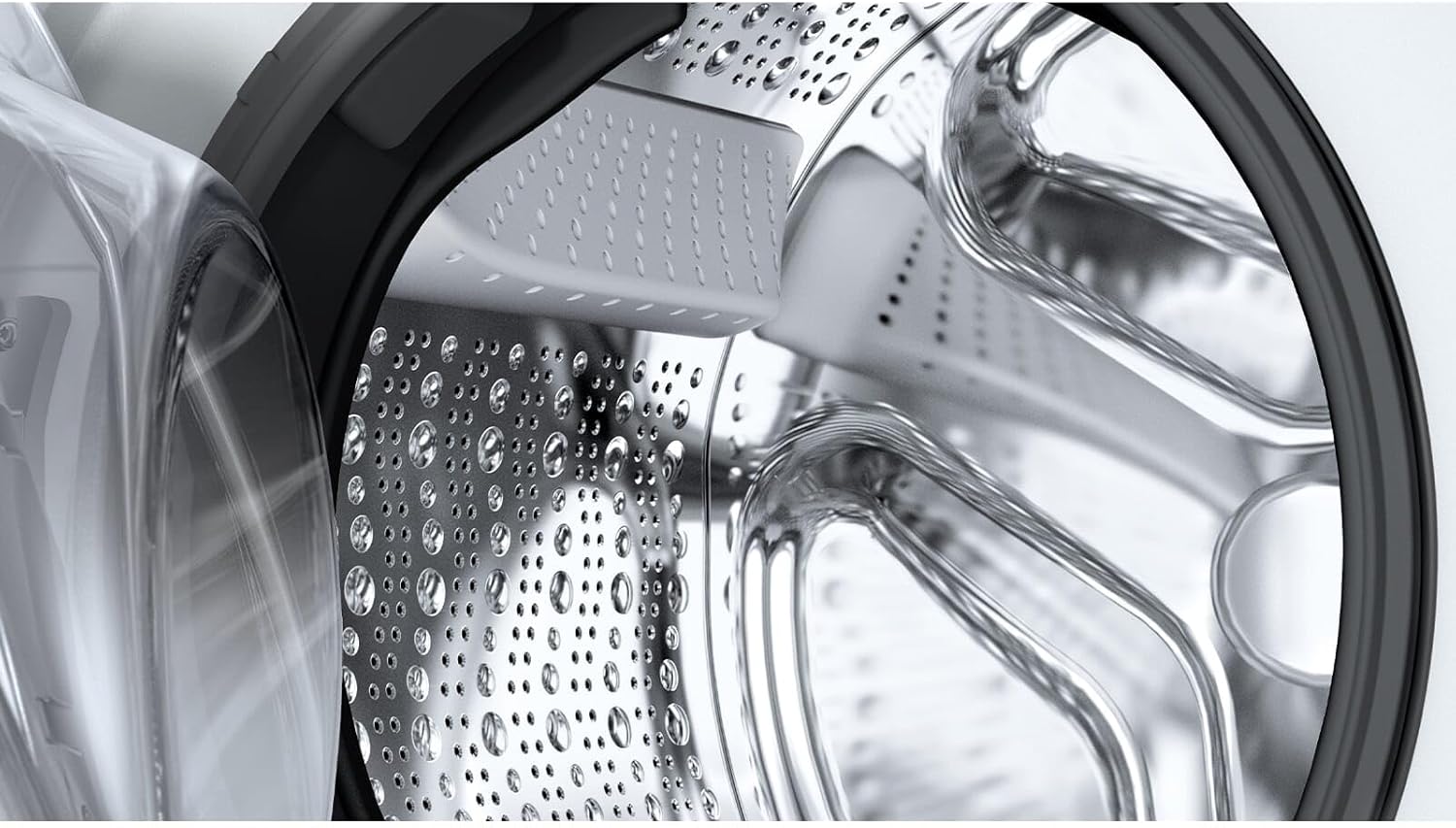

Image: Detailed view of the VarioDrum's interior, highlighting its unique textured surface designed for gentle and efficient washing of various fabric types.
Starting the Wash Cycle
Press the Start/Pause button to begin the selected program. The remaining time will be displayed on the LED screen.
Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
Cleaning the Exterior
Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Cleaning the Detergent Dispenser
Periodically remove and clean the detergent dispenser drawer under running water to prevent residue buildup.
Cleaning the Drum
Use the "Drum Clean" program (if available) or run an empty cycle with a washing machine cleaner to prevent odors and maintain hygiene.
Cleaning the Drain Pump Filter
Regularly check and clean the drain pump filter to remove lint, coins, or other small objects that may obstruct drainage. Refer to the full manual for instructions on accessing the filter.
Troubleshooting
Before contacting customer service, try these solutions for common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; door not closed properly; program not selected. | Check power connection; ensure door is latched; select a program and press Start. |
| Water not filling | Water tap closed; inlet hose kinked; water pressure too low. | Open water tap; straighten hose; check household water pressure. |
| Machine vibrates excessively | Transport bolts not removed; machine not level; uneven load. | Remove transport bolts; adjust feet to level machine; redistribute laundry. |
| Water not draining | Drain hose kinked or blocked; drain pump filter clogged. | Straighten drain hose; clean drain pump filter. |
Specifications
Technical details of the Bosch Serie 6 WGG244120 washing machine.
- Model: WGG244120
- Brand: Bosch
- Capacity: 9 Kilograms
- Maximum Spin Speed: 1400 rpm
- Energy Efficiency Class: A
- Noise Level (Spin): 70 Decibels
- Dimensions (H x W x D): 84.8 cm x 59.8 cm x 59.0 cm
- Weight: 74.6 Kilograms
- Voltage: 220 Volts
- Installation Type: Freestanding
- Loading Type: Front Load
- Special Features: Remaining Time Display, Reload Function, High Efficiency, Child Lock, AquaStop, Anti-Vibration Design, EcoSilence Drive.
- Included Components: Drain hose
Image: Front-side perspective of the washing machine, showing its overall dimensions including height (84.80 cm) and depth (63.60 cm from the wall, 59.80 cm for the appliance body). This helps in planning installation space.
Image: Technical diagram providing precise measurements of the washing machine in millimeters, including front, side, and top views. Essential for accurate installation planning.
Warranty and Support
Warranty Information
Specific warranty details are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for information regarding the warranty period and terms for your Bosch WGG244120 washing machine.
Customer Support
For technical assistance, spare parts, or service inquiries, please contact Bosch customer service or visit the official Bosch website. Have your model number (WGG244120) and serial number ready when contacting support.
You can find more information and support on the Bosch Brand Store.
