Banda Audioparts Viking 8000.1 Car Audio Amplifier Instruction Manual

1. Introduction

Thank you for choosing the Banda Audioparts Viking 8000.1 Car Audio Amplifier. This high-performance Class D amplifier is designed to deliver powerful sound for your car audio system, offering 8000 Watts RMS at 1 Ohm. Crafted with a durable aluminum chassis and featuring advanced thermal management, the Viking 8000.1 ensures reliable operation and exceptional audio quality. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your amplifier.

2. Safety Information

Please read all safety instructions carefully before installing and operating the amplifier. Failure to follow these guidelines may result in injury, damage to the amplifier, or damage to your vehicle.

Professional Installation Recommended: Installation of car audio equipment can be complex. It is highly recommended that a qualified professional perform the installation to prevent damage to the amplifier or vehicle.
Disconnect Battery: Always disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent short circuits.
Proper Wiring: Use appropriate gauge wiring as specified in this manual. Incorrect wiring can lead to overheating, fire, or component failure.
Ventilation: Ensure the amplifier is installed in a location with adequate ventilation to prevent overheating. Do not block the cooling fans or heat sinks.
Avoid Moisture: Do not expose the amplifier to moisture or water.
Secure Mounting: Mount the amplifier securely to prevent it from coming loose during vehicle operation, which could cause injury or damage.
Volume Levels: Prolonged exposure to high volume levels can cause hearing damage. Adjust audio levels responsibly.

3. Product Overview

The Banda Viking 8000.1 amplifier features a robust design for high-power car audio applications. Its aluminum chassis aids in superior heat dissipation, contributing to stable performance. The amplifier includes LED indicators for power and clipping status, providing visual feedback on its operational state.

Top view of the Banda Viking 8000.1 amplifier, showing the green aluminum chassis and 'Banda Audioparts Viking 8000' branding. — **Figure 3.1:** Top view of the Banda Viking 8000.1 amplifier. This image displays the amplifier's green aluminum chassis with the Banda Audioparts logo and "Viking 8000" branding. The top panel also shows the LED indicators for power and clip status.

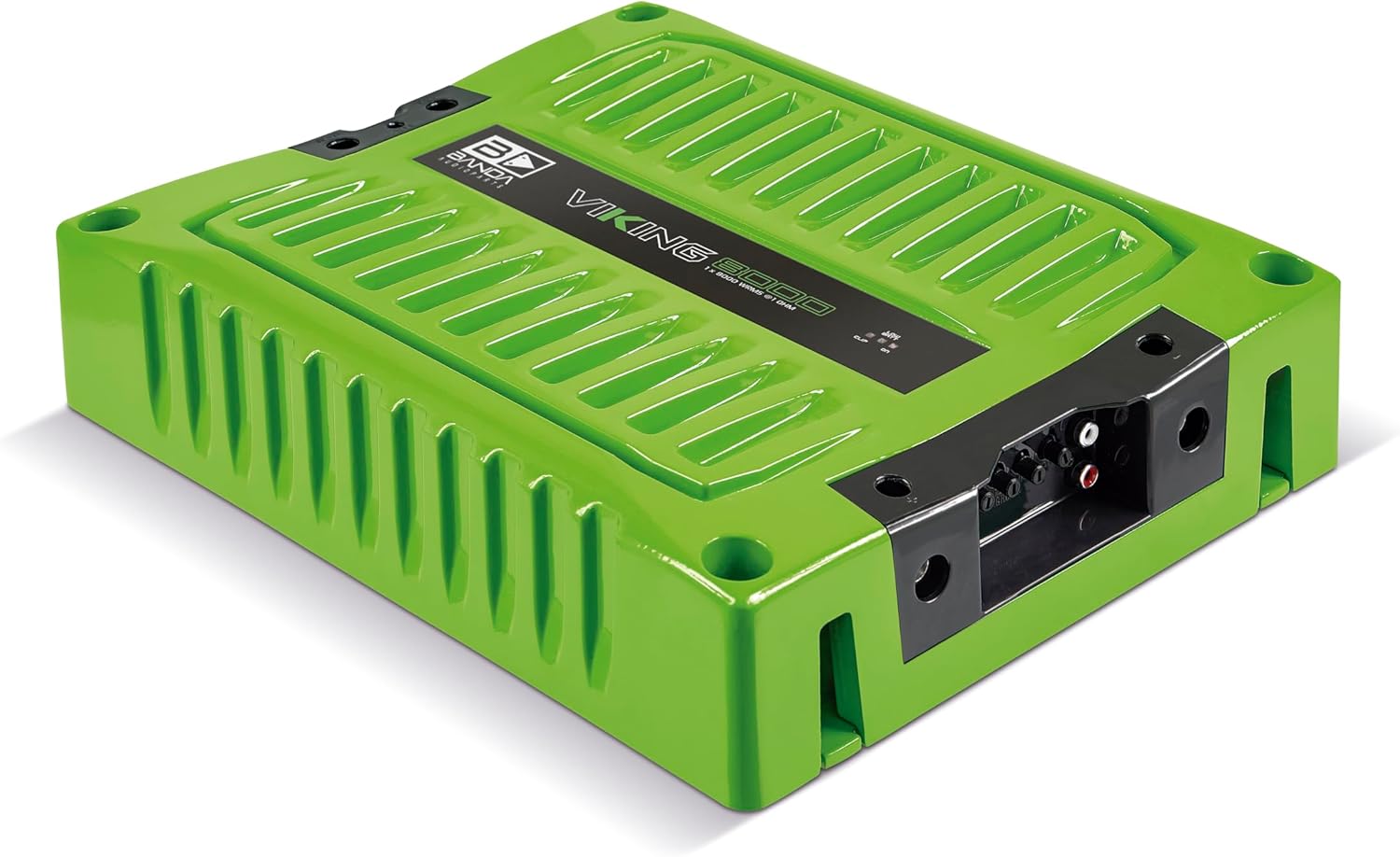

Angled view of the Banda Viking 8000.1 amplifier, highlighting the green chassis and side panels. — **Figure 3.2:** Angled view of the Banda Viking 8000.1 amplifier. This perspective showcases the overall design and the robust green aluminum casing.

4. Setup and Installation

Proper installation is crucial for the performance and safety of your amplifier. Follow these steps carefully.

4.1 Mounting Location

Choose a dry, well-ventilated location away from direct sunlight and heat sources.
Ensure sufficient airflow around the amplifier, especially near the cooling fans.
Mount the amplifier securely to a solid surface using appropriate hardware.

4.2 Wiring Connections

Before making any connections, ensure the vehicle's battery is disconnected.

Side view of the Banda Viking 8000.1 amplifier showing power and speaker terminals. — **Figure 4.1:** Power and Speaker Terminals. This image shows the side of the amplifier where the main power input terminals (positive and negative) and the speaker output terminals are located.

Power Input (BATT+): Connect a 0 AWG (70mm²) power cable from the vehicle's positive battery terminal to the amplifier's BATT+ terminal. Install a fuse holder with the recommended fuse (2 x 225A) as close to the battery as possible.
Ground Connection (GND): Connect a 0 AWG (70mm²) ground cable from the amplifier's GND terminal to a clean, unpainted metal point on the vehicle's chassis. Ensure a solid, low-resistance connection.
Remote Turn-On (REM): Connect a remote turn-on wire from your head unit's remote output to the amplifier's REM terminal. This wire turns the amplifier on and off with your head unit.
Speaker Output: Connect your speakers to the amplifier's speaker output terminals using 2 x 3 AWG (2 x 6mm²) cables. Ensure correct polarity (+ to + and - to -). The Viking 8000.1 is designed for 1 Ohm operation.

Side view of the Banda Viking 8000.1 amplifier showing control panel with gain, boost, LPF, HPF, and RCA inputs. — **Figure 4.2:** Control Panel. This image displays the amplifier's control panel, featuring the gain control, bass boost, low-pass filter (LPF), high-pass filter (HPF), and RCA input jacks.

RCA Input: Connect your head unit's RCA output to the amplifier's RCA input jacks. The amplifier features a differential input signal for improved noise rejection.

4.3 Initial Settings

Gain Control: Start with the gain control set to minimum. Gradually increase it until the desired volume is achieved without distortion. The input sensitivity ranges from 200mV to 8V.
High-Pass Filter (Subsonic): Adjust the HPF (Subsonic) between 16 - 120Hz (12dB/octave Linkwitz-Riley) to protect subwoofers from playing frequencies below their safe operating range.
Low-Pass Crossover: Adjust the LPF between 50 - 16kHz (12dB/octave Linkwitz-Riley) to control the upper frequency limit for your speakers.
Variable Bass Boost: Adjust the bass boost between 30 - 80Hz with up to 12dB boost to enhance low-frequency response. Use sparingly to avoid distortion.

5. Operating Instructions

Once installed and configured, operating your Banda Viking 8000.1 amplifier is straightforward.

Power On/Off: The amplifier will automatically turn on when your head unit is powered on (via the REM wire) and turn off when the head unit is off.
LED Indicators:
- ON LED: Illuminates when the amplifier is powered on and operating normally.
- CLIP LED: Illuminates when the audio signal is clipping (distorting). If this LED frequently lights up, reduce the gain setting or the input signal level from your head unit to prevent damage to speakers and the amplifier.
Audio Adjustment: Use your head unit's volume control for overall system volume. Fine-tune the amplifier's gain, crossover, and bass boost settings as needed to achieve your desired sound balance.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your amplifier.

Cleaning: Periodically wipe the amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are free from dust and debris.
Connection Checks: Annually, inspect all wiring connections (power, ground, remote, speaker, RCA) to ensure they are secure and free from corrosion. Loose connections can cause performance issues or damage.
Ventilation: Ensure the amplifier's cooling fans and heat sinks remain unobstructed. Proper airflow is critical for thermal management.

7. Troubleshooting

If you experience issues with your amplifier, refer to the following troubleshooting guide before seeking professional assistance.

Problem	Possible Cause	Solution
No Power / Amplifier Not Turning On	Blown fuse Loose power or ground connection No remote turn-on signal Low battery voltage	Check and replace fuses (amplifier and battery). Verify all power, ground, and remote connections are secure. Check remote wire for continuity and proper connection to head unit. Ensure vehicle battery is charged and providing sufficient voltage (9-15V).
No Sound Output	Loose RCA or speaker connections Incorrect gain setting Head unit not sending signal Speaker damage	Check all RCA and speaker wire connections for security and correct polarity. Increase gain setting gradually. Verify head unit is powered on and sending an audio signal. Test speakers with another amplifier if possible.
Distorted Sound	Gain set too high (clipping) Incorrect crossover settings Poor ground connection Damaged speakers	Reduce gain until CLIP LED no longer illuminates frequently. Adjust LPF/HPF settings appropriately for your speakers. Ensure ground connection is clean and secure. Inspect speakers for damage.
Amplifier Overheating	Insufficient ventilation Improper speaker impedance Prolonged high volume operation	Ensure amplifier has adequate airflow; clear any obstructions. Verify speaker impedance matches amplifier's capabilities (1 Ohm minimum). Reduce volume or allow amplifier to cool down.

8. Technical Specifications

Below are the detailed technical specifications for the Banda Viking 8000.1 amplifier.

Feature	Specification
Model Number	VIK8000.1
Operating Class	Class D
Maximum Power at 12.6V @ 1 Ohm	8000 Watts RMS
Maximum Power at 12.6V @ 2 Ohms	5100 Watts RMS
Maximum Power at 14.4V @ 1 Ohm	9000 Watts RMS
Maximum Power at 14.4V @ 2 Ohms	7400 Watts RMS
Efficiency @ 2 Ohms	83%
Efficiency @ 1 Ohm	77%
Input Voltage	9 - 15V (DC)
Input Impedance	100K Ohms
Total Harmonic Distortion + Noise	~3%
Input Sensitivity	200mV to 8V
Signal-to-Noise Ratio	80dB
Frequency Response	16 to 16kHz (-3dB)
High-Pass Filter (Subsonic)	16 - 120Hz @ 12dB/octave Linkwitz-Riley
Low-Pass Crossover	50 - 16kHz @ 12dB/octave Linkwitz-Riley
Variable Bass Boost	30 - 80Hz with up to 12dB boost
Recommended Fuse	2 x 225A
Standby Current Draw	~3A
Maximum Current Draw (Musical Signal)	400A
Sinusoidal Current	850A
Minimum Recommended Power Cable	70mm² / 0 AWG
Minimum Recommended Output Cable	2 x 6mm² / 2 x 3 AWG
Weight	6.3 kg (13.9 lbs)
Height	7.3 cm (2.8 inches)
Width	25.6 cm (10 inches)
Depth	31.7 cm (12.5 inches)
Chassis Material	100% Aluminum
Cooling	Forced Ventilation with Micro Fans

9. Warranty and Support

For information regarding the warranty coverage for your Banda Viking 8000.1 amplifier, please refer to the warranty card included with your product or visit the official Banda Audioparts website.

If you require technical support, have questions about installation, or need assistance with troubleshooting beyond what is covered in this manual, please contact Banda Audioparts customer service through their official channels.

Official Website: Banda Audioparts Store on Amazon (for general brand information)
Contact Information: Refer to the product packaging or official Banda Audioparts website for specific customer service contact details.
