1. Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your GOJOOASIS 10x20 Heavy Duty Carport. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation. Retain this manual for future reference.

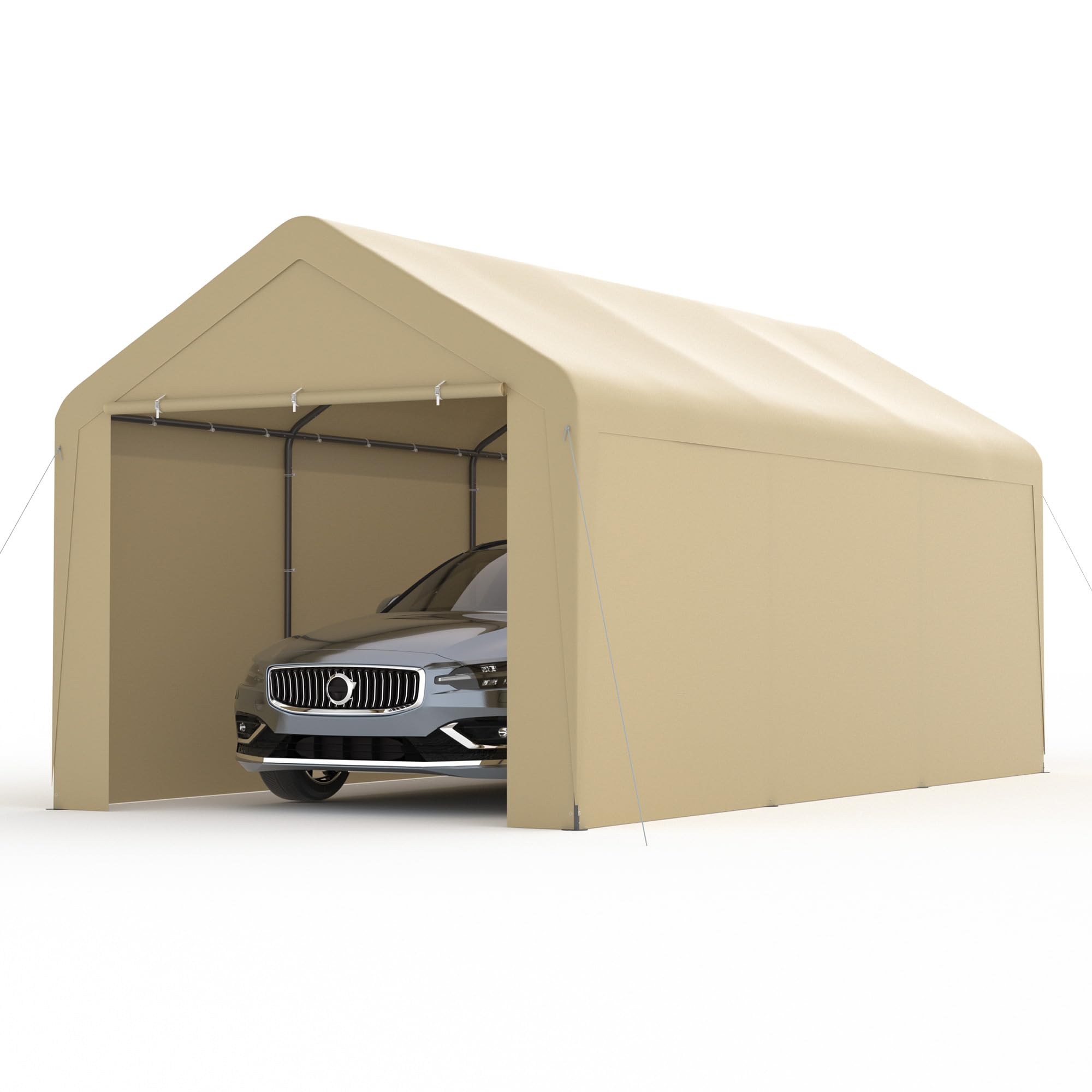

Image 1.1: The GOJOOASIS 10x20 Heavy Duty Carport providing shelter for a vehicle.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Secure the shelter to a stable foundation using the provided anchoring kit, foot plates, and wind ropes. Inadequate anchoring can lead to collapse in adverse weather conditions.
- Handle all components with care during assembly and disassembly to prevent injury. Wear appropriate safety gear, such as gloves, if necessary.
- Adhere to any specified weight limits for items stored within the carport. Overloading can compromise structural integrity.
- Do not use the carport in extreme weather conditions, including heavy snow, strong winds, or severe thunderstorms. Disassemble or reinforce the structure as needed during such events.
- Keep children and pets away from the assembly area.
- Regularly inspect the carport for any signs of wear, damage, or loose connections. Address issues promptly.
3. Package Contents
Before beginning assembly, verify that all parts listed below are present. If any parts are missing or damaged, contact GOJOOASIS customer support immediately.
- Metal Frame Poles (various lengths and shapes)
- Metal Joint Fittings (1.5 inches diameter, 1mm thick, powder-coated)
- PE Fabric Cover (Roof and Sidewalls)
- Front and Back Doors with Double Zippers and Buckles
- Anchoring Kit (Ground Nails/Stakes, Foot Plates, Wind Ropes)
- Elastic Buckles
- Spring Buttons
- Assembly Hardware (e.g., bolts, nuts, if applicable)
Image 3.1: Key components and features of the carport structure.
4. Setup Instructions
Assembly typically requires two or more people. Choose a level, clear area for installation.
- Frame Assembly:
- Connect the metal frame poles using the spring button connectors and joint fittings. Ensure all connections are secure.
- Assemble the roof frame first, then attach the vertical support poles.
- Ensure the frame is square and level before proceeding.
- Cover Installation:
- Carefully drape the main PE fabric cover over the assembled roof frame. Ensure it is centered and evenly distributed.
- Attach the cover to the frame using the elastic buckles or ties provided.
- Install the sidewalls and end doors. The sidewalls are removable and can be attached as needed for privacy or protection.
- The front and back doors feature double zippers and buckles for secure closure and can be rolled up for ventilation or access.
- Anchoring:
- Secure the carport to the ground using the foot plates and ground nails/stakes at each base pole.
- Attach the wind ropes to the designated points on the frame and secure them firmly to the ground using additional stakes. This is crucial for stability, especially in windy conditions.
Image 4.1: Illustration of removable sidewalls and key connection points.
5. Operating Instructions
The GOJOOASIS Carport is designed for versatile use, offering protection and storage for various items.
- Vehicle Protection: Park cars, trucks, or other vehicles inside to shield them from sun, rain, and other elements. The 10x20 ft dimensions provide ample space for most standard vehicles.
- Storage: Utilize the enclosed space for storing equipment, tools, firewood, or other outdoor items.
- Ventilation and Access: The front and back doors can be unzipped and rolled up, then secured with buckles, to allow for easy access and improved airflow.
- Removable Sidewalls: For events or situations requiring more open space and ventilation, the sidewalls can be removed. This transforms the carport into a canopy tent.
Image 5.1: The carport provides sufficient space for parking large vehicles.
Image 5.2: Carport configurations for ventilation and enclosed protection.
6. Maintenance
- Cleaning: Clean the PE fabric cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material or its UV protective coating. Rinse thoroughly and allow to air dry completely before storage.
- Frame Inspection: Regularly check all frame connections, spring buttons, and joint fittings to ensure they remain tight and secure. Tighten any loose connections.
- Fabric Inspection: Inspect the fabric cover for any tears, punctures, or signs of wear. Small damages should be repaired promptly to prevent them from worsening.
- Anchoring System: Verify that ground nails/stakes and wind ropes are securely in place, especially after strong winds or heavy rain. Re-secure if necessary.
- Winter Care: In areas with heavy snowfall, it is recommended to remove snow accumulation from the roof to prevent structural collapse. Consider disassembling the carport for winter storage in regions with severe weather.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Carport unstable or swaying | Inadequate anchoring; loose frame connections; strong winds. | Ensure all ground nails/stakes and wind ropes are firmly secured. Check and tighten all frame connections. Disassemble in very strong winds. |
| Water pooling on roof | Improper cover tension; frame not level; excessive snow/rain accumulation. | Adjust cover tension to ensure a taut surface. Verify the frame is level. Remove snow/water accumulation promptly. |
| Fabric tearing or wearing quickly | Friction against sharp edges; prolonged exposure to extreme weather; manufacturing defect. | Inspect frame for sharp edges and pad if necessary. Ensure proper tension to prevent flapping. Contact customer support if damage appears premature. |
| Zipper malfunction | Dirt/debris in zipper; zipper misalignment; excessive force. | Clean zipper teeth. Gently realign zipper pull. Avoid forcing the zipper. |
8. Specifications
- Model Number: LZ-C36W2
- Product Dimensions (L x W x H): 233.46" x 116.93" x 106.3" (approximately 19.45 ft x 9.74 ft x 8.86 ft)
- Floor Area: 200 Square Feet
- Frame Material: Powder-Coated Metal (1.5 inches diameter, 1mm thick)
- Cover Material: PE Fabric
- Color: Beige
- UV Protection: Yes (Blocks 90% of sun UV rays)
- Water Resistance Level: Waterproof
- Item Weight: 88 Pounds
- Assembly Required: Yes
Image 8.1: Detailed product dimensions for the carport.
Image 8.2: The PE fabric cover offers both waterproof and UV protection.
9. Warranty and Support
For warranty information, replacement parts, or technical support, please refer to the official GOJOOASIS website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
GOJOOASIS Customer Service: Please visit GOJOOASIS Store on Amazon for contact information or further product details.
