1. Introduction
Thank you for choosing the HAMPBACK ACE-530 Electric Drum Set. This advanced-tier 9-piece electronic drum kit is designed to provide an authentic and versatile drumming experience. It features dual-zone mesh drum pads, choke-able crash cymbals, an independent physical hi-hat stand, a genuine kick pedal, and a three-zone ride cymbal. The integrated Bluetooth sound module offers a wide range of sounds and customization options, making it suitable for various playing styles and professional use.
Figure 1: The HAMPBACK ACE-530 Electric Drum Set.
2. Safety Information
- Electrical Safety: Ensure the power adapter is connected to a compatible power outlet. Do not expose the drum set to water or excessive moisture. Disconnect power during thunderstorms or when not in use for extended periods.
- Placement: Place the drum set on a stable, level surface to prevent tipping. Avoid placing it in direct sunlight or near heat sources.
- Cables: Route all cables carefully to prevent tripping hazards and damage. Do not pinch or excessively bend cables.
- Cleaning: Use a soft, dry cloth for cleaning. Avoid abrasive cleaners or solvents.
- Children: Keep small parts out of reach of young children to prevent choking hazards. Adult supervision is recommended during assembly and initial use by children.
3. What's in the Box
The HAMPBACK ACE-530 Electric Drum Set package includes the following components:
- Sound Module X1
- Cymbal X3 (2x12" Crash, 1x14" Ride)
- Pad X4 (3x10" Tom, 1x12" Snare)
- Bass Drum X1
- Independent Hi-hat X1
- Rack X1
- Cable X1 (for connections)
- Drum Sticks X1 pair
- User Manual X1 (this document)
- Installation Instruction X1
- Accessories Bag X1
4. Setup and Assembly
The ACE-530 electric drum set features a quick-release structure for straightforward installation and disassembly. Refer to the dedicated Installation Instruction document included in your package for detailed, step-by-step guidance. The general assembly process involves setting up the rack, attaching the drum pads and cymbals, connecting the pedals, and finally wiring all components to the sound module.
Figure 2: Component diagram of the ACE-530 Electric Drum Set. 1. Sound Module, 2. 12" Hi-hat / Hi-hat pedal, 3. 12" Crash, 4. 14" Ride, 5. 12" Snare, 6. 10" Toms, 7. 8" Bass Drum, 8. Rack.
Assembly Video Guide
Video 1: Official HAMPBACK ACE-530 Electric Drum Set overview, demonstrating features and setup. This video provides a visual guide to the drum set's components and basic functionality.
Video 2: Official HAMPBACK ACE-530 E-drum video, showcasing the drum set in action. This short video highlights the responsiveness and sound quality of the kit.
5. Operating Instructions
5.1 Sound Module (DSP-5202)
The ACE-530's sound module is the central control unit for your drum set. It features a 128*64 LCD display and fader volume controls for easy adjustment. It offers a selection of 948 sounds and 72 preset drum kits, plus 20 customizable sound kits. Bluetooth connectivity allows for seamless integration with external devices for audio playback or MIDI control.
- Power On/Off: Press the POWER button to turn the module on or off.
- Kit Selection: Use the navigation buttons or rotary knob to browse and select from the available drum kits.
- Volume Control: Adjust individual drum and cymbal volumes using the dedicated faders. The master volume can be controlled via the main rotary knob.
- Bluetooth Connectivity: Activate Bluetooth mode on the module and pair with your device to stream audio or use MIDI over Bluetooth.
- Practice Songs: Access the 15 built-in practice songs for various genres and tempos.

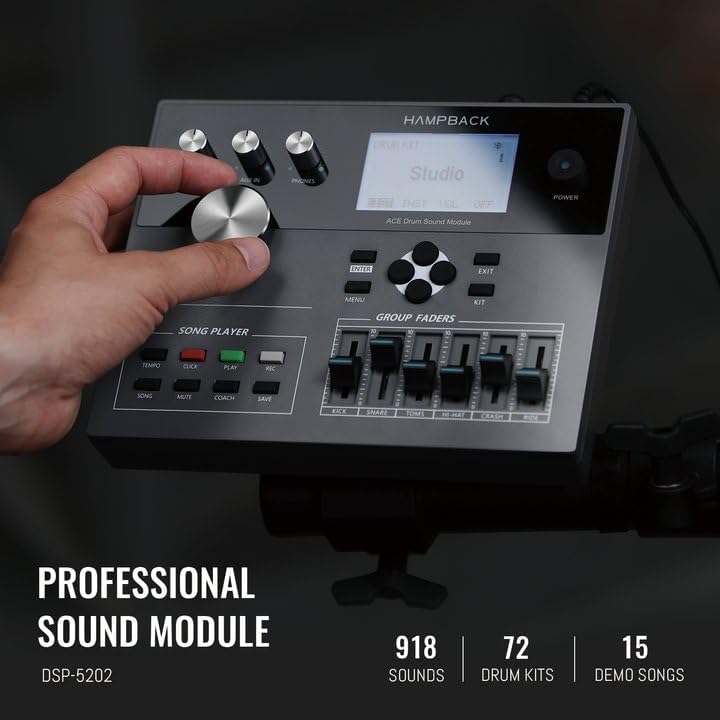

Figure 3: The professional sound module (DSP-5202) with LCD display and fader controls.
5.2 Drum Pads
The ACE-530 includes 3x10" tom pads and 1x12" snare pad, all featuring dual-layer mesh heads for realistic percussive feedback. Each pad is equipped with two sensors to produce distinct edge and surface sounds. A three-point trigger system ensures balanced sound output across the entire playing surface.

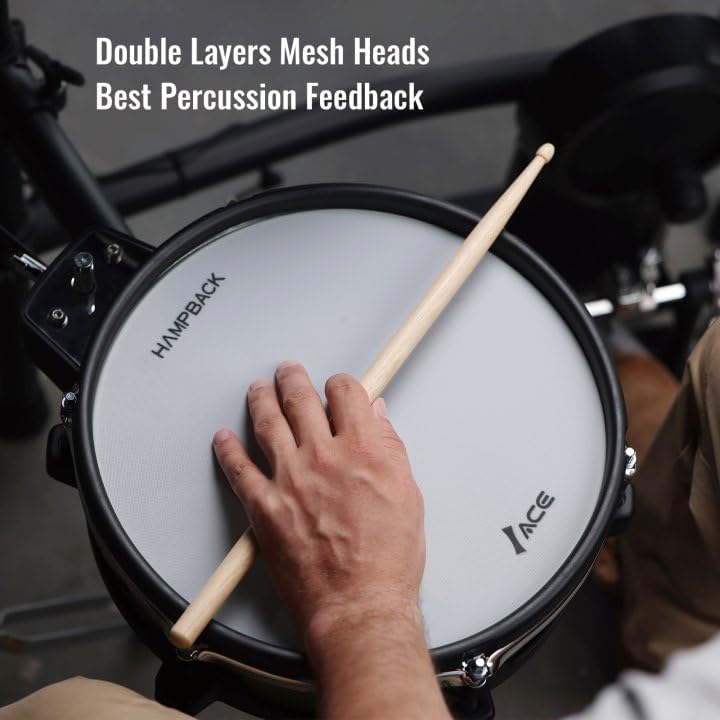

Figure 4: Dual-layer mesh drum head providing realistic feel and response.
5.3 Cymbals
The set includes 2x12" crash cymbals, 1x12" independent hi-hat stand, and 1x14" three-zone ride cymbal. All cymbals are choke-able, allowing you to mute the sound by grabbing the edge, similar to acoustic cymbals. They feature 360° strike-zones for consistent triggering from any angle and are designed to provide a realistic 'wobble' when struck.
5.4 Bass Drum
The 8'' bass drum is constructed from a specially developed durable material, rigorously tested for over 22 million consecutive hits. Its design effectively reduces noise while ensuring long-lasting performance.
Figure 5: The 8-inch durable bass drum with kick pedal.
5.5 Software Integration
The ACE-530 is compatible with various drum software. For example, it includes Addictive Drums 2: Studio Rock, tailored for modern rock sounds, allowing you to expand your sound palette and recording capabilities.
Figure 6: Example of drum software integration with the ACE-530.
6. Maintenance
- Cleaning: Regularly wipe down the drum pads, cymbals, and module with a soft, dry, lint-free cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid harsh chemicals.
- Cable Management: Periodically check all cables for wear and tear. Ensure they are securely connected and not tangled or pinched. Replace damaged cables immediately.
- Storage: When not in use for extended periods, store the drum set in a cool, dry place away from direct sunlight and extreme temperatures.
- Mesh Head Care: While durable, avoid striking the mesh heads with excessive force or sharp objects.
7. Troubleshooting
If you encounter issues with your HAMPBACK ACE-530 Electric Drum Set, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from a specific pad/cymbal | Loose cable connection; faulty cable; pad/cymbal issue; module settings. | Check all cable connections to the pad/cymbal and the sound module. Ensure the cable is fully inserted. Try swapping the cable with a known working one. Verify the pad/cymbal volume is not muted in the module settings. |
| Bass drum not responding | Cable issue; pedal not connected correctly; module settings. | Ensure the bass drum cable is securely connected to both the pad and the module. Check the kick pedal connection. Verify the bass drum sensitivity and threshold settings in the sound module. |
| Hi-hat pedal inconsistent or unresponsive | Improper calibration; loose connection; pedal issue. | Refer to the sound module's manual for hi-hat calibration instructions. Ensure the hi-hat pedal cable is firmly connected. Check for any physical obstructions or damage to the pedal. |
| Inconsistent rim sounds | Sensitivity settings; playing technique. | Adjust the sensitivity and threshold settings for the specific drum pad in the sound module to optimize rim shot detection. Practice consistent playing technique. |
| No sound from the entire kit | Power issue; master volume low; headphone/speaker connection. | Ensure the sound module is powered on and the power adapter is working. Check the master volume level. Verify headphones or speakers are correctly connected and their volume is up. |
If these steps do not resolve the issue, please contact HAMPBACK customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | ACE-530 |
| Brand | HAMPBACK |
| Set Name | 9-piece kit |
| Drum Pads | 3x10'' Tom, 1x12'' Snare (Dual-layer mesh heads, dual sensors, three-point trigger) |
| Cymbals | 2x12'' Crash (Choke-able), 1x12'' Independent Hi-hat Stand, 1x14'' Ride (Three-zone, choke-able) |
| Bass Drum | 8'' (Durable material, noise-reducing design) |
| Sound Module | DSP-5202 (948 sounds, 72 preset + 20 customizable drum kits, 15 demo songs, 128*64 LCD, fader volume control, Bluetooth) |
| Connectivity | USB, Bluetooth |
| Material | Silicone (pads), Bass Wood (body) |
| Included Components | Sound Module, 3 Cymbals, 4 Pads, Bass Drum, Independent Hi-hat, Rack, Cable, Drum Sticks, User Manual, Installation Instruction, Accessories Bag |
9. Warranty and Support
The HAMPBACK ACE-530 Electric Drum Set comes with a Two-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
For technical support, troubleshooting assistance, or warranty inquiries, please contact HAMPBACK customer service through the retailer where you purchased the product or visit the official HAMPBACK website for contact information.
