Introduction
Thank you for choosing the SereneLife 9K BTU Portable Air Conditioner. This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and retain it for future reference.
Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when using your portable air conditioner, follow these basic precautions:
- Read all instructions before using this appliance.
- Only use the appliance for its intended purpose as described in this manual.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not operate the unit with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Always unplug the unit before cleaning or servicing.
- Do not block air outlets or inlets. Maintain a minimum distance from walls and furniture.
- Do not insert fingers or foreign objects into the air inlets or outlets.
- Keep the unit away from heat sources, direct sunlight, and flammable materials.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not use the unit in wet environments such as bathrooms or laundry rooms.
- Ensure the unit is placed on a flat, stable surface.
Package Contents
Carefully unpack your portable air conditioner and check that all items are present and in good condition. The package should contain:
- Portable Air Conditioner Unit
- Remote Control
- Window Exhaust Mounting Kit
- Exhaust Hose
Setup and Installation
1. Unit Placement
Place the portable air conditioner on a flat, stable surface. Ensure there is at least 30 cm (12 inches) of space around the unit for proper airflow. The unit is equipped with swivel casters for easy mobility.
2. Window Kit Installation
The window exhaust kit is designed for installation in most standard vertical or horizontal sliding windows. It can also be adapted for double-hung or single-hung windows.
- Adjust the window sealing plate to fit your window opening. The plate is adjustable from 67.6 cm to 126.2 cm.
- Secure the plate in the window frame.
- Connect one end of the exhaust hose to the air outlet on the back of the air conditioner unit.
- Connect the other end of the exhaust hose to the adapter on the window sealing plate. Ensure all connections are secure to prevent air leakage.
3. Power Connection
Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the power requirements of the unit (230V).
Operating Instructions
Your SereneLife portable air conditioner offers three operating modes: Cooling, Dehumidification, and Fan. It can be controlled via the integrated LED display panel or the remote control.
Control Panel and Remote Functions
- Power (On/Off): Press to turn the unit on or off.
- Mode: Press to cycle through Cooling, Dehumidifier, and Fan modes.
- Temperature Adjustment: Use the Up/Down arrows to set the desired temperature (available in Cooling mode).
- Fan Speed: Press to select between High, Medium, and Low fan speeds (available in Cooling and Fan modes).
- Timer: Set a timer for the unit to automatically turn on or off.
- Swing: Activates automatic oscillation for wider air distribution.
- Sleep Mode: Reduces fan speed and noise for quiet operation during sleep.
Wi-Fi Connectivity
This unit is Wi-Fi enabled, allowing you to control it remotely via a smartphone application. Refer to the separate Wi-Fi setup guide for detailed instructions on connecting your device.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner.
1. Air Filter Cleaning
The unit features a washable filter. Clean the air filter every two weeks or more frequently if the unit is used in a dusty environment.
- Unplug the air conditioner from the power outlet.
- Locate and remove the air filter from the back of the unit.
- Wash the filter under running water (warm, not hot) or use a vacuum cleaner to remove dust.
- Allow the filter to dry completely before reinserting it into the unit. Do not expose to direct sunlight.
2. Water Drainage
In Dehumidifier mode, the unit collects moisture. When the internal water tank is full, the unit will stop operating and display an indicator. Drain the water as follows:
- Unplug the air conditioner.
- Place a shallow pan or tray under the drainage outlet at the bottom rear of the unit.
- Remove the drain plug to allow water to flow out.
- Once drained, replace the drain plug securely.
3. Storage
If the unit will not be used for an extended period:
- Drain all accumulated water.
- Clean the air filter.
- Unplug the power cord and coil it neatly.
- Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply Full water tank Damaged power cord | Check power plug and outlet Drain water tank Contact customer support |
| Insufficient cooling | Dirty air filter Blocked air intake/outlet Windows/doors open Room size too large | Clean air filter Clear obstructions Close windows/doors Ensure unit matches room size (up to 28 m²) |
| Unit is noisy | Unit not on a flat surface Loose parts | Place on a flat, stable surface Contact customer support |
| Water leakage | Drain plug not secure Unit tilted | Ensure drain plug is tightly closed Place unit on a level surface |
| Remote control not working | Dead batteries Obstruction between remote and unit | Replace batteries Remove obstructions |
Specifications
| Feature | Specification |
|---|---|
| Model Number | SLPAC905WEU |
| Cooling Capacity | 9,000 BTU (2.4 kW) |
| Coverage Area | Up to 28 m² |
| Dehumidification Capacity | 1.1 Liters/Hour |
| Air Flow | 360 m³/h |
| Operating Modes | Cooling, Dehumidifier, Fan |
| Special Features | Wi-Fi Enabled, Automatic Oscillation, Sleep Mode, Timer Function |
| Noise Level | 57 Decibels |
| Power Supply | 230V |
| Refrigerant | R-290 |

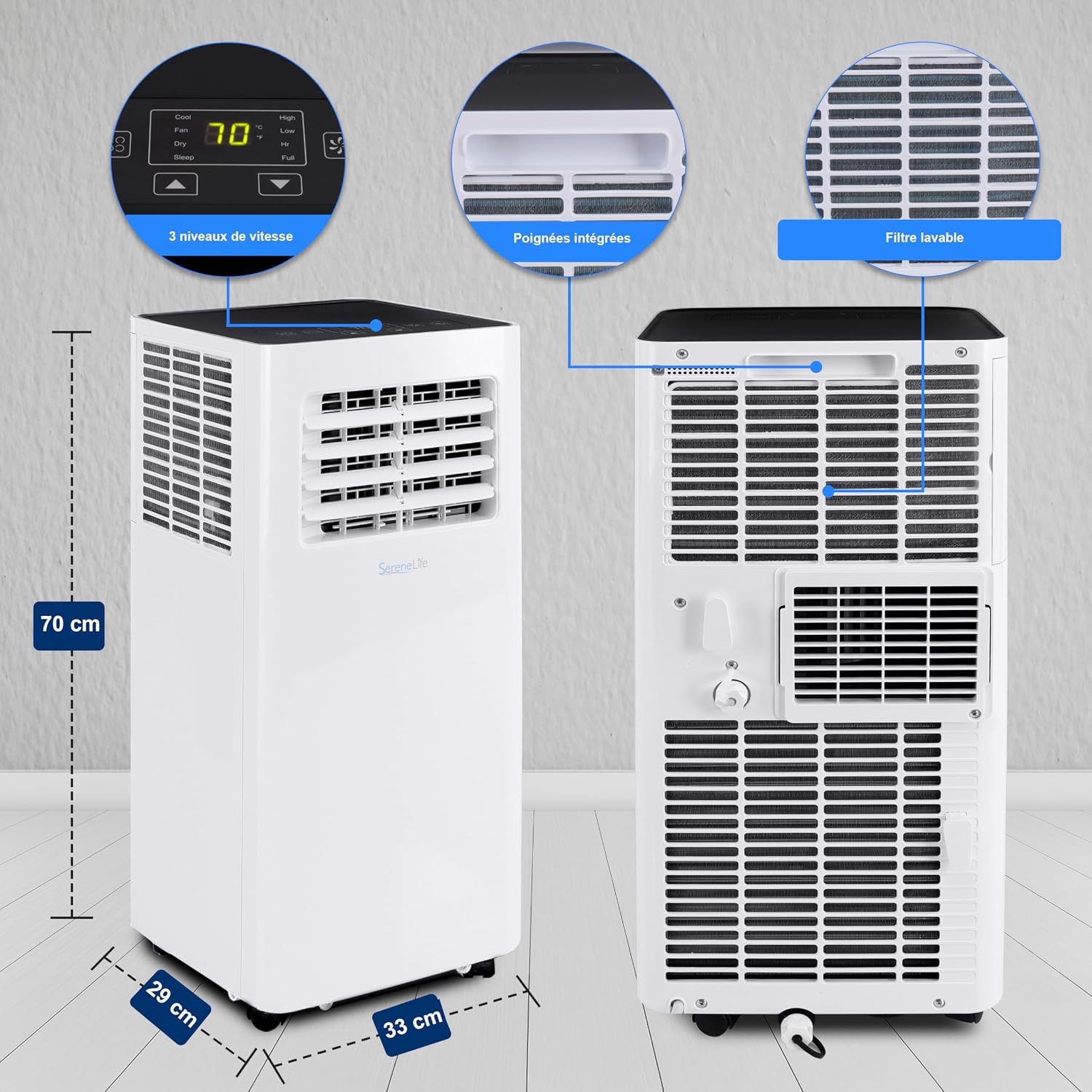

| Dimensions (D x W x H) | 81P x 51l x 56H cm (Product dimensions from specs: 81P x 51l x 56H cm, but image shows 29x33x70cm. Using image dimensions for clarity as they are more specific to the unit body.) Unit Body: 29 cm (Depth) x 33 cm (Width) x 70 cm (Height) |
| Weight | 21 Kilograms |
| Energy Efficiency Class | A |
Warranty and Support
Warranty Information
This SereneLife product comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accident, alteration, or unauthorized repair.
Customer Support
For technical assistance, warranty claims, or general inquiries, please contact SereneLife customer support. You can find contact information on the official SereneLife website or through your retailer.
