ELEMARA Ride-On Car for Toddlers

1. Introduction and Important Safety Information

Thank you for choosing the ELEMARA HZB-1228 Ride-On Car. This manual provides essential instructions for assembly, operation, maintenance, and troubleshooting to ensure a safe and enjoyable experience for your child. Please read this manual thoroughly before initial use and retain it for future reference.

Safety Warnings:

• Adult supervision is required at all times when the vehicle is in use.
• Ensure the child wears appropriate safety gear, such as a helmet, when operating the vehicle.
• Do not operate the vehicle near streets, motor vehicles, steep inclines or steps, swimming pools, or other bodies of water.
• Always use the safety belt provided.
• The maximum weight capacity for this vehicle is 66 lbs (30 kg).
• Recommended age for use is 3-8 years.
• Keep away from naked flame or direct heat sources.

2. Package Contents

Please verify that all components are present before beginning assembly:

• Ride-on Car (main body) x 1
• Remote Control x 1
• Instruction Manual x 1
• Accessories (located inside the car's hood)

Note: To access accessories, press and hold the Toyota logo while opening the hood.

3. Assembly Instructions

Assembly of the ELEMARA HZB-1228 Ride-On Car requires adult supervision and basic tools (not included). Follow the detailed steps provided in the included manual. Ensure all parts are securely fastened before first use.

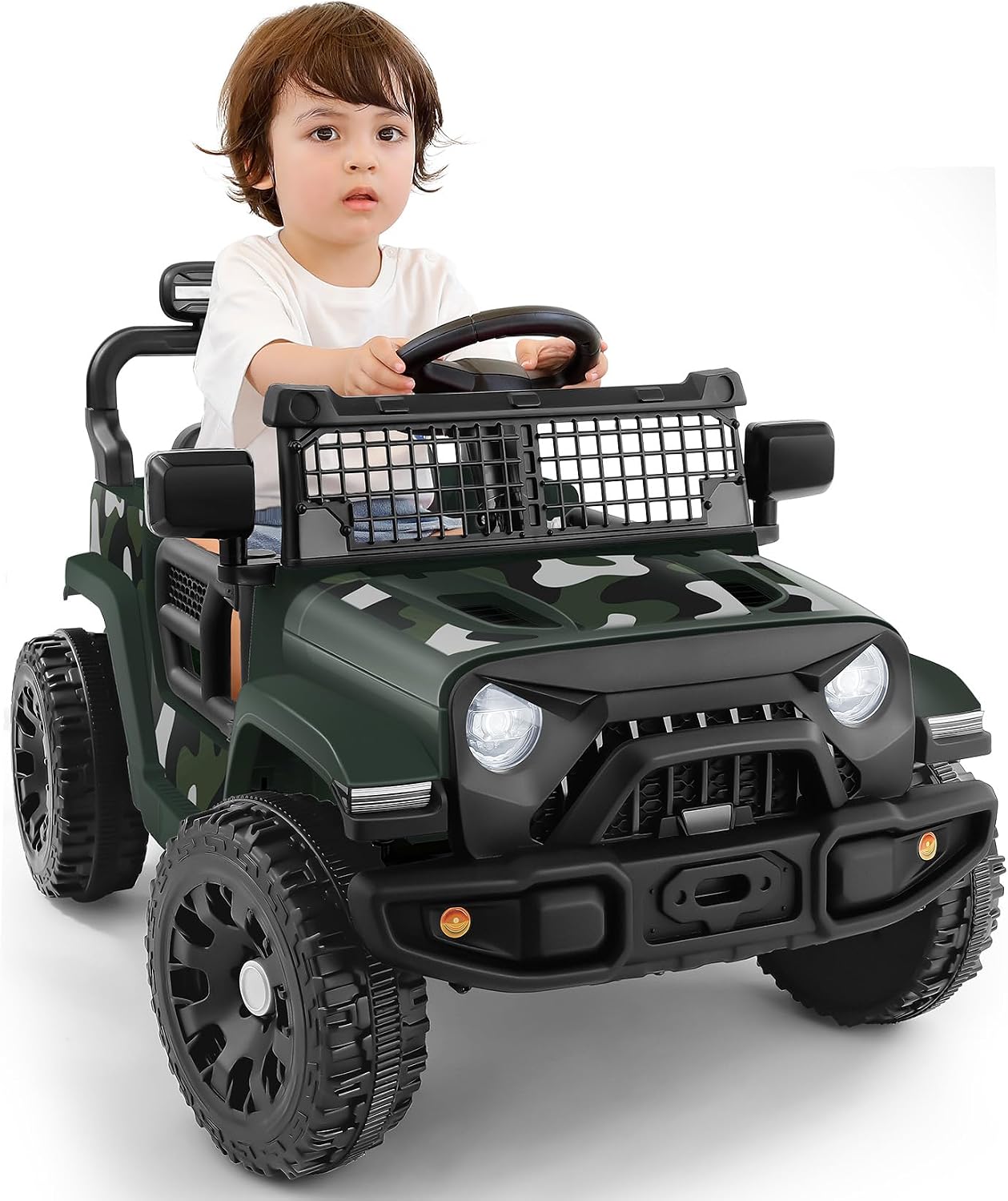

Figure 3.1: Assembled ELEMARA HZB-1228 Ride-On Car.

4. Battery Charging

The vehicle is powered by a 12V 7AH battery. Before first use, fully charge the battery for 8-12 hours. Subsequent charging typically takes 8-12 hours. A full charge provides approximately 80-120 minutes of continuous playtime, depending on usage conditions.

• Locate the charging port on the vehicle.
• Connect the charger to the charging port and then to a standard wall outlet.
• Do not overcharge the battery. Disconnect the charger once charging is complete.
• A low power reminder sound will indicate when the battery needs recharging.

Figure 4.1: Battery performance and charging indicators.

5. Operating the Vehicle

The ELEMARA HZB-1228 offers dual driving modes for flexibility and safety.

5.1 Child Manual Control

Children can operate the vehicle using the steering wheel and foot pedal. This mode offers 2 adjustable speeds.

• Start: Press the one-button start.
• Acceleration: Press the foot pedal.
• Steering: Use the steering wheel to change direction.
• Speed Adjustment: Use the in-car controls to select between the two available speeds.

5.2 Parental Remote Control

Parents can take control using the included remote control, which offers 3 adjustable speeds and is recommended for use within 25 meters.

• Pairing: Follow the remote control's specific pairing instructions (usually involves holding a button on the remote while the car is off, then turning the car on).
• Movement: Use the directional buttons to move the car forward, backward, left, and right.
• Speed Adjustment: Use the speed selection button on the remote to choose between the three available speeds.
• Emergency Stop: The remote control typically includes a stop button for immediate halting of the vehicle.

Figure 5.1: Illustration of child manual control and parental remote control modes.

5.3 Soft Start Feature

The vehicle is equipped with a soft start feature, ensuring gentle acceleration to prevent sudden jolts and enhance safety for young riders.

Figure 5.2: Soft start mechanism for gentle acceleration.

6. Key Features

6.1 DIY Building Blocks & Storage Area

The ride-on car features a dedicated space for DIY building blocks (blocks not included) and a convenient storage area. This allows children to personalize their vehicle and store small toys.

Figure 6.1: DIY building block space and storage compartment.

6.2 Premium Wheels for Various Surfaces

Equipped with high-quality tires, the ELEMARA HZB-1228 is designed for smooth rides on diverse surfaces, including lawns, asphalt, concrete roads, tile roads, and boardwalks.

Figure 6.2: Vehicle operating on various terrains.

6.3 Entertainment System

The vehicle includes Bluetooth connectivity, music playback, and story-telling functions for an enhanced driving experience.

• Bluetooth: Connect a compatible device to stream audio.
• Music/Stories: Use the built-in controls to access pre-loaded music or stories.

6.4 Safety Design Elements

The ELEMARA HZB-1228 incorporates several safety features:

• Seat with Safety Belt: Secure your child during operation.
• Lockable Doors: Provide added security.
• Spring Suspension: Enhances ride comfort and stability.

7. Care and Maintenance

• Cleaning: Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the vehicle in a dry, covered area away from direct sunlight and moisture. If storing for extended periods, ensure the battery is fully charged and recharge it every 30 days to prolong its lifespan.
• Battery Care: Always disconnect the battery when the vehicle is not in use for long periods. Do not allow the battery to fully discharge repeatedly.
• Inspection: Regularly check all nuts, bolts, and fasteners to ensure they are tight. Inspect wheels and tires for wear.

8. Troubleshooting

If you encounter issues with your ELEMARA HZB-1228 Ride-On Car, please refer to the following common solutions:

If the problem persists after attempting these solutions, please contact ELEMARA customer support.

9. Technical Specifications

Figure 9.1: Product dimensions and load capacity.

10. Warranty and Customer Support

The ELEMARA HZB-1228 Ride-On Car typically comes with a 2-year warranty covering manufacturing defects. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical assistance, warranty claims, or to order replacement parts, please contact ELEMARA customer support through the retailer where the product was purchased or visit the official ELEMARA website for contact information.
