Instruction Manual

Introduction

This instruction manual provides detailed information on the installation, operation, and maintenance of your new Universal Wall & Car Mount. Designed for secure and space-saving storage of 580ml fire extinguisher sprays or similar cans and bottles, this versatile holder can be mounted on walls, bicycles, or in vehicles. Please read this manual carefully before use to ensure proper installation and safe operation.

What's in the Box

Please check the package contents to ensure all items are present:

• 1x Holder (Main Unit)
• 2x Dowels
• 2x Screws
• 2x Plastic Fastening Straps

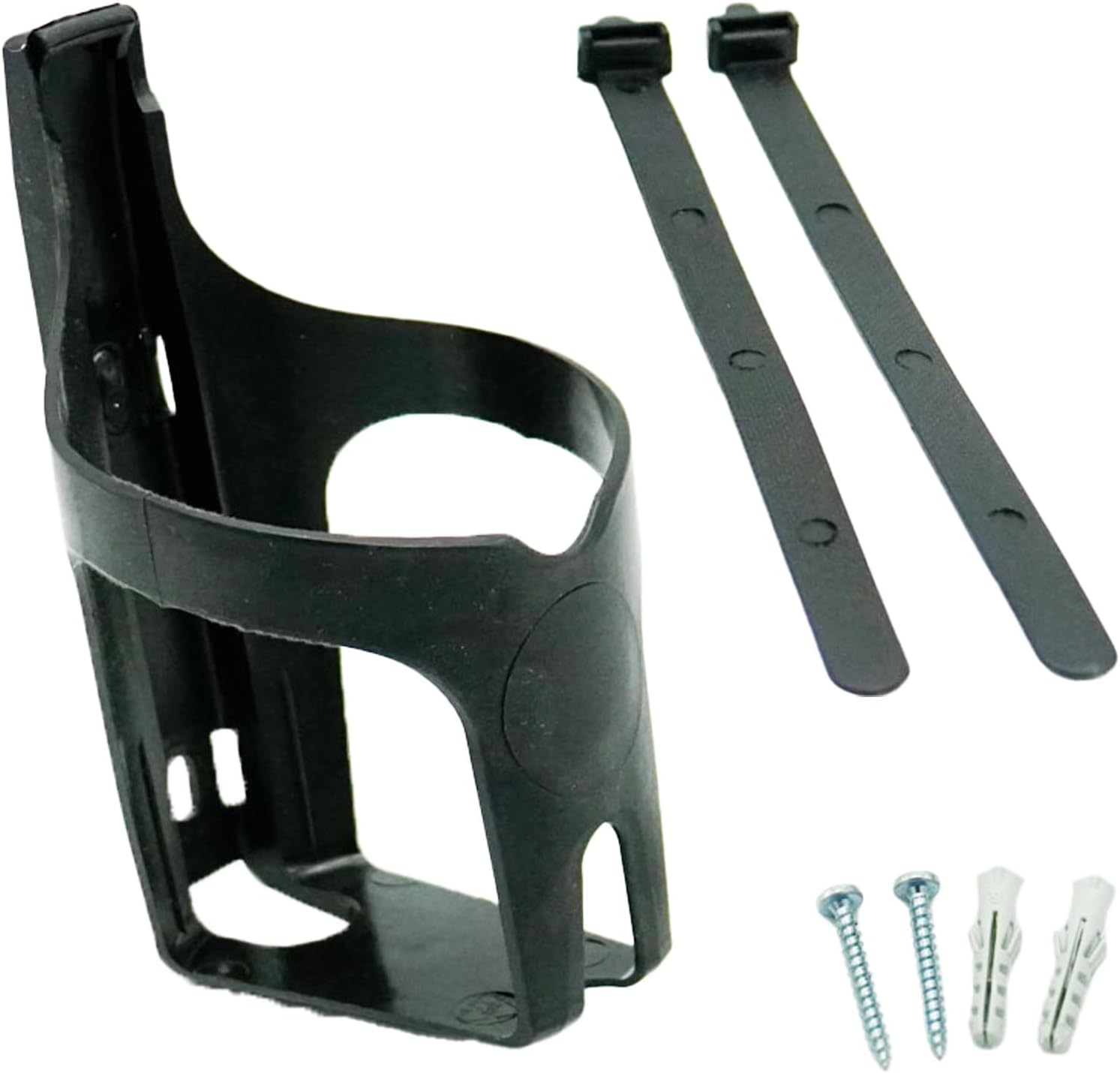

Figure 1: All components included in the package. This includes the main holder unit, two plastic fastening straps, two screws, and two dowels for mounting.

Setup and Installation

The holder offers versatile mounting options. Choose the method that best suits your needs.

1. Wall Mounting

1. Select Location: Choose a suitable wall location that is sturdy and provides easy access to the stored item.
2. Mark Holes: Hold the holder against the wall at the desired height and mark the positions for the two screw holes.
3. Drill Holes: Drill two holes at the marked positions using an appropriate drill bit for the provided dowels.
4. Insert Dowels: Insert the plastic dowels into the drilled holes until they are flush with the wall surface.
5. Secure Holder: Align the holder's screw holes with the dowels and insert the screws. Tighten the screws firmly until the holder is securely fastened to the wall.

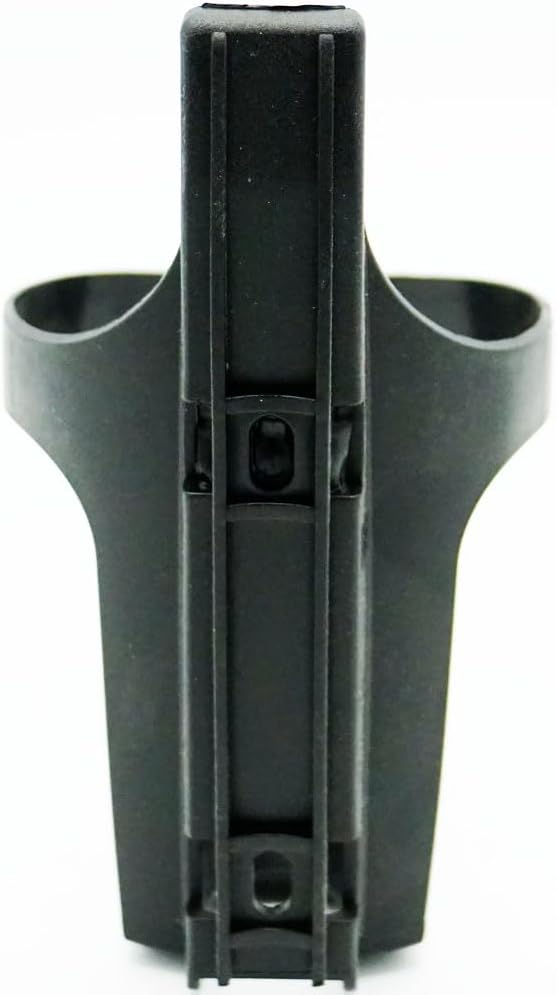

Figure 2: Rear view of the holder, highlighting the two mounting points for screws and dowels.

2. Bicycle or Car Mounting (using Plastic Fastening Straps)

1. Identify Mounting Point: For bicycles, choose a frame tube. For cars, identify a suitable bar or sturdy point where the holder can be securely attached without obstructing controls or safety features.
2. Position Holder: Place the holder against the chosen mounting point.
3. Attach Straps: Thread the plastic fastening straps through the designated slots on the holder and around the bicycle frame or car bar.
4. Secure Straps: Pull the straps tight and secure them. Ensure the holder is firmly attached and does not wobble. The straps are designed for a snug fit.

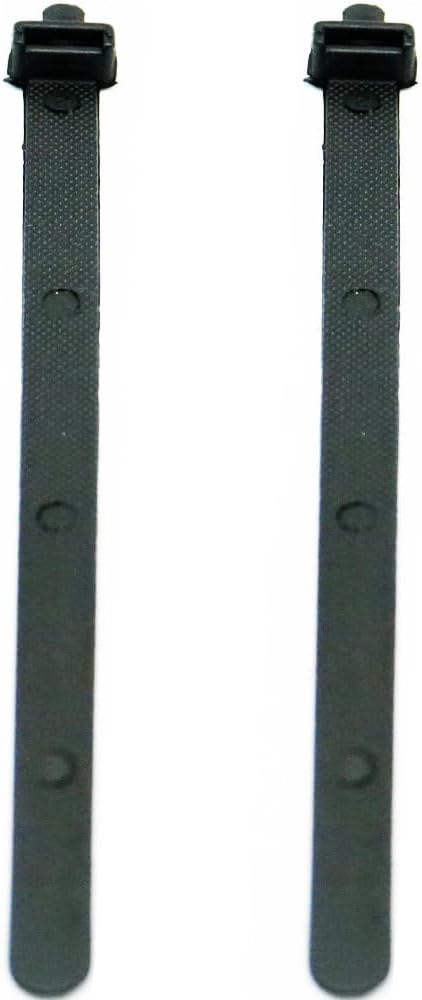

Figure 3: The two plastic fastening straps used for bicycle or car mounting.

Operating Instructions

Once installed, using the holder is straightforward:

• Inserting Item: Gently slide your 580ml fire extinguisher spray, can, or bottle into the holder from the top. Ensure it sits snugly within the holder's contours.
• Removing Item: Pull the item upwards to remove it from the holder.

Figure 4: Side profile of the holder, illustrating the space for the item.

Maintenance

To ensure the longevity and proper function of your holder:

• Cleaning: Wipe the holder with a damp cloth to remove dust or dirt. Avoid using abrasive cleaners or solvents, as these may damage the plastic material.
• Inspection: Periodically check the mounting screws or straps for tightness. Re-tighten if necessary to ensure the holder remains secure.
• Storage: If removing the holder for extended periods, store it in a cool, dry place away from direct sunlight.

Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

Specifications

Warranty and Support

Specific warranty information for this product is not provided in this manual. For any product-related inquiries, support, or warranty claims, please contact the seller or refer to the purchase documentation.
