Starfrit 10-Cup Coffee Maker Instruction Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the coffee maker.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and personal injury, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance features a built-in boil-dry protection system, which automatically shuts off the heating element if the water reservoir runs dry, preventing damage to the unit.
• The coffee maker also includes an automatic shut-off feature for added safety and energy efficiency.
• The plastic components are BPA-free.

Product Overview and Components

The Starfrit 10-Cup Coffee Maker is designed for ease of use and efficient coffee brewing. Familiarize yourself with its main components:

Front view of the Starfrit 10-Cup Coffee Maker, showcasing its sleek black design and glass carafe.

Side view of the coffee maker with approximate dimensions: 12.6 inches (32.0 cm) height, 10.2 inches (26.0 cm) depth, and 6.5 inches (16.5 cm) width.

Illustration of key functions: ON/OFF switch with indicator light, reusable dishwasher-safe filter basket and holder, water level window, automatic shut-off, and keep warm function.

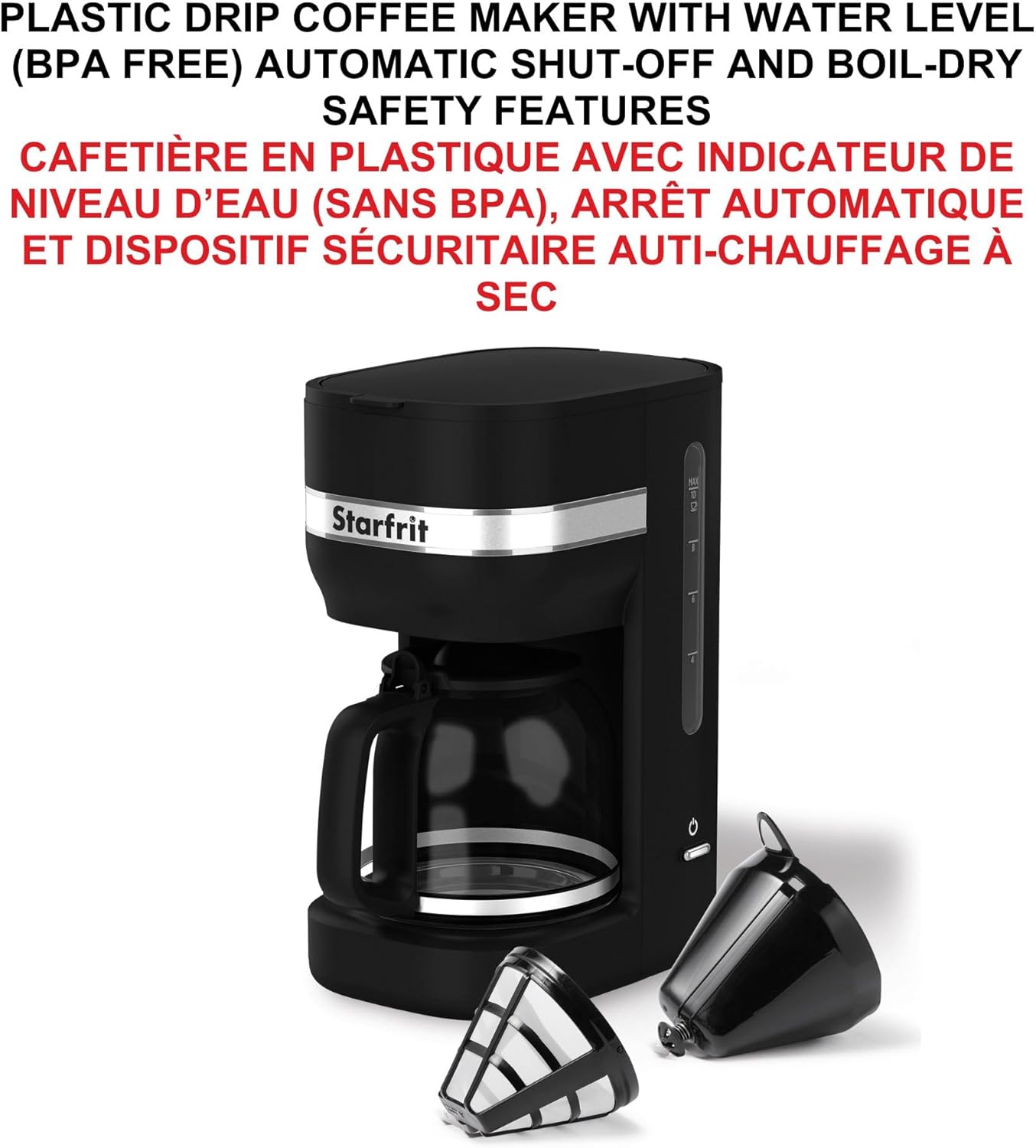

The coffee maker unit shown with its removable reusable filter and funnel, highlighting its BPA-free plastic construction and safety features.

Main Components:

• Main Unit: Houses the heating element, water reservoir, and control panel.
• Glass Carafe: 10-cup capacity, with a handle and lid for serving.
• Reusable Filter Basket: A permanent filter that eliminates the need for paper filters.
• Funnel: Holds the filter basket and directs brewed coffee into the carafe.
• Water Level Window: Indicates the amount of water in the reservoir.
• ON/OFF Switch: Activates and deactivates the brewing process, typically with an indicator light.

Setup

Initial Cleaning:

1. Before first use, wash the glass carafe, its lid, and the reusable filter basket in warm, soapy water. Rinse thoroughly and dry.
2. Wipe the exterior of the coffee maker with a damp cloth. Do not immerse the main unit in water.

First Use (Cleaning Cycle):

To ensure optimal performance and remove any manufacturing residues, perform a cleaning cycle with water only:

1. Fill the water reservoir with clean water up to the 'MAX 10 CUPS' mark.
2. Place the empty reusable filter basket and funnel into their respective positions.
3. Place the empty glass carafe with its lid on the warming plate.
4. Plug the coffee maker into a standard electrical outlet.
5. Press the ON/OFF switch to start the brewing cycle. The indicator light will illuminate.
6. Allow the cycle to complete. Once finished, discard the hot water from the carafe.
7. Unplug the appliance and let it cool down before proceeding with regular use.

Operating Instructions

Follow these steps to brew coffee with your Starfrit 10-Cup Coffee Maker:

1. Fill Water Reservoir: Open the lid of the coffee maker. Fill the water reservoir with fresh, cold water using the glass carafe. Refer to the water level window on the side of the unit for desired cup markings (up to 10 cups). Do not exceed the 'MAX' level.
2. Add Coffee Grounds: Place the reusable filter basket into the funnel. Add the desired amount of ground coffee into the filter basket. A general guideline is one level tablespoon of ground coffee per cup, but adjust to your personal taste.
3. Close Lid and Position Carafe: Close the top lid securely. Place the glass carafe with its lid onto the warming plate, ensuring it is properly seated to activate the drip-stop mechanism.
4. Start Brewing: Plug the coffee maker into a standard electrical outlet. Press the ON/OFF switch. The indicator light will illuminate, indicating that the brewing process has begun.
5. Brewing Process: Water will heat up and drip through the coffee grounds into the carafe. The brewing process will take several minutes depending on the amount of water.
6. Keep Warm Function: Once brewing is complete, the coffee maker will automatically switch to the 'keep warm' function, maintaining the coffee's temperature on the warming plate. The indicator light will remain on during this phase.
7. Automatic Shut-Off: For safety and energy saving, the coffee maker will automatically shut off after a period of keeping warm.
8. Serve: Carefully remove the carafe from the warming plate to pour coffee. The drip-stop feature will temporarily prevent coffee from dripping when the carafe is removed.
9. Unplug: After serving and when the coffee maker is no longer in use, press the ON/OFF switch to turn it off and unplug the appliance from the wall outlet.

A hand demonstrating the placement of the reusable filter basket into the coffee maker's funnel.

The Starfrit coffee maker with a freshly brewed cup of coffee and coffee beans, illustrating the final product.

Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your coffee maker.

Daily Cleaning:

• Always unplug the coffee maker and allow it to cool completely before cleaning.
• Remove the reusable filter basket and discard any used coffee grounds. Rinse the filter basket and funnel under running water.
• The glass carafe and funnel are dishwasher-safe for convenient cleaning. Alternatively, wash them with warm, soapy water and rinse thoroughly.
• Wipe the exterior of the coffee maker, including the warming plate, with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Do not immerse the main unit of the coffee maker in water or any other liquid.

Descaling (Mineral Deposit Removal):

Over time, mineral deposits (limescale) can build up in your coffee maker, affecting its performance and the taste of your coffee. Descale your coffee maker regularly, depending on the hardness of your water and frequency of use (e.g., every 2-4 weeks).

1. Prepare a descaling solution: You can use a commercial descaling agent or a mixture of white vinegar and water (e.g., 1 part white vinegar to 2 parts water).
2. Pour the descaling solution into the water reservoir up to the 10-cup mark.
3. Place the empty reusable filter basket and funnel in position, and the empty carafe on the warming plate.
4. Run a brewing cycle with the descaling solution.
5. After the cycle is complete, turn off the coffee maker and let it sit for 15-30 minutes to allow the solution to work.
6. Discard the solution from the carafe.
7. Rinse the coffee maker by running 2-3 full cycles with fresh, clean water only to remove any residual descaling solution.

Troubleshooting

If you encounter issues with your Starfrit 10-Cup Coffee Maker, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Starfrit customer support for further assistance.

Specifications

Detailed technical specifications for the Starfrit 10-Cup Coffee Maker:

Warranty and Support

Specific warranty details for the Starfrit 10-Cup Coffee Maker are not provided in the available product information. For warranty claims, technical assistance, or any product-related inquiries, please contact Starfrit customer support directly.

You can typically find contact information for Starfrit on their official website or through the retailer where the product was purchased. Please have your product model number (024045-004-0000) and date of purchase (first available: April 3 2024) ready when contacting support.

Official Product Videos

No official product videos from the seller were found in the provided data. For visual demonstrations or additional information, please check the Starfrit official website or their authorized channels.
