Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your Timex Expedition North TW2W41700 Quartz Analog Watch. Please read this manual thoroughly to ensure proper use and care of your timepiece.
Image Description: A clear front view of the Timex Expedition North TW2W41700 watch. It features a black dial with luminous hour markers and hands, a date window at 3 o'clock, and a silver-toned stainless steel case. The unidirectional rotating bezel has blue and lime green accents. The watch is fitted with a black silicone strap that has subtle green detailing.
Product Overview
The Timex Expedition North TW2W41700 is a robust 42mm stainless steel analog watch designed for durability and functionality. It features a scratch-resistant anti-reflective sapphire crystal with a date magnifier, luminous hands and markers, and a unidirectional ratcheting bezel for elapsed time tracking. The watch is equipped with a comfortable co-molded quick-release silicone strap.
Image Description: A side profile view of the Timex Expedition North TW2W41700 watch, highlighting its 12mm case thickness and the textured crown. The black silicone strap with its green inner lining is also visible, curving around.
Setup and Initial Use
Setting the Time
- Pull the crown out to the second click position.
- Rotate the crown to set the hour and minute hands to the correct time.
- Push the crown back into the first click position.
Setting the Date
- Pull the crown out to the first click position.
- Rotate the crown clockwise or counter-clockwise (depending on the movement) to set the correct date.
- Push the crown back into the closed position.
Note: Avoid setting the date between 9 PM and 3 AM, as this may interfere with the automatic date change mechanism.
Wearing the Watch
Adjust the silicone strap to a comfortable fit on your wrist. The quick-release mechanism allows for easy strap changes if desired.

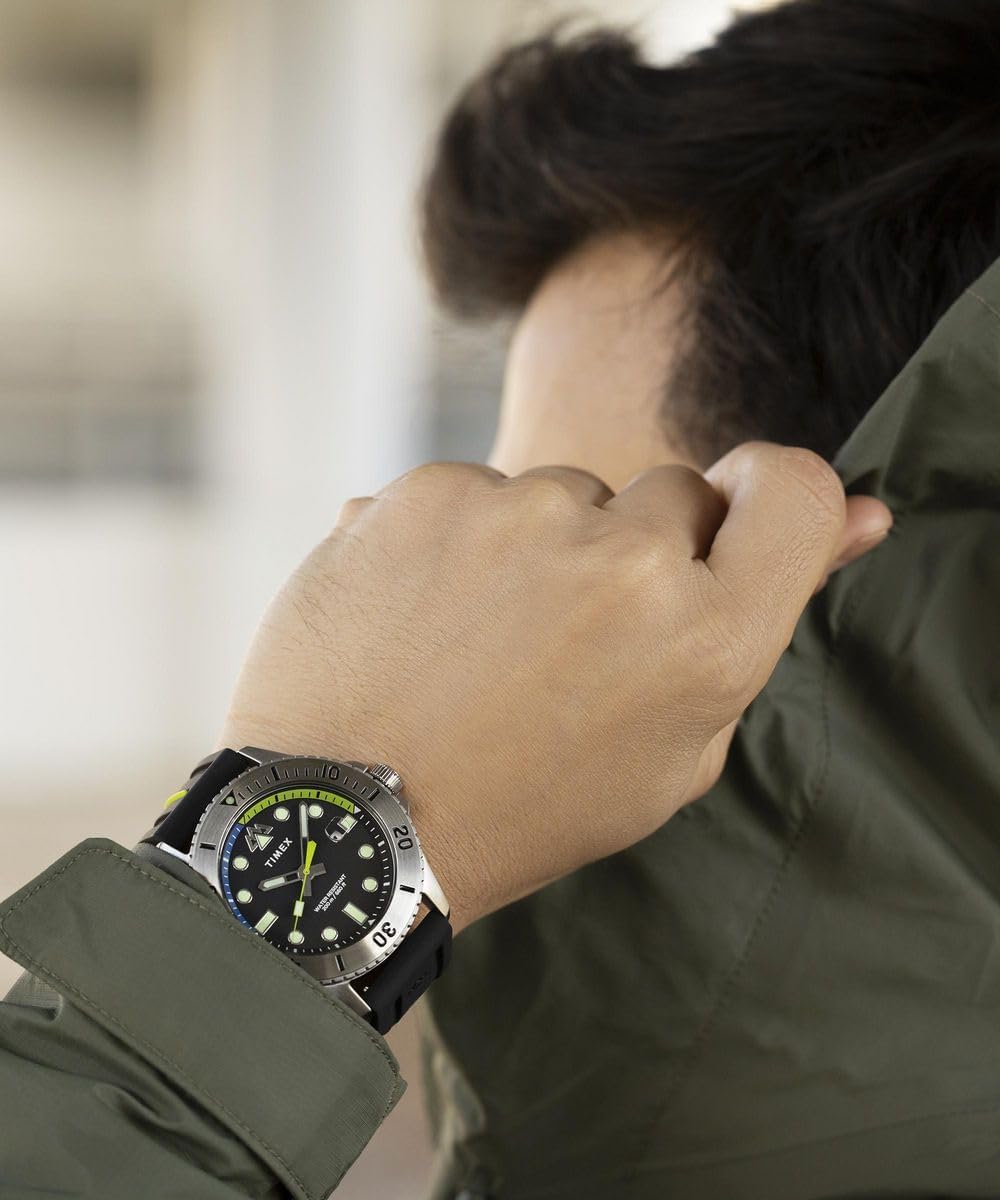

Image Description: A close-up shot of a person's wrist wearing the Timex Expedition North TW2W41700 watch. The watch is prominently displayed, showing its size and how it sits on the wrist, complementing casual attire.
Operating the Watch
Unidirectional Rotating Bezel
The watch features a unidirectional rotating bezel. This bezel can be rotated counter-clockwise to mark elapsed time. Align the triangle marker on the bezel with the minute hand at the start of an activity to track the duration.
Water Resistance
This watch is water-resistant up to 20 bars (200 meters / 660 feet). It is suitable for swimming, snorkeling, and recreational diving. Ensure the crown is fully pushed in before any water exposure.
Caution: Do not operate the crown or pushers while the watch is wet or submerged, as this can compromise water resistance.
Maintenance and Care
Cleaning
To clean your watch, wipe the case and strap with a soft, damp cloth. For the silicone strap, mild soap and water can be used. Rinse thoroughly and dry completely.
Battery Replacement
The watch is powered by a quartz movement requiring a battery. When the battery needs replacement, it is recommended to take the watch to an authorized Timex service center or a qualified watchmaker to ensure proper sealing and water resistance.
Storage
When not in use, store your watch in a cool, dry place, away from direct sunlight and extreme temperatures.
Image Description: A detailed view of the watch's black silicone strap and the silver-toned buckle. The Timex logo is subtly embossed on the buckle, and the texture of the silicone strap is clearly visible.
Image Description: A close-up of the watch's stainless steel case back. Engraved details include "EXPEDITION NORTH TIMEX" and "WATER RESISTANT 200M / 660FT", along with other manufacturing marks, confirming its robust design.
Troubleshooting
- Watch Not Running: Check if the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
- Date Not Changing: Ensure the time is set correctly, especially distinguishing between AM and PM. If the date changes at noon, you may need to advance the time by 12 hours.
- Condensation Under Crystal: This may indicate a loss of water resistance. Avoid further water exposure and have the watch inspected by a qualified technician.
Specifications
| Model Number | TW2W41700 |
| Case Diameter | 42 mm |
| Case Thickness | 12 mm |
| Case Material | Stainless Steel |
| Dial Color | Black |
| Strap Material | Silicone |
| Strap Length | 21 cm |
| Strap Width | 21 mm |
| Crystal | Anti-reflective Sapphire |
| Movement | Quartz Analog |
| Water Resistance | 20 Bar (200 meters / 660 feet) |
| Weight | 140 g |
Warranty and Support
Your Timex Expedition North TW2W41700 watch comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
For service or support, please contact Timex customer service or visit an authorized Timex service center. The watch is delivered in its original gift box.
Image Description: The black gift box for the Timex Expedition North watch, featuring a distinctive green mountain range graphic and the "EXPEDITION NORTH TIMEX" logo on the lid.
