Tikom V700 Cordless Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Tikom V700 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read this manual thoroughly before first use and retain it for future reference.

The Tikom V700 Cordless Vacuum Cleaner is designed for versatile cleaning across various surfaces, offering powerful suction and a lightweight, multi-functional design.

2. Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store the appliance indoors in a cool, dry area.

3. What's in the Box

Carefully unpack all components and check against the list below. If any items are missing or damaged, please contact customer support.

• 1x Vacuum Cleaner Main Body
• 1x Extension Wand (Stick)
• 1x Motorized Cleaner Head
• 1x Soft Dusting Brush
• 1x Crevice Tool
• 2x HEPA Filter (1 installed, 1 for replacement)
• 1x Detachable Battery
• 1x Charger
• 1x Cleaning Brush
• 1x Wall Dock
• Wall Screws with Plastic Expansion Anchor x 4
• 1x User Manual

Visual representation of all included components.

Detailed illustration of each accessory and main part.

4. Setup and Assembly

4.1 Assembling the Vacuum Cleaner

1. Attach the Extension Wand: Insert the top end of the extension wand into the main vacuum cleaner body until it clicks securely into place.
2. Attach the Motorized Cleaner Head: Insert the bottom end of the extension wand into the motorized cleaner head until it clicks securely into place.
3. Install the Battery: Align the detachable battery with the slot on the main vacuum cleaner body and slide it in until it locks. Ensure it is fully seated.

4.2 Charging the Battery

Before first use, fully charge the battery. The battery can be charged while attached to the vacuum or separately.

• Connect the charger to a power outlet and then to the charging port on the battery or the vacuum cleaner.
• A full charge takes approximately 4-5 hours. The indicator lights will show charging status.

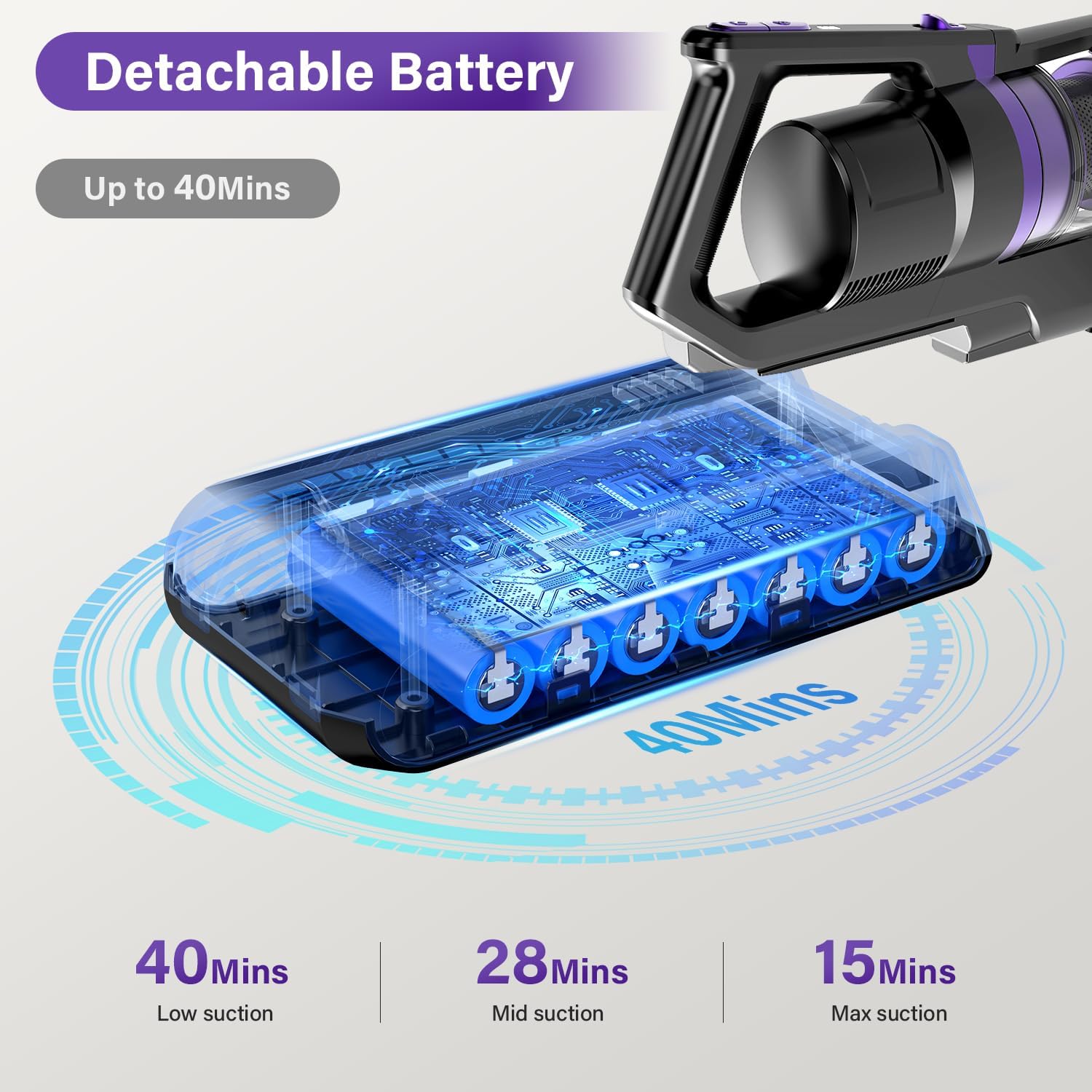

The detachable battery provides flexible charging options and up to 40 minutes of runtime.

4.3 Wall Dock Installation

The included wall dock provides convenient storage and charging. Choose a suitable location near a power outlet.

1. Mark the desired drilling points on the wall using the wall dock as a template.
2. Drill holes and insert the plastic expansion anchors.
3. Secure the wall dock to the wall using the provided screws.
4. Hang the vacuum cleaner on the dock for storage and charging.

5. Operating Instructions

5.1 Powering On/Off and Suction Modes

Press the power button to turn the vacuum on or off. The Tikom V700 features three suction levels:

• Low Suction (15Kpa): Up to 40 minutes runtime, suitable for light debris and delicate surfaces.
• Mid Suction (25Kpa): Up to 28 minutes runtime, for everyday cleaning.
• Max Suction (33Kpa): Up to 15 minutes runtime, for deep cleaning and stubborn dirt.

Press the mode button to cycle through the suction levels.

Choose from three powerful suction modes for various cleaning needs.

5.2 Using Attachments

The Tikom V700 comes with versatile attachments for different cleaning scenarios:

• Soft Dusting Brush: Ideal for delicate surfaces, furniture, and blinds.
• Crevice Tool: Perfect for narrow gaps, corners, and hard-to-reach areas.

These tools can be attached directly to the main vacuum body for handheld use or to the extension wand for extended reach.

The lightweight and multi-functional design allows for versatile cleaning.

5.3 Motorized Cleaner Head Features

• 180° Anti-tangle Roller Brush: The V-shaped roller brush effectively prevents hair from tangling, reducing maintenance.

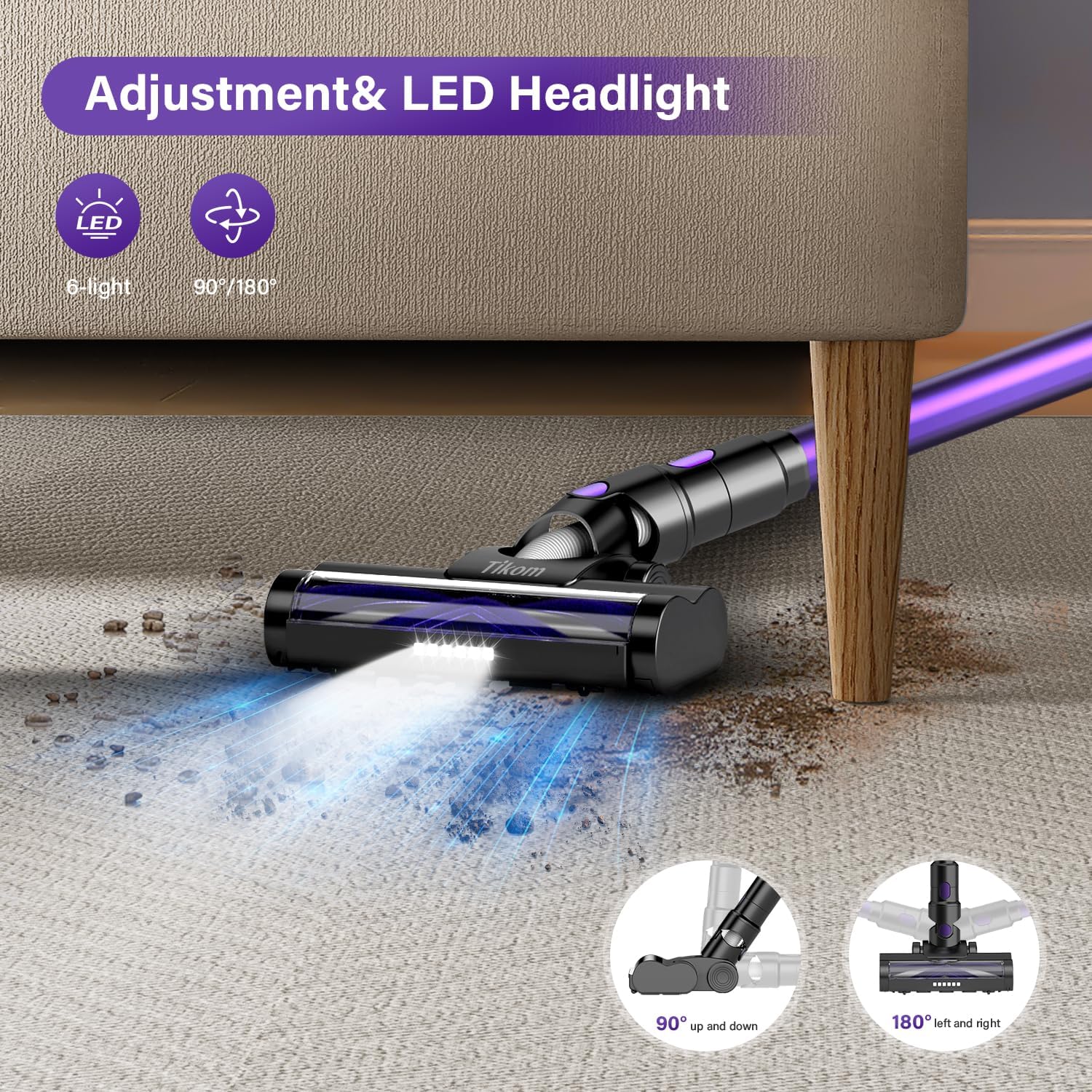

• 6 LED Lights: Illuminates dark areas under furniture or in corners, ensuring no dirt is missed.
• Flexible Maneuverability: The head rotates 180° horizontally and 90° vertically for easy navigation around obstacles.

The anti-tangle roller brush efficiently picks up various debris.

LED headlights and flexible head rotation enhance cleaning in dark and tight spaces.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

6.1 Emptying the Dust Cup

The 1.3L dust cup should be emptied regularly, especially when the MAX line is reached, to maintain suction power.

1. Hold the dust cup over a trash bin.
2. Press the dust cup release button to open the bottom flap and empty the contents.
3. Close the flap securely.

6.2 Cleaning the Filtration System

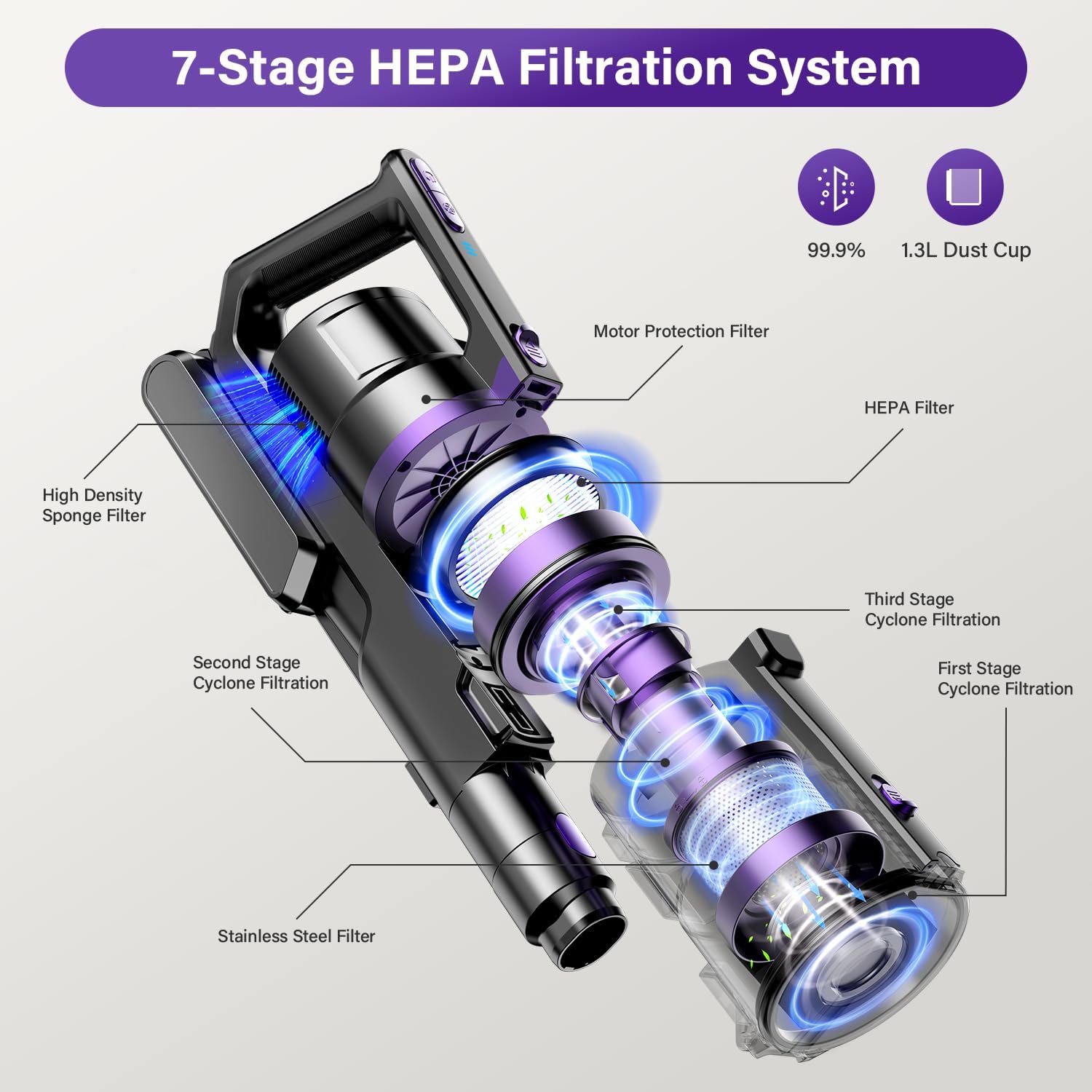

The Tikom V700 features a 7-stage HEPA filtration system that captures 99.9% of fine dust. The HEPA filter is washable and recyclable.

The advanced 7-stage HEPA filtration system ensures thorough air purification.

1. Twist and pull to remove the dust cup from the main body.
2. Remove the HEPA filter and other filter components from the dust cup.
3. Tap off loose dirt from the filters.
4. Rinse the HEPA filter and other washable components under cool running water until the water runs clear.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use a dryer or heat to dry.
6. Reassemble the filters and dust cup, ensuring all parts are correctly seated.

6.3 Cleaning the Roller Brush

Periodically check the roller brush for tangled hair or debris.

1. Turn off the vacuum and detach the motorized cleaner head.
2. Locate the brush roll release mechanism (usually a latch or button) and open it.
3. Remove the roller brush.
4. Use scissors or the included cleaning brush to cut and remove any tangled hair or fibers.
5. Clean any debris from the brush housing.
6. Reinsert the roller brush and secure the release mechanism.

7. Troubleshooting

If you encounter issues with your Tikom V700, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Tikom customer support for assistance.

8. Specifications

Detailed technical specifications for the Tikom V700 Cordless Vacuum Cleaner:

Product specifications as listed on the packaging.

9. Warranty & Support

Tikom products are manufactured to high-quality standards. For specific warranty details and terms, please refer to the warranty card included with your product or visit the official Tikom website. If you require technical support, have questions about your product, or need to claim warranty service, please contact Tikom customer support through the following channels:

• Official Website: Visit the Tikom official website for FAQs, support resources, and contact information.
• Customer Service Email: Refer to your product packaging or the official website for the dedicated customer service email address.
• Online Support: Some issues can be resolved by consulting online troubleshooting guides or contacting support via online chat (if available).

Please have your model number (V700) and purchase information ready when contacting support.
