Urbandi Modern Floating Shelves (Set of 2) - 36Lx3Hx8D Aged Oak Instruction Manual

1. Important Safety Information

WARNING: Always use a stud finder to ensure proper installation. Do not exceed the weight limit of 35 pounds per stud (70 pounds total for 2 studs). Overloading or improper installation may cause the shelf to collapse, leading to injury or property damage.

2. Package Contents

Your Urbandi Floating Shelves package includes the following items:

• 2 x Floating Shelves (36 inches long, 3 inches high, 8 inches deep, Aged Oak finish)
• Installation Bracket
• Screws
• Anchors

Tools Required for Installation (Not Included): Tape measure, Stud finder, Pencil, Level, Drill.

3. Product Overview and Dimensions

The Urbandi Modern Floating Shelves are handcrafted from pine boards, designed for durability and a rustic aesthetic. Each shelf is 3 inches thick and can support up to 35 pounds per stud, with a total weight capacity of 70 pounds when installed into two studs.

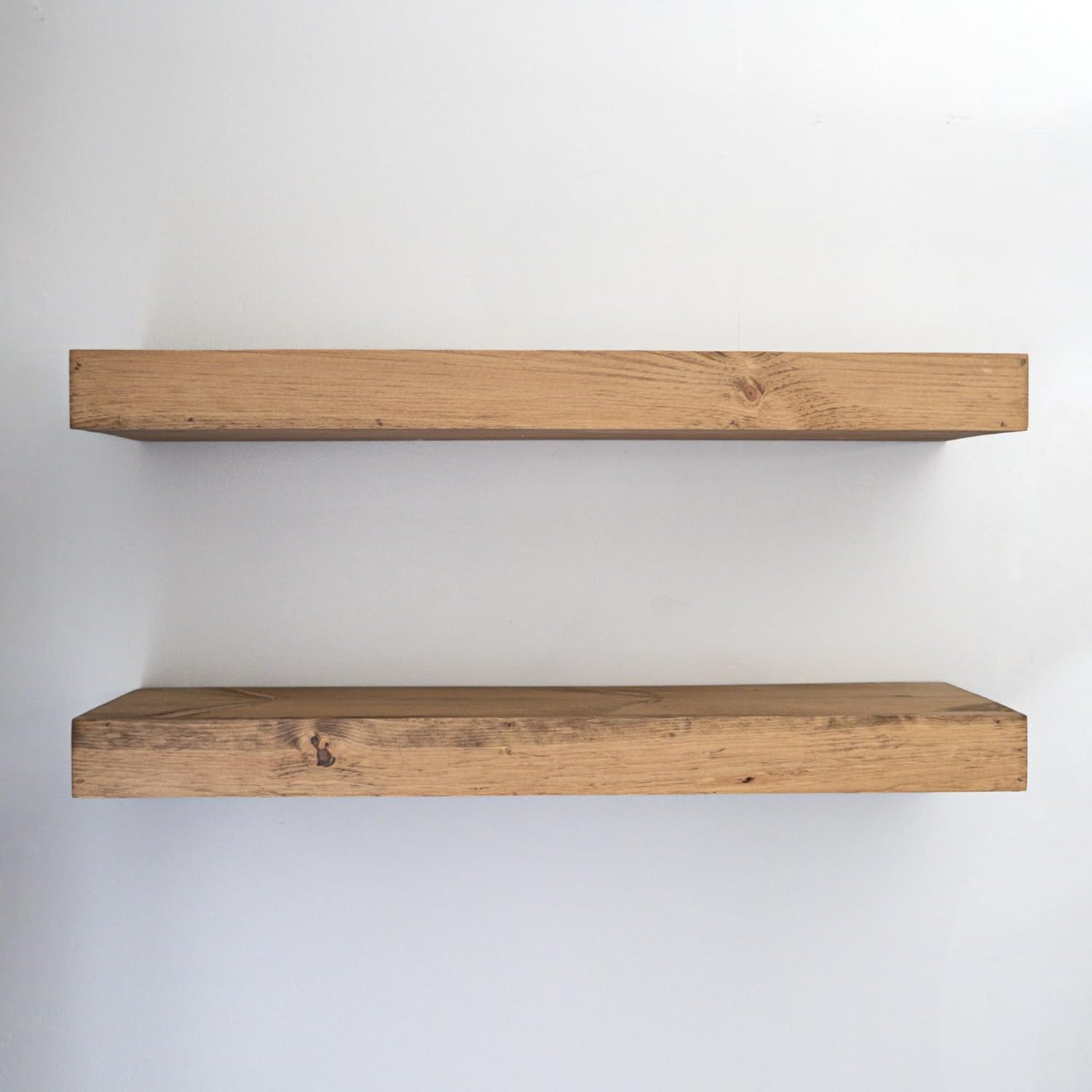

Figure 3.1: Two Urbandi Floating Shelves (Aged Oak)

This image shows two Urbandi floating shelves mounted on a wall, highlighting their thick profile and natural wood grain. The Aged Oak finish provides a warm, rustic appearance suitable for various interior designs.

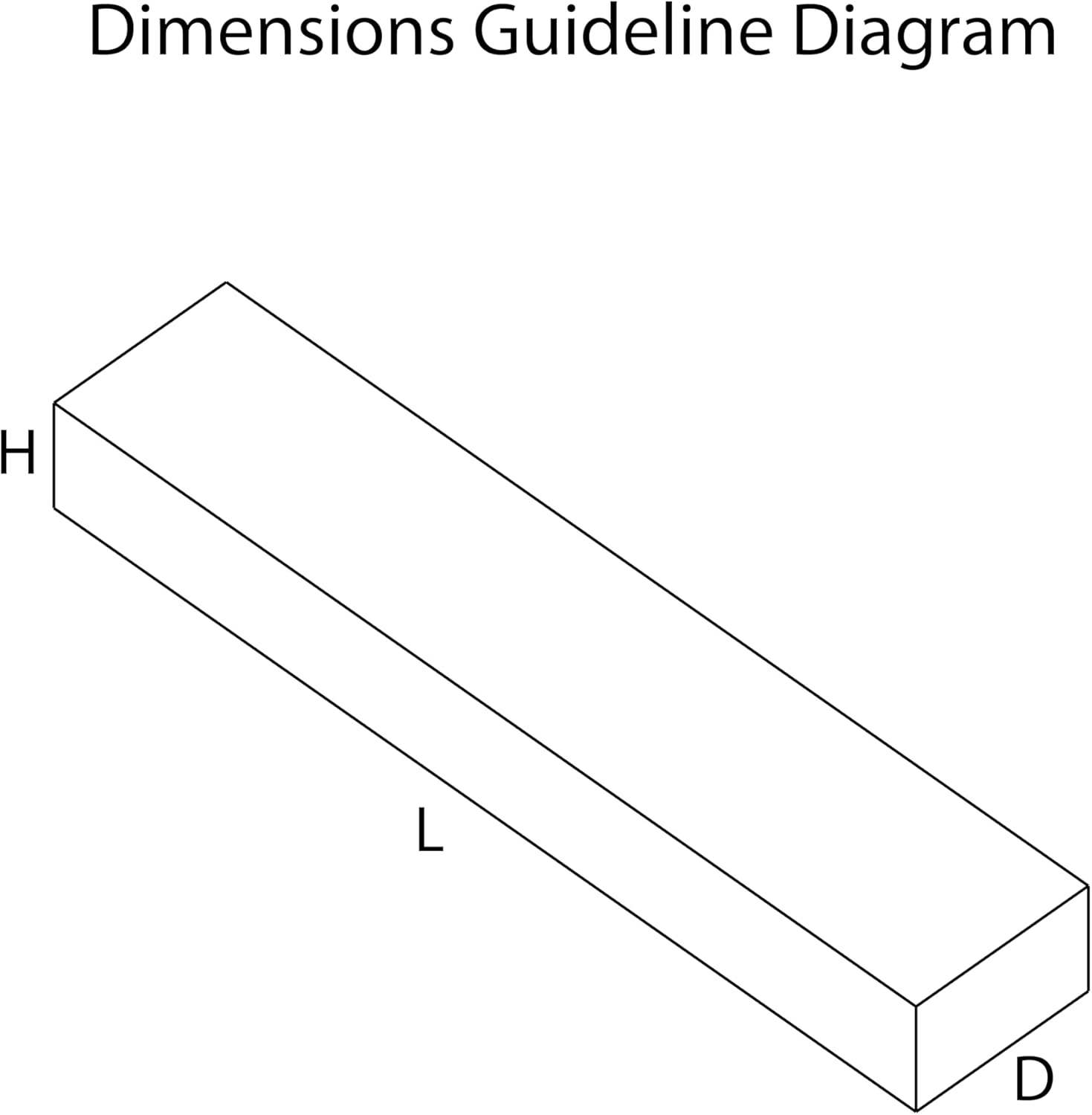

Figure 3.2: Dimensions Guideline Diagram

This diagram illustrates the key dimensions of the floating shelf: Length (L), Height (H), and Depth (D). For this model, L=36 inches, H=3 inches, and D=8 inches.

Note on Wood Variations: Each shelf is unique due to natural variations in wood grain, pattern, knots, and textures. The final product's color may appear slightly lighter or darker than samples shown, as each piece of wood absorbs stain differently.

Figure 3.3: Natural Wood Color Variations

This image displays various natural wood grain patterns and color tones, emphasizing that each Urbandi shelf possesses a distinct character due to the inherent properties of natural pine wood.

4. Installation Instructions

Follow these steps for a secure and effortless installation:

1. Remove the Support Bracket: Carefully remove the internal support bracket from the shelf. It is designed to fit snugly inside the shelf.
2. Locate Studs: Use a stud finder to locate wall studs where you intend to mount the shelf. Installation into studs is highly recommended for maximum weight capacity. If studs are not available, use appropriate wall anchors (included).
3. Attach the Support Bracket: Position the support bracket on the wall at your desired height. Use the provided screws to attach the bracket to the wall studs. Pre-drill screw holes in the support bracket where you intend to use screws. Ensure the support bracket is level before securing it completely. We recommend installing two screws into each stud.
4. Slide the Floating Shelf: Once the support bracket is securely mounted, carefully slide the floating shelf over the bracket. The shelf should fit snugly over the bracket, creating a seamless floating appearance.
5. Secure the Floating Shelf: For added security, pre-drill holes from the top of the shelf into the bracket, then secure the shelf to the bracket with screws.

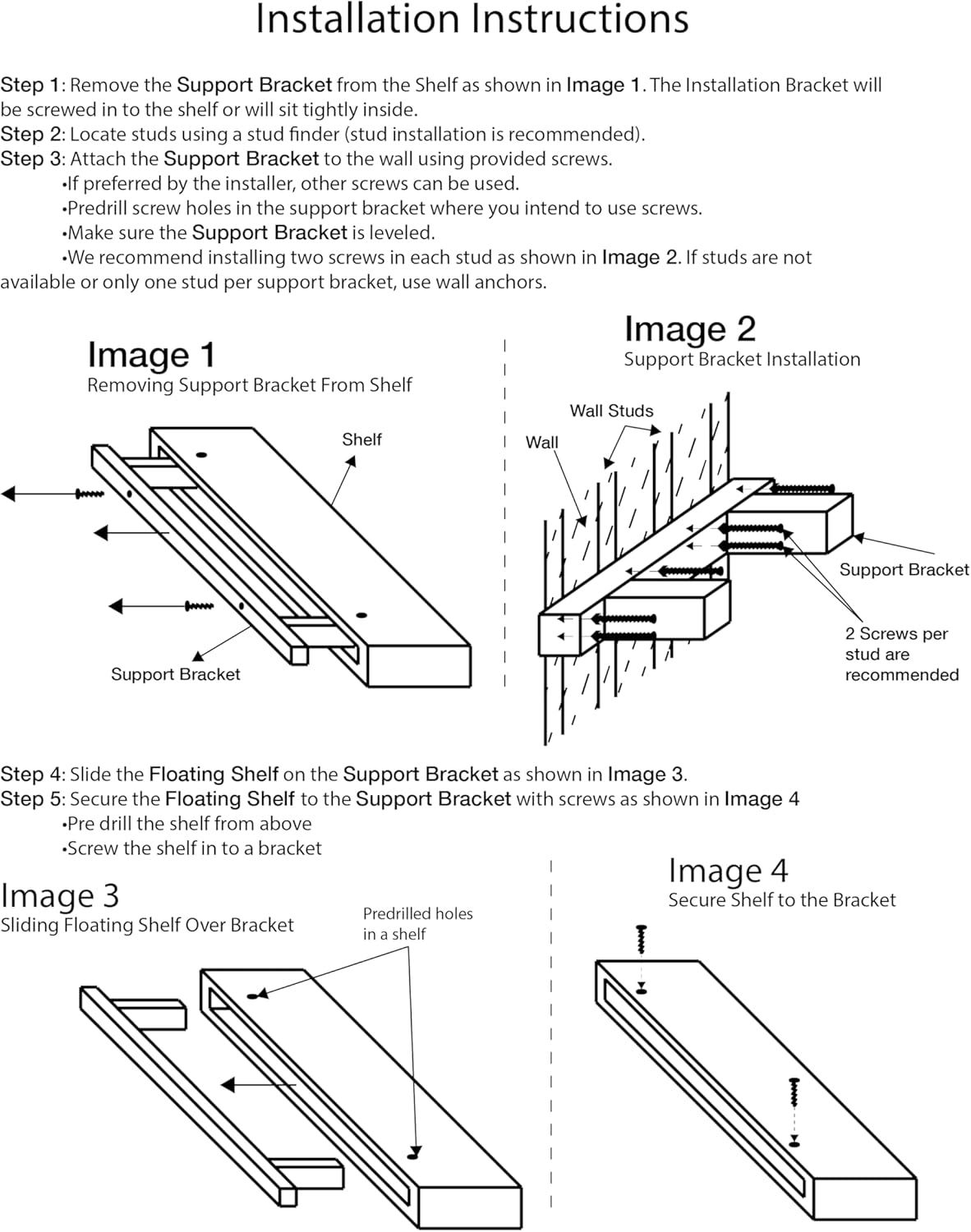

Figure 4.1: Installation Instructions Diagram

This diagram visually guides you through the installation process, from detaching the support bracket to securely mounting the shelf on your wall. It emphasizes the importance of stud placement for stability.

5. Usage and Applications

Urbandi Floating Shelves are versatile and suitable for various rooms and purposes. They can be used in:

• Kitchen: Display dishes, spices, or decorative items.
• Living Room: Showcase books, photos, or small decor.
• Bedroom: Organize personal items or add decorative accents.
• Bathroom: Store toiletries or towels (ensure proper ventilation for wood longevity).
• Hallway: Create a welcoming display or practical storage.

Remember to adhere to the maximum weight capacity of 70 pounds per shelf (when installed into two studs) to ensure safety and product longevity.

Figure 5.1: Shelves in Kitchen Application

This image demonstrates the use of Urbandi floating shelves in a kitchen setting, holding various dishes and decorative elements, showcasing their functional and aesthetic appeal.

Figure 5.2: Shelves in Living Room Application

Here, the floating shelves are used in a living room, displaying books, decorative items, and a candle, illustrating their ability to enhance home decor.

6. Care and Maintenance

To maintain the beauty and longevity of your Urbandi Floating Shelves:

• Cleaning: Wipe with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish.
• Moisture: While protected with polyurethane, it is recommended to hand wash items placed on the shelves and wipe up any spills immediately to prevent water damage.
• Weight Distribution: Distribute weight evenly across the shelf to prevent stress on the mounting hardware and the shelf itself.

7. Troubleshooting

8. Product Specifications

9. Warranty and Support

For any questions regarding your Urbandi Floating Shelves, including installation assistance, missing parts, or product concerns, please contact Urbandi customer support. Refer to your purchase documentation for specific warranty details and contact information.

You can also visit the official Urbandi store on Amazon for more information and support: Urbandi Amazon Store.
