Loisall Wooden House Bed with Trundle, Full Grey - Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Loisall Wooden House Bed with Trundle, Full Grey. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Loisall Wooden House Bed is designed to provide a functional and engaging sleeping solution, featuring a house-shaped frame, integrated storage shelves, and a pull-out trundle bed. It is constructed from plywood, pinewood, and MDF, ensuring stability and durability.

Image 1: The Loisall Wooden House Bed with Trundle in Full Grey, showcasing its house-shaped design, integrated shelves, and the pull-out trundle bed.

2. Safety Information

• Adult Assembly Required: This product requires adult assembly. Keep small parts away from children during assembly.
• Weight Capacity: The main bed has a weight capacity of 400 LBS. Do not exceed this limit.
• Mattress Thickness: Recommended mattress thickness for the main bed is 6 inches. Ensure the mattress fits properly.
• Secure All Fasteners: Ensure all bolts, screws, and connectors are securely tightened before use. Periodically check and re-tighten as necessary.
• Avoid Climbing: Do not allow children to climb on the roof structure or shelves, as this may cause injury or damage to the bed.
• Placement: Place the bed on a flat, level surface.
• Ventilation: The semi-enclosed design allows for airflow; however, ensure adequate room ventilation.

3. Package Contents

Your Loisall Wooden House Bed will arrive in two packages. Please verify all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

Package 1 (Sub-item 1: WF324647AAE)

• Main Bed Frame Components (e.g., side rails, headboard/footboard sections, roof beams)
• Hardware Pack 1 (bolts, screws, nuts, Allen wrench)

Package 2 (Sub-item 2: WF324648AAK)

• Trundle Bed Components
• Storage Shelf Components
• Slats for Main Bed and Trundle
• Hardware Pack 2 (additional fasteners)
• Assembly Instructions Manual

Note: The exact contents may vary slightly. Refer to the parts list provided within your physical instruction manual for precise details.

4. Assembly Instructions

Before you begin, ensure you have cleared a spacious area for assembly. It is recommended to have at least two adults for assembly. Do not use power tools for tightening fasteners, as this may overtighten and damage the wood.

4.1. Overview of Components and Dimensions

Image 2: Overall dimensions of the bed frame, including the main bed (74.4"L x 58"W x 72"H) and the pull-out trundle. This diagram illustrates the length, width, and height of the assembled bed, along with internal measurements for the shelves and trundle.

Image 3: Front view of the bed frame components, showing the main bed frame and the trundle frame separated. This image helps identify the major sections before assembly.

4.2. Step-by-Step Assembly

1. Assemble the Main Bed Frame:

   Begin by connecting the side rails to the headboard and footboard sections using the provided bolts and Allen wrench. Ensure all connections are snug but do not overtighten.



   Image 4: Side view of the bed frame, illustrating the connection points for the side rails and the structure of the house-shaped headboard/footboard.

2. Install Bed Slats:

   Place the wooden slats across the main bed frame. Secure them using the provided screws. Ensure even spacing for optimal mattress support.

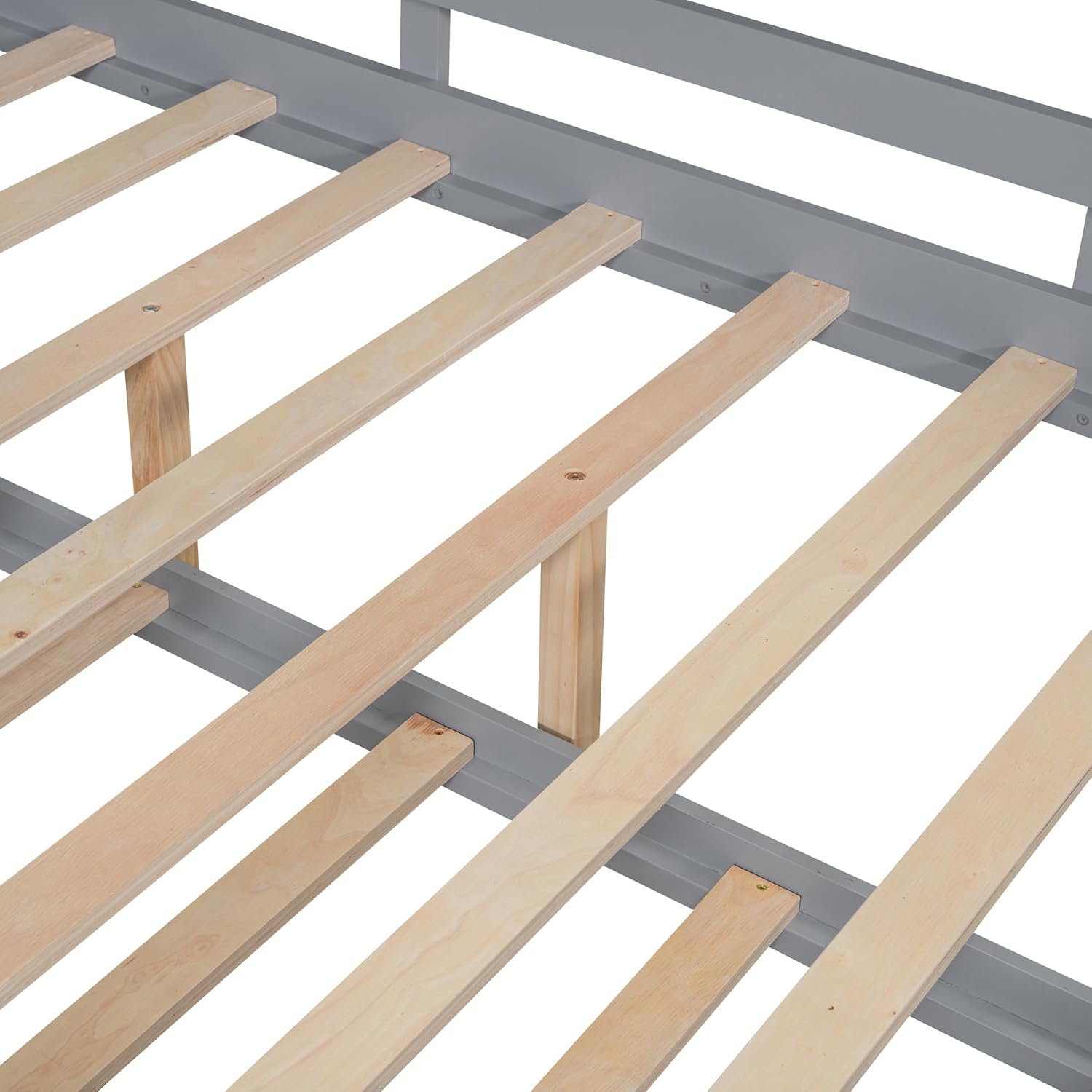

   Image 5: Detail of the wooden slats and their support structure within the main bed frame, showing how they are secured.
3. Assemble the Trundle Bed:

   Connect the trundle bed frame components. Attach the wheels to the bottom of the trundle frame. Install the trundle slats in the same manner as the main bed slats.



   Image 6: Detailed view of the trundle bed's wheels and the connection point to the main bed frame, highlighting the smooth pull-out mechanism.

4. Attach Storage Shelves and Roof:

   Mount the three storage shelves to the back of the bed frame as indicated in your physical manual. Then, attach the roof beams to complete the house structure.



   Image 7: A view of the bed showcasing the three integrated shelves at the back and the complete roof structure, ready for use.

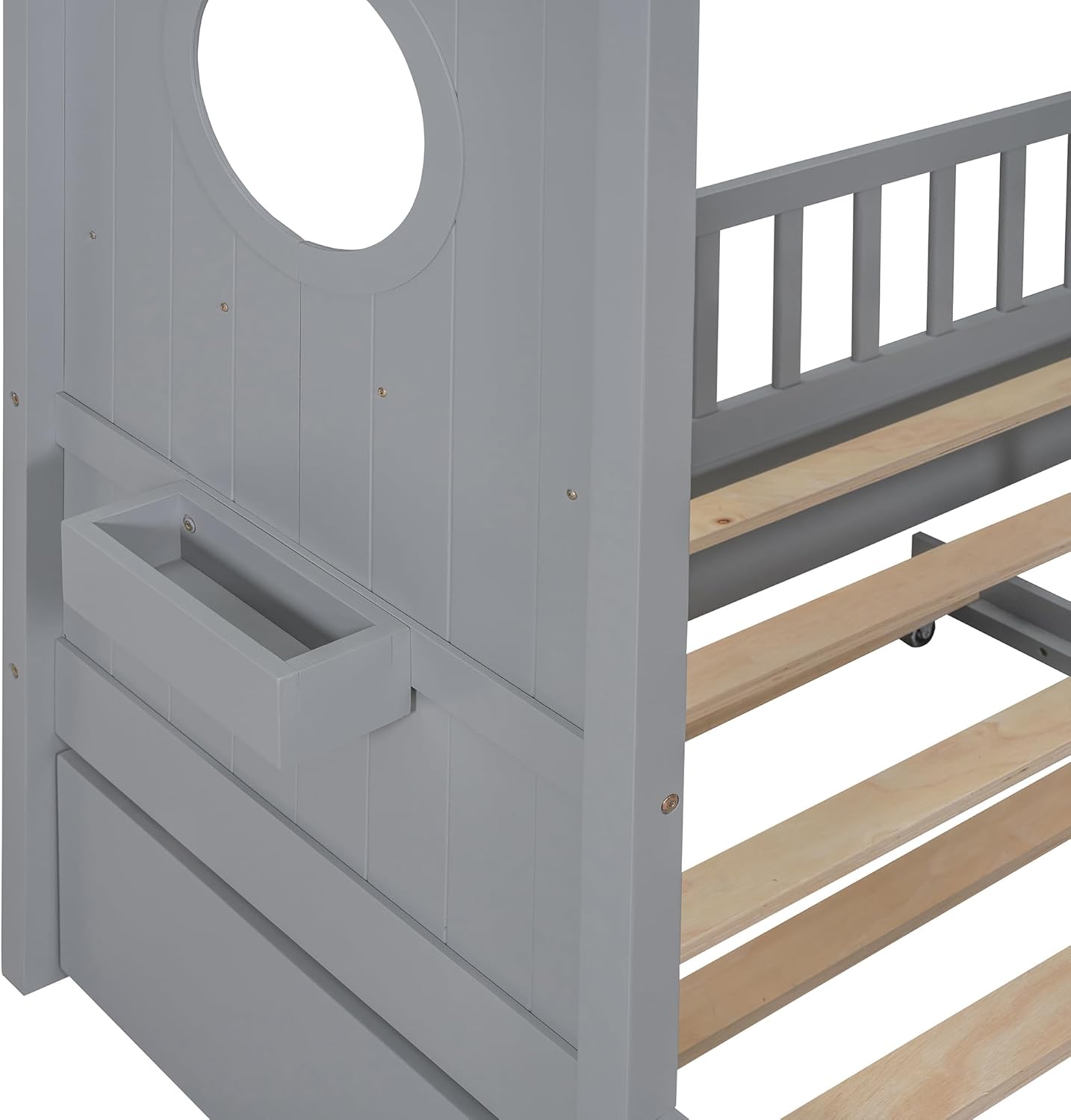

   Image 8: A detailed shot of the circular window feature and a small, attached storage box on the side panel of the house bed.

5. Final Check:

   Once all components are assembled, double-check that all fasteners are tight and the bed is stable. Place your mattress on the main bed and the trundle mattress (if applicable) on the trundle.

5. Operating Instructions

5.1. Using the Trundle Bed

The trundle bed is designed for easy access and storage. To use, gently pull the trundle frame out from under the main bed. The wheels will facilitate smooth movement. To store, push the trundle back under the main bed until it is fully recessed.

5.2. Utilizing Storage Shelves

The three shelves located at the back of the bed are suitable for lightweight items such as books, small toys, decorative items, or a clock. Avoid placing heavy objects on the shelves to prevent damage or instability.

6. Maintenance

• Cleaning: Wipe the bed frame with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish.
• Fastener Check: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if necessary.
• Avoid Moisture: Keep the bed away from excessive moisture or direct sunlight to prevent warping or fading of the wood.

7. Troubleshooting

• Bed feels wobbly after assembly:

  Ensure all bolts and screws are fully tightened. If the issue persists, disassemble and reassemble, carefully following each step to ensure all connections are correctly made.

• Trundle does not slide smoothly:

  Check for any obstructions under the bed. Ensure the trundle wheels are clean and free of debris. Verify that the trundle frame is assembled correctly and not warped.
• Missing parts:

  Refer to the package contents section and the parts list in your physical manual. If parts are genuinely missing, contact customer support with your purchase details.

8. Specifications

9. Warranty and Support

Loisall products are manufactured with quality and durability in mind. While specific warranty details are typically provided with your purchase documentation, general support for missing parts or damaged components is available.

If you encounter any issues with missing parcels, damaged parts, or require assistance with assembly, please contact Loisall customer support. We aim to respond to inquiries within 24 hours.

For further assistance, please refer to the contact information provided on your purchase receipt or the Loisall official website.
