Atyhao High Concentration Hydrogen Water Bottle User Manual

1. Introduction

Thank you for choosing the Atyhao High Concentration Hydrogen Water Bottle. This manual provides essential information for the safe and effective use of your new device. Please read it thoroughly before operation and keep it for future reference. This bottle is designed to infuse water with high concentrations of hydrogen, promoting healthy drinking water.

Image 1.1: The Atyhao High Concentration Hydrogen Water Bottle.

2. Product Features

• High Concentration Hydrogen Rich Water: Infuses water with up to 13520ppb of highly concentrated hydrogen.
• Advanced Electrolysis Technology: Produces pure hydrogen water by electrolyzing water without harmful substances like ozone or chlorine.
• Multifunctional Design: Features intelligent heating, constant temperature heating, and high hydrogen functions for enhanced user convenience.
• Elegant & Fashionable: Crafted from smooth PC material with a chic design and LED light effects.
• Convenient Charging: Equipped with a magnetic connector for easy charging and a bottom vent for exhaust gas release.

Image 2.1: Key components of the Atyhao Hydrogen Water Bottle, including food-grade PC material, colorful lighting, LED display, platinum titanium electrode, and one-key start button.

Image 2.2: Detail of the bottom exhaust vent, which removes exhaust gases during the electrolysis process.

3. Package Contents

Please check the package to ensure all items are present:

• 1 x Hydrogen Water Bottle
• 1 x Connection Cable (USB magnetic charging cable)
• 2 x Seal Rings
• 1 x Storage Bag

Image 3.1: All items included in the product package.

4. Specifications

Image 4.1: Product dimensions for the Atyhao Hydrogen Water Bottle.

5. Setup

Before first use, ensure the bottle is fully charged and clean.

5.1 Initial Charging

Connect the provided USB magnetic charging cable to a 5V power source. Align the magnetic head of the USB cable with the magnetic charging port on the cup holder. The display will indicate charging. Once fully charged, the display will disconnect, and you should then disconnect the power supply.

Image 5.1: The magnetic charging port located at the base of the bottle.

5.2 Filling with Water

Unscrew the top cap of the bottle. Fill the cup with a suitable amount of drinking water. Ensure the water temperature is appropriate (not excessively hot or cold) for optimal performance. Do not overfill.

Image 5.2: Illustrates the process of filling the bottle with water.

6. Operating Instructions

Once the bottle is filled with water and charged, you can begin the hydrogen production process.

1. Start Electrolysis: Tap the power start button once to initiate the electrolytic hydrogen production program. A short beep will sound, and the LED lights will illuminate.
2. Select Duration:
   • Press the button once for a 5-minute hydrogen production cycle.
   • Press the button twice for a 10-minute hydrogen production cycle.
3. Cycle Completion: The display will show a countdown. Upon completion of the hydrogen production cycle, the device will emit a beep, beep prompt, and the display will power off.

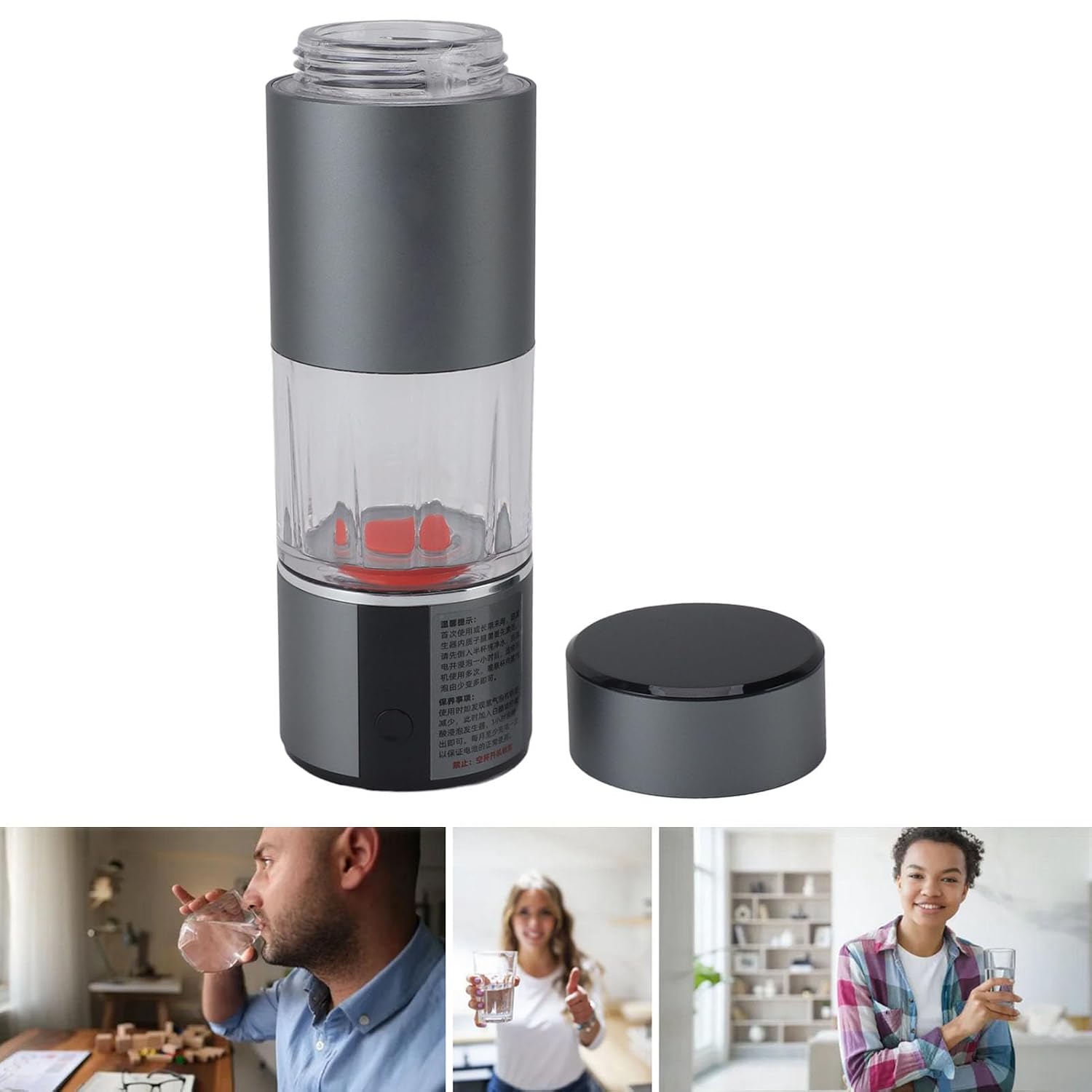

Image 6.1: The hydrogen water bottle ready for use, with examples of people enjoying hydrogen-rich water.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your hydrogen water bottle.

7.1 Cleaning

The bottle features a full-body washable design for easy cleaning. After each use, rinse the bottle thoroughly with clean water. For deeper cleaning, disassemble the components as needed and wash with mild soap and water. Ensure all parts are dry before reassembly.

Image 7.1: The bottle is designed for easy cleaning and is waterproof.

7.2 Storage

When not in use, store the bottle in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the bottle is clean and dry before storing.

8. Troubleshooting

If you encounter any issues with your Atyhao Hydrogen Water Bottle, please refer to the following common solutions:

• Device not turning on: Ensure the battery is fully charged. Connect the magnetic charging cable and check if the charging indicator lights up.
• No hydrogen production: Verify that the bottle contains sufficient water and that the electrodes are clean. Ensure the device is properly assembled.
• Abnormal sounds or smells: Discontinue use immediately. Check for any foreign objects or damage.

If the problem persists after attempting these solutions, please contact Atyhao customer support for further assistance.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Atyhao website. Keep your proof of purchase for any warranty claims.

Manufacturer: Atyhao

Model Number: Atyhaonag68c9ptd-11
