1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Candy SmartPro 2-in-1 Washer Dryer, model CSOW41066TMBRZ19. Please read these instructions carefully before using the appliance and retain them for future reference.
Your Candy SmartPro washer dryer combines a 10 kg washing capacity with a 6 kg drying capacity, featuring an inverter motor for efficient and quiet operation. It includes smart connectivity options via Wi-Fi and Bluetooth for enhanced control.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the appliance is properly grounded.
- Do not allow children to play with or operate the appliance.
- Keep packaging materials out of reach of children.
- Do not install or store the appliance where it will be exposed to the weather.
- Never force the door open during operation.
- Unplug the appliance before performing any maintenance or cleaning.
- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. It is crucial to remove all transit bolts from the rear of the machine before use. Failure to do so can cause severe damage to the appliance.
3.2 Location
Place the washer dryer on a firm, level surface. Adjust the feet to ensure stability and prevent vibration. Ensure adequate ventilation around the appliance.
3.3 Water Connection
Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the hose is securely tightened to prevent leaks. Position the drain hose into a standpipe or sink, ensuring it is not kinked or obstructed.
3.4 Electrical Connection
Connect the power cord to a properly grounded 220V electrical outlet. Do not use extension cords or adapters. Ensure the voltage and frequency match the specifications on the appliance rating plate.

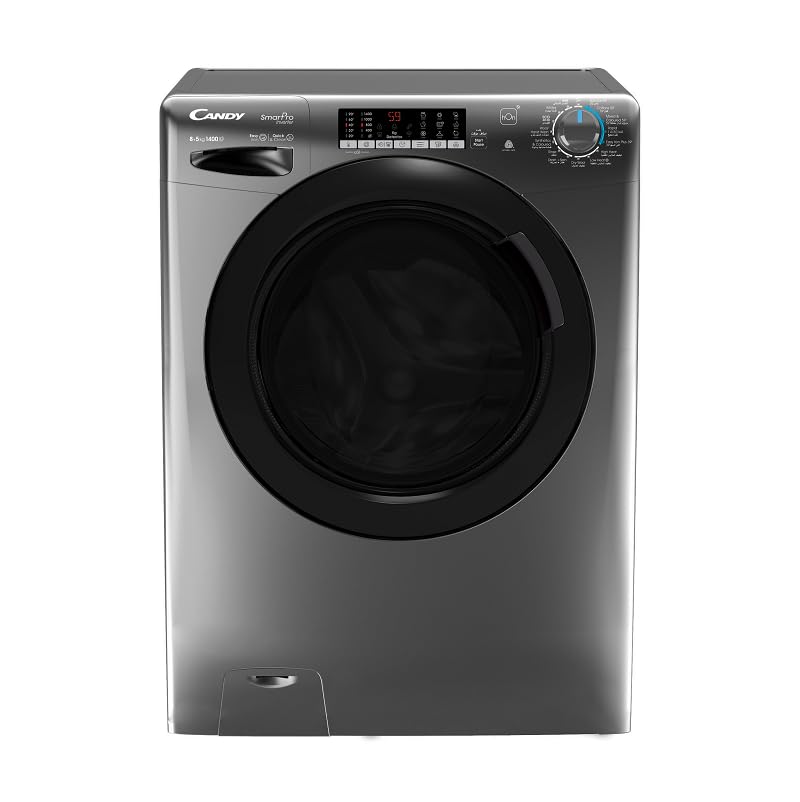

Image: Front view of the Candy SmartPro Washer Dryer. This image shows the overall design of the appliance, including the front-loading door, control panel, and detergent drawer.
4. Operating Instructions
4.1 Control Panel Overview
The control panel features a program selector dial, a 6-digit digital display, and various function buttons. The display shows program duration, error codes, and selected options.
Image: Close-up of the Candy SmartPro Washer Dryer control panel. This image highlights the program dial, digital display, and function buttons for cycle selection and customization.
4.2 Loading Laundry
Open the door and load laundry into the drum. Do not overload the machine; refer to the program guide for maximum load capacities (10 kg for washing, 6 kg for drying). Close the door firmly.
4.3 Adding Detergent
Pull out the detergent drawer. Add appropriate amounts of detergent and fabric softener to the designated compartments. Close the drawer gently.
4.4 Selecting a Program
Turn the program selector dial to choose one of the 16 available washing programs. The digital display will show the estimated cycle time. Use the function buttons to select additional options such as spin speed, temperature, or drying mode (3 distinct drying modes available).
- Specialized Cycles: Includes options like Mixed Colors and Easy Iron Plus.
- Quick Programs: Features 7 quick programs, including a 'Special 49 minutes' cycle.
- Woolmark Approved Drum: Ensures gentle care for delicate garments.
4.5 Starting a Cycle
Press the Start/Pause button to begin the selected program. The machine will automatically lock the door (secure door lock feature).
4.6 Smart Connectivity (Wi-Fi + Bluetooth)
Your SmartPro washer dryer can be controlled via a mobile application. Download the Candy SmartPro app on your smartphone. Follow the in-app instructions to connect your appliance using Wi-Fi or low-energy Bluetooth for remote control and monitoring.
4.7 Delay Start Function
To delay the start of a cycle, press the Delay Start button repeatedly to set the desired delay time (up to 24 hours). This allows for flexible scheduling of your laundry.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
5.1 Cleaning the Detergent Dispenser
Periodically remove and clean the detergent drawer to prevent residue buildup. Rinse it under running water and reinsert it.
5.2 Cleaning the Drum
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) every few months to clean the drum and remove any odors or residue.
5.3 Cleaning the Filter
Locate the filter at the bottom front of the machine. Open the cover, place a shallow container underneath to catch water, and carefully unscrew the filter. Clean any lint or debris and screw it back in securely.
5.4 Exterior Cleaning
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power, door not closed, program not selected. | Check power supply, ensure door is latched, select a program and press start. |
| Excessive vibration | Transit bolts not removed, uneven load, unstable feet. | Remove transit bolts, redistribute laundry, adjust leveling feet. |
| Water not draining | Drain hose kinked/blocked, filter clogged. | Check drain hose for kinks, clean the pump filter. |
| Poor washing results | Overloading, incorrect detergent, wrong program. | Reduce load, use appropriate detergent, select correct program. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | CANDY |
| Model Number | CSOW41066TMBRZ19 |
| Product Dimensions (D x W x H) | 58 cm x 60 cm x 85 cm |
| Item Weight | 45 kg |
| Washing Capacity | 10 kg |
| Drying Capacity | 6 kg |
| Maximum Spin Speed | 1400 RPM |
| Loading Type | Front Load |
| Special Features | Smart Connectivity (Wi-Fi, Bluetooth), Inverter Motor, Washer and Dryer Functionality |
| Number of Washing Cycles | 16 |
| Number of Drying Cycles | 3 |
| Voltage | 220 Volts |
| Wattage | 1450 Watts |
| Drum Material | Stainless Steel |
| Energy Efficiency Class (EU 2010/30/EC) | A |
8. Warranty and Support
Your Candy SmartPro Washer Dryer is covered by a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or to schedule a service appointment, please contact Candy customer support. Contact information can typically be found on the manufacturer's website or in the documentation included with your purchase.
