Merax Wood Captain's Platform Storage Bed with 3 Drawers, Twin, White - Instruction Manual
Model: HA1113
Introduction
Welcome to your new Merax Wood Captain's Platform Storage Bed. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and proper use of your new bed frame. Please read this manual thoroughly before beginning assembly or use.
Important Safety Information
Adhering to these safety guidelines is crucial for preventing injury and damage to the product.
- Do not exceed a weight limit of 200 pounds on the bed frame.
- Always follow assembly instructions carefully to prevent instability.
- Be cautious of sharp edges during assembly.
- Two people are recommended for assembly to ensure safety and ease.
- Ensure all connections are securely tightened before use.
Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Merax customer support.
- Twin Bed Frame Components
- 3 Storage Drawers
- All necessary Tools for assembly
- Hardware (screws, fasteners, etc.)
Setup and Assembly
Assembly is required for this product. Please read all instructions thoroughly before starting. It is recommended that two people assemble this bed.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify all parts using the provided numbered diagrams and hardware list.
- Begin by assembling the main bed frame structure. Ensure all connections are secure and tightened appropriately.
- Install the pine wood slats onto the bed frame. Ensure they are properly spaced and secured to provide adequate mattress support.
- Assemble the three storage drawers according to the instructions, attaching the knobs securely.
- Insert the assembled drawers into the designated spaces beneath the bed frame.
- Once assembled, gently move the bed to its desired location.
Image: Fully assembled Merax Captain's Bed in white, with three storage drawers partially open, showcasing the storage capacity. The bed is styled with bedding and pillows in a room setting.
Image: Front view of the Merax Captain's Bed with all three storage drawers closed, presenting a clean and integrated look. The bed is made up with bedding.
Operating Instructions
The Merax Captain's Platform Storage Bed is designed for straightforward use.
Using the Storage Drawers
- To open a drawer, gently pull the knob located on the front of the drawer.
- To close a drawer, push it back into the bed frame until it is flush with the frame.
- Avoid overloading the drawers to ensure smooth operation and prevent damage to the drawer slides or frame.

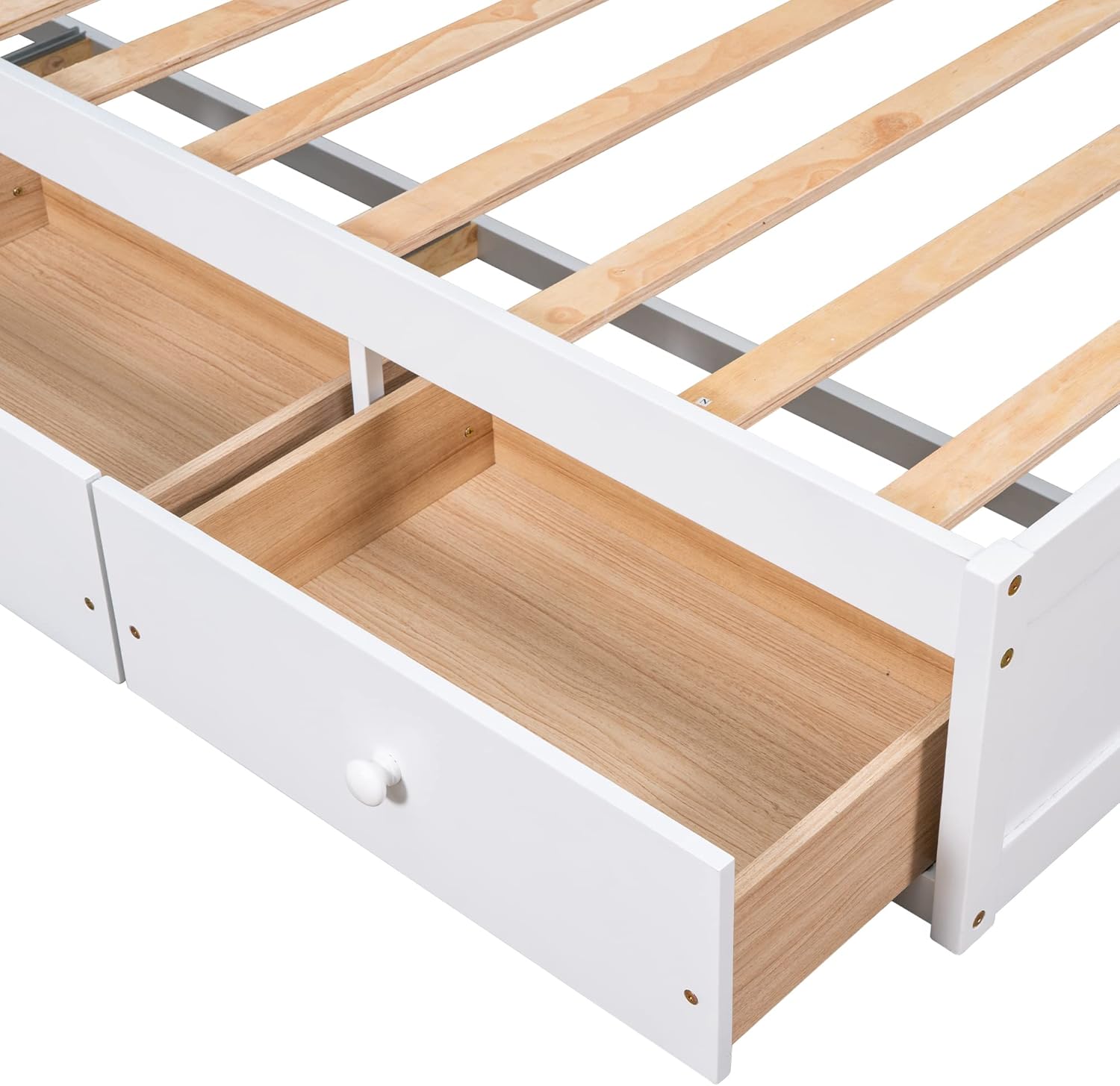

Image: The Merax Captain's Bed with one of its three storage drawers open, displaying various items neatly stored within, demonstrating its practical use.
Maintenance
Proper care will extend the life and appearance of your Merax bed frame.
- For general cleaning, wipe the surface with a dry cloth.
- For more thorough cleaning, wipe with a damp cloth, then immediately follow with a dry cloth to remove any moisture.
- Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish.
- Periodically check all hardware connections and tighten if necessary to maintain stability.
Troubleshooting
This section addresses common issues you might encounter during assembly or use.
Bed Slats Issues
- Slats appear too short or cause splintering: Ensure side rails are fully pushed together and secured according to instructions. If splintering occurs during screw insertion, pre-drilling small pilot holes (smaller than the screw diameter) can help prevent wood splitting. Contact customer support if slats are genuinely mis-sized or damaged.
Instability or Wobbling
- Verify that all screws and fasteners are securely tightened.
- Ensure the bed is placed on a level surface.
- Re-check assembly steps to confirm all parts are correctly installed.
Specifications
| Feature | Detail |
|---|---|
| Brand | Merax |
| Model Number | HA1113 |
| Size | Twin with Drawers |
| Color | White |
| Product Dimensions | 77.9"L x 41.8"W x 14.1"H |
| Item Weight | 72.8 pounds |
| Weight Limit | 200 pounds |
| Material | Wood (Pine wood slats) |
| Assembly Required | Yes |
| Included Components | 3 Drawers, All Tools, Hardware, Twin Bed Frame |
| Compatible Mattress Size | Twin |
| Special Features | Classic design, Durable, Modern, No Box Spring Needed, Premium |
Image: Technical drawing illustrating the overall dimensions of the Merax Captain's Bed (77.9"L x 41.8"W x 14.1"H) and detailed drawer dimensions (e.g., 25.1"L x 19.1"W x 8.3"H for drawer face, 22.6"L x 4.9"H for drawer interior).
Customer Support
For assistance with assembly, missing parts, or any other inquiries regarding your Merax Wood Captain's Platform Storage Bed, please contact Merax customer support. Refer to your purchase documentation for specific contact details or visit the official Merax website for support information.
