RAF R.6676 Multifunctional Stand Mixer User Manual

1. Introduction

Thank you for purchasing the RAF R.6676 Multifunctional Stand Mixer. This appliance is designed to assist with various kitchen tasks, including mixing, kneading, blending, and meat grinding. To ensure safe and efficient operation, please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not immerse the motor unit, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter.
• Do not let the cord contact hot surfaces, including the stove.
• Always operate the mixer on a flat, stable surface.
• Ensure the appliance is switched off before changing accessories or approaching parts that move in use.

3. Product Overview and Components

The RAF R.6676 is a versatile kitchen appliance designed for various food preparation tasks. It includes a main stand mixer unit, a stainless steel mixing bowl, and multiple attachments for different functions.

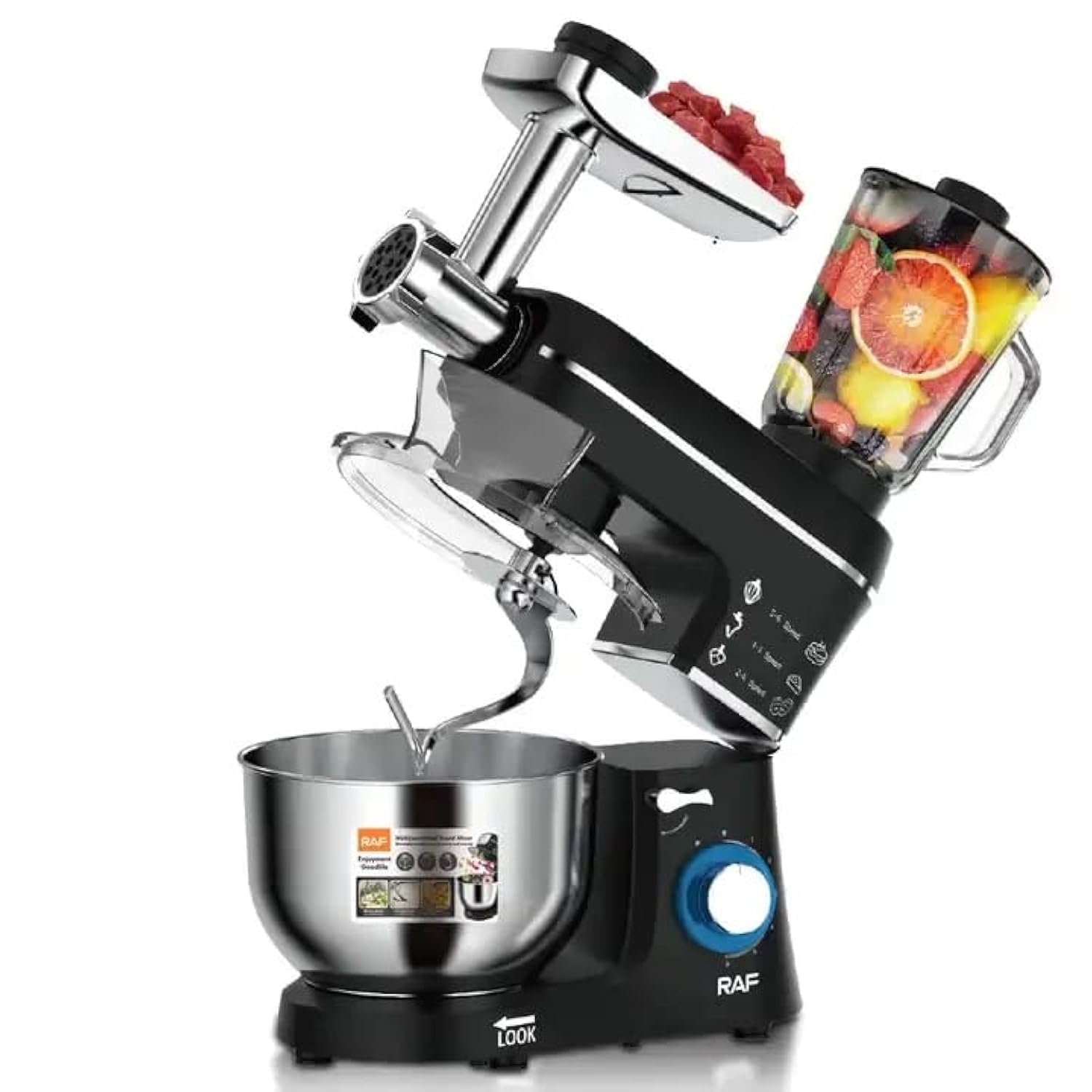

Image 1: The RAF R.6676 Multifunctional Stand Mixer shown with all its primary attachments, including the mixing bowl, dough hook, whisk, beater, meat grinder, and blender.

Main Components:

• Motor Unit: The main body housing the motor and speed control.
• Mixing Bowl: 10-liter capacity stainless steel bowl.
• Tilt-Head Release Button: For lifting the motor head.
• Speed Control Dial: Adjusts mixing speed (0-6 speeds with pulse function).
• Power Cord: For connecting to an electrical outlet.

Attachments:

• Dough Hook: For kneading heavy doughs (e.g., bread, pizza).
• Whisk: For whipping eggs, cream, and light batters.
• Beater: For mixing medium to heavy batters (e.g., cakes, cookies).
• Blender Attachment: For blending liquids, smoothies, and sauces.
• Meat Grinder Attachment: For grinding various types of meat.

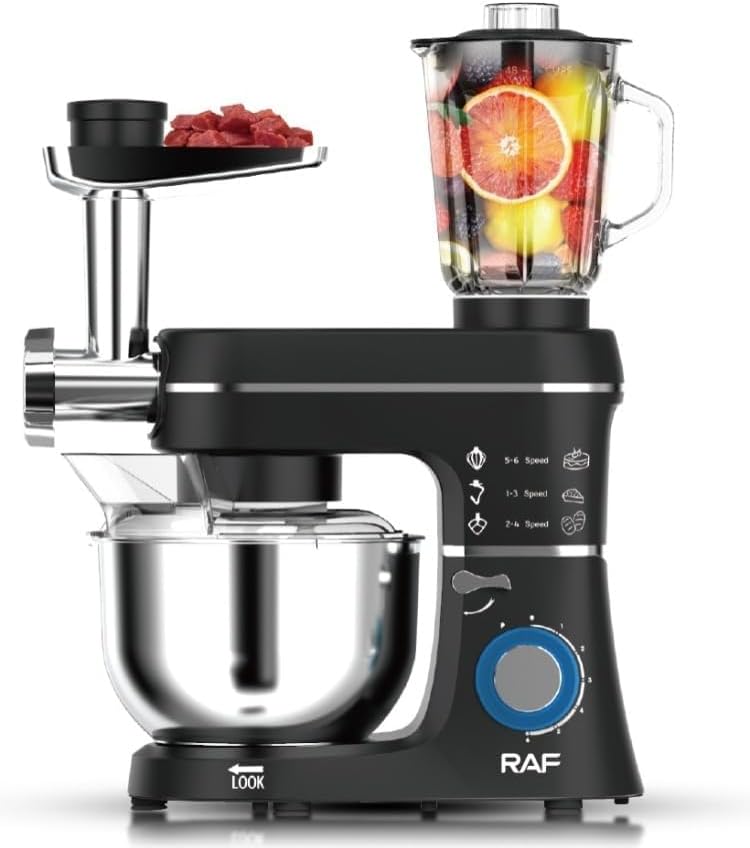

Image 2: The stand mixer configured with the blender attachment on top and the meat grinder attachment on the front port.

4. Setup

Before initial use, clean all parts that will come into contact with food. Ensure the mixer is unplugged from the power outlet.

4.1 Assembling the Stand Mixer:

1. Place the motor unit on a clean, dry, and stable surface.
2. Press the tilt-head release button and lift the motor head until it locks into place.
3. Place the stainless steel mixing bowl onto the base, turning it clockwise until it locks securely.
4. Select the desired attachment (dough hook, whisk, or beater). Insert the attachment into the shaft and turn it counter-clockwise until it locks.
5. Lower the motor head by pressing the tilt-head release button and gently pushing the head down until it clicks into place.

4.2 Assembling the Blender Attachment:

1. Ensure the blender jar is securely assembled with its blade and lid.
2. Remove the cover from the top port of the motor unit.
3. Place the blender jar onto the top port, aligning the grooves, and turn clockwise to lock it.

4.3 Assembling the Meat Grinder Attachment:

1. Assemble the meat grinder components (auger, blade, grinding plate, locking ring).
2. Remove the cover from the front port of the motor unit.
3. Insert the assembled meat grinder into the front port, aligning the drive shaft, and turn the locking knob clockwise to secure it.

5. Operating Instructions

Always ensure the appliance is properly assembled and securely locked before operation. Plug the power cord into a 220V, 50Hz electrical outlet.

5.1 Using the Stand Mixer (Dough Hook, Whisk, Beater):

1. Add ingredients to the mixing bowl.
2. Ensure the motor head is lowered and locked.
3. Turn the speed control dial to the desired speed setting (1-6). Start with a low speed and gradually increase as needed.
4. For short bursts of power, use the 'P' (Pulse) setting.
5. When finished, turn the speed dial to '0' and unplug the appliance.
6. Press the tilt-head release button to lift the motor head and remove the attachment and bowl.

5.2 Using the Blender Attachment:

1. Ensure the blender jar is securely attached to the top port.
2. Add ingredients to the blender jar. Do not exceed the maximum fill line.
3. Securely place the lid on the blender jar.
4. Turn the speed control dial to the desired blending speed (typically higher speeds or 'P' for pulse).
5. Blend until desired consistency is achieved.
6. Turn the speed dial to '0' and unplug the appliance before removing the blender jar.

5.3 Using the Meat Grinder Attachment:

1. Ensure the meat grinder is securely attached to the front port.
2. Cut meat into small pieces that fit into the feeding tube.
3. Place a bowl under the grinder outlet to collect the ground meat.
4. Turn the speed control dial to a medium speed (e.g., 3-4).
5. Feed meat into the tube using the food pusher. Never use your fingers or other utensils.
6. After grinding, turn the speed dial to '0' and unplug the appliance before disassembling.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your appliance. Always unplug the mixer before cleaning.

6.1 Motor Unit:

• Wipe the exterior of the motor unit with a damp cloth. Do not immerse in water.
• Do not use abrasive cleaners or harsh chemicals.

6.2 Mixing Bowl and Attachments (Dough Hook, Whisk, Beater):

• Wash the stainless steel mixing bowl and attachments in warm, soapy water.
• Rinse thoroughly and dry immediately to prevent water spots or corrosion.
• These parts may be dishwasher safe, but hand washing is recommended for longevity.

6.3 Blender Attachment:

• Disassemble the blender jar, blade, and lid.
• Wash all parts in warm, soapy water. Use a brush for thorough cleaning of the blades.
• Rinse and dry completely.

6.4 Meat Grinder Attachment:

• Disassemble all parts of the meat grinder immediately after use.
• Wash all components in warm, soapy water. Use a brush to remove any food residue.
• Rinse thoroughly and dry immediately. Stainless steel parts should be dried completely to prevent rust.

7. Troubleshooting

If you encounter any issues with your RAF R.6676 Stand Mixer, please refer to the following common problems and solutions:

8. Specifications

Below are the technical specifications for the RAF R.6676 Multifunctional Stand Mixer:

9. Warranty and Support

9.1 Warranty Information:

This RAF R.6676 Multifunctional Stand Mixer comes with an International Warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Customer Support:

For technical assistance, spare parts, or any questions regarding the operation or maintenance of your appliance, please contact your local RAF authorized service center or the retailer from whom you purchased the product. Contact information can typically be found on the product packaging or the official RAF website.
